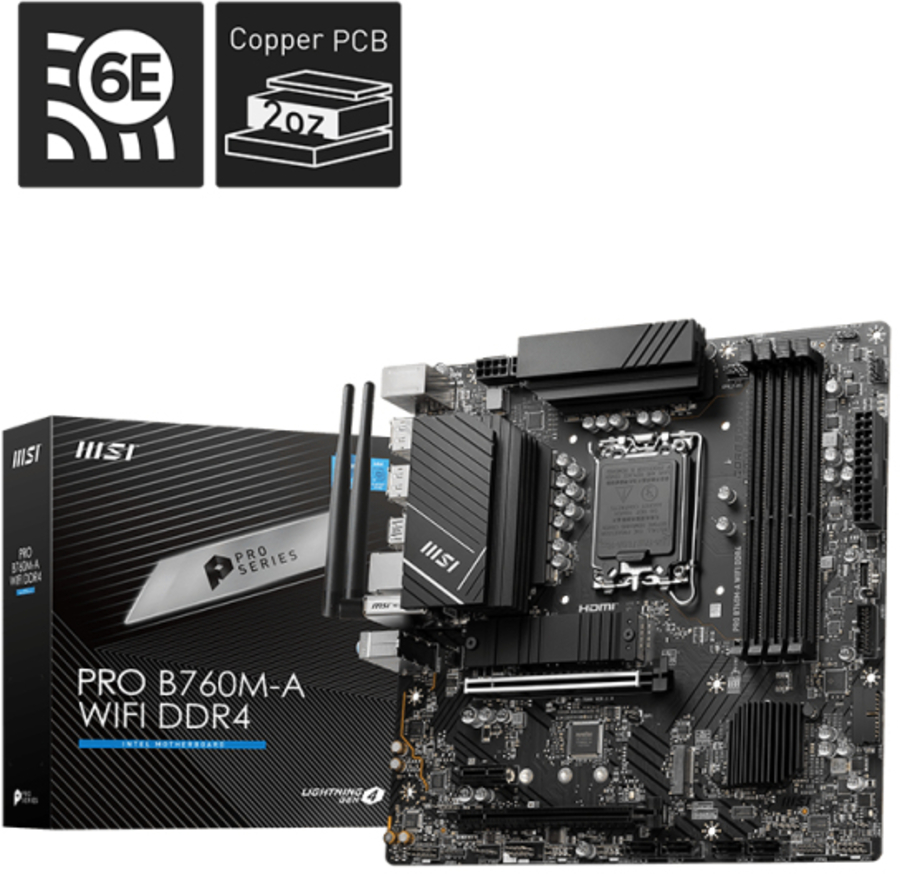

MSI PRO B760M-A WIFI DDR4 S1700 mATX Mainboard
|
|
Price: $244.00
Manufacturer:
MSI
mATX, LGA 1700, Intel B760 chipset, 4x DDR4, 7.1-ch audio, Wi-Fi 6E, Bluetooth 5.3
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58862243
|
PROB760MAWID4
|
824142305973 |
Active
|
Details
|
General Information |
|
Summary |
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
HARDWARE
Cooling Overview
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
12+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
PERFORMANCE
Lightning Gen 4 PCI-e with Steel Armor
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
DDR4 Memory Solution
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
- XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.
- VMD (Volume Management Device)
Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
- M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
- HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
- MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
- SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
System Safety
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
Connectivity
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium® D, Intel® Pentium® Dual-Core, Intel® Pentium® Extreme Edition, Intel Pentium G, Intel® Pentium® Gold, Intel® Pentium® III, Intel® Pentium® M |
|
Maximum number of SMP processors |
1 |
|
Supported processor sockets |
LGA 1700 |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
Non-ECC |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, PCI Express, SATA |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Internal I/O |
|
USB 2.0 connectors |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
7 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
2 |
|
Number of SATA connectors |
4 |
|
Audio connector |
Yes |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
1 |
|
Chassis intrusion connector |
Yes |
|
EPS power connector (8-pin) |
Yes |
|
TPM connector |
Yes |
|
RGB LED pin header |
Yes |
|

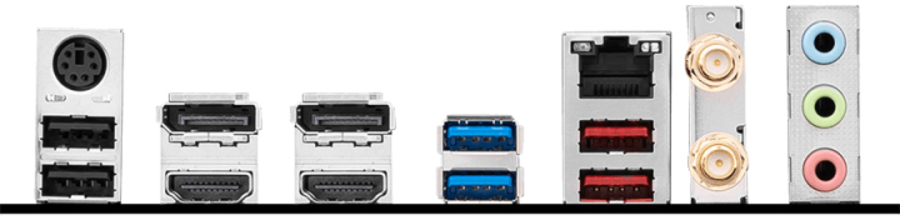

Rear panel I/O ports |
|
USB 2.0 ports quantity |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI ports quantity |
2 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
2 |
|
DisplayPort version |
1.4 |
|
Headphone outputs |
1 |
|
Line-in |
Yes |
|
Microphone in |
Yes |
|
S/PDIF out port |
Yes |
|
USB connector type |
USB Type-A |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
LAN controller |
Realtek RTL8125-BG |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel B760 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
Power source type |
ATX |
|
Expansion slots |
|
PCI Express x4 (Gen 4.x) slots |
1 |
|
PCI Express x16 (Gen 3.x) slots |
1 |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
Number of M.2 (M) slots |
2 |
|
Weight & dimensions |
|
Width |
243.8 mm |
|
Depth |
243.8 mm |
|
Packaging content |
|
Cables included |
SATA |
|
