Asus PRIME B650M-A AX II AM5 mATX Mainboard
|
|
Regularly: $231.00
On Sale: $217.14
Sale Ends:
April 26th, 2024
Manufacturer:
Asus
AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58873222
|
PRIME B650M-A AX II
|
197105020481 |
Active
|
Details
|
General Information |
|
Summary |

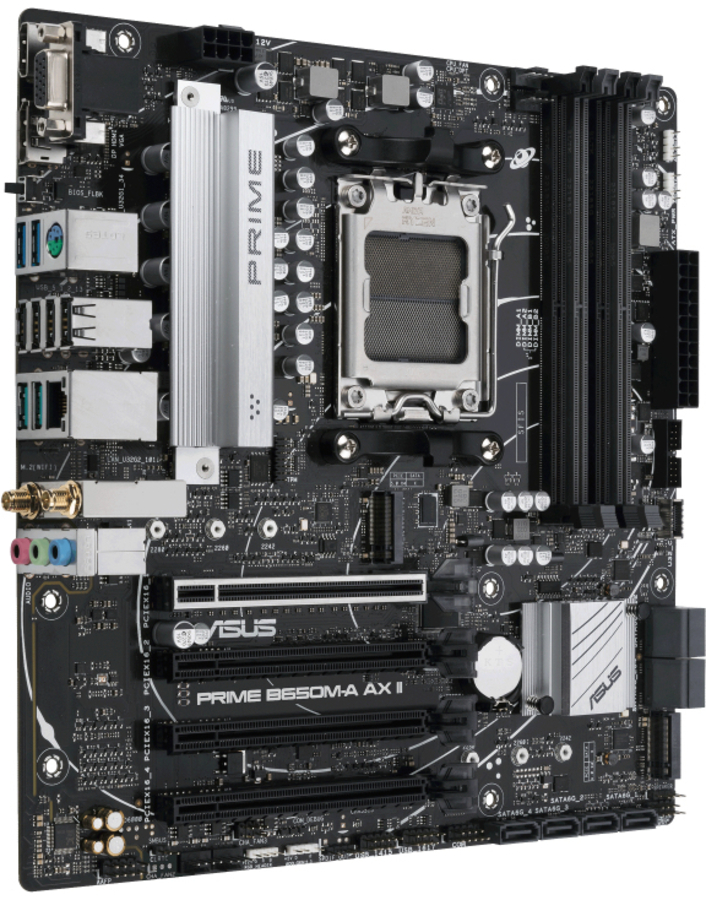

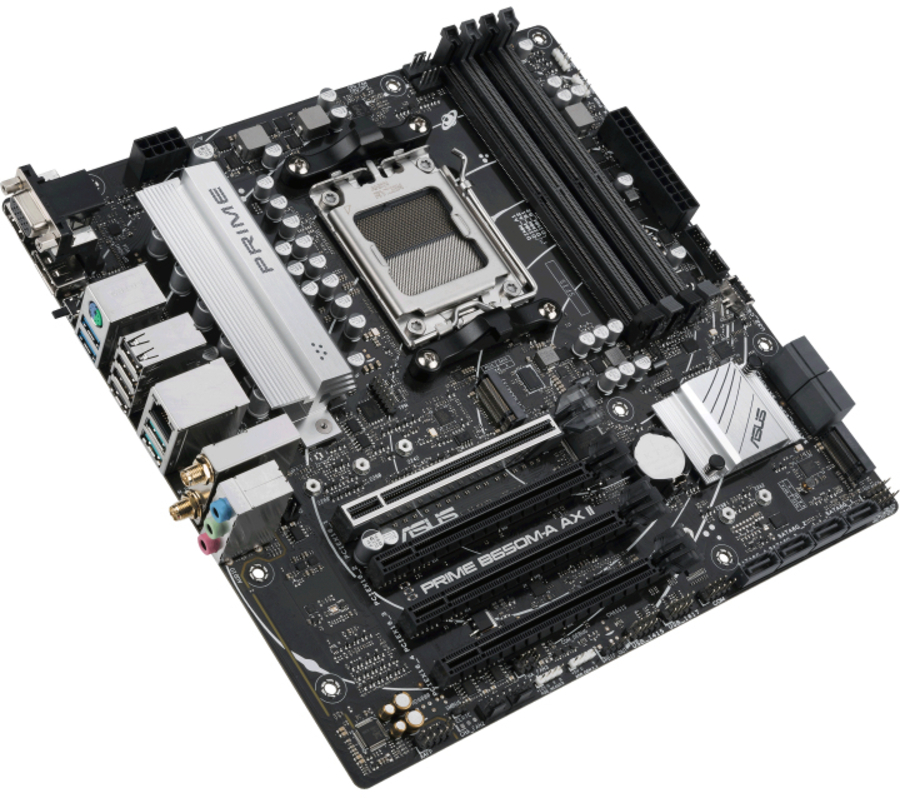

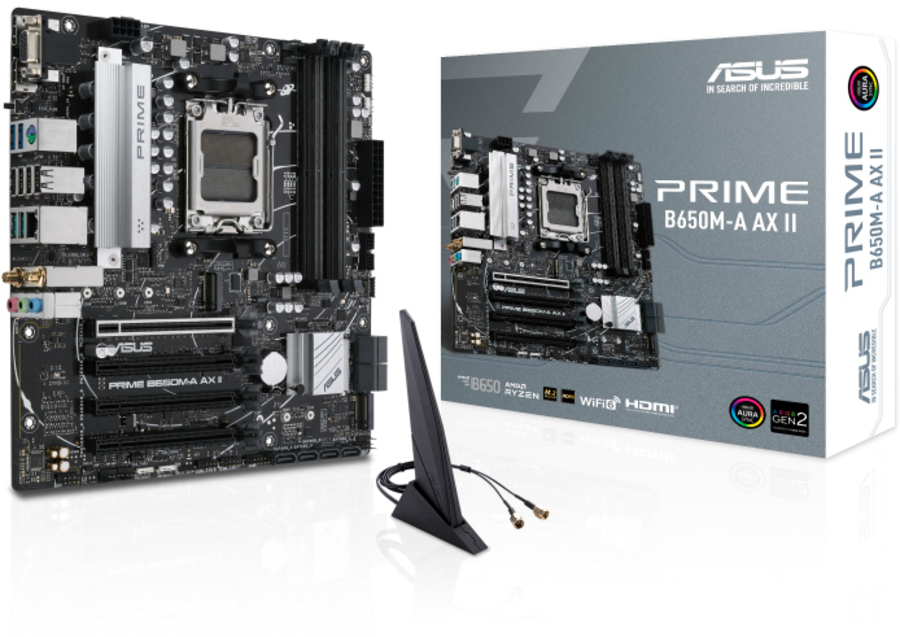

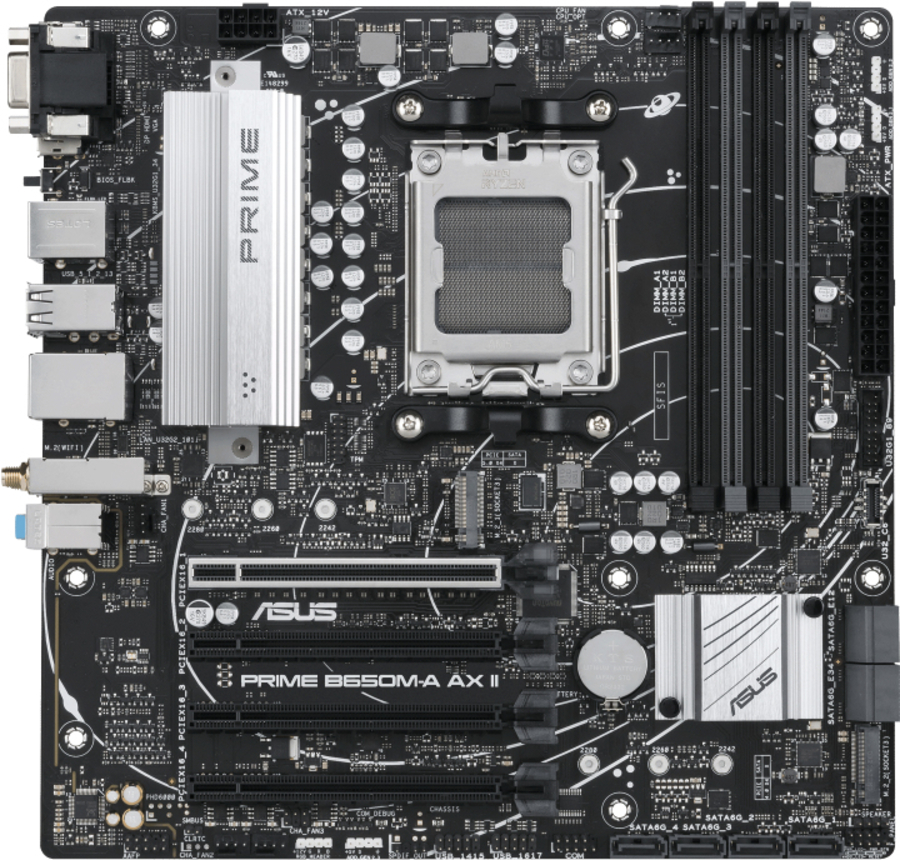

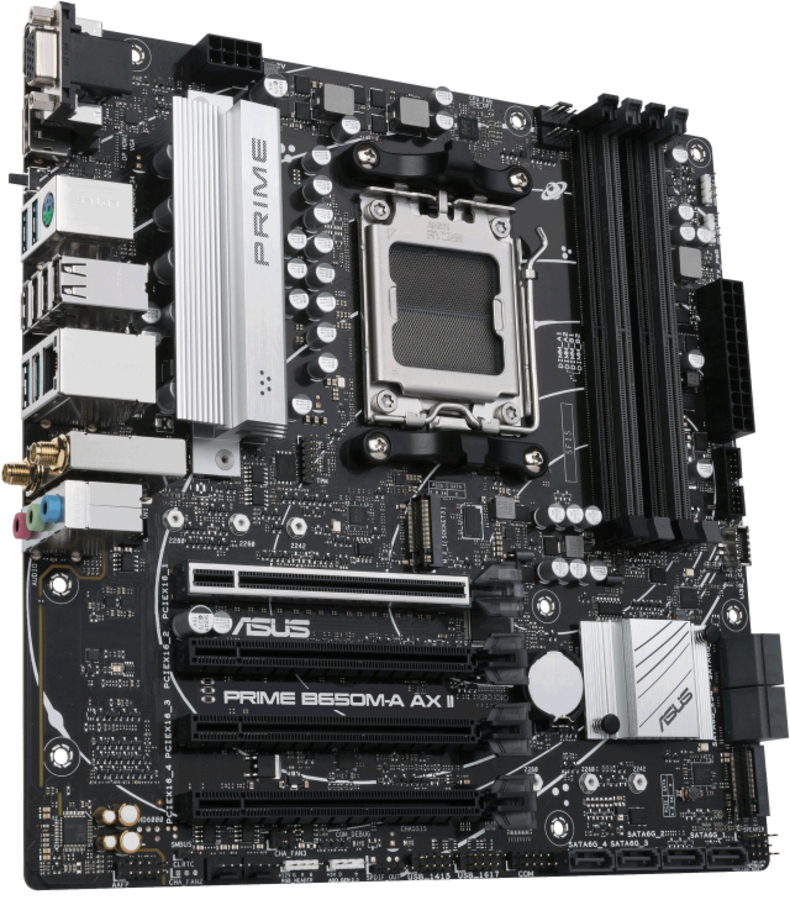

B650M-A AX II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A AX II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-A AX II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-A AX II to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2 |
|
Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket AM5 |
|
Compatible processor series |
AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
|
Supported processor sockets |
Socket AM5 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC |
Yes |
|
Non-ECC |
Yes |
|
Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
|
Supported memory clock speed (max) |
6400 MHz |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
8 |
|
Number of storage drives supported |
10 |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
Number of SATA III connectors |
8 |
|
S/PDIF out connector |
Yes |
|
Audio connector |
Yes |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
3 |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
12V power connector |
Yes |
|
RGB LED pin header |
Yes |
|

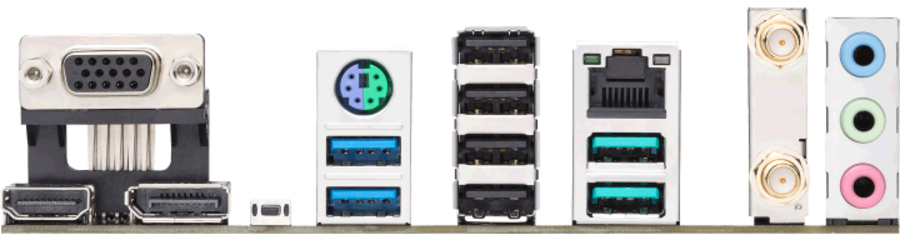

Rear panel I/O ports |
|
USB 2.0 ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
PS/2 ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Headphone outputs |
1 |
|
Line-in |
Yes |
|
Microphone in |
Yes |
|
WiFi-AP antenna jack |
1 |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.2 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
AMD |
|
Motherboard chipset |
AMD B650 |
|
Audio output channels |
7.1 channels |
|
Windows operating systems supported |
Windows 10 x64, Windows 11, Windows RT 8.1 |
|
Expansion slots |
|
PCI Express x16 (Gen 4.x) slots |
4 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
Clear CMOS button |
Yes |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|

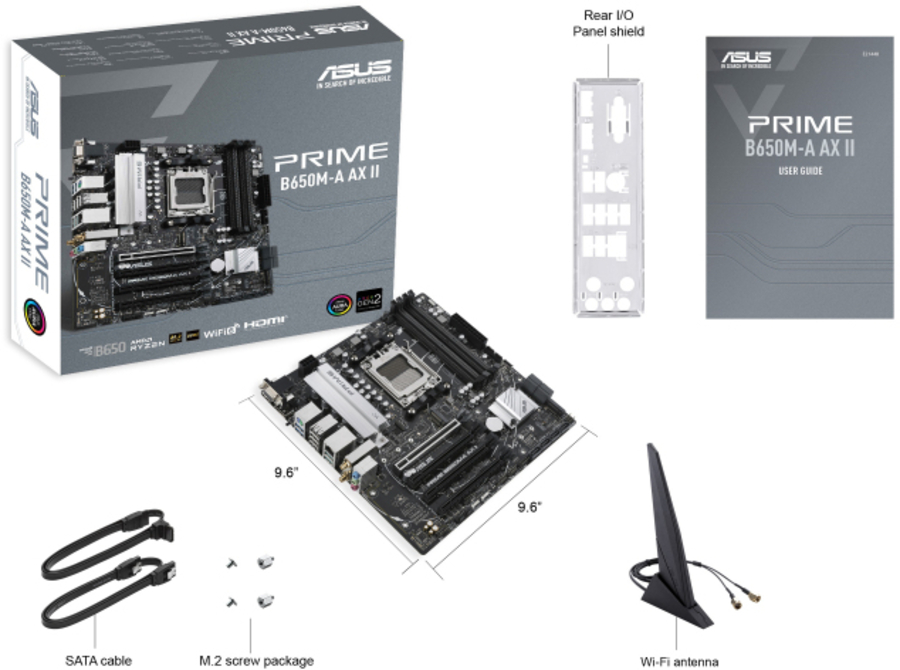

Packaging content |
|
Cables included |
SATA |
|
