TRENDnet 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit
|
|
Regularly: $393.00
On Sale: $377.28
Sale Ends:
May 4th, 2025
Manufacturer:
TRENDnet
AC867, 5 GHz, 14 dBi, 1x 1G PoE, IP56, 100–240V AC, 185x100x35 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58881482
|
TEW-840APBO2K-CA
|
710931130904 |
Active
|
Details
|
General Information |
|
Summary |

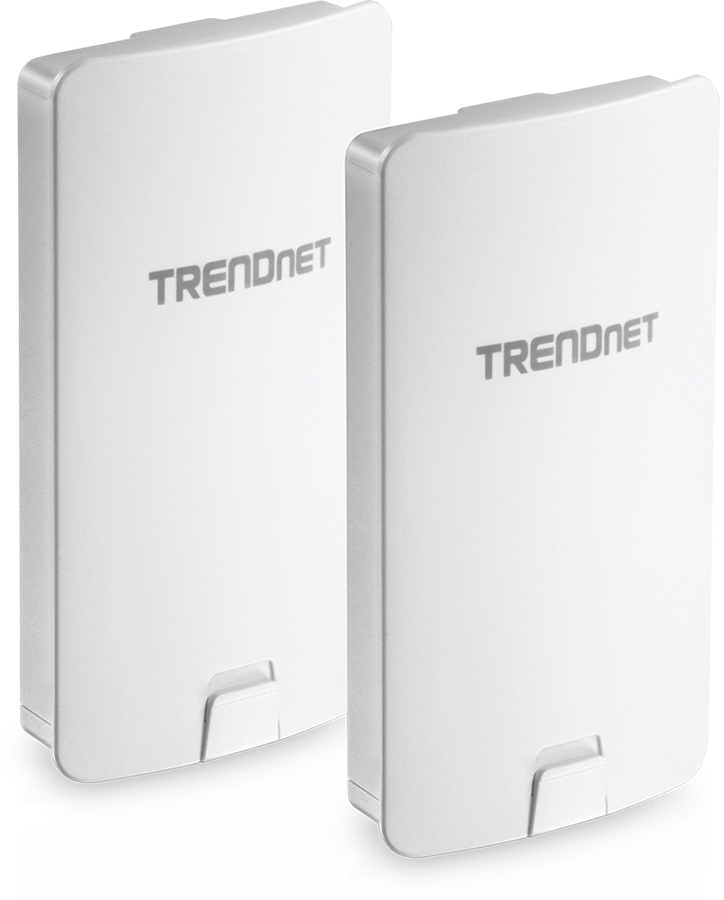

TRENDnet’s 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-840APBO2K, provides longrange wireless AC867 point-to-point connectivity.This preconfigured outdoor WiFi bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi bridge kit conveniently links two locations together with wireless AC speed and performance. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware. |
|
Data transmission |
|
Maximum data transfer rate |
867 Mbit/s |
|
Antenna |
|
Antenna design |
Internal |
|
Antenna gain level (max) |
14 dBi |
|
Wireless LAN features |
|
Wi-Fi |
Yes |
|
Wi-Fi band |
Single-band (5 GHz) |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Frequency band |
FCC: 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz |
|
Signal strength |
23 dBm |
|
Channels quantity |
165 channels |
|
Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
|
Network |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
|
Ports & interfaces |
|
Connectivity technology |
Wired & Wireless |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Power over Ethernet plus (PoE+) ports quantity |
1 |
|
Security |
|
Security algorithms |
AES, SNMPv2, SNMPv3, SSH-2, WEP, WPA2-Enterprise, WPA2-PSK |
|
Management features |
|
Web-based management |
Yes |
|
Features |
|
Product type |
Network bridge |
|
Product colour |
White |
|
LED indicators |
Yes |
|
Reset button |
Yes |
|
International Protection (IP) code |
IP56 |
|
Surge protection |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Wi-Fi Multimedia (WMM)/(WME) |
Yes |
|
Power |
|
Power source type |
AC |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50 - 60 Hz |
|
DC input voltage |
24 V |
|
Power consumption (max) |
9.5 W |
|
Power over Ethernet (PoE) |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-7.6 - 140 °F |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Certificates |
|
Certification |
CE
FCC |
|
Weight & dimensions |
|
Width |
185 mm |
|
Depth |
100 mm |
|
Height |
35 mm |
|
Weight |
268 g |
|

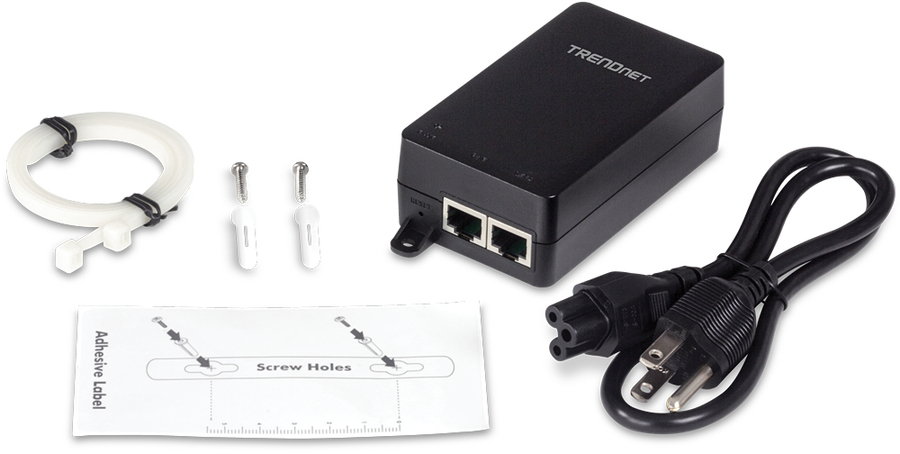

Packaging content |
|
PoE+ Injector(s) |
Yes |
|
Mounting bracket(s) included |
Yes |
|
Quick installation guide |
Yes |
|
Packaging data |
|
Quantity per pack |
2 pc(s) |
|
