General Information |
|
Summary |

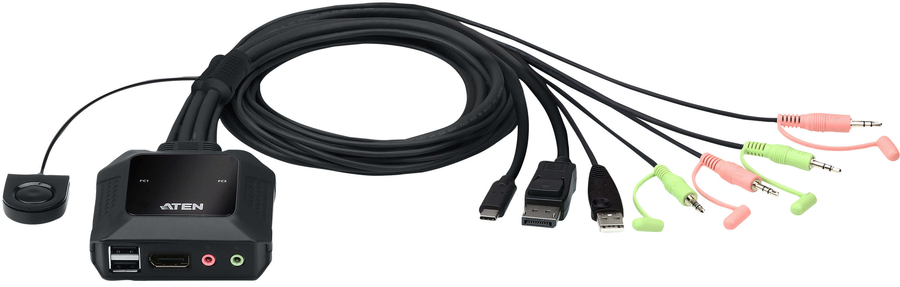

As an increasingly mobile workforce hot-desks between home and hybrid offices, agility is the key to effective multitasking and remaining engaged in productivity. The compact CS52DP is one of the best choices to meet these hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline even the most complex workflows by simply pushing the button on the remote port selector to switch between your tasks on one DisplayPort PC and a mobile USB-C device from a DisplayPort and USB console. The DisplayPort-enabled shared screen further assures outstanding 4K audiovisual quality across two computer platforms. Get agile with the CS52DP to jump start your hybrid work productivity and stay ahead of the pack.
Exceptional AV Performance in Vivid 4K
The CS52DP empowers your desktop workflows with 4K DCI audiovisual enhancement by presenting visual content in outstanding precision.
Space-Cost Efficient Desktop Setup

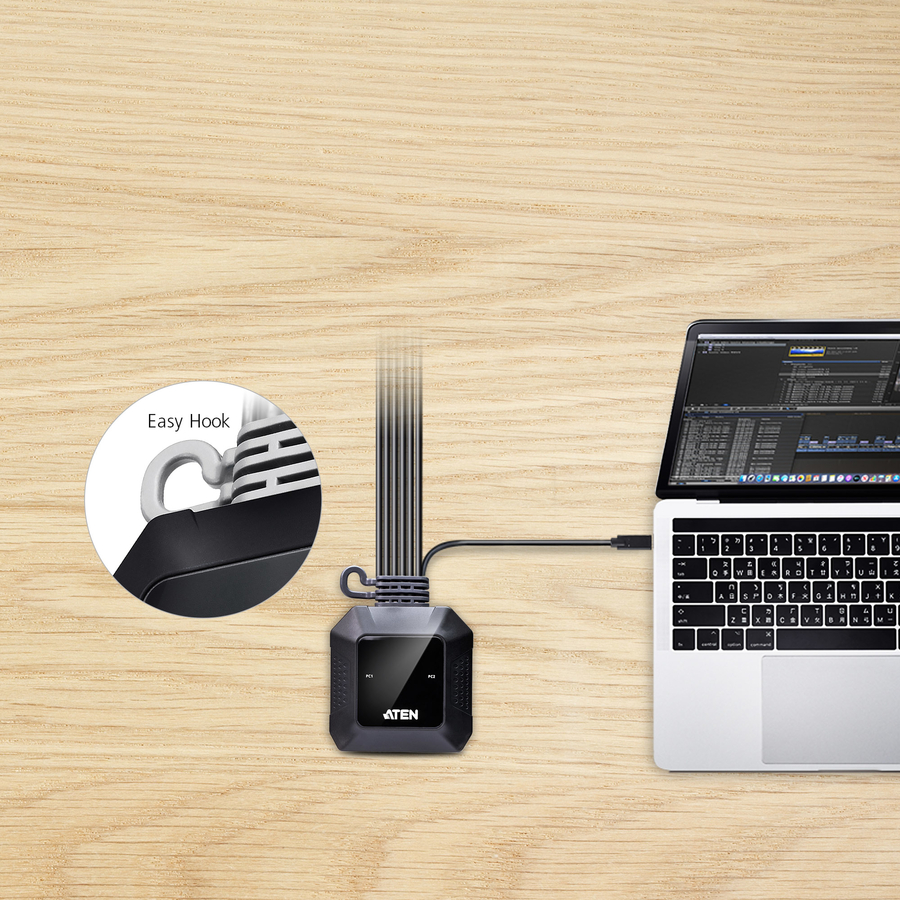

The compact CS52DP enables plug-n-play USB-C connection to a mobile device such as a laptop without going through a docking station, which is a useful, budget-friendly option to expand desktop workspace in a neat and tidy way.
Smooth Cross-Platform Integration
The CS52DP enables the integration of different computer systems (Windows, Mac, Sun, Linux, Android and iOS) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
|
|
Ports & interfaces |
|
Number of computers controlled |
2 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
Video port type |
DisplayPort |
|

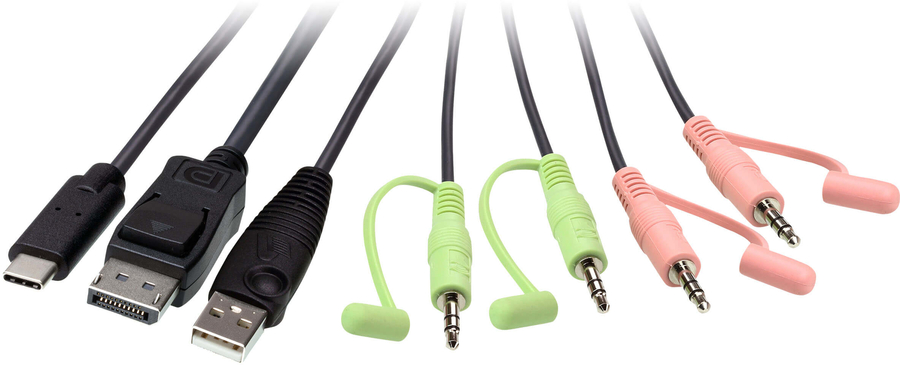

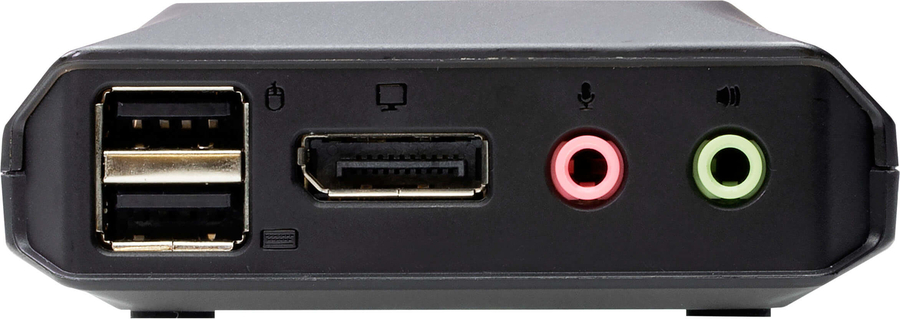

Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.2 |
|
Console USB ports quantity |
2 |
|
USB connector type |
USB Type-A, USB Type-C |
|
Headphone outputs |
2 |
|
Number of microphone inputs |
2 |
|
Performance |
|
HD type |
4K Ultra HD |
|
Maximum resolution |
4096 x 2160 pixels |
|
HDCP |
Yes |
|
Hot-Plug support |
Yes |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Cable length |
1.2 m |
|
Remote switch cable length |
1.8 m |
|
LED indicators |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
USB |
|
Power consumption (typical) |
0.74 W |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Other operating systems supported |
Android, iOS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
84.2 mm |
|
Depth |
83.4 mm |
|
Height |
30.4 mm |
|
Weight |
303 g |
|
Packaging data |
|
Package width |
55 mm |
|
Package depth |
155 mm |
|
Package height |
223 mm |
|
Package volume |
1897.2287222 cm³ |
|
Package weight |
407 g |
|
Logistics data |
|
Master (outer) case net weight |
6.06 kg |
|
Master (outer) case width |
328 mm |
|
Master (outer) case length |
389 mm |
|
Master (outer) case height |
330 mm |
|
Master (outer) case gross weight |
8.49 kg |
|
Master (outer) case volume |
42107.1508942 cm³ |
|
Country of origin |
Taiwan |
