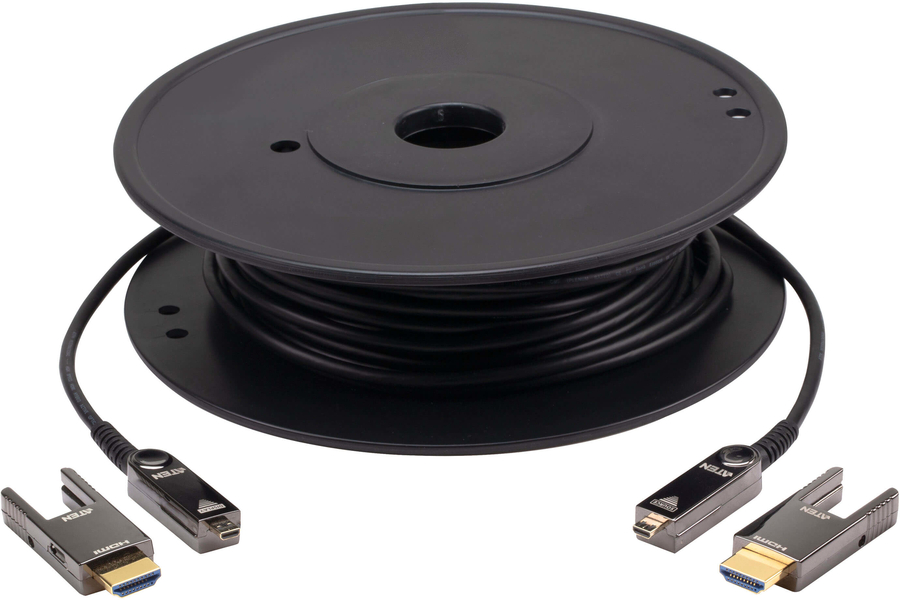

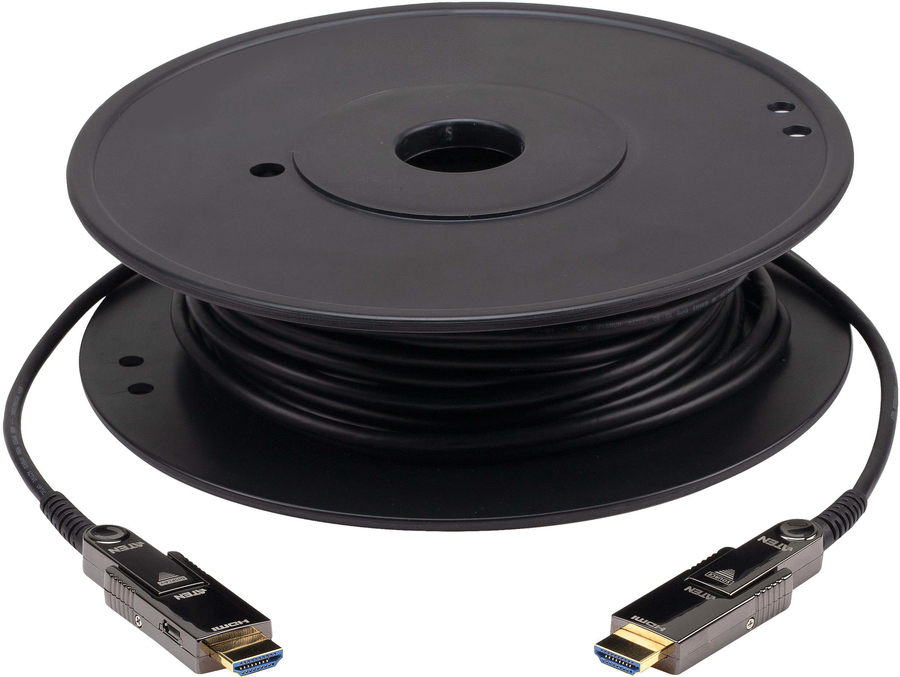

Aten 32.8-Foot True 4K HDMI Active Optical Cable

Home :: Cables :: Cables - Audio/Video :: Cables - Video ::


Regularly: $182.00
On Sale: $174.72    Sale Ends: April 12th, 2024

Manufacturer: Aten

10M True 4K HDMI Active Optical Cable

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58884373 VE7831A - Active

Details

General Information
Summary ATEN VE7831A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 10m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions.This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.

Engineered to meet the latest trend of integrator-friendly design, the VE7831A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Features
Cable length 10 m
Connector 1 HDMI Type A (Standard)
Connector 2 HDMI Type A (Standard)
Connector 1 gender Male
Connector 2 gender Male
Product colour Black
Connector contacts plating Gold
Quantity per pack 1 pc(s)
Connector 1 form factor Straight
Connector 2 form factor Straight
HDMI version 2.0
3D Yes
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Dolby technologies DTS-HD Master Audio, Dolby TrueHD
Audio Return Channel (ARC) Yes
HDCP Yes
HDCP version 2.2
Data transfer rate 18 Gbit/s
High Dynamic Range (HDR) supported Yes
Supported digital audio channels (uncompressed) 8
Bandwidth 600 MHz
Maximum refresh rate 60 Hz
Cable material Copper
Cable type Round cable
Magnetically shielded Yes
Bending radius (min) 2 cm
Plug and Play Yes
Colour sampling 4:4:4, 4:2:0, 4:2:2
Extended display identification data (EDID) Yes
Certification CE / FCC / RoHS2 / UL CMP-OF
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 85%
Weight & dimensions
Cable diameter 4.5 mm
Weight 300 g

Multimedia

Multimedia Items
leaflet (leaflet)
