General Information |
|
Summary |
TeraStation 5420DN 16TB NAS (4x4TB) NAS HDD included 10GBE RAID iSCSI |
|
Storage |
|
Storage drives installed |
Yes |
|
Total installed storage capacity |
16 TB |
|
Number of storage drives installed |
4 |
|
Number of storage drives supported |
4 |
|
Installed storage drive type |
HDD |
|
Supported storage drive types |
HDD |
|
Storage drive capacity |
4 TB |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 6, 10, JBOD |
|
Processor |
|
Processor family |
Annapurna Labs |
|
Processor manufacturer |
Annapurna Labs |
|
Processor model |
AL524 |
|
Processor frequency |
2.04 GHz |
|
Processor cores |
4 |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
|
Ethernet LAN data rate supported (max) |
10000 Mbit/s |
|
Copper ethernet cabling technology |
10BASE-T, 1000BASE-T |
|
iSCSI support |
Yes |
|
Supported network protocols |
CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
|
Ports & interfaces |
|

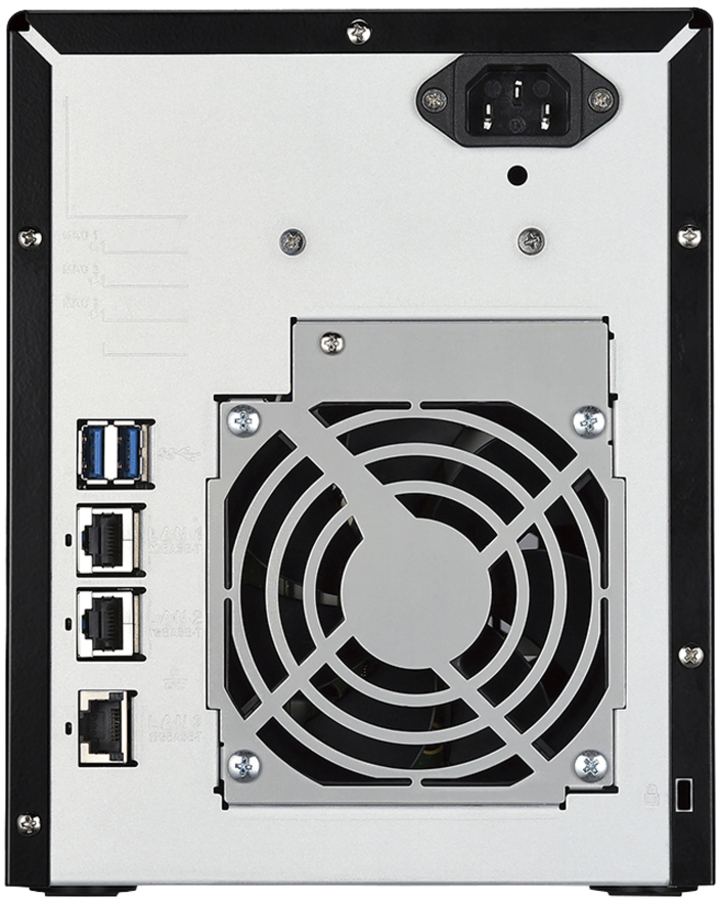

Ethernet LAN (RJ-45) ports |
3 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Design |
|
Chassis type |
Desktop |
|
Cooling type |
Active |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Built-in display |
Yes |
|
Cable lock slot |
Yes |
|
Country of origin |
Japan |
|
Performance |
|
Type |
NAS |
|
Backup function |
Yes |
|
Backup features |
iSCSI LUN |
|
Snapshot |
Yes |
|
Security algorithms |
SNMP |
|
Hot spare |
Yes |
|
Software |
|
Windows operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Power |
|
Power consumption (max) |
100 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
170 mm |
|
Depth |
230 mm |
|
Height |
215 mm |
|
Weight |
5.63 kg |
|
Package width |
310 mm |
|
Package depth |
358 mm |
|
Package height |
362 mm |
|
Package weight |
7.26 kg |
|
Technical details |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
Trade Agreements Act (TAA) |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
