QNAP TS-983XU-E2124-8G 9-Bay Rackmount NAS Enclosure
|
|
Regularly: $4077.00
On Sale: $3913.92
Sale Ends:
April 26th, 2024
Manufacturer:
QNAP
Intel Xeon E2124 (3.3/4.3GHz), 8GB DDR4 (2666MHz), 10GbE
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58896889
|
TS-983XU-E2124-8G-US
|
- |
Active
|
Details
|
General Information |
|
Summary |
The Intel® Xeon® E based TS-983XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox® ConnectX®-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-983XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.
Intel® Xeon® E processor, extraordinary performance
The TS-983XU-RP features an Intel® Xeon® E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz), 8 GB DDR4 ECC memory (upgradable to 64 GB), and a redundant power supply, delivering server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution. Besides 2 Gigabit RJ45 LAN ports, the TS-983XU-RP comes with two 10GbE SFP+ SmartNIC LAN ports to provide a significant performance boost.
ECC memory forestalls data corruption to assure reliability
The Intel® Xeon® E based TS-983XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-983XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-983XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TS-983XU-RP for greater performance to tackle dynamically-changing workloads such as virtualization.
Server-grade hardware: Sturdy and expandable
The TS-983XU-RP features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.
Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER
The TS-983XU-RP provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TS-983XU-RP support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.
Abundant I/O capability with PCIe expansion
The TS-983XU-RP features 1 PCIe Gen3 slot that allows for the usage of various expansion cards to expand application potential.
Empower GPU-accelerated computing with graphics cards
Graphics cards are optimized for graphical calculations and transformations. The TS-983XU-RP provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).
SSD caching and auto tiering enable 24/7 optimized storage efficiency
By enabling Qtier™ auto-tiering on the TS-983XU-RP, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.
Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TS-983XU-RP also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.
Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-983XU-RP with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.
Attain enterprise-grade SSD performance levels from affordable consumer SSDs
The TS-983XU-RP supports software-defined SSD extra over-provisioning (OP) that allows you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TS-983XU-RP, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs to enjoy faster file backups, smoother multimedia experiences, and optimized virtualization applications.
Up to 128 monitoring channels in QVR Pro for well-rounded security surveillance
The TS-983XU-RP supports QVR Pro surveillance solution with 8 license-free channels for surveillance monitoring, which can be expanded up to 128 channels* with additional channel license purchase for a more extensive security deployment. QVR Pro supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings.
Flexibly allocate physical and virtual network resources to simplify network deployment
The Network & Virtual Switch application allows you to leverage limited physical network resources for unlimited virtual applications and centrally manage the entire network structure with a brilliantly-visualized network topology map. Flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TS-983XU-RP, virtual machines and containers whenever needed. The network deployment is greatly simplified while your network management efficiency is greatly improved.
Complete backup planning
The TS-983XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomware. The TS-983XU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-983XU-RP is perfect for backing up virtual machines.
Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is fully supported for backing up Mac® computers.
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-983XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-983XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
Complete control over system status and data security
In open network environments, data on connected devices may be exposed in a potential hack. The TS-983XU-RP provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more. Administrators can also control the access rights of each user to different folders, and use the following tools to enhance security management.
Flexible and economical storage expansion
QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
Attach Expansion Enclosures
Connect up to eight REXP-1620U-RP, REXP-1220U-RP, or other expansion enclosures.
VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-983XU-RP.
Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
More productivity applications
Qsirch
A full-text search engine that helps quickly find specific images, music, videos, documents, and emails by using keywords and search conditions.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.
Browser Station
Enable remote access through NAS browsers to access local LAN resources without requiring complex VPN settings. |
|
Storage |
|
Storage drives installed |
No |
|
Number of storage drives supported |
9 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial ATA |
|
Storage drive sizes supported |
2.5,3.5" |
|
RAID levels |
0, 1, 5+S, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD |
|
Online RAID migration |
Yes |
|
Online RAID expansion |
Yes |
|
RAID rebuild |
Yes |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
|
Bad block scan |
Yes |
|
Disk roaming |
Yes |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor model |
E-2124 |
|
Processor frequency |
3.3 GHz |
|
Processor boost frequency |
4.3 GHz |
|
Processor cores |
4 |
|
Processor threads |
4 |
|
Processor cache |
8 MB |
|
Bus type |
DMI3 |
|
CPU configuration (max) |
1 |
|
PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
|
PCI Express slots version |
3.0 |
|
Processor cache type |
Smart Cache |
|
Processor codename |
Coffee Lake |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor package size |
37.5 x 37.5 mm |
|
Processor socket |
LGA 1151 (Socket H4) |
|
Scalability |
1S |
|
System bus rate |
8 GT/s |
|
Tjunction |
100 °C |
|
Thermal Design Power (TDP) |
71 W |
|
On-board graphics card model |
Not available |
|
Maximum internal memory supported by processor |
128 GB |
|
Memory bandwidth supported by processor (max) |
41.6 GB/s |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Memory clock speed |
2666 MHz |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
4x DIMM |
|
Flash memory |
4096 MB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
|
Ethernet LAN data rate supported (max) |
10000 Mbit/s |
|
Wi-Fi |
No |
|
DHCP client |
Yes |
|
DHCP server |
Yes |
|
Jumbo frames support |
Yes |
|
iSCSI support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Link aggregation |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
WLAN adapter supported |
Yes |
|

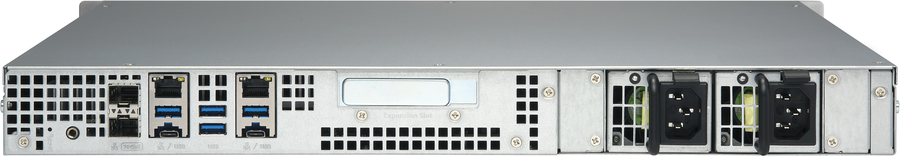

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
|
Fiber ports quantity |
2 |
|
Fiber optic connector |
SFP+ |
|
Design |
|
Chassis type |
Rack (1U) |
|
Cooling type |
Active |
|
Product colour |
Aluminium, Black |
|
Number of fans |
3 fan(s) |
|
Fan diameter |
4 cm |
|
LED indicators |
HDD, LAN, SSD, Status |
|
Performance |
|
Type |
NAS |
|
Device class |
Large Enterprise Business |
|
Backup function |
Yes |
|
Backup features |
Cloud, iSCSI LUN |
|
Buzzer |
Yes |
|
Number of users |
4096 user(s) |
|
Noise level |
29.1 dB |
|
Third-party support |
Yes |
|
Video input channels |
8 channels |
|
Snapshot |
Yes |
|
Management protocols |
SNMP |
|
Web-based management |
Yes |
|
Share folder access right management |
Yes |
|
Security algorithms |
256-bit AES, FIPS 140-2, HTTPS, SSH |
|
Access Control List (ACL) |
Yes |
|
Reset button |
Yes |
|
On/off switch |
Yes |
|
Built-in BitTorrent client |
Yes |
|
Built-in iTunes server |
Yes |
|
Built-in FTP server |
Yes |
|
Browser supported |
Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
|
System log |
Yes |
|
Hot spare |
Yes |
|
S.M.A.R.T. support |
Yes |
|
Share folder |
512 |
|
Universal Plug and Play (UPnP) |
Yes |
|
Software |
|
Operating system installed |
QNAP Turbo System |
|
Operating system version |
4.3.5 |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|
Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
250 W |
|
Number of power supply units |
1 |
|
Redundant power supply (RPS) support |
Yes |
|
Power consumption (typical) |
74.35 W |
|
AC input voltage |
100 - 240 V |
|
Fan voltage |
12 V |
|
Weight & dimensions |
|
Width |
482.6 mm |
|
Depth |
507.5 mm |
|
Height |
43.3 mm |
|
Weight |
8.63 kg |
|
Packaging content |
|
Cables included |
AC, LAN (RJ-45) |
|
Quick installation guide |
Yes |
|
Number of screws |
52 |
|
Processor special features |
|
Embedded options available |
No |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Intel 64 |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Trusted Execution Technology |
Yes |
|
Intel TSX-NI |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
|
Intel® OS Guard |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Maximum number of PCI Express lanes |
16 |
|
Thermal Monitoring Technologies |
Yes |
|
Memory types supported by processor |
DDR4-SDRAM |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Other features |
|
Processor ARK ID |
134856 |
|
