General Information |
|
Summary |
NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management

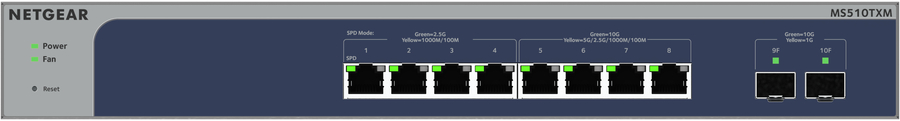

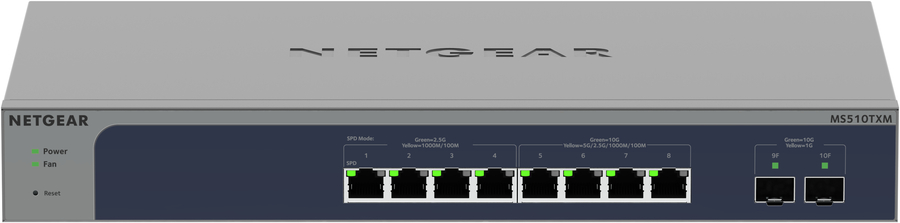

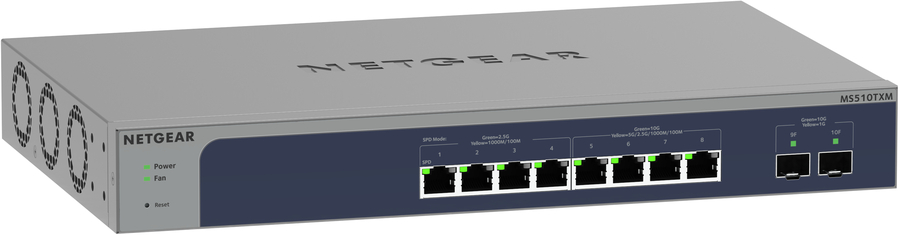

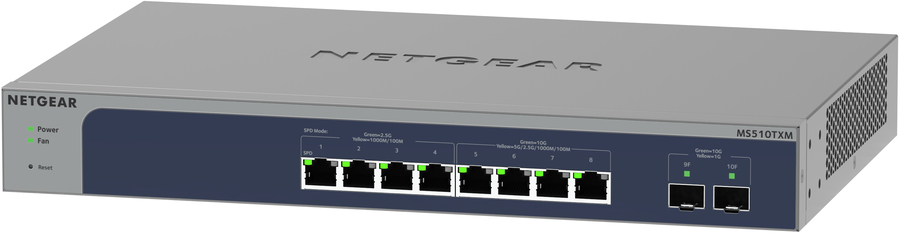

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- Quiet desktop operation or rack mounting.
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Easy-to-use Web browser-based management GUI.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2+ |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
System event log |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
|
SFP+ module slots quantity |
2 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
|
10G support |
Yes |
|
Port mirroring |
Yes |
|
Broadcast storm control |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
140 Gbit/s |
|
Number of queues |
8 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10000 |
|
Packet buffer memory |
2 MB |
|
Security |
|
DHCP features |
DHCPv6 snooping |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Password protection |
Yes |
|
Queue scheduling algorithms |
WRR+SP |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Grey |
|
LED indicators |
Activity, Fan fail, Link, Power, Speed |
|

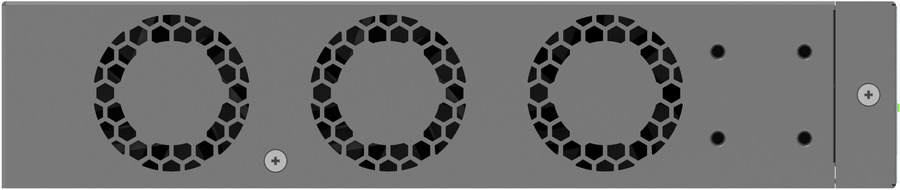

Number of fans |
2 fan(s) |
|
Performance |
|
Built-in processor |
Yes |
|
Processor frequency |
1000 MHz |
|
Internal memory |
256 MB |
|
Flash memory |
64 MB |
|
Noise level |
25 dB |
|
Firmware upgradeable |
Yes |
|
Mean time between failures (MTBF) |
1059519 h |
|

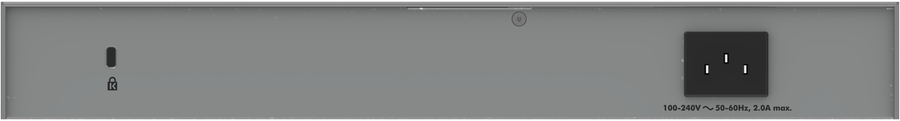

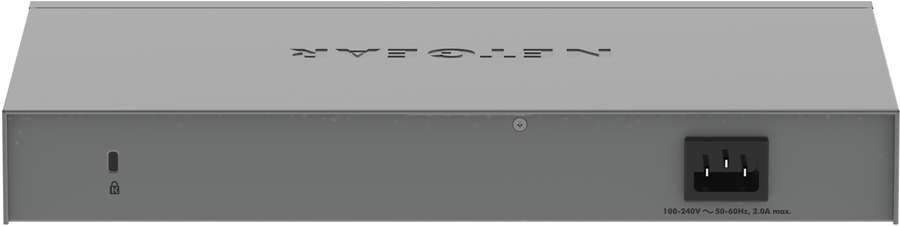

Power |
|
Power supply included |
Yes |
|
Power consumption (max) |
47 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Heat dissipation |
160.458 BTU/h |
|
Weight & dimensions |
|
Width |
330 mm |
|
Depth |
206 mm |
|
Height |
43 mm |
|
Weight |
2.08 kg |
|
Packaging content |
|
Cables included |
AC |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Packaging data |
|
Rack rails |
Yes |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
