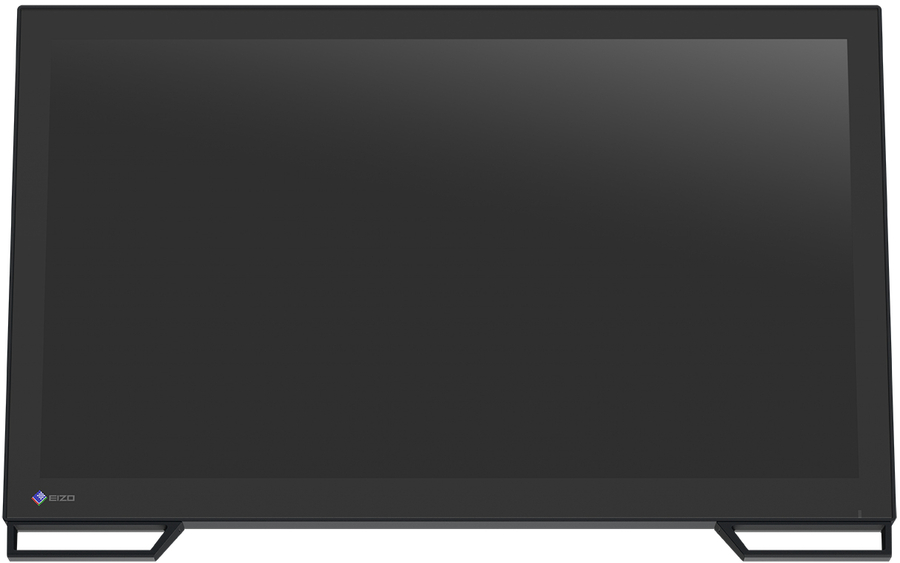

EIZO RadiForce MS236WT 23" FHD Monitor
|
|
Price: $2635.00
Manufacturer:
EIZO
23" IPS, 1920 x 1080 (Full HD), PCAP, 260 cd/m², 11 ms, 1000:1, USB, 1x DisplayPort, 1x DVI-D, 1x Dsub, IPX0, 19W
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58902755
|
MS236WT-BK
|
4995047050919 |
Active
|
Details
|
General Information |
|
Summary |

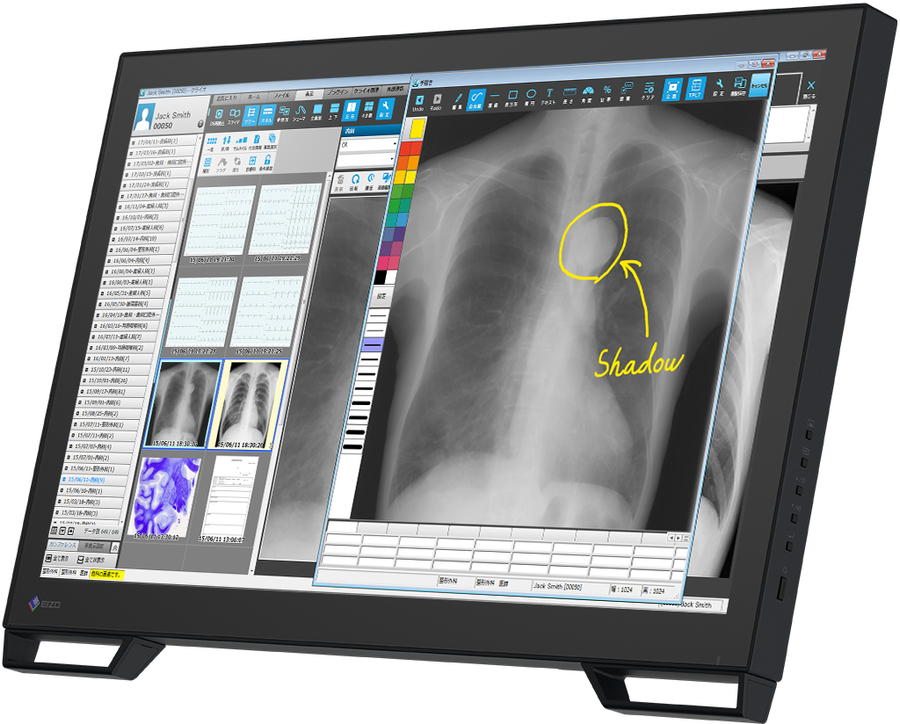

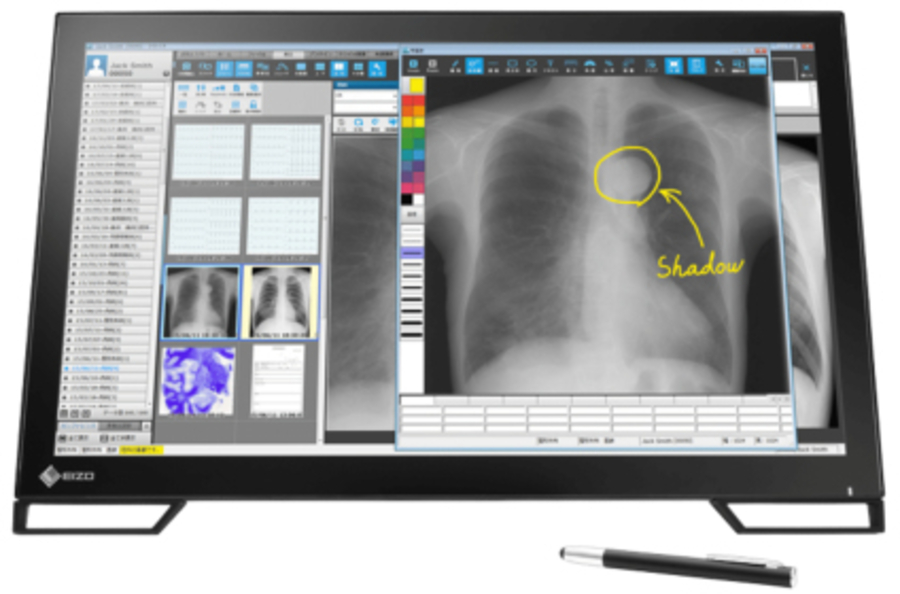

Smooth and Detailed Handwriting with Stylus Pen
The MS236WT features projected capacitive touch technology which is more reliable compared to other touch technologies, allowing for drag and flick finger operations to be smooth. In addition to the supplied passive touch pen, the monitor also accepts input from commercially available active stylus pens, so small and detailed letters can easily be written into a medical record.
Write While Resting Against the Screen
The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so that you can focus on your writing.
Write While Resting Against the Screen
The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so that you can focus on your writing.

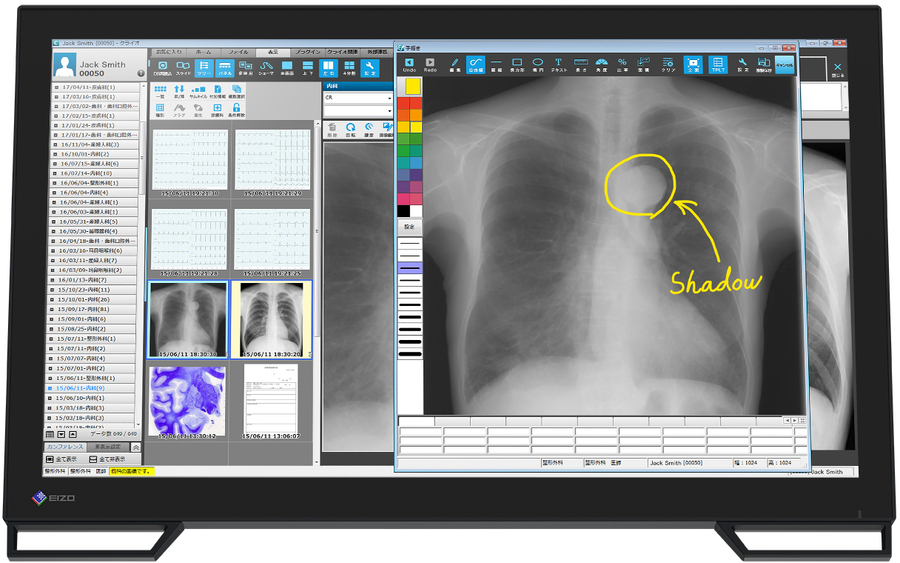

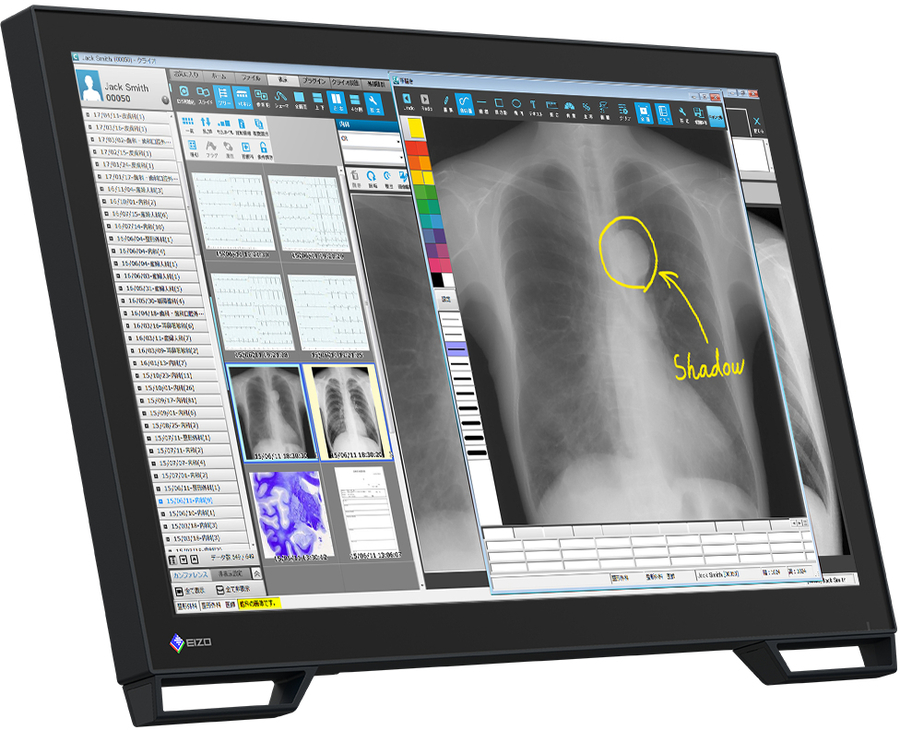

Optimal Medical Image Viewing
The monitor features a DICOM preset mode whose grayscale tone is preset on the production line for optimum reviewing of medical images.

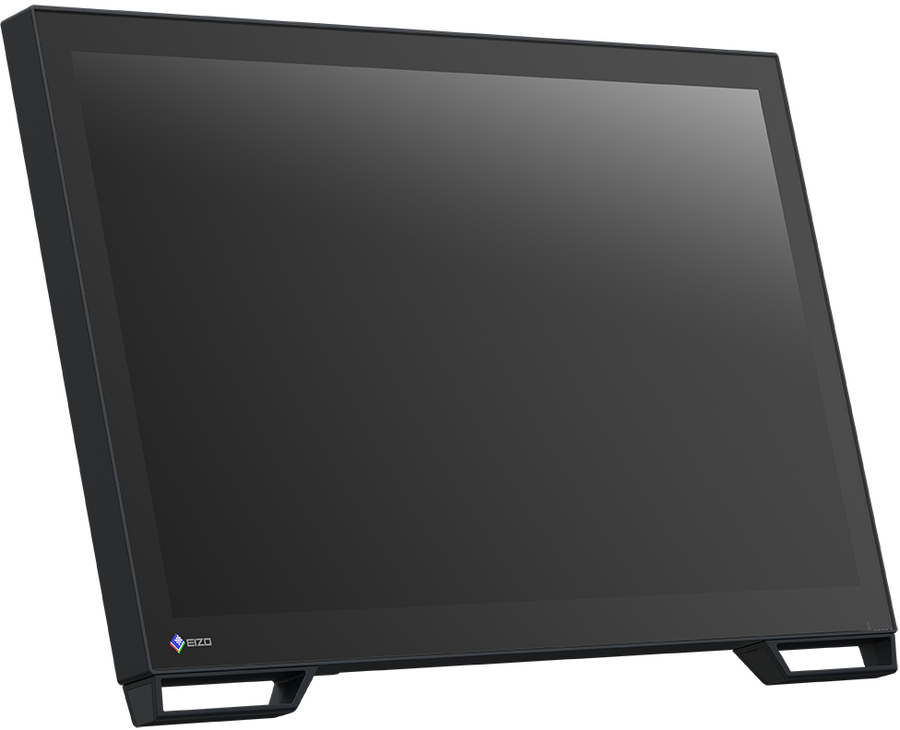

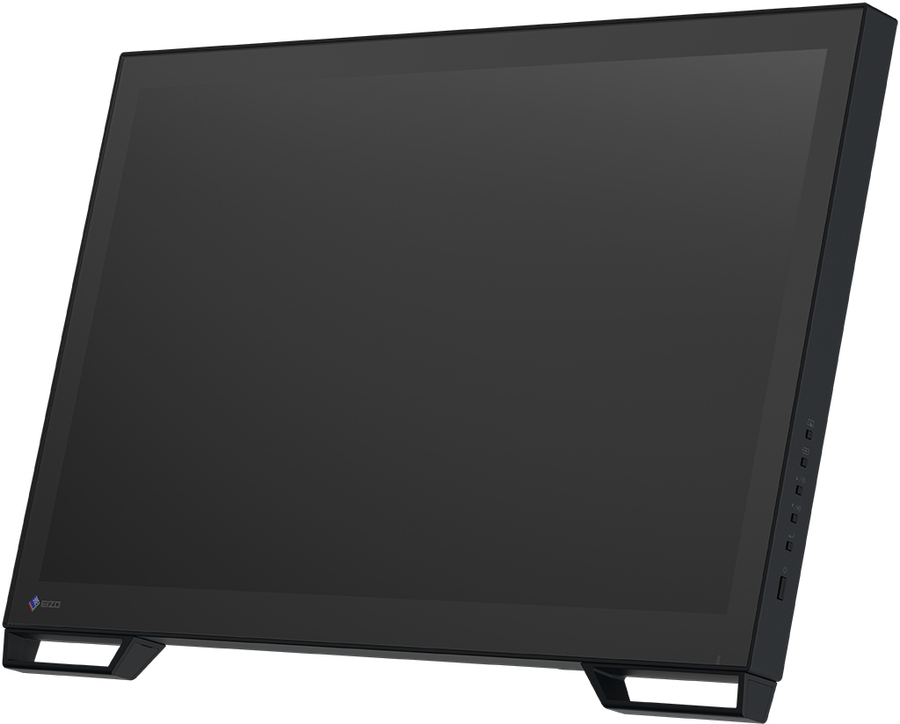

Comfortable-to-Use, Fully Flat Design
The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling easy. Furthermore dust and fingerprints can be wiped off, making cleaning a breeze.
High Durability
The touch screen has a non-scratch glass surface with a hardness of 5H. In addition, the monitor is guaranteed to endure up to 50 million touches, meaning that you can confidently use the monitor for a long time.
Touch Detection Control
Touch Detection ControlUsers can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side. This helps to prevent unintended inputs when cleaning the monitor.
Quick Recovery Controls
Due to environmental factors such as electromagnetic noise, projective capacitive touch technology can malfunction. To combat this, the monitor is equipped with technology which adjusts the touch sensitivity to minimize incorrect touch response. This ensures that the screen maintains accurate touch interaction during use.
Dedicated Touch Panel Driver
In addition to Windows' standard touch panel driver, a dedicated touch panel driver is also available for use with multi-monitor configurations and touch panel sounds.
Clear View from Any Angle
The MS236WT uses an LED-backlit IPS panel with wide viewing angles that minimizes color shift and contrast changes even when multiple people view the screen.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The MS236WT relieves eye fatigue by regulating brightness to make flicker unperceivable.

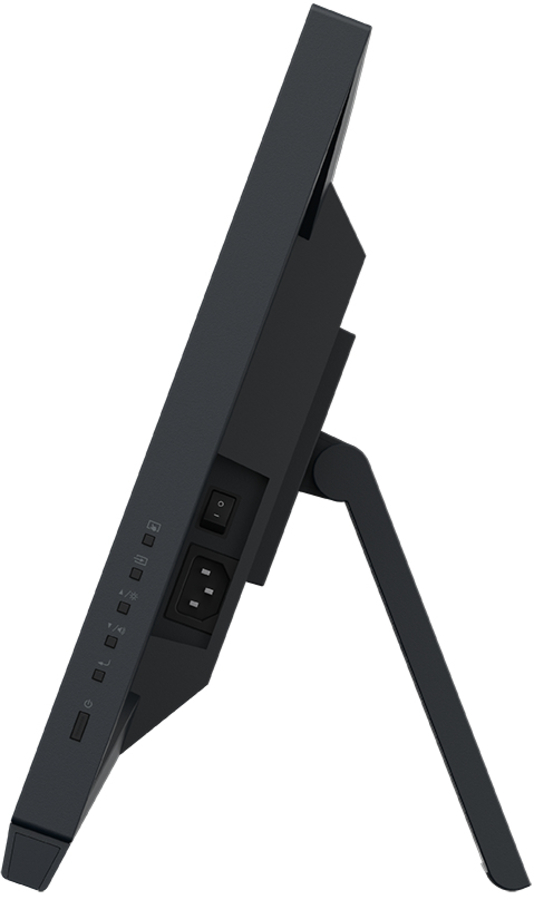

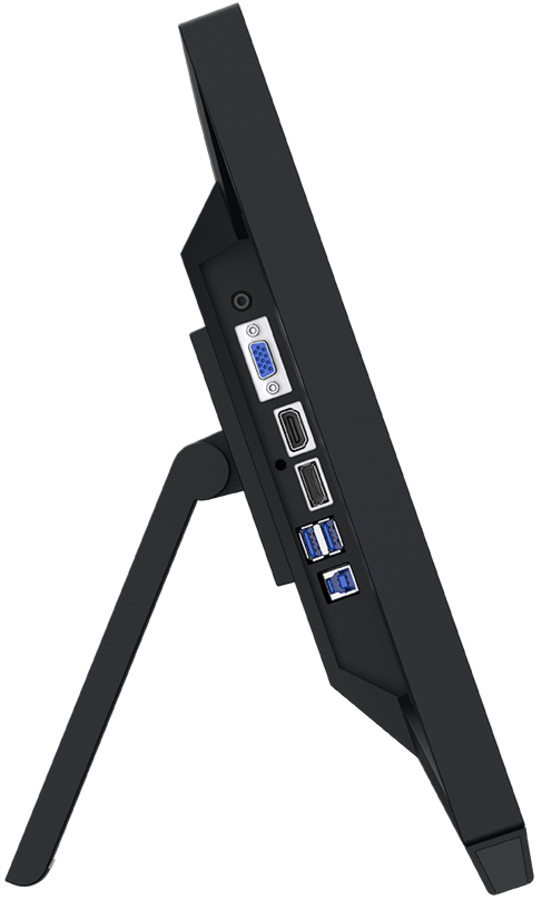

Various Input Terminals
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.
Model Variation
The MS236WT comes in a reclining stand and without stand variety, with gray or black cabinet colors. You can easily choose the ideal model for your environment.

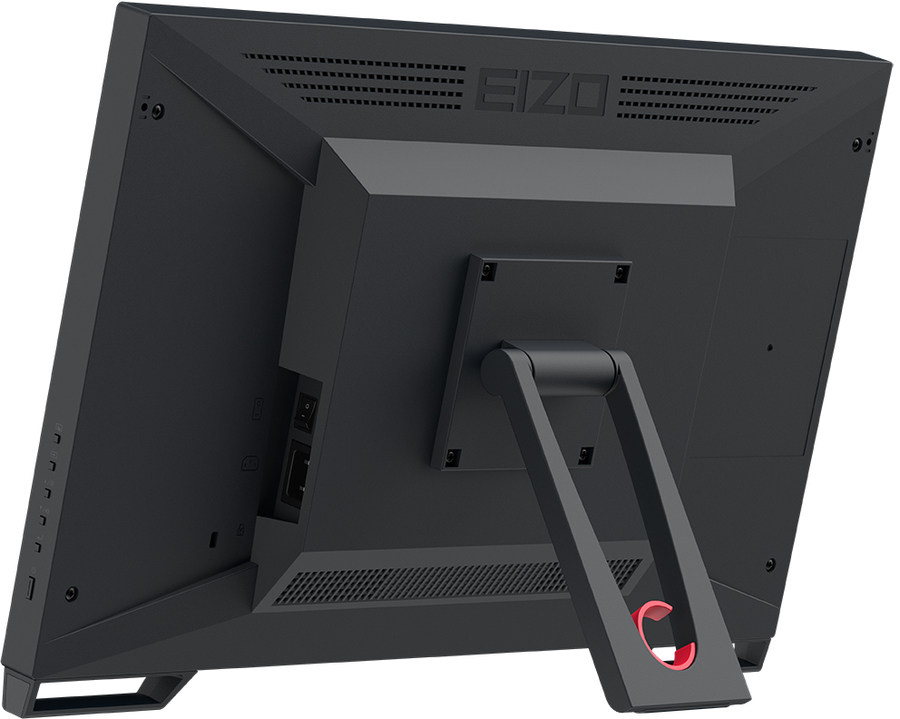

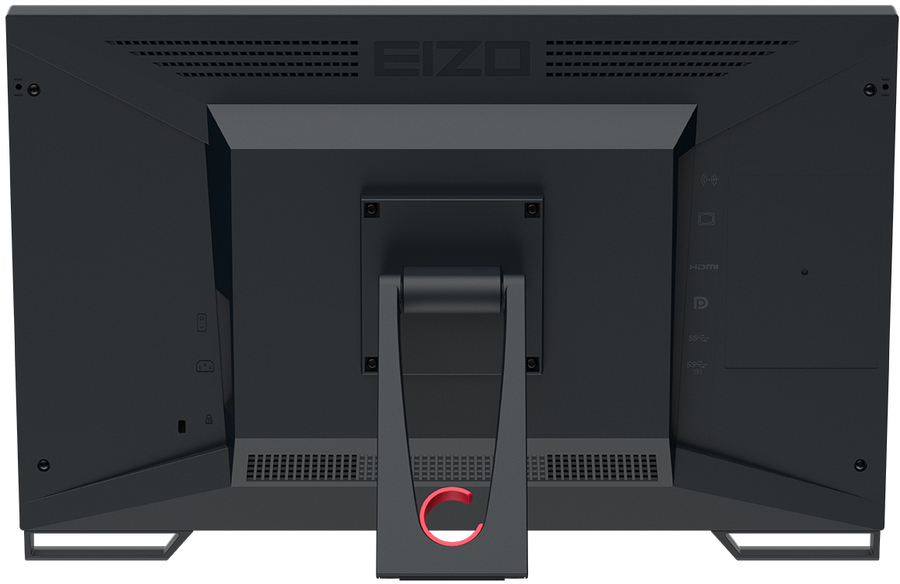

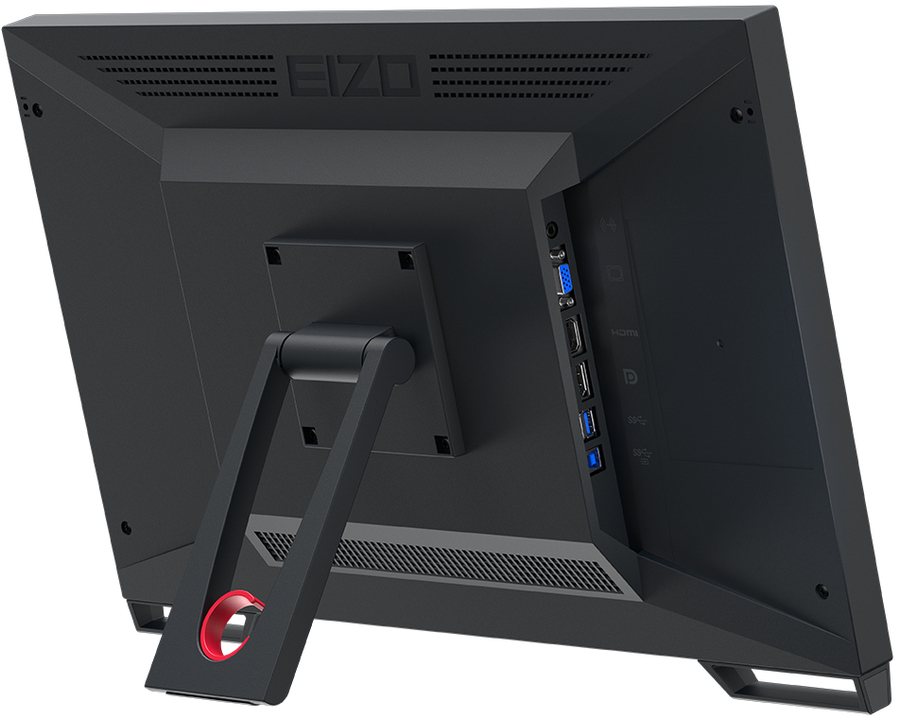

Reclining Stand
Reclining StandThe reclining stand provides flexible positioning to allow the monitor to rest flat on your desk when using a touch-pen, or to sit up when touching with your hand.
Customer Assurance with Medical Standards
Customer Assurance with Medical StandardsThe MS236WT meets various medical standards and safety/EMC standards for use in medical institutions.
3-Year Warranty
EIZO and its authorized distributors offer a three-year limited warranty. |
|
Display |
|
Display diagonal |
58.4 cm (23") |
|
Display resolution |
1920 x 1080 pixels |
|
Native aspect ratio |
16:9 |
|
Display technology |
LCD |
|
Touchscreen |
Yes |
|
HD type |
Full HD |
|
Panel type |
IPS |
|
Screen shape |
Flat |
|
Contrast ratio (typical) |
1000:1 |
|
Display number of colours |
16.7 million colours |
|
Touchscreen type |
Tabletop |
|
Touchscreen technology |
Projected capacitive system |
|
Number of simultaneous touchpoints |
10 |
|
Display brightness (typical) |
260 cd/m² |
|
Response time |
11 ms |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Pixel pitch |
0.264 x 0.264 mm |
|
Viewable size, horizontal |
50.9 cm |
|
Viewable size, vertical |
28.6 cm |
|
Digital horizontal frequency |
31 - 64 kHz |
|
Digital vertical frequency |
59 - 61 Hz |
|
Display diagonal (metric) |
58 cm |
|
RGB colour space |
sRGB |
|
Performance |
|
NVIDIA G-SYNC |
No |
|
AMD FreeSync |
No |
|
Flicker-free technology |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
Built-in camera |
No |
|
Design |
|
Market positioning |
Medical |
|
Product colour |
Black |
|
International Protection (IP) code |
IPX0 |
|
Certification |
CE (Medical Device Directive), EN 60601-1, UL60601-
1, CSA C22.2 Nr. 601-1, IEC60601-1, VCCI-B, FCC-B,
CAN ICES-3 (B), C-Tick, RoHS, WEEE, CCC, GOST-R |
|
Ports & interfaces |
|
Built-in USB hub |
Yes |
|
HDMI |
No |
|
Headphone out |
Yes |
|
USB hub version |
2.0 |
|
Number of USB Type-B upstream ports quantity |
1 |
|
USB Type-A downstream ports quantity |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
DVI-D ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
Audio input |
Yes |
|
Headphone connectivity |
3.5 mm |
|
Ergonomics |
|
VESA mounting |
Yes |
|
Height adjustment |
Yes |
|
Panel mounting interface |
100 x 100 mm |
|
Pivot |
Yes |
|
Tilt adjustment |
Yes |
|
Tilt angle range |
15 - 70° |
|
On Screen Display (OSD) |
Yes |
|
On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Swedish |
|
Power |
|
Energy efficiency class (SDR) |
Not available |
|
Energy efficiency class (HDR) |
Not available |
|
Power consumption (typical) |
19 W |
|
Power consumption (standby) |
0.5 W |
|
Power consumption (max) |
42 W |
|
Power consumption (PowerSave) |
0.7 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Packaging content |
|
Cables included |
AC, Audio (3.5mm), DVI, DisplayPort, USB, VGA |
|
Stylus included |
Yes |
|
Manual |
Yes |
|
Weight & dimensions |
|
Width (with stand) |
556.7 mm |
|
Depth (with stand) |
216.3 mm |
|
Height (with stand) |
143.9 mm |
|
Weight (with stand) |
6.6 kg |
|
Width (without stand) |
556.7 mm |
|
Depth (without stand) |
54 mm |
|
Height (without stand) |
339.2 mm |
|
Weight (without stand) |
6 kg |
|
