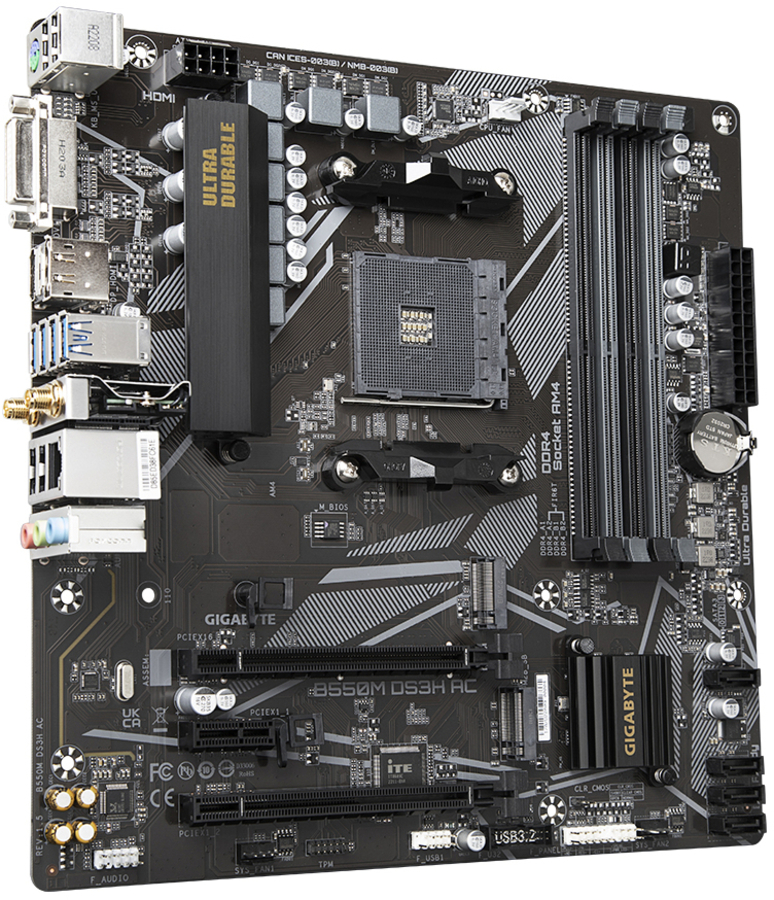

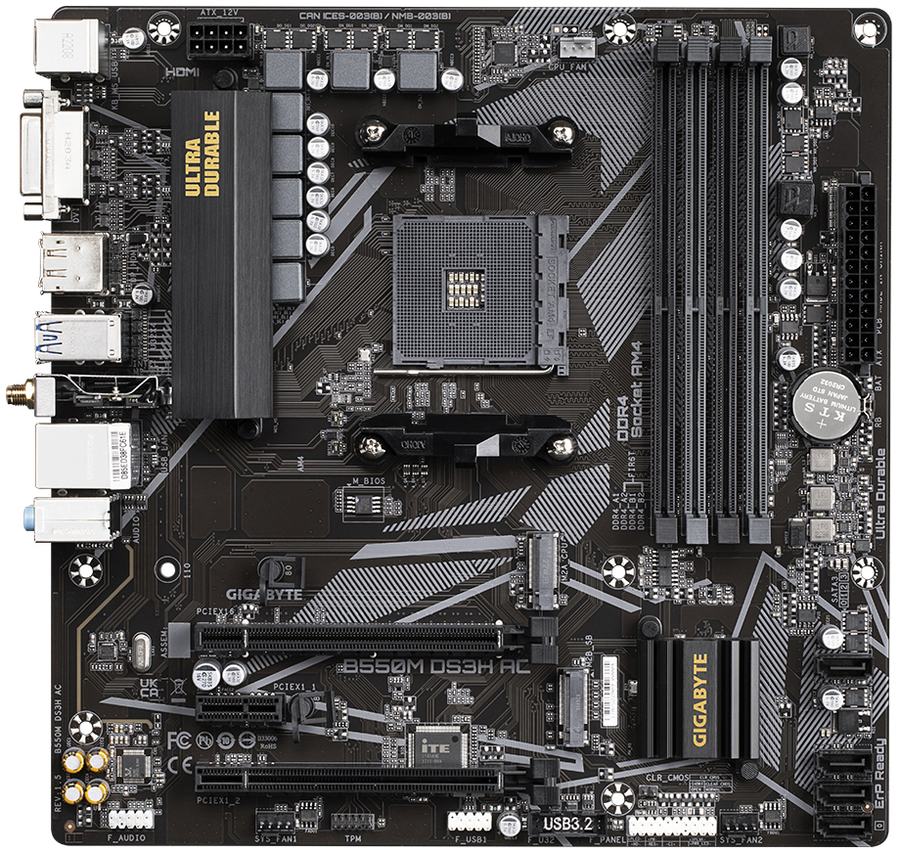

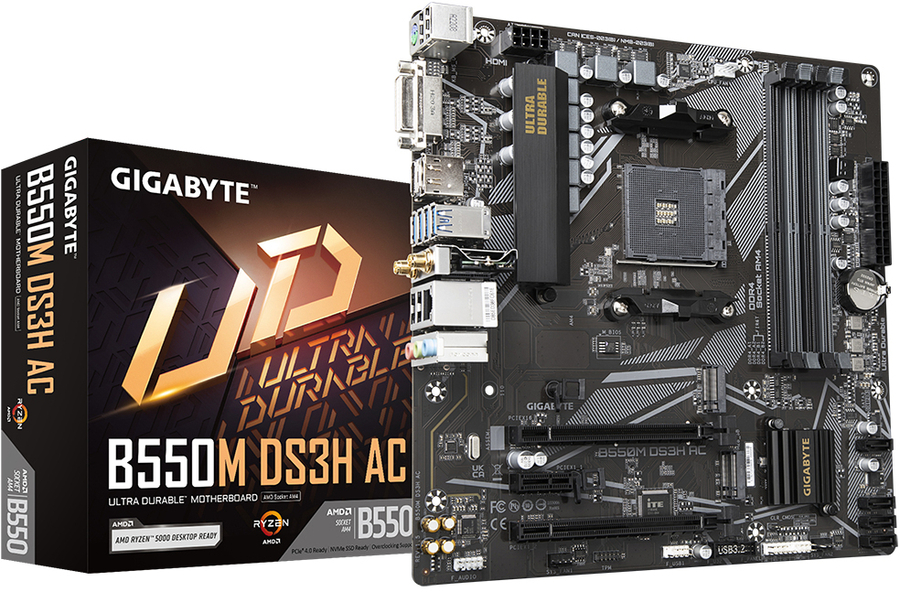

Gigabyte B550M DS3H AC AM4 mATX Mainboard

Home :: Mainboards :: AMD Desktop/Workstation MBs ::


Regularly: $160.00
On Sale: $150.40    Sale Ends: April 26th, 2024

Manufacturer: Gigabyte

m-ATX, AM4, AMD B550, 4 x DDR4 DIMM max 128 GB, DVI-D, DisplayPort, HDMI 2.1, 1 Gbps LAN, WIFI 802.11a,b g,n,ac, BT 4.2, PCIe 3.0 x16, PCIe 3.0 x1

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58902796 B550M DS3H AC 4719331810962 Active

Details

General Information
Summary AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

PERFORMANCE
GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.

1.PCIe 4.0 Slot
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.

2.M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.

Faster and Better Coverage with Dual Band 802.11ac WIFI + BT Support Module
The onboard 802.11ac WIFI module supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH features.

Dual NVMe PCIe 4.0/3.0 M.2 Connectors
With dual NVMe PCIe 4.0*/3.0 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors
B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series 3rd Generation AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Supported processor sockets Socket AM4
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC Yes
Non-ECC Yes
Supported memory clock speeds 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory clock speed (max) 4733 MHz
Supported memory module capacities 4GB, 8GB, 16GB, 32GB
Unbuffered memory Yes
Storage controllers
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
RAID support Yes
RAID levels 0, 1, 10
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Number of Parallel ATA connectors 1
Audio connector Yes
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
Power fan connector Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
Parallel connector Yes
12V power connector Yes

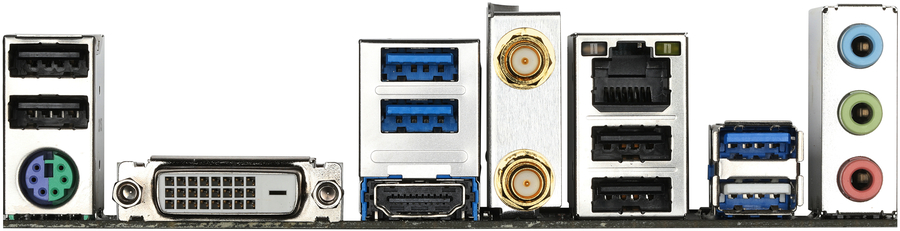

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DVI-D ports quantity 1
PS/2 ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 1
Microphone in Yes
Digital audio optical out 3
USB connector type USB Type-A
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model Realtek RTL8822CE
Bluetooth Yes
Bluetooth version 4.2
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD B550
Audio output channels 7.1 channels
PC health monitoring CPU, Fan, Temperature, Voltage
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Compatible operating systems Windows 10 64-bit
Expansion slots
PCI Express x1 slots 1
PCI Express x1 (Gen 3.x) slots 1
PCI Express x4 slots 1
PCI Express x16 slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Weight & dimensions
Width 244 mm
Depth 244 mm
Packaging content
Bundled software Norton® Internet Security LAN bandwidth management software
