General Information |
|
Summary |

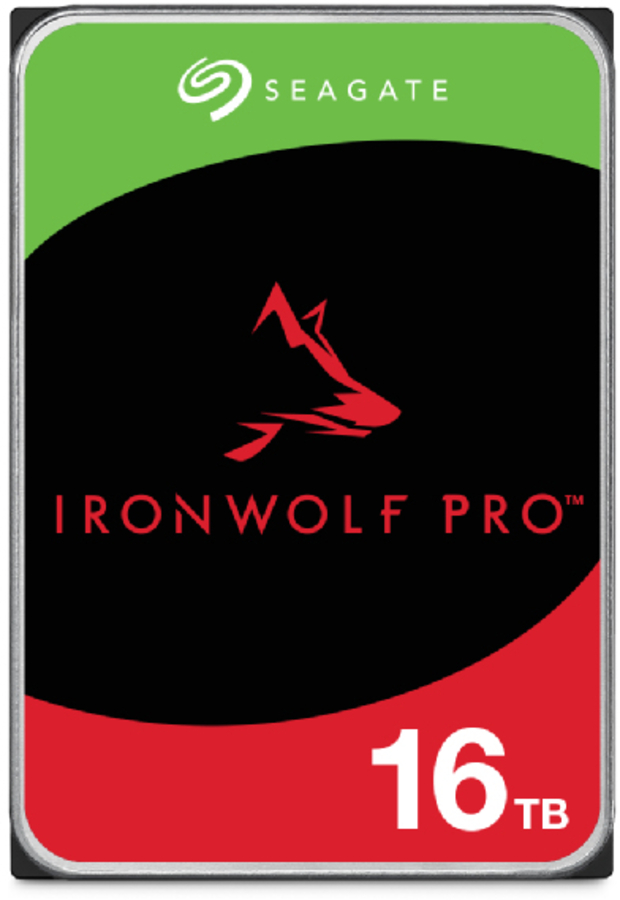

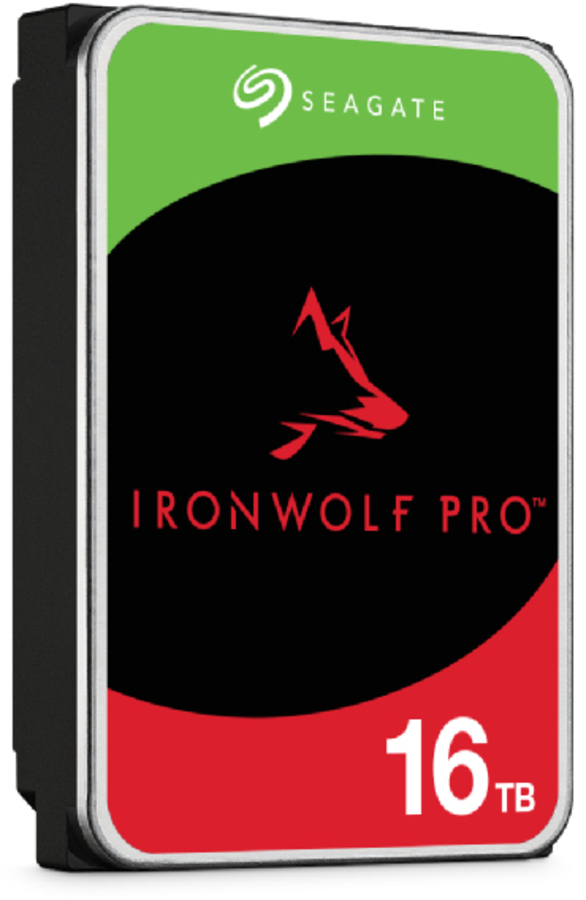

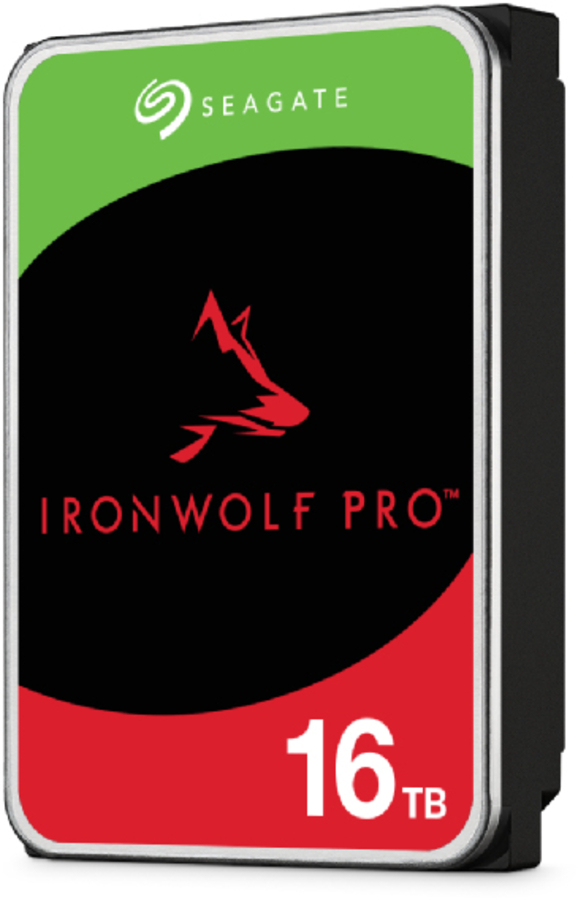

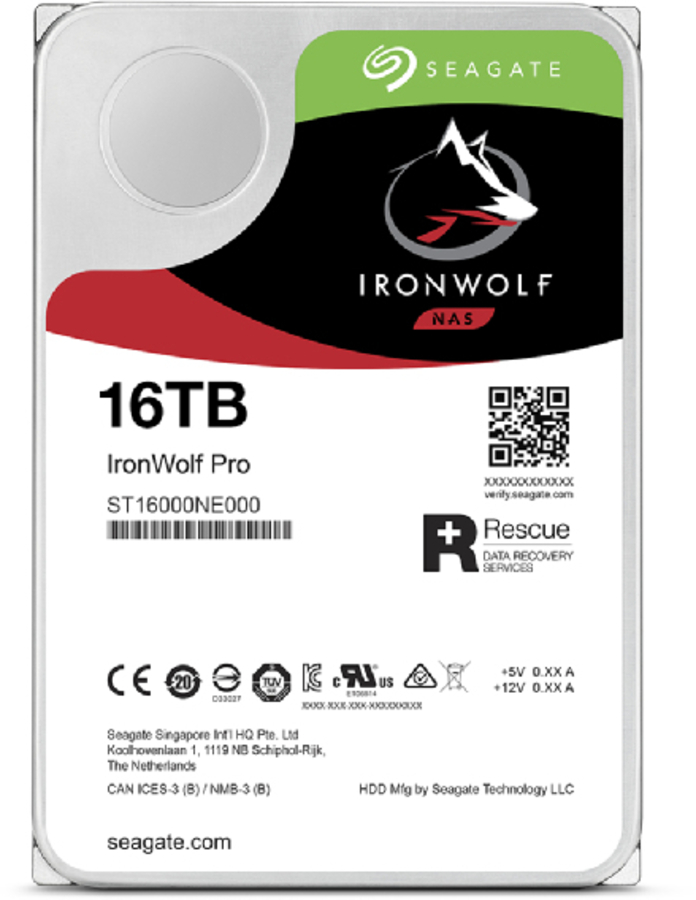

16 TB IronWolf Pro |
|
Features |
|
HDD size |
3.5" |
|
HDD capacity |
16 TB |
|
HDD speed |
7200 RPM |
|
Type |
HDD |
|
Component for |
NAS |
|
Storage drive buffer size |
256 MB |
|
HDD interface transfer rate |
6 Gbit/s |
|
HDD sustained transfer rate |
270 MiB/s |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^15 bits read |
|
Rotational Vibration (RV) sensors |
Yes |
|
Workload rate limit |
550 TB/year |
|
Noise level (idle) |
20 dB |
|
Mean time between failures (MTBF) |
2500000 h |
|
Power |
|
Power consumption (typical) |
7.6 W |
|
Power consumption (standby) |
1 W |
|
Power consumption (off) |
1 W |
|
Power consumption (idle) |
5 W |
|
Operating voltage |
5 / 12 V |
|
Start-up current |
2 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 65 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Non-operating vibration |
2.27 G |
|
Operating shock |
50 G |
|
Non-operating shock |
200 G |
|
Weight & dimensions |
|
Width |
101.8 mm |
|
Height |
26.1 mm |
|
Depth |
147 mm |
|
Weight |
670 g |
