General Information |
|
Summary |
Unique Design
Phantom Gaming monitor equips with built-in Wi-Fi antenna. So, the Wi-Fi signal won’t be masked by the table. Now, connect the Wi-Fi antenna to your PC and enjoy gaming without latency!
Panel

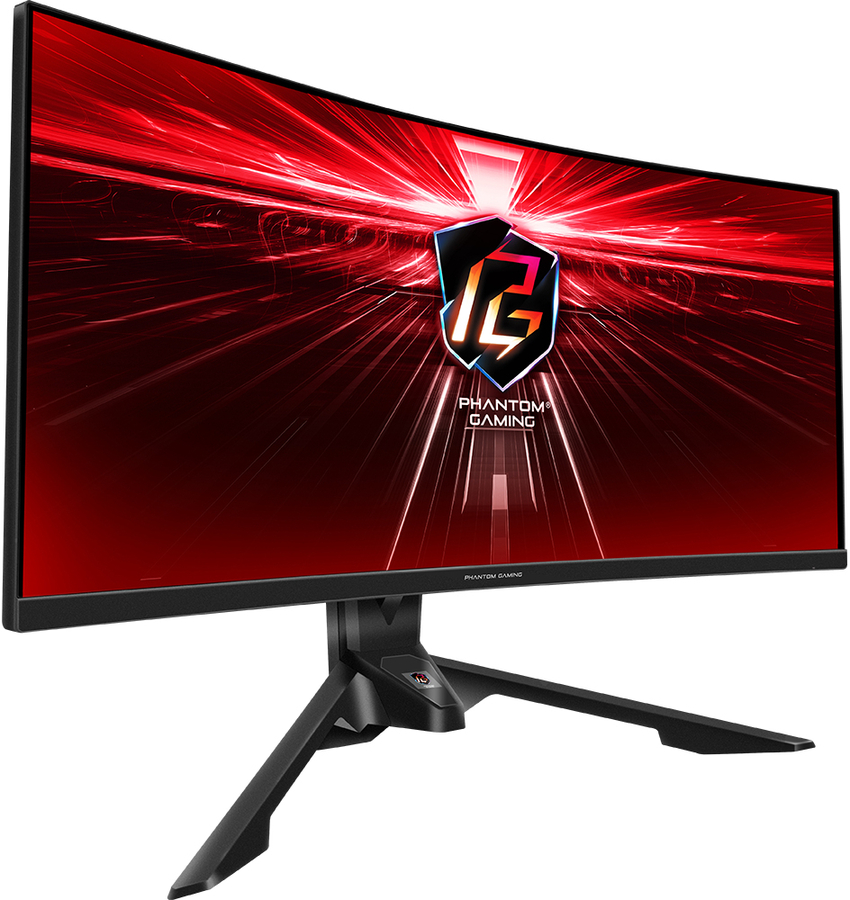

The curved Phantom Gaming monitor adopts 1500R curvature that offers you a greater sense of coverage. Let gamers enjoy gameplay with immersive visual from all angles.
Gaming Feature
Phantom Gaming monitor features Flicker-free technology, which can reduce flicker, minimize eyestrain, and provide a comfortable viewing experience.
Engineering

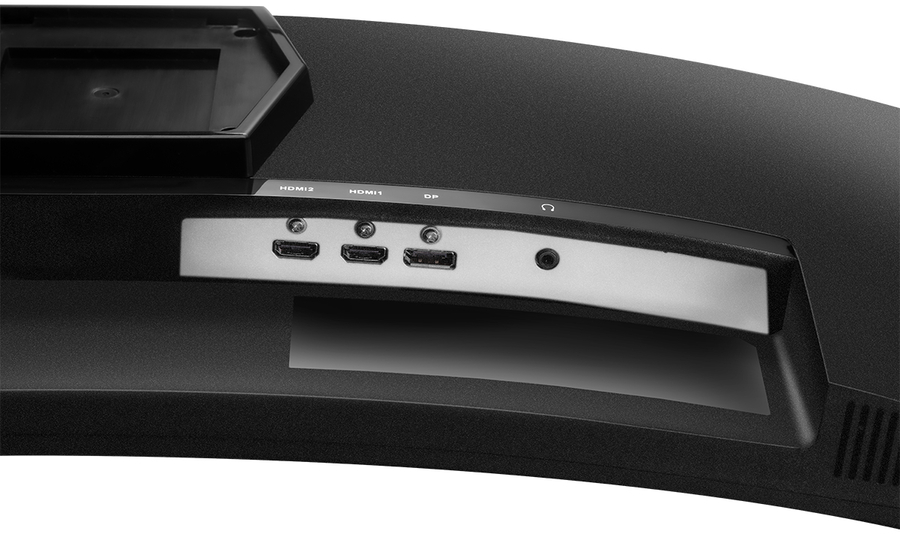

One Display port 1.4 supports up to a 165Hz refresh rate. Two additional HDMI 2.0 ports are available for secondary displays and compatible consoles. Plus, the two built-in speakers and one 3.5mm earphone output offer gamers a better gaming experience. |
|
Display |
|
Display diagonal |
86.4 cm (34") |
|
Display resolution |
3440 x 1440 pixels |
|
Native aspect ratio |
21:9 |
|
Display technology |
OLED |
|
Touchscreen |
No |
|
HD type |
Wide Quad HD |
|
Panel type |
VA |
|
Response time |
1 ms |
|
Screen shape |
Curved |
|
Contrast ratio (typical) |
3000:1 |
|
Maximum refresh rate |
165 Hz |
|
Display number of colours |
16.7 million colours |
|
Display brightness (typical) |
550 cd/m² |
|
Anti-glare screen |
Yes |
|
Screen curvature rating |
1500R |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Pixel pitch |
0.23175 x 0.23175 mm |
|
Horizontal scan range |
30 - 260 kHz |
|
Vertical scan range |
48 - 165 Hz |
|
Viewable size, horizontal |
79.7 cm |
|
Viewable size, vertical |
33.4 cm |
|
Digital horizontal frequency |
30 - 160 kHz |
|
Digital vertical frequency |
48 - 100 Hz |
|
High Dynamic Range (HDR) supported |
Yes |
|
High Dynamic Range (HDR) technology |
DisplayHDR 400 |
|
Colour gamut standard |
DCI-P3 |
|
Colour gamut |
91% |
|
sRGB coverage (typical) |
115% |
|
Performance |
|
AMD FreeSync |
Yes |
|
AMD FreeSync type |
FreeSync Premium |
|
Flicker-free technology |
Yes |
|
Low Blue Light technology |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
Built-in camera |
No |
|
Number of speakers |
2 |
|
RMS rated power |
4 W |
|
Design |
|
Market positioning |
Gaming |
|
Product colour |
Black |
|
Feet colour |
Black |
|
Ports & interfaces |
|
Built-in USB hub |
No |
|
HDMI |
Yes |
|
Headphone out |
Yes |
|
HDMI ports quantity |
2 |
|
HDMI version |
2.0 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Headphone outputs |
1 |
|
Headphone connectivity |
3.5 mm |
|
Charging port type |
USB Type-C |
|
Network |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
Ergonomics |
|
VESA mounting |
Yes |
|
Height adjustment |
Yes |
|
Panel mounting interface |
100 x 100 mm |
|
Adjustable height (max) |
12 cm |
|
Swivelling |
Yes |
|
Swivel angle range |
-20 - 20° |
|
Tilt adjustment |
Yes |
|
Tilt angle range |
-5 - 23° |
|
Power |
|
Power consumption (typical) |
65 W |
|
Power consumption (max) |
100 W |
|
Power consumption (off) |
0.3 W |
|
Power consumption (PowerSave) |
0.5 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width (with stand) |
809.3 mm |
|
Depth (with stand) |
332.2 mm |
|
Height (with stand) |
581.8 mm |
|
Weight (with stand) |
9.63 kg |
|
Width (without stand) |
809.3 mm |
|
Depth (without stand) |
120.1 mm |
|
Height (without stand) |
365.8 mm |
|
Weight (without stand) |
6.53 kg |
|
Packaging data |
|
Package weight |
13.5 kg |
|
Packaging content |
|
Stand included |
Yes |
|
Cables included |
Power, DisplayPort, HDMI, USB Type-A to USB Type-C |
|
Quick start guide |
Yes |
