General Information |
|
Summary |
The large, easy-to-read display for captivating interactive lessons.
Designed for ease of use in collaborative learning environments, BrightLink® ultra short throw displays simplify interactivity in the classroom by offering compatibility with frequently used software applications including Office 365® and Google Workspace®. Offering a large full HD interactive display up to 100", the BrightLink 770Fi provides up to 75 percent more interactive space than a 75" flat panel—while providing a low cost per square inch. With 4,100 lumens of color and white brightness1 and proprietary 3-chip 3LCD technology, the BrightLink 770Fi delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions, from nearly anywhere in the classroom.
Flexible and convenient, it supports standard 16:9 as well as ultra wide 21:9 and 16:6 displays with split screen2 to simultaneously display content from a PC or document camera beside an interactive whiteboard canvas. It also includes a 20,000-hour, virtually maintenance-free laser light source3, so there are no lamps to purchase or replace—ever. The BrightLink 770Fi comes with wireless connectivity with casting capability4 and can display up to four screens simultaneously. With its unique ability to display and support interactivity on existing whiteboards, the dual-pen-enabled BrightLink 770Fi has an optional finger touch function and delivers exceptional value by allowing teachers to retain valuable whiteboard space when the display is not in use. |
|
Projector |
|
Projector brightness |
4100 ANSI lumens |
|
Projection technology |
3LCD |
|
Projector native resolution |
1080p (1920x1080) |
|
Contrast ratio (typical) |
2500000:1 |
|
Native aspect ratio |
16:9 |
|
Smart projector |
Yes |
|
Screen size compatibility |
1524 - 2540 mm (60 - 100") |
|
Number of colours |
1.07 billion colours |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
30000 h |
|
Service life of light source (economic mode) |
20000 h |
|
Lens system |
|
Focus |
Manual |
|
Fixed focal length |
3.7 mm |
|
F-number (relative aperture) |
1.6 |
|
Zoom type |
Manual |
|
Zoom ratio |
1.35:1 |
|
Throw ratio |
0.25 - 0.35 |
|
Video |
|
Full HD |
Yes |
|

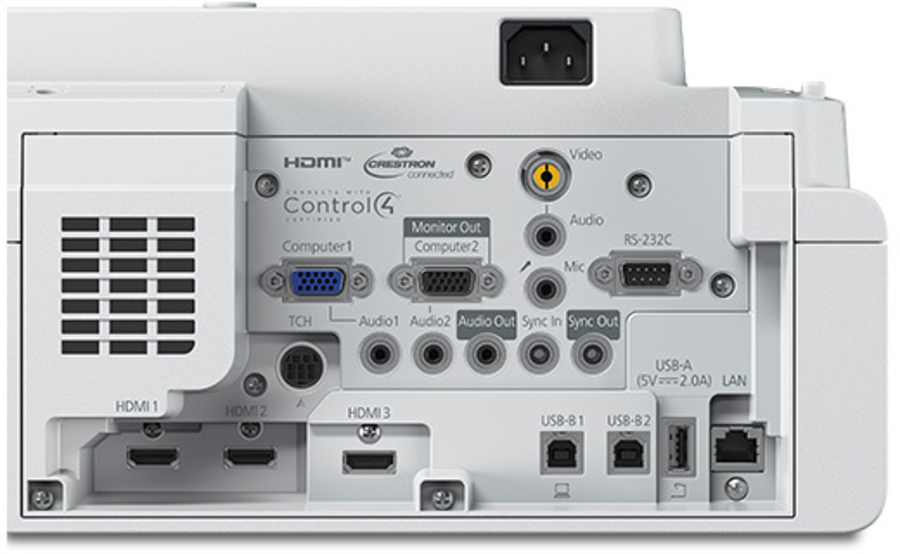

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
3 |
|
Composite video in |
1 |
|
Audio (L/R) in |
3 |
|
Serial interface type |
RS-232C |
|
USB 2.0 Type-A ports quantity |
1 |
|
USB 2.0 Type-B ports quantity |
2 |
|
Audio (L/R) out |
1 |
|
Microphone in |
Yes |
|
PC in (D-Sub) |
Yes |
|
Network |
|
Smart TV |
Yes |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 5 (802.11ac) |
|
Features |
|
Noise level |
37 dB |
|
Interactive |
Yes |
|
Interactive input supported |
Interactive pen/Touch |
|
Noise level (economic mode) |
27 dB |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
16 W |
|
Design |
|
Product type |
Ultra short throw projector |
|
Market positioning |
Presentation |
|
Product colour |
White |
|
Placement |

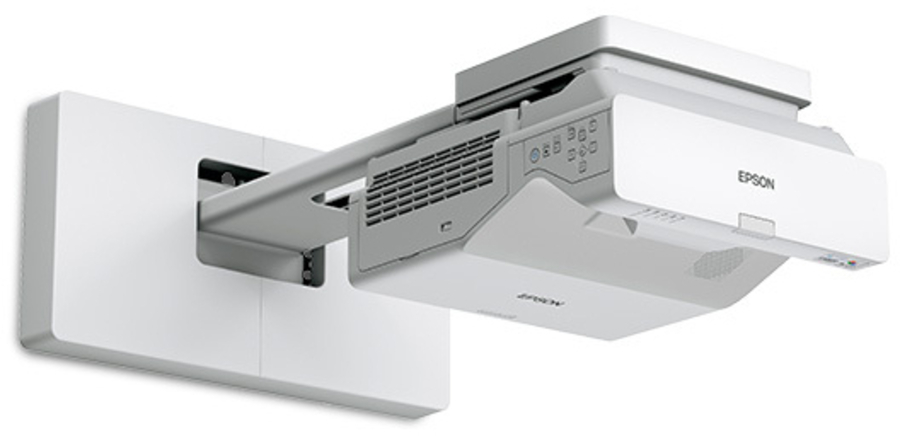

Ceiling, Desktop, Wall |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
277 W |
|
Power consumption (standby) |
2 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 40 °C |
|
Weight & dimensions |
|
Weight |
6 kg |
|
Width |
396 mm |
|
Depth |
358 mm |
|
Height |
135 mm |
|
Packaging content |
|
Remote control included |
Yes |
