General Information |
|
Summary |

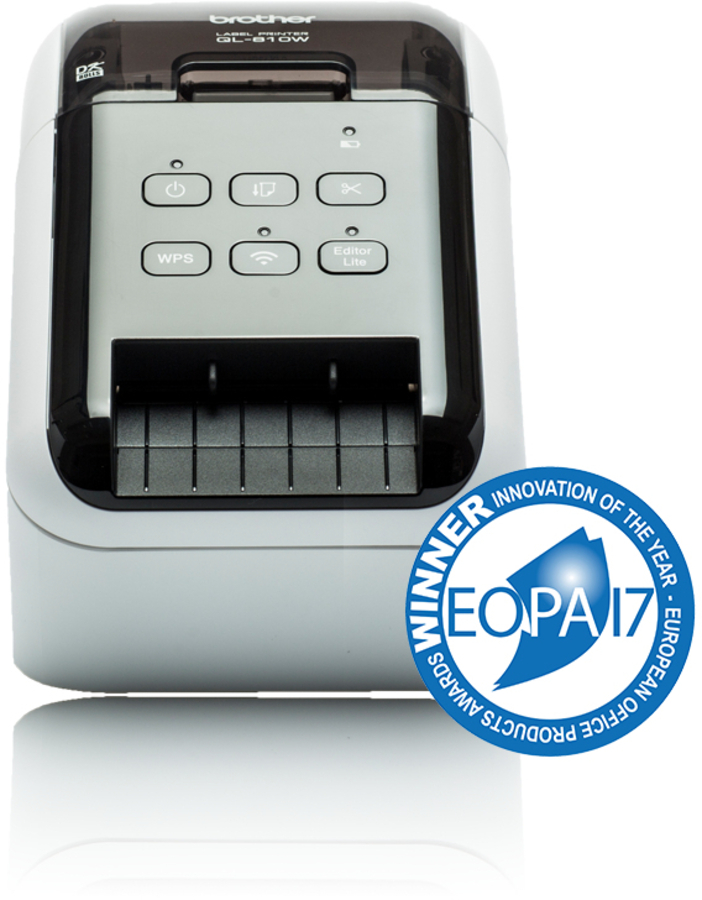

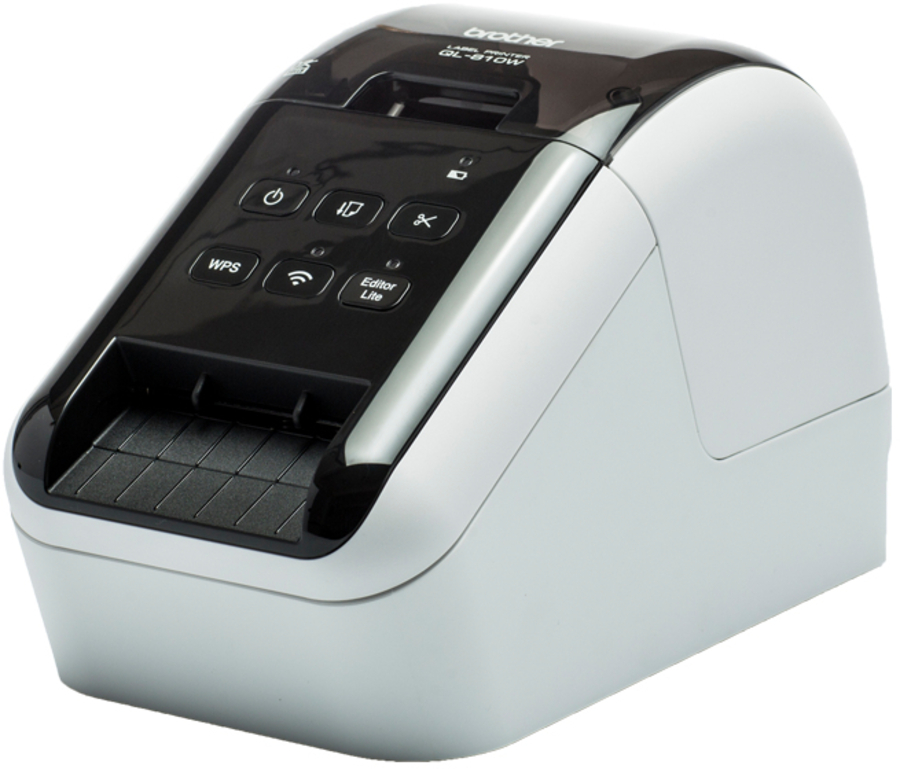

This high-speed label printer connects to your PC, Mac, smartphone or tablet using USB or Wi-Fi. The built-in P-touch Editor Lite software is so easy to use - simply connect the printer to your computer, click the icon to launch the software and design and print your labels.Thanks to its advanced print mechanism and special label roll, you can also print labels that can contain both black and red colours without the need for ink or toner.And when you discover you can print custom sized labels up to one metre in length using the integrated cutter and continuous label rolls, it's easy to understand why the QL-810W is the ideal choice for offices, workgroups, mail rooms and receptions.. |
|
Printing |
|
Print technology |
Direct thermal |
|
Colour |
Yes |
|
Maximum resolution |
300 x 600 DPI |
|
Print speed |
110 lpm |
|
Maximum printing width |
5.8 cm |
|
Printing colours |
Black, Red |
|
Minimum print length |
100 cm |
|
Vertical printing |
Yes |
|
Rotated printing |
Yes |
|
Text alignment |
Center, Left |
|
Paper handling |
|
Autocutter |
Yes |
|
Maximum label width |
6.2 cm |
|
Maximum label length |
4 m |
|
Ports & interfaces |
|
Connectivity technology |
Wired & Wireless |
|
Wi-Fi |
Yes |
|
USB port |
Yes |
|
Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|
USB 2.0 ports quantity |
1 |
|
Mobile printing technologies |
Apple AirPrint |
|
Wi-Fi Direct |
Yes |
|
Performance |
|
Page description languages |
ESC P, Raster_P |
|
Flash memory |
6 MB |
|
Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
|
Number of fonts |
5 |
|
Tape type |
DK |
|
Number of styles |
8 |
|
Security algorithms |
AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA-PSK, WPA2-PSK |
|
Tape size detection |
Yes |
|
Design |
|
Product colour |
Black, White |
|
Built-in display |
No |
|
Housing material |
Plastic |
|
Power |
|
AC input voltage |
220 - 240 V |
|
Battery technology |
Lithium-Ion (Li-Ion) |
|
Auto power off |
Yes |
|
Power source type |
AC |
|
Rechargeable |
Yes |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Mobile operating systems supported |
Android, iOS |
|
Linux operating systems supported |
Yes |
|
Weight & dimensions |
|
Width |
185 mm |
|
Depth |
300 mm |
|
Height |
230 mm |
|
Weight |
2.25 kg |
|
Packaging data |
|
Package width |
298 mm |
|
Package depth |
184 mm |
|
Package height |
232 mm |
|
Package weight |
2.67 kg |
|
Packaging content |
|
Cables included |
AC, USB |
|
Batteries included |
Yes |
|
Bundled software |
P-touch Editor Lite
P-touch Editor 5
P-touch Editor Lite LAN
P-touch Address Book
BR Admin Light |
|
Drivers included |
Yes |
|
Quick start guide |
Yes |
|
Warranty card |
Yes |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
84433210 |
|
Pallet gross height |
16.5 cm |
|
Pallet gross weight |
328.3 kg |
|
Master (outer) cases per pallet |
36 pc(s) |
|
Master (outer) cases per pallet layer |
6 pc(s) |
|
Layers per pallet |
6 pc(s) |
|
Products per pallet |
108 pc(s) |
|
Technical details |
|
Sustainability certificates |
ENERGY STAR |
|
Pallet type |
1200 x 1000 mm |
|
Other features |
|
Label memory |
99 label(s) |
|
Country of origin |
China |
|
Number of frames |
126 |
|
Languages support |
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
|
Date & time printing |
Yes |
|
Number of languages |
18 |
|
Spare part retention |
5 year(s) |
|
