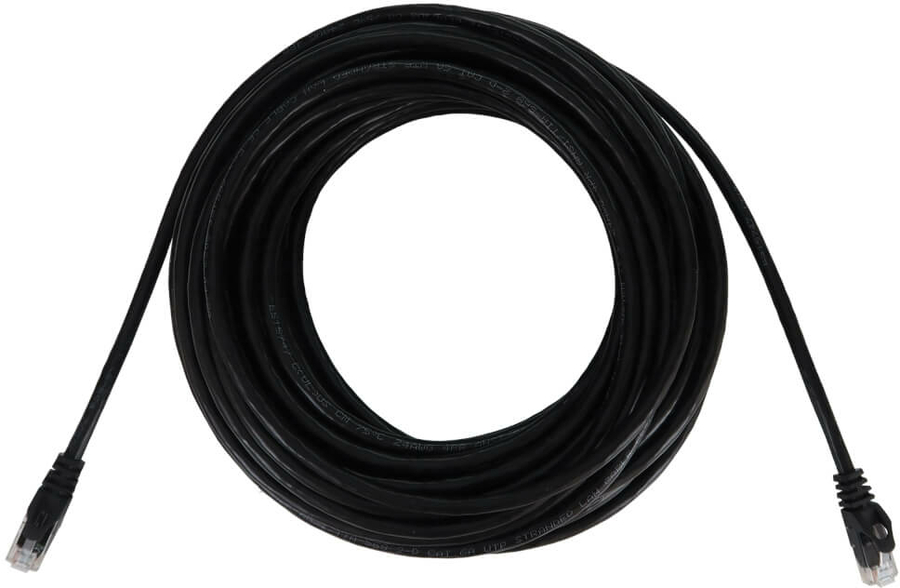

Tripp Lite 100-Foot Cat6a Ethernet CableSnagless Molded UTP Black
|
|
Regularly: $59.00
On Sale: $56.64
Sale Ends:
April 26th, 2024
Manufacturer:
Tripp Lite
Cat6a 10G Snagless Molded UTP Ethernet Cable (RJ45 M/M), PoE, Black, 100 ft. (30.5 m)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58916674
|
N261-100-BK
|
37332277589 |
Active
|
Details
|
General Information |
|
Summary |
Cat6a Cable Ideal for Your High-Density 10 Gigabit Ethernet Network
This Cat6a 10G Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems, hubs and switches in high-density data centers and network closets. Designed for fast transmission and excellent signal quality, the N261-100-BK ensures peak performance throughout your LAN.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this Cat6a cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

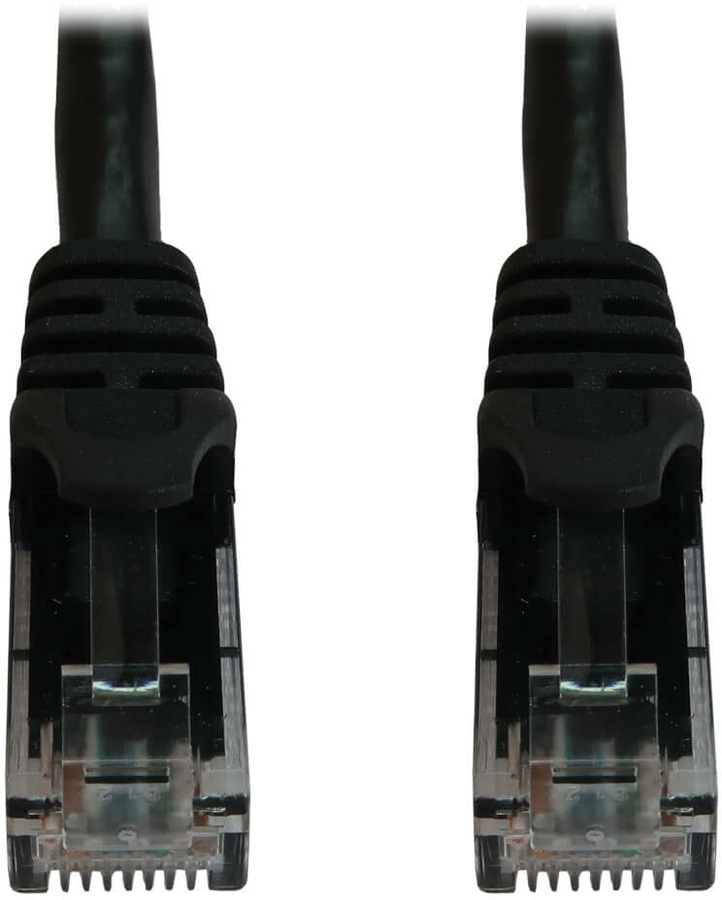

Snagless RJ45 Male Connectors Add Extra Protection
The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. The contacts feature 50-micron gold plating to help ensure the most accurate signal transfer possible, improving near-end crosstalk (NEXT) performance to 500 MHz.
Black Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The cable has a black PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected.
Premium Construction for Superior Performance
Manufactured from 24 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. Integral strain relief gives the unshielded cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector. |
|
Features |
|
Cable length |
30.49 m |
|
Cable standard |
Cat6a |
|
Cable shielding |
U/UTP (UTP) |
|
Connector 1 |
RJ-45 |
|
Connector 2 |
RJ-45 |
|
Product colour |
Black |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Nickel/Gold |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Cable shape |
Round |
|
Conductor type |
Stranded |
|
Conductor material |
Copper |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at |
|
AWG wire size |
24 |
|
Data transfer rate |
10000 Mbit/s |
|
Frequency |
500 MHz |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
30 W |
|
Molded cable boot |
Yes |
|
Snagless cable boot |
Yes |
|
Certification |
UL Listed; cUL Listed, CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+;
REACH; UKCA |
|
Country of origin |
China |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Storage relative humidity (H-H) |
5 - 85% |
|
Weight & dimensions |
|
Outer diameter |
6 mm |
|
Weight |
1.12 kg |
|
Packaging data |
|
Package width |
355.6 mm |
|
Package depth |
12.7 mm |
|
Package height |
50.8 mm |
|
Package weight |
1.2 kg |
|
Logistics data |
|
Harmonized System (HS) code |
8544.42.2000 |
|
Master (outer) case width |
391.2 mm |
|
Master (outer) case length |
325.1 mm |
|
Master (outer) case gross weight |
12.1 kg |
|
Master (outer) case height |
330.2 mm |
|
Products per master (outer) case |
10 pc(s) |
|
