General Information |
|
Summary |

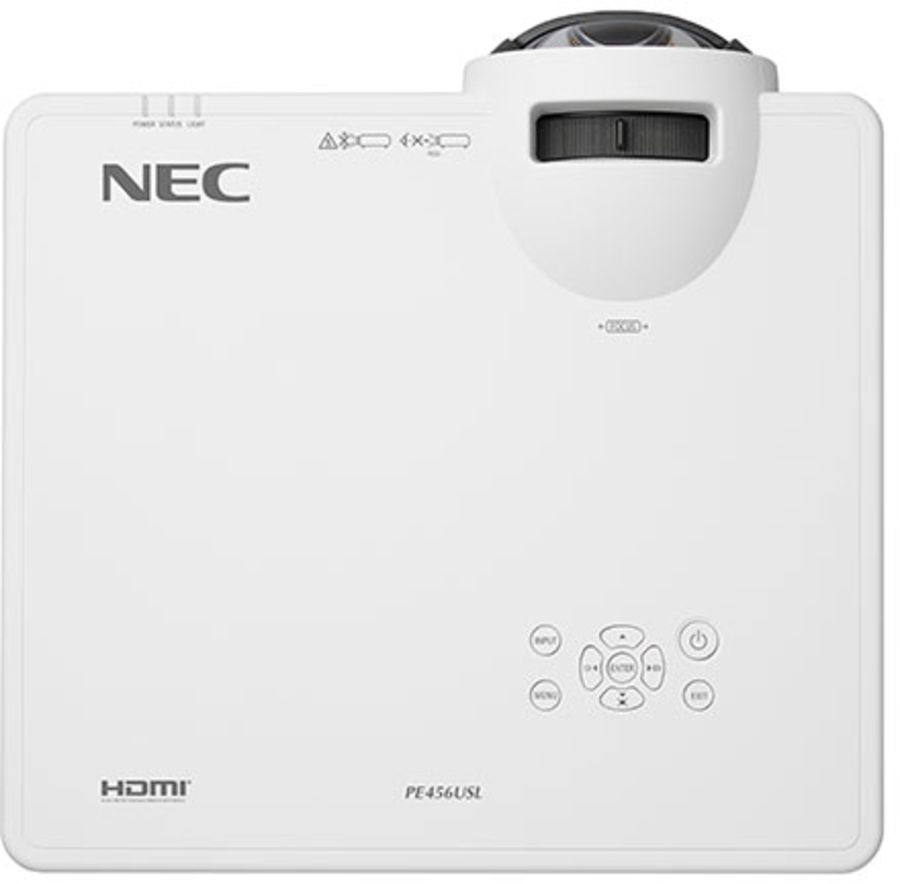

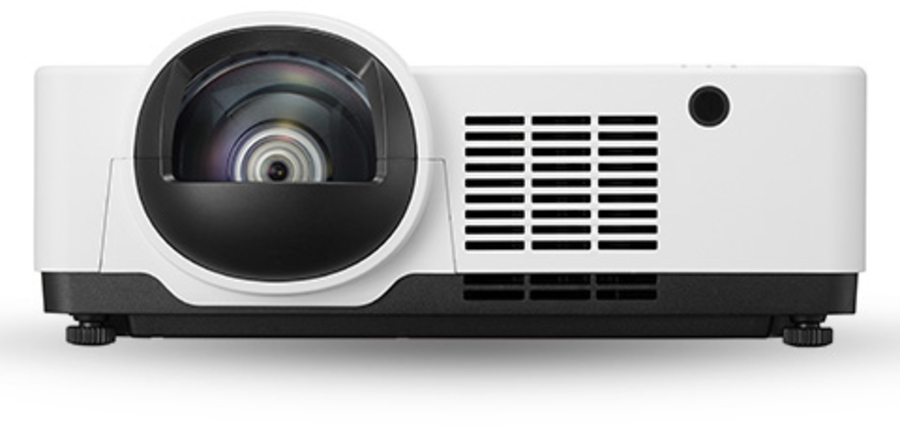

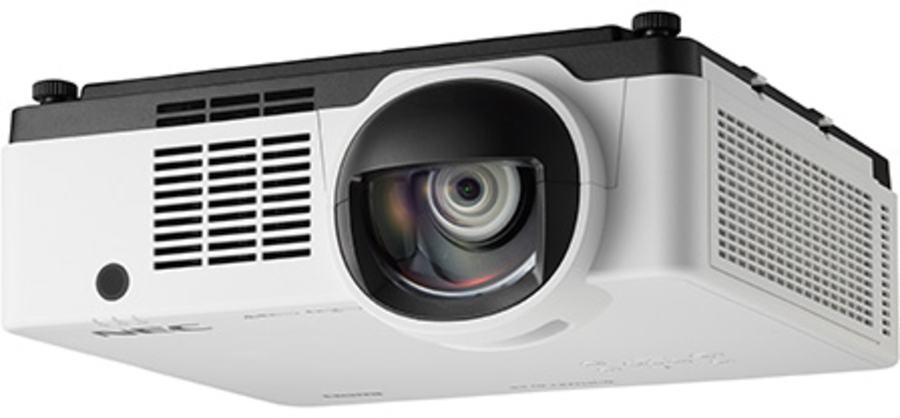

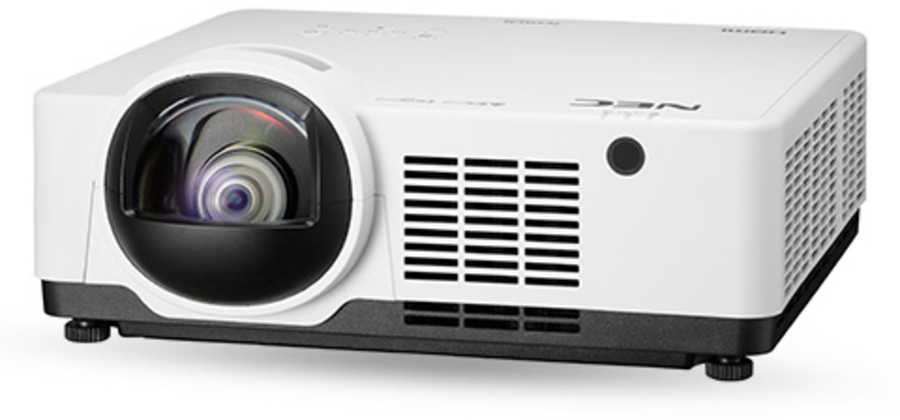

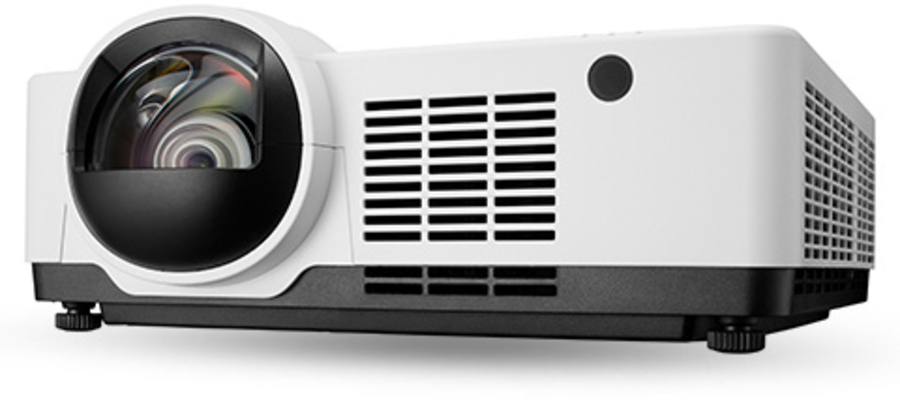

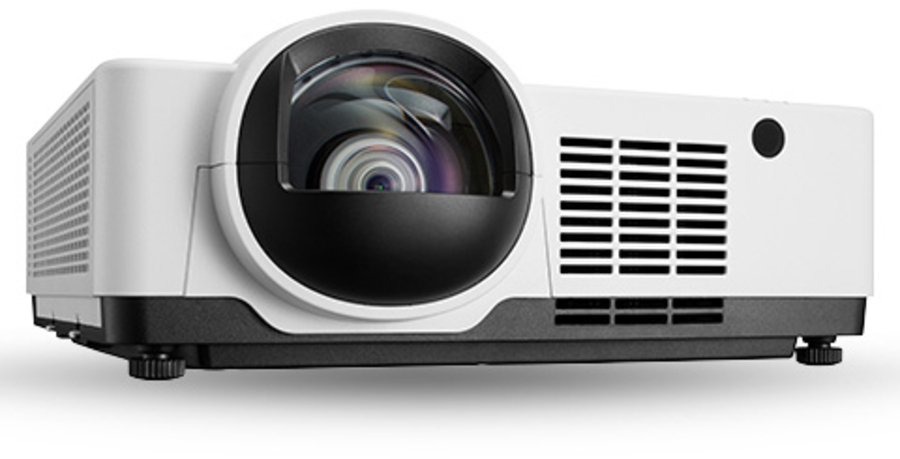

The NEC PE456USL short throw, Entry Installation Series, LCD, laser projector provides a unique solution anywhere space is limited or casting a shadow on the screen is a concern. With 4500 lumens, WUXGA resolution and outstanding LCD color fidelity in a compact, manageable cabinet the PE456USL delivers clear images in challenging applications. The 20,000 hour laser life creates a low TCO projection solution.
|
|
Projector |
|
Projector brightness |
4500 ANSI lumens |
|
Projection technology |
LCD |
|
Projector native resolution |
WUXGA (1920x1200) |
|
Contrast ratio (typical) |
3000000:1 |
|
Native aspect ratio |
16:10 |
|
Screen size compatibility |
1397 - 3302 mm (55 - 130") |
|
Projection distance |
0.517 - 1.268 m |
|
Keystone correction, horizontal |
-15 - 15° |
|
Keystone correction, vertical |
-15 - 15° |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Service life of light source (economic mode) |
30000 h |
|
Lens system |
|
Focus |
Manual |
|
Focal length range |
17.2 - 27.6 mm |
|
Aperture range (F-F) |
1.6 - 6.39 |
|
Video |
|
Full HD |
Yes |
|

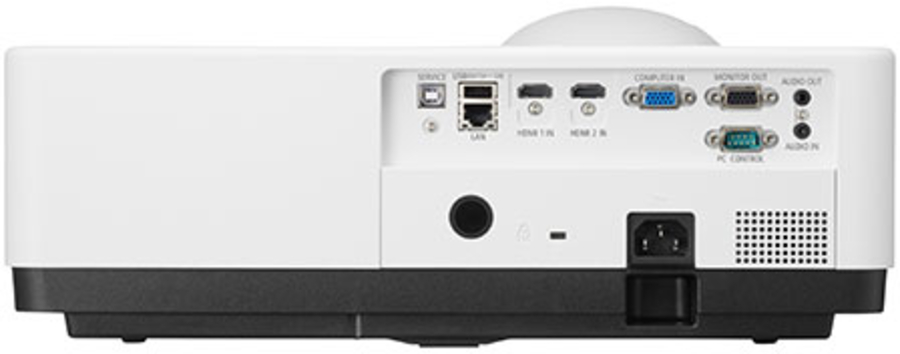

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
2 |
|
HDMI ports quantity |
2 |
|
Audio (L/R) in |
1 |
|
Serial interface type |
RJ-45, RS-232 |
|
USB 2.0 ports quantity |
2 |
|
USB 2.0 Type-A ports quantity |
1 |
|
Audio (L/R) out |
1 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
Noise level |
27 dB |
|
Noise level (economic mode) |
37 dB |
|
HDCP |
Yes |
|
Password protection |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
16 W |
|
Design |
|
Product type |
Short throw projector |
|
Product colour |
Black, Grey |
|
Placement |
Desktop |
|
Display |
|
Built-in display |
Yes |
|
Display |
LCD |
|
Display diagonal |
1.63 cm (0.64") |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
352 W |
|
Power consumption (standby) |
2 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Auto power off |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 50 °C |
|
Operating relative humidity (H-H) |
20 - 88% |
|
Storage relative humidity (H-H) |
20 - 80% |
|
Weight & dimensions |
|
Weight |
8.1 kg |
|
Width |
405 mm |
|
Depth |
404 mm |
|
Height |
164 mm |
|
Package width |
510 mm |
|
Package depth |
500 mm |
|
Package height |
260 mm |
|
Package weight |
10.4 kg |
|
Packaging content |
|
Remote control included |
Yes |
|
Remote control type |
IR |
|
Cables included |
AC, VGA |
|
Manual |
Yes |
