General Information |
|
Summary |

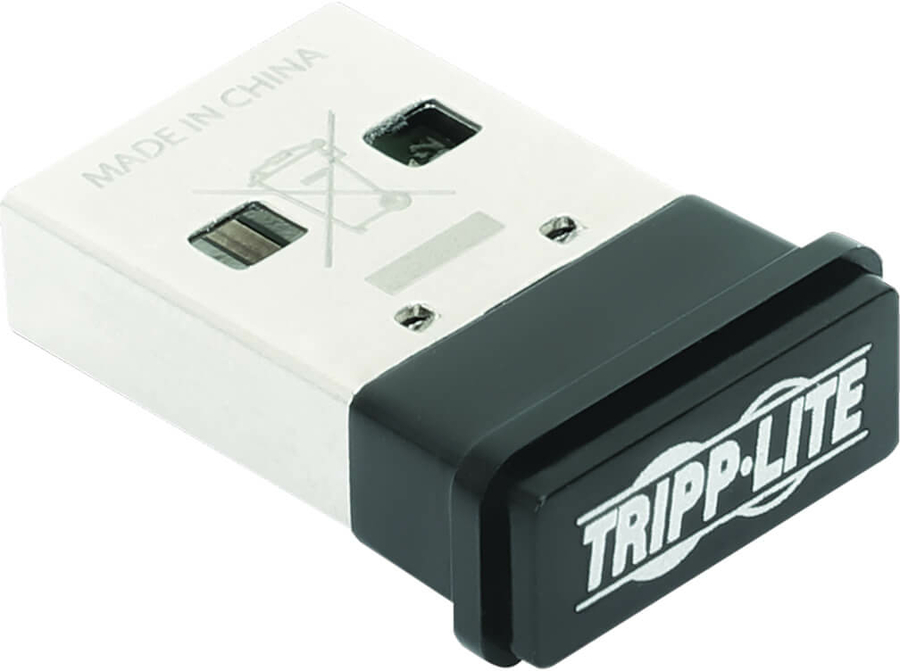

Add Bluetooth 5.0 Wireless Capability to Your Computer or Laptop
This low-profile Bluetooth 5.0 (Class 2) USB adapter connects to your PC or laptop’s USB-A port to provide instant Bluetooth wireless capability. Compliant with Bluetooth 5.0 LE+EDR Class 2 standards, the U261-001-BT5 is ideal for wireless communication between your computer and up to seven Bluetooth 5.0 devices at the same time, including smartphones, tablets, keyboards, mice, headsets and printers.
Broadcasts a Wireless Signal up to 165 ft.
The USB adapter has a wireless range up to 165 feet (50 meters) and supports data transfer speeds up to 3 Mbps. Built-in security measures ensure your pairing, encryption and authentication information remains private.

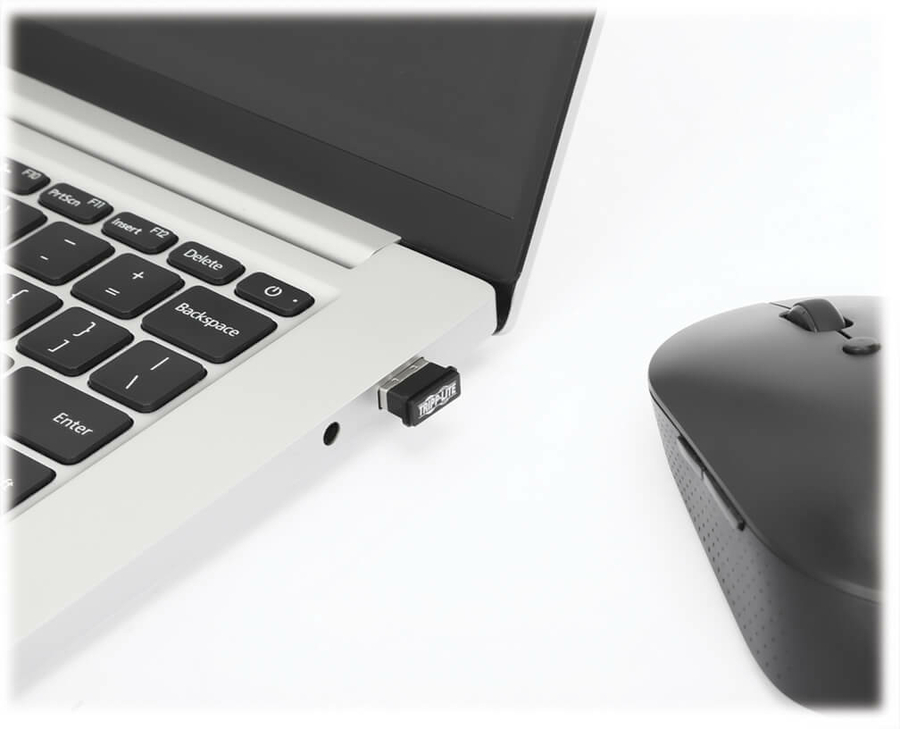

Convenient Low-Profile Design Keeps You Connected as Long as You Like
This Bluetooth adapter protrudes less than 3/16 of an inch (about five millimeters) from the USB port, so it can remain connected while your laptop is inside a sleeve, briefcase or backpack. It’s backward compatible with previous Bluetooth versions, so you can use the adapter to connect older devices. |
|
Ports & interfaces |
|
Connectivity technology |
Wireless |
|
Host interface |
USB |
|
Interface |
Bluetooth |
|
USB connector form factor |
Straight |
|
USB version |
2.0 |
|
Network |
|
Maximum data transfer rate |
3 Mbit/s |
|
Modulation |
DPSK, DQPSK, GFSK |
|
Maximum operating distance |
50 m |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0+EDR |
|
Design |
|
Internal |
No |
|
Component for |
PC/Laptop |
|
Product colour |
Black |
|
Country of origin |
China |
|
Power |
|
Power consumption (typical) |
0.5 W |
|
USB powered |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
20 - 90% |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
13.8 mm |
|
Depth |
18.9 mm |
|
Height |
6.3 mm |
|
Packaging data |
|
Package width |
80 mm |
|
Package depth |
56.9 mm |
|
Package height |
20.1 mm |
|
Package weight |
20 g |
|
Technical details |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE |
|
Logistics data |
|
Harmonized System (HS) code |
8471.80.1000 |
|
Master (outer) case width |
490 mm |
|
Master (outer) case length |
300 mm |
|
Master (outer) case height |
184.9 mm |
|
Master (outer) case gross weight |
4.2 kg |
|
Products per master (outer) case |
200 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
