General Information |
|
Summary |

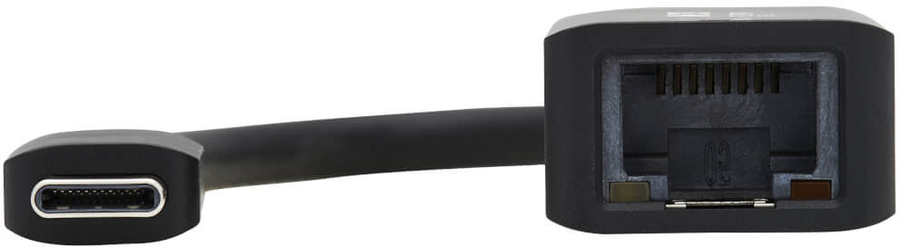

USB-C 3.2 to Gigabit Ethernet Adapter Connects you to a Wired 2.5G Network
This USB-C network adapter instantly connects your MacBook, tablet or Windows laptop to a wired network through a USB-C or Thunderbolt port. No internal Ethernet card is required. Ideal for settings in which Wi-Fi is unavailable, weak or spotty, this USB 3.2 Gen 1 adapter lets you enjoy Ethernet speeds up to 2.5 Gbps (when connected to Cat8 cabling) for large file downloads, video conferences, online gaming and high-definition live streaming without buffering. It’s also backward compatible with 10/100/1000 Mbps networks to ensure compatibility with all your devices.
Easy Installation Gets You Online Almost Immediately

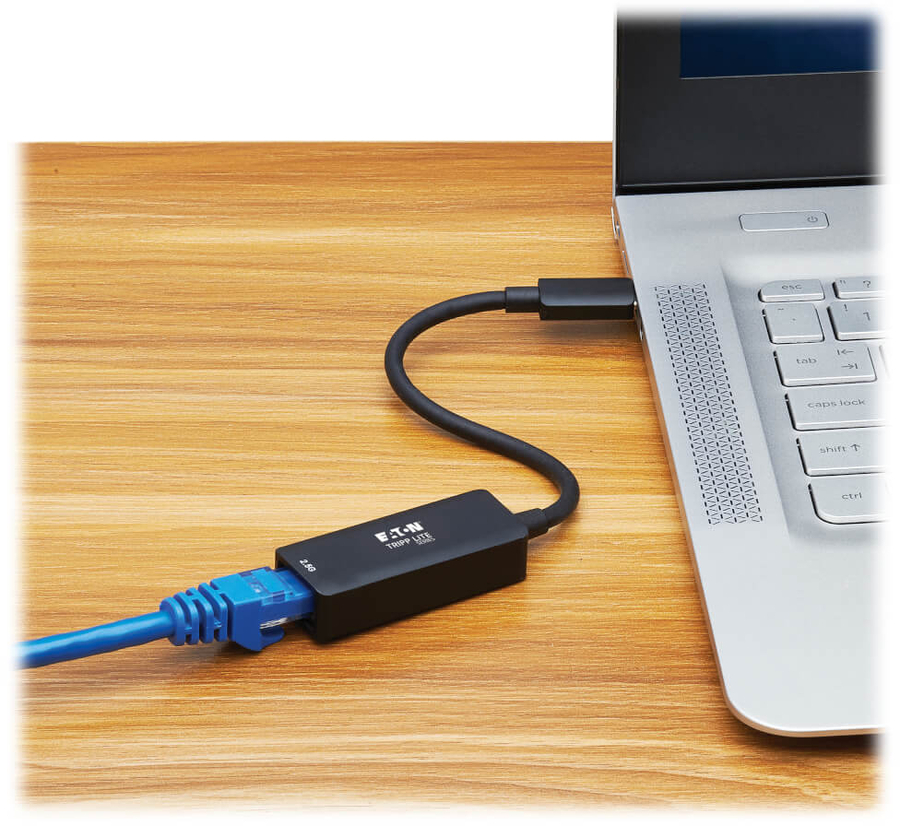

This bus-powered network adapter requires no external power source. Just connect the built-in USB 3.2 Gen 1 Type-C plug to your computer, and use a Cat5e/6/6a/8 cable (sold separately) to connect the RJ45 end to a network (a quick driver installation may be required). LEDs indicate when you’re connected to a network and when data is being transferred. The compact unit fits easily into a pocket, purse, backpack or laptop bag for instant file transfers where needed. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
USB Type-C |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB connector form factor |
Straight |
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet, Gigabit Ethernet |
|
Full duplex |
Yes |
|
Design |
|
Internal |
No |
|
Component for |
Laptop |
|
Product colour |
Black |
|
Country of origin |
Vietnam |
|
Power |
|
USB powered |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
21.5 mm |
|
Depth |
13 mm |
|
Height |
53 mm |
|
Packaging data |
|
Package width |
228.6 mm |
|
Package depth |
12.7 mm |
|
Package height |
177.8 mm |
|
Package weight |
30 g |
|
Technical details |
|
Compliance certificates |

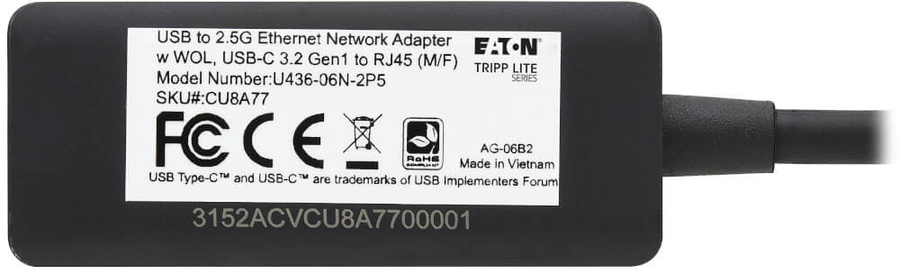

CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE |
|
Logistics data |
|
Harmonized System (HS) code |
8517.62.0090 |
|
Master (outer) case width |
398.8 mm |
|
Master (outer) case length |
25.4 mm |
|
Master (outer) case height |
350.5 mm |
|
Master (outer) case gross weight |
300 g |
|
Products per master (outer) case |
10 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
