General Information |
|
Summary |
The desktop reimagined
OptiPlex has 25 years of experience delivering customer-led innovation for desktops by continuously adapting to the way you work. Now featuring versatile, space-saving form factors and 8th generation Intel® Processors to unleash your full potential.
Designed to tackle the workday

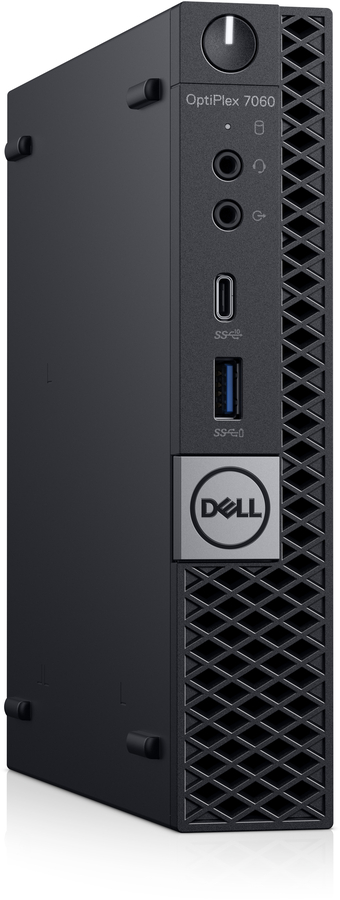

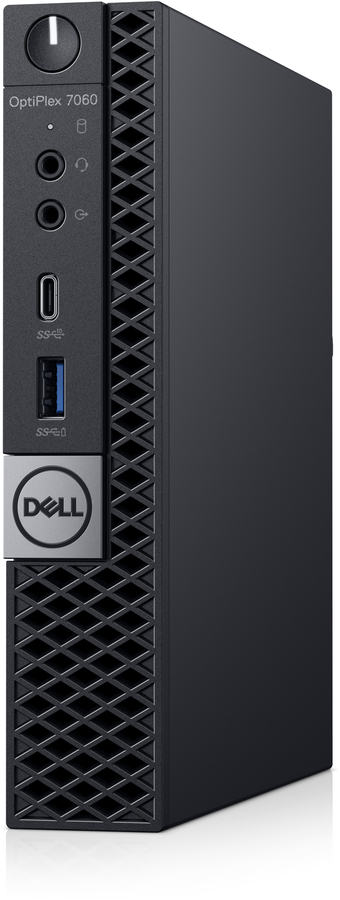

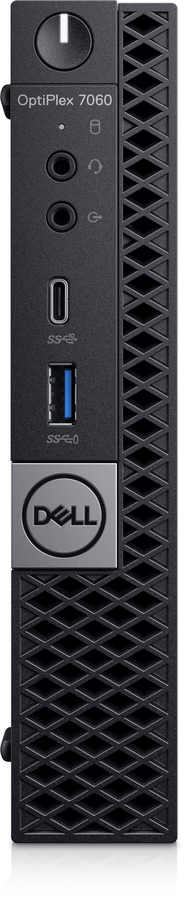

Compact without compromise: With full-power features in a space-saving design, more workers choose the OptiPlex micro than ever before. The micro takes up less surface area while still maintaining all the reliability you've come to expect.
Mount it and forget it: With exclusive custom mounting options, including the VESA mount or the OptiPlex Micro All-in-One Stand, the micro adapts to your unique environment, giving you the freedom to work how you want.
Powerful productivity
Power your success: With 8th generation Intel® Core™ Processors, every business task is a breeze. Intel® Optane™ Memory turns even the smallest, routine tasks into huge productivity gains, launching browsers and opening files faster and smoother than ever.

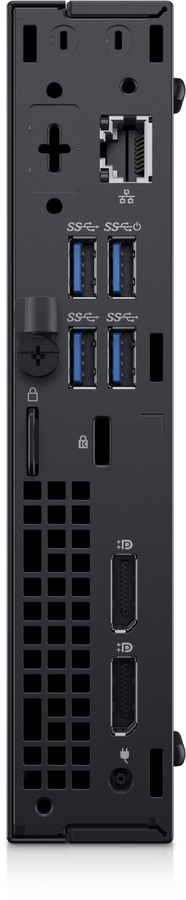

Connect with ease: Support up to three monitors with two native DisplayPorts and optional third port. Choose from third DisplayPort, HDMI 2.0b, VGA, or USB Type-C Alt Mode. Support additional monitors with discrete graphics options.
Smooth, speedy performance: Advanced PCIe NVMe drives provide a blazing-fast boost to data access times.
OptiPlex 7060 Micro with Intel Unite®
Smoother collaboration. Smarter meetings: Transform any room into a secure, modern meeting space with Intel Unite® software for better communication among teams, including real-time sharing, annotation and file transfers. Users can connect, share and display with a split-screen view, mark-up shared content, and drag and drop files with ease.
Secure
Because security starts with best-in class hardware, the OptiPlex micro features TPM 2.0 and a chassis intrusion switch. Add custom cable covers and a security lock to protect your investment. Plus, Dell Data Security offers comprehensive threat protection from end-to-end, so you can focus more on your work and spend less time worrying about your system.
Manageable
The Dell Client Command Suite automates and streamlines system deployment, configuration, monitoring and updates and is free on all Dell commercial PCs.
Reliable
Your system will withstand real world conditions thanks to a durable, built-to-last chassis that’s undergone MIL-STD 810G testing. A simple removable side panel allows for quick system access to easily upgrade and replace components like storage and memory, making your PC viable for years to come. |
|
Processor |
|
Processor family |
Intel® Core™ i5 |
|
Processor manufacturer |
Intel |
|
Processor model |
i5-8500T |
|
Processor frequency |
2.1 GHz |
|
Processor generation |
8th gen Intel® Core™ i5 |
|
Processor cores |
6 |
|
Processor threads |
6 |
|
Processor boost frequency |
3.5 GHz |
|
Processor socket |
LGA 1151 (Socket H4) |
|
Processor cache |
9 MB |
|
Processor cache type |
Smart Cache |
|
System bus rate |
8 GT/s |
|
Bus type |
DMI3 |
|
Processor lithography |
14 nm |
|
Processor operating modes |
64-bit |
|
Processor codename |
Coffee Lake |
|
Thermal Design Power (TDP) |
35 W |
|
Configurable TDP-down |
25 W |
|
Configurable TDP-down frequency |
1.6 GHz |
|
Tjunction |
100 °C |
|
PCI Express slots version |
3.0 |
|
Maximum number of PCI Express lanes |
16 |
|
PCI Express configurations |
1x16, 1x8+2x4, 2x8 |
|
Number of processors installed |
1 |
|
Stepping |
U0 |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory types supported by processor |
DDR4-SDRAM |
|
Memory bandwidth supported by processor (max) |
41.6 GB/s |
|
ECC supported by processor |
No |
|
Memory |
|
Internal memory |
8 GB |
|
Maximum internal memory |
32 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory slots |
2x SO-DIMM |
|
Non-ECC |
Yes |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
256 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Number of storage drives installed |
1 |
|
Number of SSDs installed |
1 |
|
SSD capacity |
256 GB |
|
Card reader integrated |
No |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® UHD Graphics 630 |
|
On-board graphics card family |
Intel® UHD Graphics |
|
On-board graphics card base frequency |
350 MHz |
|
On-board graphics card dynamic frequency (max) |
1100 MHz |
|
Maximum on-board graphics card memory |
64 GB |
|
Number of displays supported (on-board graphics) |
3 |
|
On-board graphics card DirectX version |
12.0 |
|
On-board graphics card OpenGL version |
4.5 |
|
On-board graphics card ID |
0x3E92 |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
0 |
|
PowerShare |
Yes |
|
Number of USB ports with PowerShare support |
2 |
|
VGA (D-Sub) ports quantity |
0 |
|
DVI port |
No |
|
DisplayPorts quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
No |
|
Headphone outputs |
1 |
|
Line-out |
Yes |
|
Combo headphone/mic port |
Yes |
|
DC-in jack |
Yes |
|
On/off button |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Mini PC |
|
Market positioning |
Business |
|
Motherboard chipset |
Intel Q370 |
|
Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
|
Audio chip |
Realtek ALC3234 |
|
Trusted Platform Module (TPM) |
Yes |
|
Software |
|
Operating system installed |
Windows 10 Pro |
|
Operating system architecture |
64-bit |
|
Processor special features |
|
Intel 64 |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Embedded options available |
Yes |
|
Intel® InTru™ 3D Technology |
Yes |
|
Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
|
Intel Clear Video Technology |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel TSX-NI |
Yes |
|
Idle States |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel Stable Image Platform Program (SIPP) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel Trusted Execution Technology |
Yes |
|
Execute Disable Bit |
Yes |
|
Intel Enhanced Halt State |
Yes |
|
Intel Software Guard Extensions (Intel SGX) |
Yes |
|
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
|
Processor package size |
37.5 x 37.5 mm |
|
Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
|
Processor code |
SR3XD |
|
Scalability |
1S |
|
CPU configuration (max) |
1 |
|
Thermal solution specification |
PCG 2015A |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Identity Protection Technology version |
1.00 |
|
Intel Stable Image Platform Program (SIPP) version |
1.00 |
|
Intel Secure Key Technology version |
1.00 |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel TSX-NI version |
1.00 |
|
Processor ARK ID |
129941 |
|
Intel® Optane™ Memory Ready |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
|
Intel® Quick Sync Video Technology |
Yes |
|
Intel® Identity Protection Technology (Intel® IPT) |
Yes |
|
Conflict-Free processor |
Yes |
|
Power |
|
Power supply |
90 W |
|
Power supply input voltage |
90 - 264 V |
|
Weight & dimensions |
|
Width |
36 mm |
|
Depth |
178 mm |
|
Height |
182 mm |
|
Weight |
1.18 kg |
|
Packaging content |
|
Mouse included |
Yes |
|
Keyboard included |
Yes |
|
Manual |
Yes |
|
Power cord included |
Yes |
|
Display |
|
Display included |
No |
