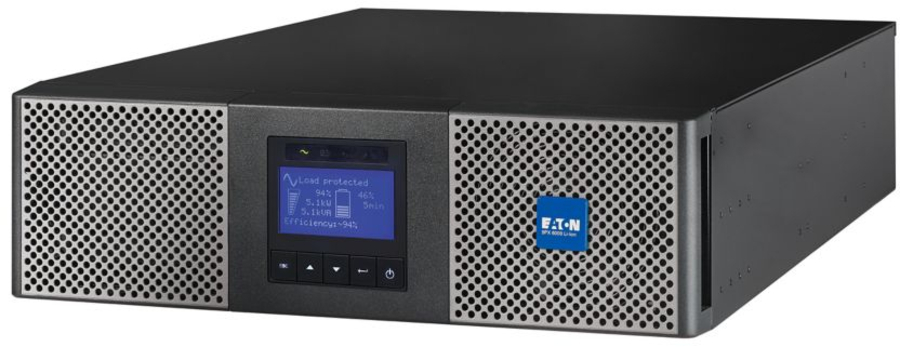

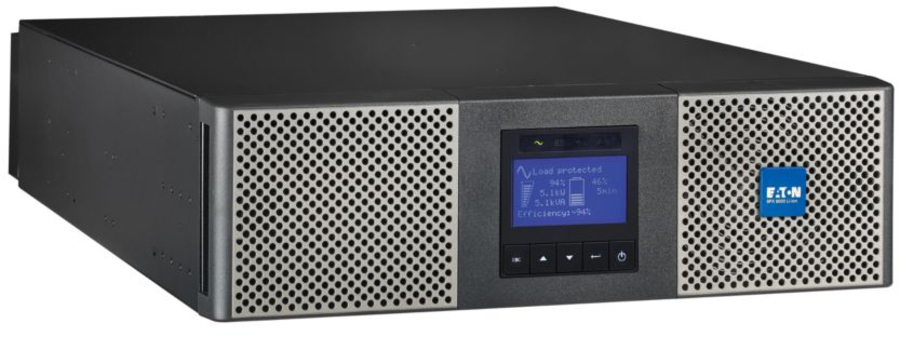

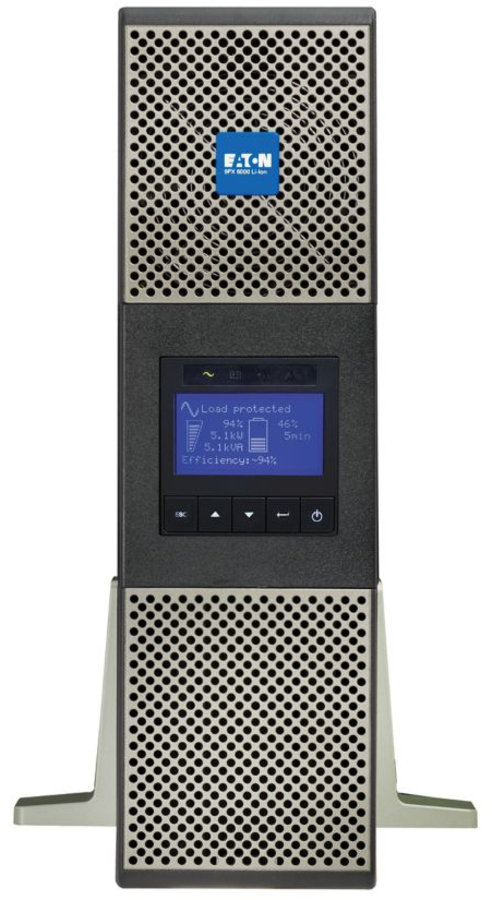

Eaton 9PX 6kVA Lithium-ion Rack/Tower UPS
|
|
Price: $11955.00
Manufacturer:
Eaton
6 kVA, 5400W, 200-240V, 50/60Hz, 1699 BTU/h, 45 dB, Li-Ion
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58949646
|
9PX6K-L
|
786689772598 |
Active
|
Details
|
General Information |
|
Summary |
Eaton 9PX lithium-ion UPS
Double-conversion UPS that offers a set it and forget it deployment
The 9PX lithium-ion UPS is part of the Eaton 9 series single-phase double-conversion UPS line, best applied to mission-critical equipment for constant power conditioning. The 9PX lithium- ion UPS provides 8 to 10 years of life expectancy for UPS and its batteries, and has power ratings ranging from 1–6 kVA, while also offering up to four external battery modules (EBM) for extra runtime. The 9PX lithium-ion UPS has the same reliable features as the 9PX lead-acid UPS, including load segments for prioritized shutdowns, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities. For connectivity, the 9PX is compatible with the Gigabit Network Card, which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards. This network interface card improves power system reliability by providing warnings of pending issues and helping to perform orderly graceful shutdown of servers and storage. |
|
Features |
|
UPS topology |
Double-conversion (Online) |
|
Output power capacity |
6 kVA |
|
Output power |
5400 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
176 V |
|
Input operation voltage (max) |
276 V |
|
Input frequency |
40 - 70 Hz |
|
Output operation voltage (min) |
200 V |
|
Output operation voltage (max) |
240 V |
|
Output frequency |
50/60 Hz |
|
Output voltage regulation |
±1% |
|
Heat dissipation |
1699 BTU/h |
|
Efficiency |
98% |
|
Input power factor |
0.99 |
|
Output power factor |
0.9 |
|
Output voltage Total Harmonic Distortion (THD) |
5% |
|
Input current Total Harmonic Distortion (THD) |
5% |
|
Noise level |
45 dB |
|
Surge protection |
Yes |
|

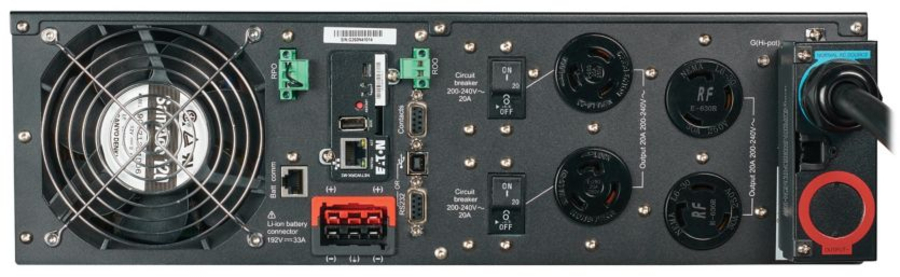

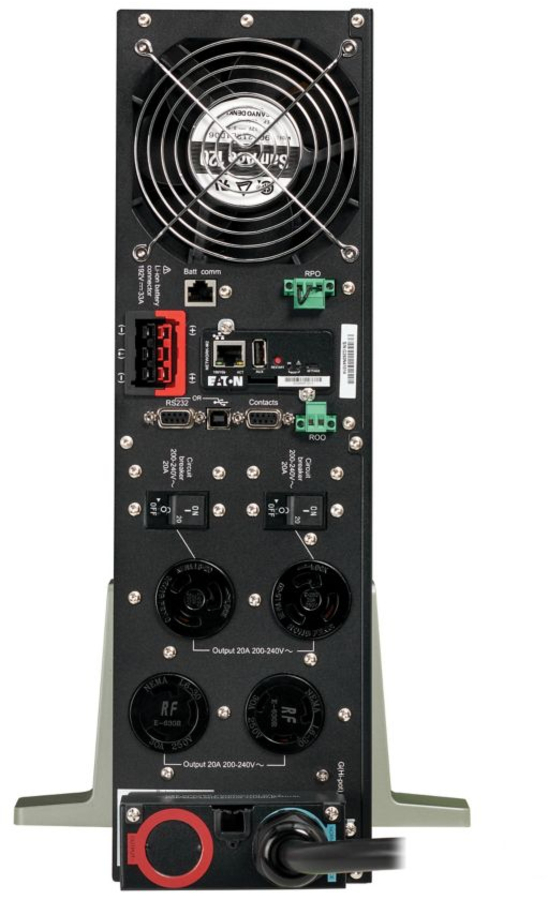

Ports & interfaces |
|
AC outlet types |
NEMA L6-30R, NEMA L6-20R |
|
Power plug |
NEMA L6-30P |
|
AC outlets quantity |
4 AC outlet(s) |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
USB port type |
USB Type-B |
|
Serial interface type |
RS-232 |
|
Serial ports quantity |
1 |
|
Battery |
|
Hot-swap battery |
Yes |
|
Cold start |
Yes |
|
Design |
|

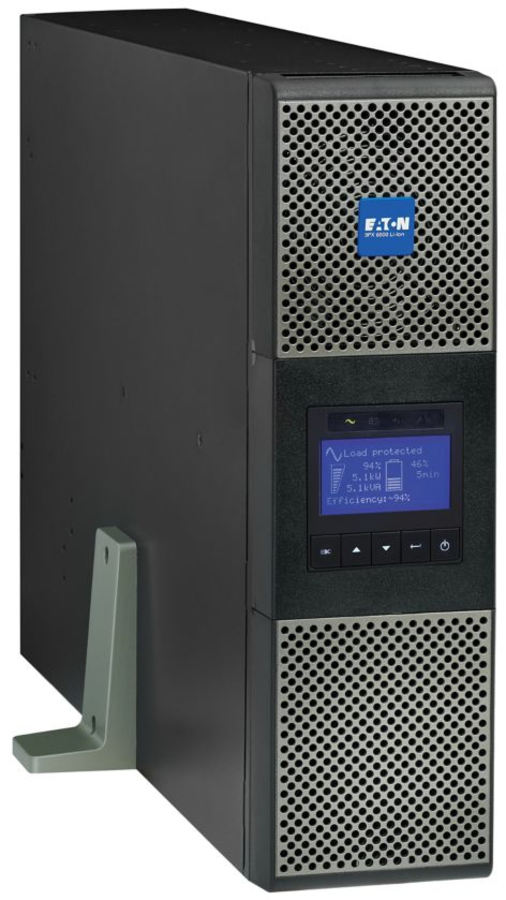

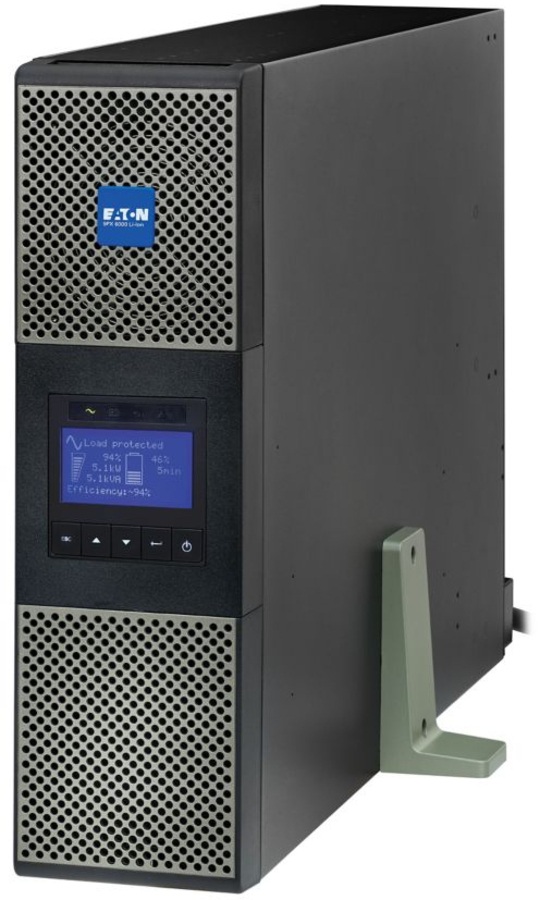

Form factor |
Rackmount/Tower |
|
Product colour |
Black, Silver |
|
Rack capacity |
3U |
|
Cable length |
3 m |
|

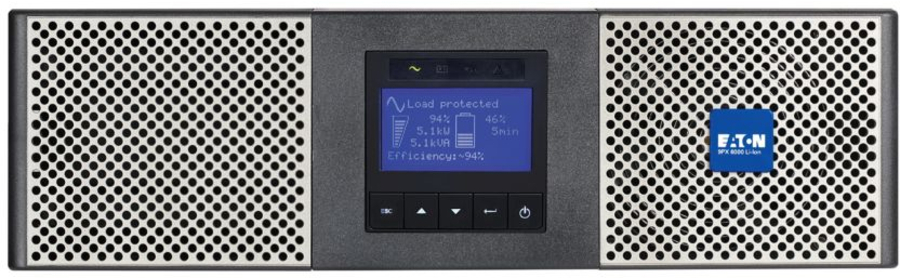

LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Certificates |
|
Compliance certificates |
cULus, Norma Oficial Mexicana (NOM), CE, RoHS |
|

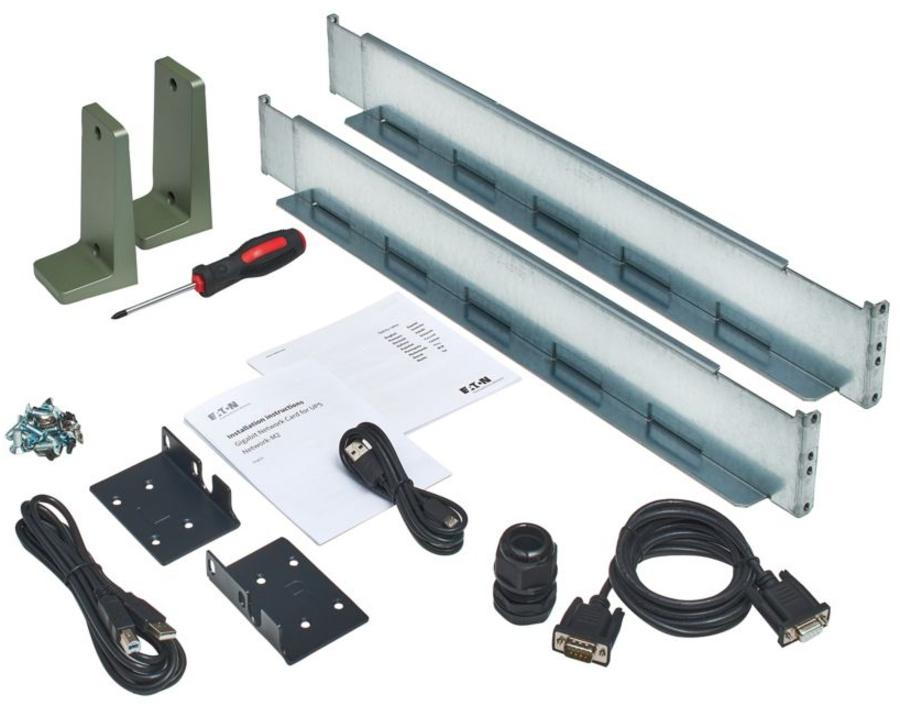

Packaging content |
|
Rack mount kit |
Yes |
|
Cables included |
RS-232, USB cable |
|
Management card included |
Yes |
|
Quick installation guide |
Yes |
|
Weight & dimensions |
|
Width |
440.1 mm |
|
Depth |
722.1 mm |
|
Height |
130 mm |
|
Weight |
36.8 kg |
|
