General Information |
|
Summary |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
|
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
|
Maximum number of SMP processors |
1 |
|
Supported processor sockets |
LGA 1700 |
|
Maximum internal memory supported by processor |
64 GB |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
2 |
|
Maximum internal memory |
64 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
ECC & Non-ECC |
|
Supported memory clock speeds |
2133,2400,2666,2933,3000,3200 MHz |
|
Supported memory clock speed (max) |
3200 MHz |
|
Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
4 |
|
Number of storage drives supported |
5 |
|
Graphics |
|
On-board graphics card |
Yes |
|
Graphics card family |
Intel |
|
Graphics card |
HD Graphics |
|
HDCP |
Yes |
|
DirectX version |
12.0 |
|
On-board graphics card model |
Intel® HD Graphics |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
4 |
|
Total number of SATA connectors |
4 |
|
Front panel audio connector |
Yes |
|
Front panel connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
2 |
|
EPS power connector (8-pin) |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
Serial port headers |
1 |
|
12V power connector |
Yes |
|
RGB LED pin header |
Yes |
|

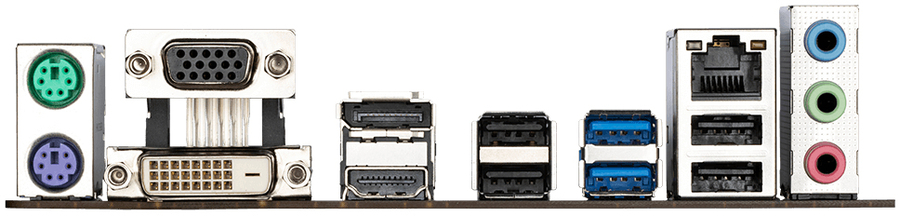

Rear panel I/O ports |
|
USB 2.0 ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
1 |
|
PS/2 ports quantity |
2 |
|
DisplayPorts quantity |
1 |
|
Headphone outputs |
1 |
|
Microphone in |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel H610 Express |
|
Audio output channels |
7.1 channels |
|
Product colour |
Brown |
|
PC health monitoring |
Fan, LED, Temperature, Voltage, Water cooling |
|
Cooling type |
Active |
|
Power source type |
ATX |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x1 slots |
1 |
|
PCI Express x16 slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
128 Mbit |
|
ACPI version |
5.0 |
|
Clear CMOS jumper |
Yes |
|
Clear CMOS button |
Yes |
|
Desktop Management Interface (DMI) version |
2.7 |
|
System Management BIOS (SMBIOS) version |
2.7 |
|
Logistics data |
|
Country of origin |
China |
|
Products per shipping (inner) case |
1 pc(s) |
|
Battery |
|
Battery weight |
3 g |
|
Lithium weight per battery |
0.07 g |
|
Number of battery cells |
1 |
|
Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
|
Battery type |
CR2032 |
|
Packaging data |
|
Package width |
265 mm |
|
Package depth |
265 mm |
|
Package height |
54 mm |
|
Package weight |
857 g |
|
Weight & dimensions |
|
Width |
230 mm |
|
Depth |
215 mm |
|
Height |
35 mm |
|
Packaging content |
|
Batteries included |
Yes |
|
Bundled software |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
|
Other features |
|
Supported DIMM module capacities |
8GB, 16GB |
|
Technical details |
|
Warranty period |
3 year(s) |
