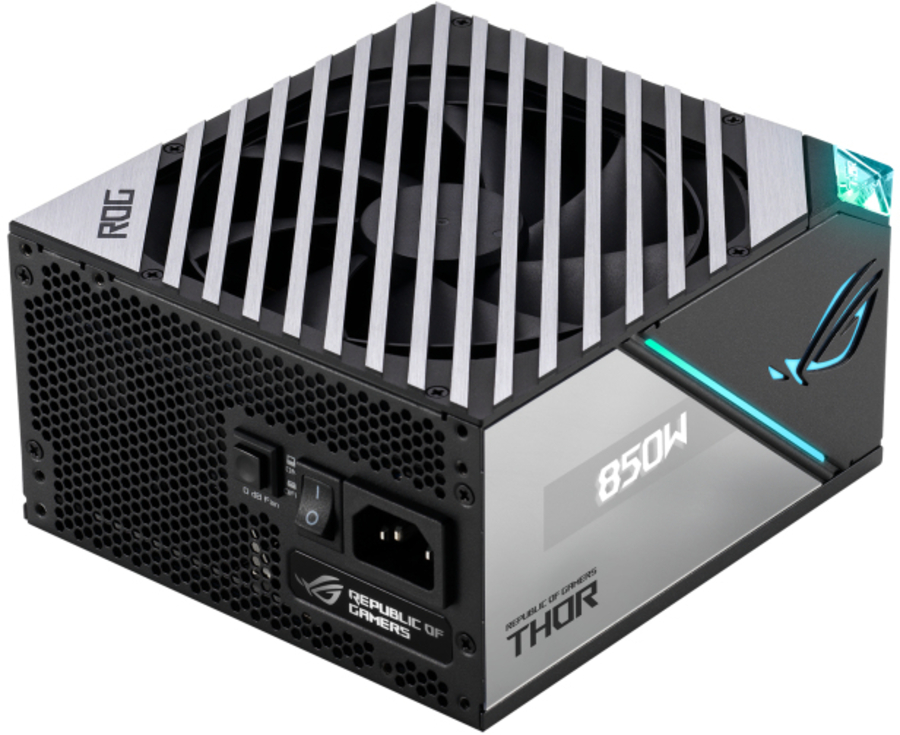

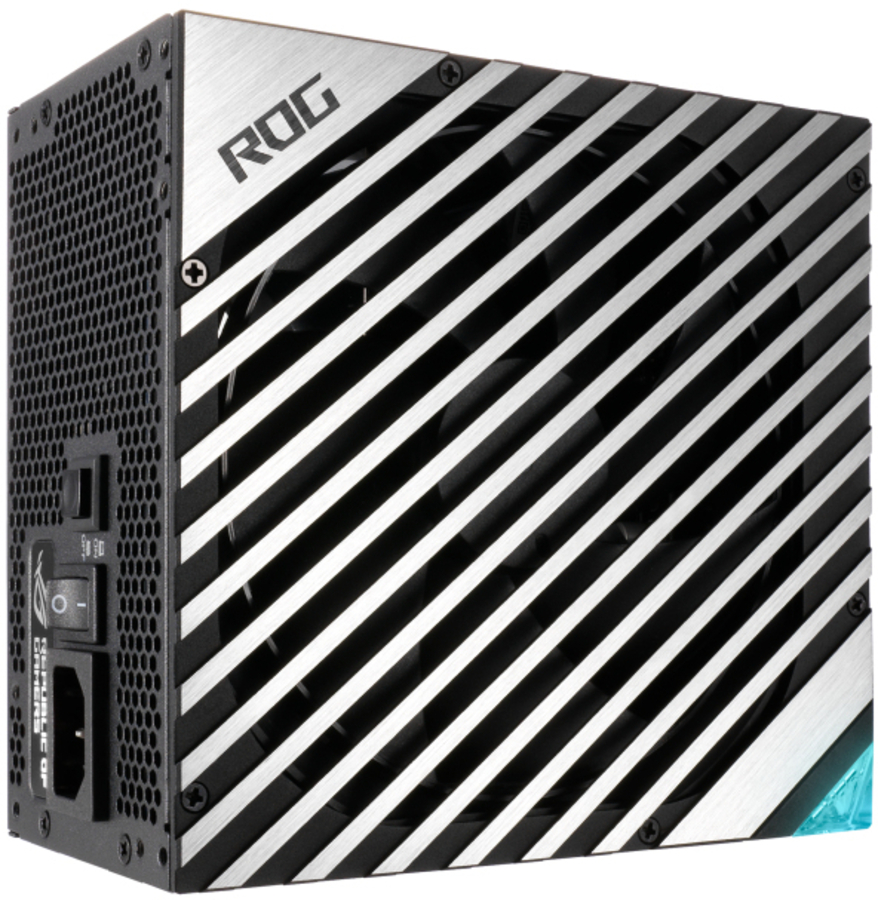

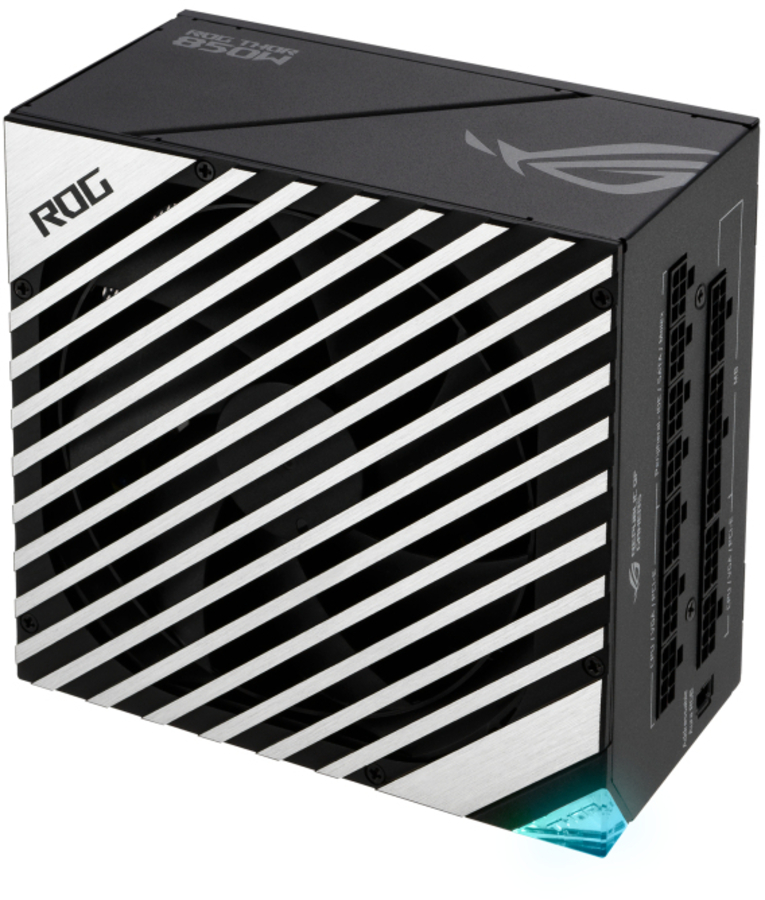

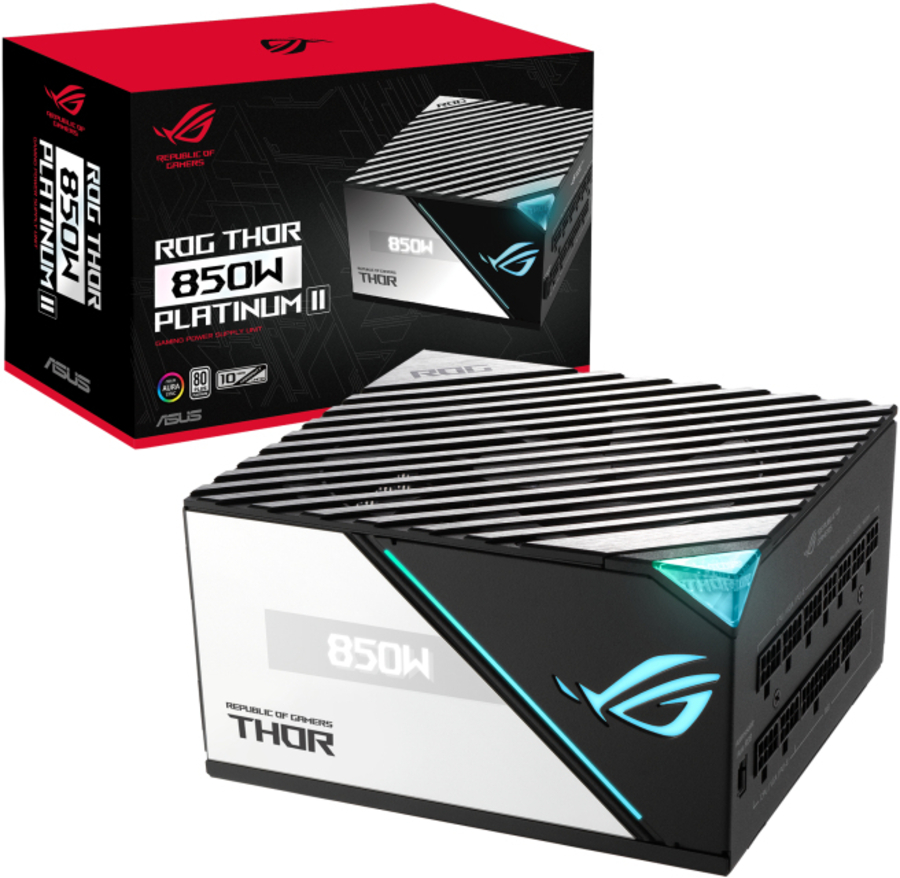

Asus ROG Thor Platinum II 850 Watt Power Supply
|
|
Price: $328.00
Manufacturer:
Asus
850W, 80Plus Platinum, 100 - 240 V, 1.865 kg, ARGB
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58955719
|
ROG-THOR-850P2-GAMING
|
4711081236535 |
Active
|
Details
|
General Information |
|
Summary |
ROG Thor 850W Platinum II is the quietest PSU in its class.
The Quietest 850W Platinum Power Supply

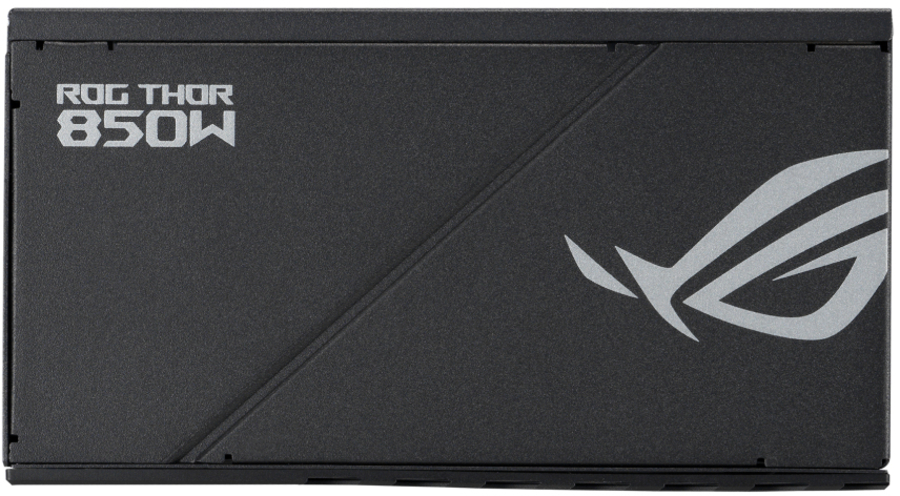

Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
Based on Cybenetics PSU test result database entries before October 2021. For more information, please refer to here.
COOLING
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

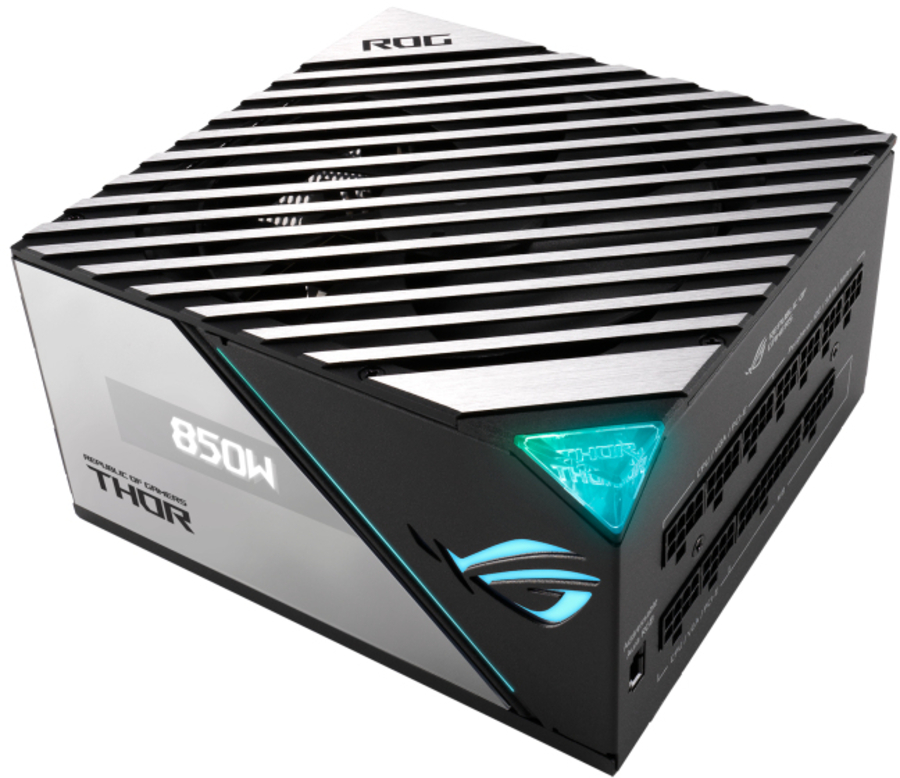

Wing-blade Fan Design

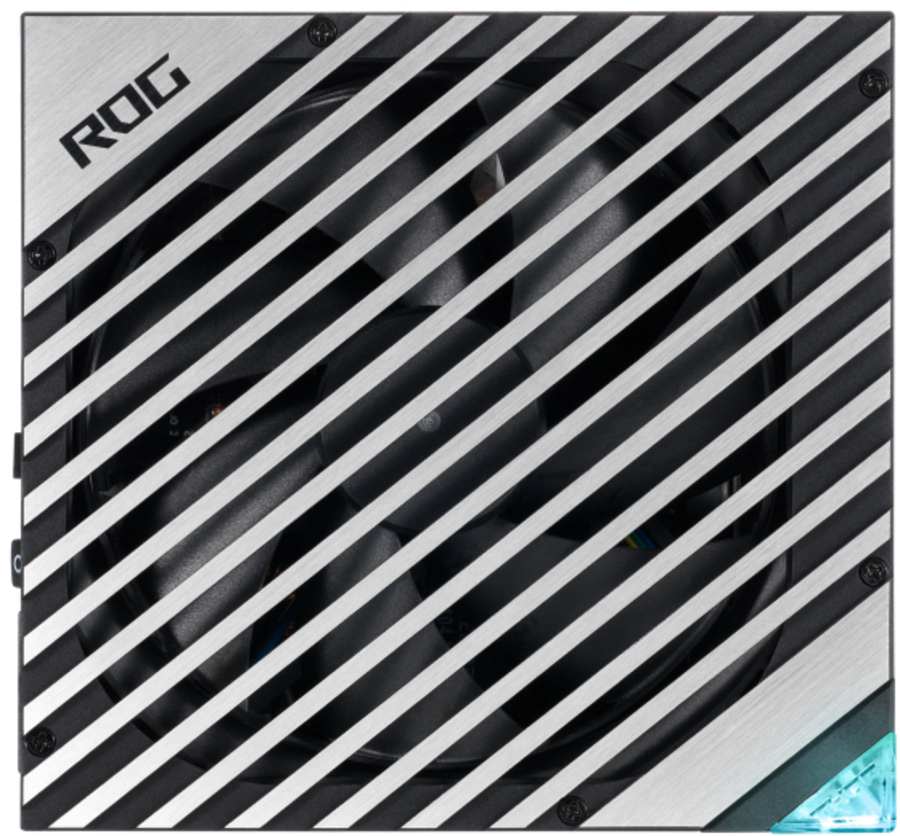

A 135mm Wing-blade fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

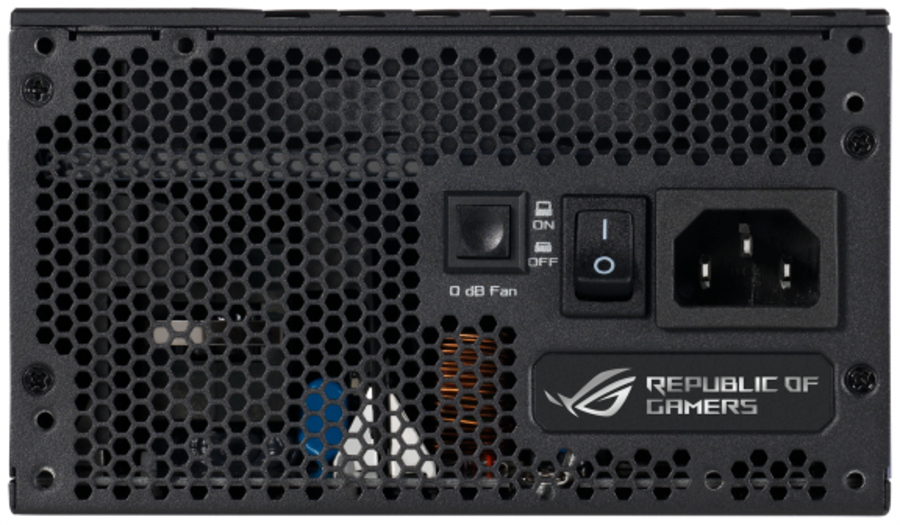

0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
ENGINEERING
80 Plus Platinum Certification
The ROG Thor 850W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.
EXPERIENCE

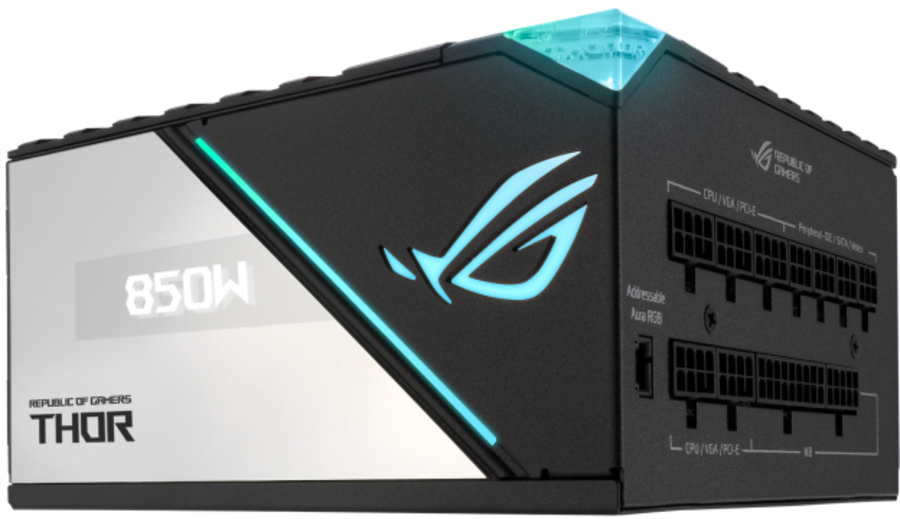

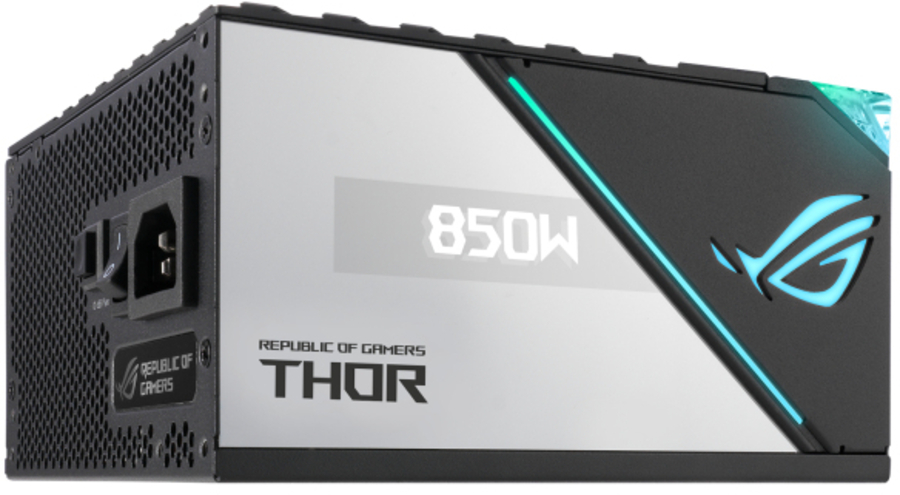

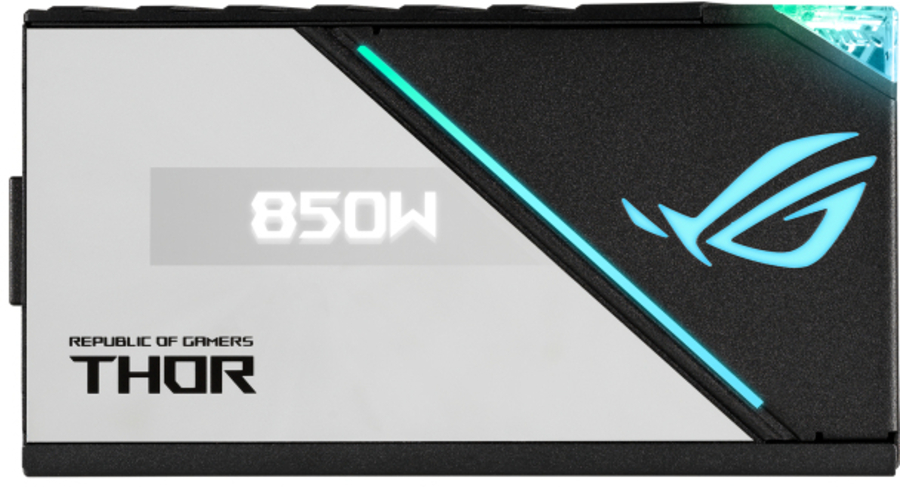

OLED Power Display

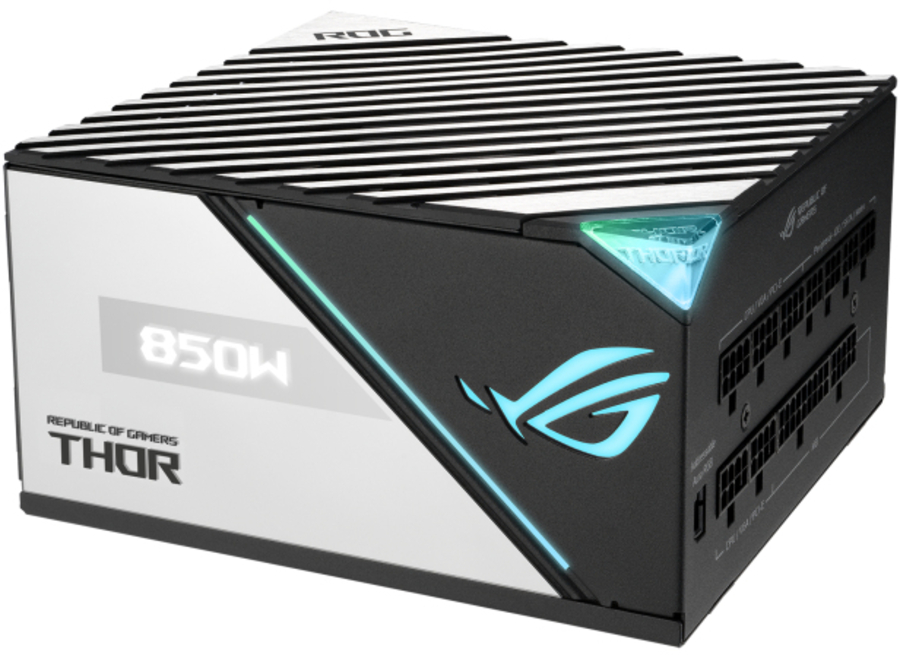

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Aura Sync
Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 850W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
10-year Warranty
The ROG Thor 850W Platinum II is backed with a 10-year* warranty.
*Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty. |
|

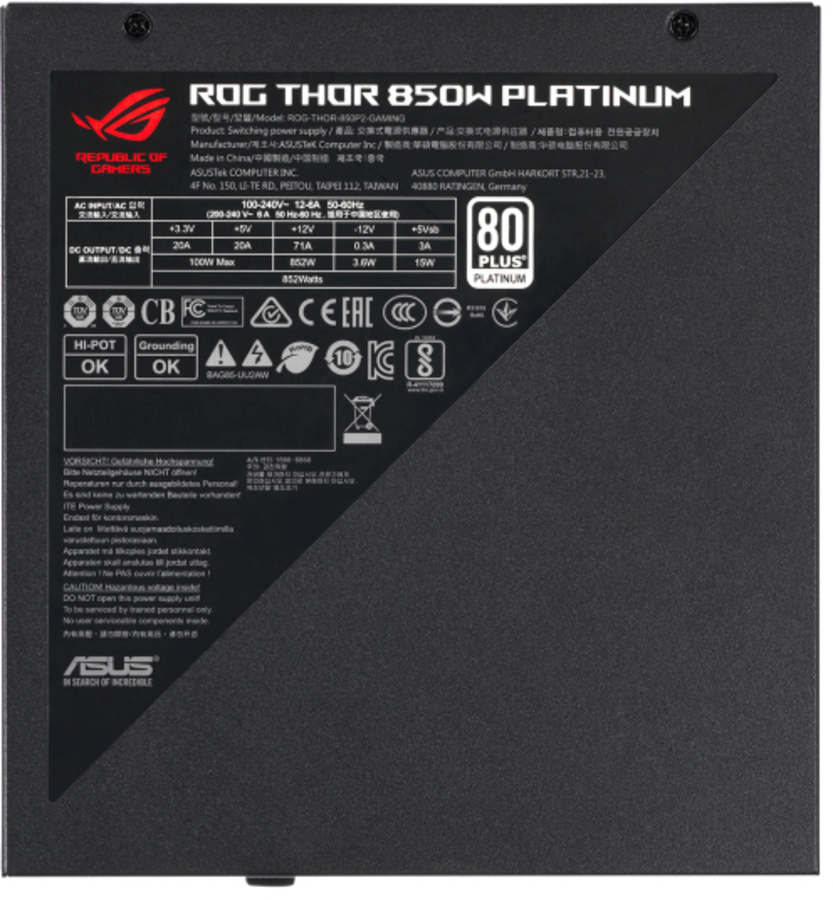

Power |
|
Total power |
850 W |
|
AC input voltage |
100 - 240 V |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
100 W |
|
Combined power (+12V) |
852 W |
|
Combined power (+5V) |
100 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
71 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
|

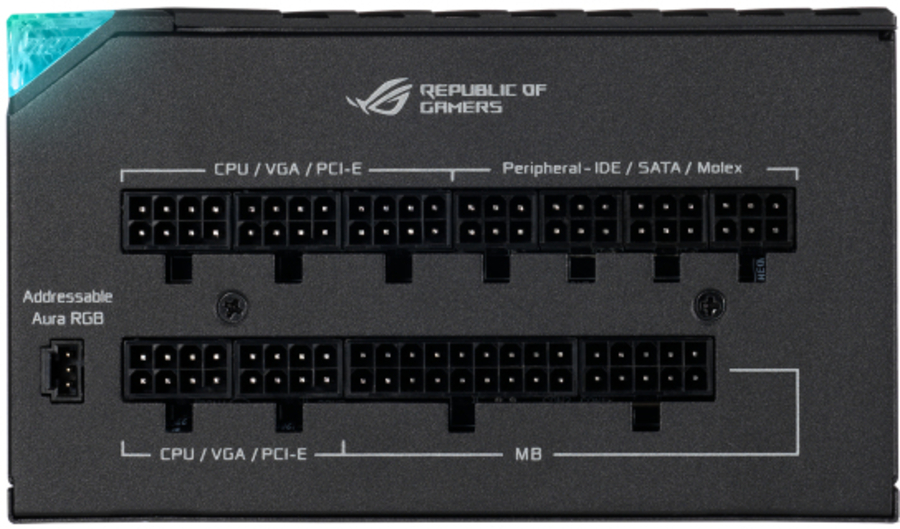

Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
6 |
|
Motherboard power cable length |
61 cm |
|
Number of SATA power connectors |
10 |
|
SATA power cable length |
120,400 mm |
|
Peripheral (Molex) power cable length |
120,450 mm |
|
PCI Express power connectors (6+2 pin) |
3 |
|
PCI Express power connectors (16-pin) |
1 |
|
PCI Express power cable length |
67.5 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
65 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
80 PLUS certification |
80 PLUS Platinum |
|
Silent mode |
Yes |
|
Design |
|
Product colour |
Black, Blue, Grey |
|
Cooling type |
Active |
|
Fan diameter |
13.5 cm |
|
Number of fans |
1 fan(s) |
|
Built-in display |
Yes |
|
Weight & dimensions |
|
Width |
160 mm |
|
Depth |
150 mm |
|
Height |
86 mm |
|
Weight |
1.86 kg |
|
