Built For The Long Haul

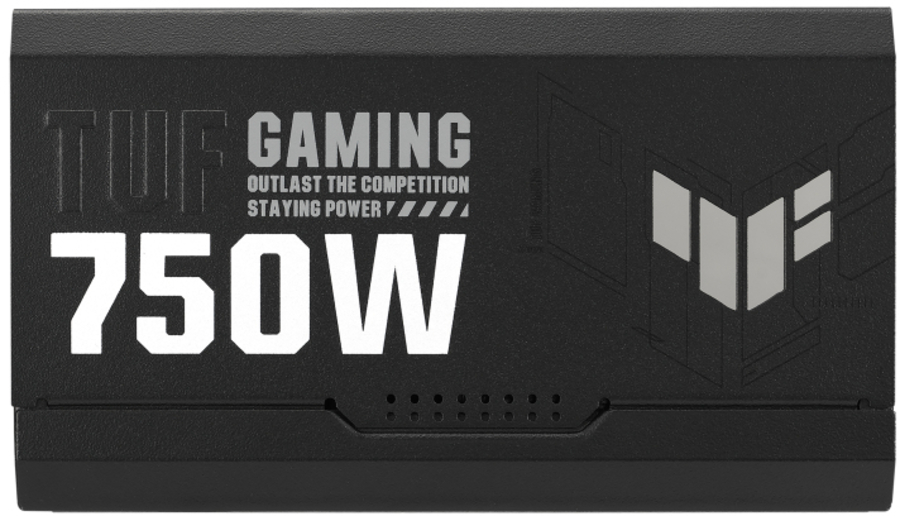

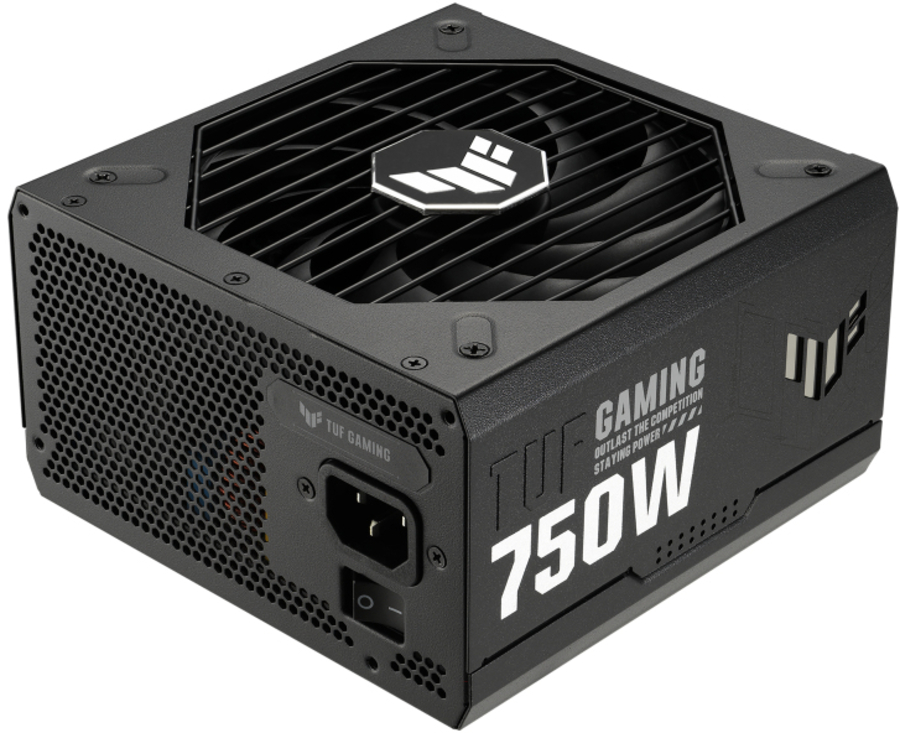

The ASUS TUF Gaming 750W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
Durability
TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 750W Gold empowers you to build in confidence.
Dual Ball Fan Bearings
2x longer lifespan

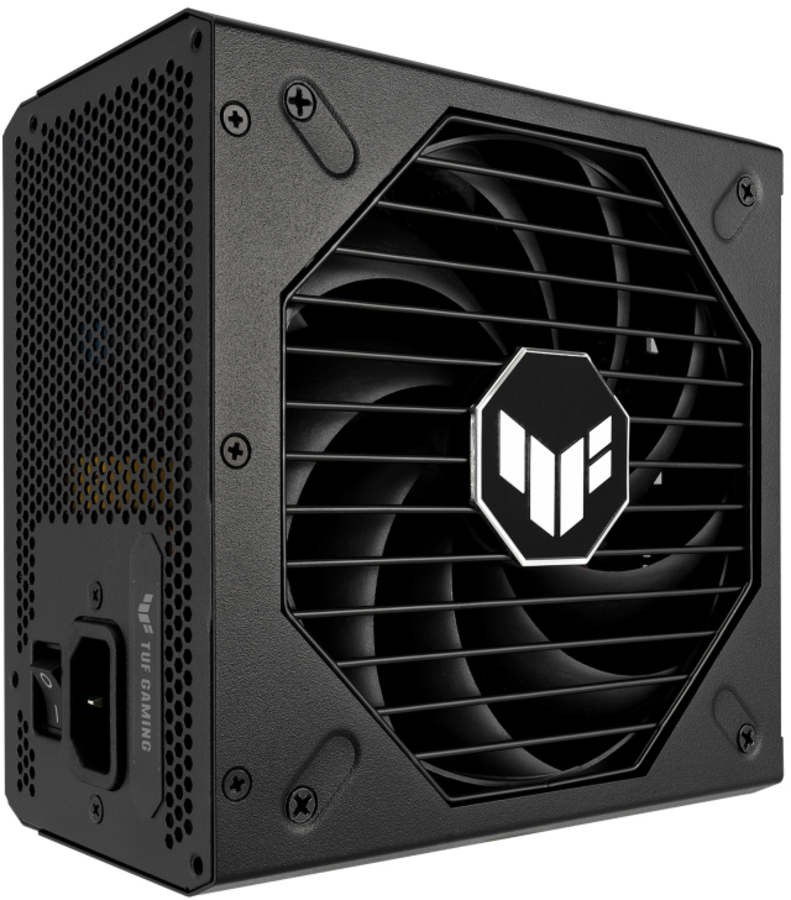

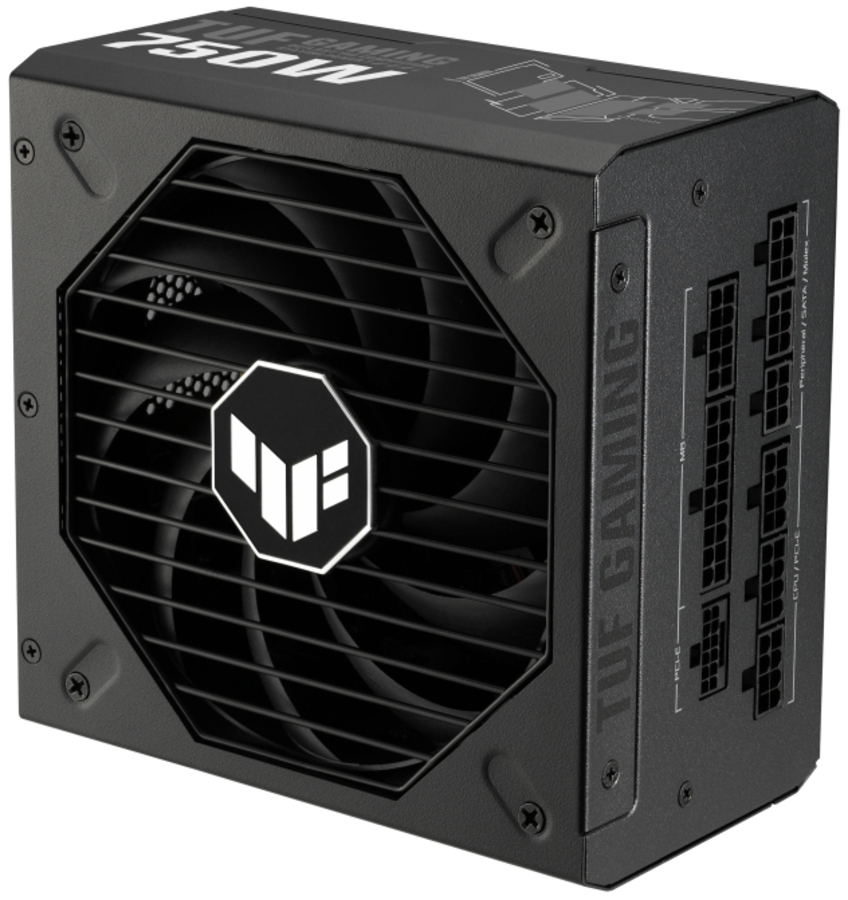

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
ENGINEERING
80 Plus Gold Certification
Heart of gold
The TUF Gaming 750W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

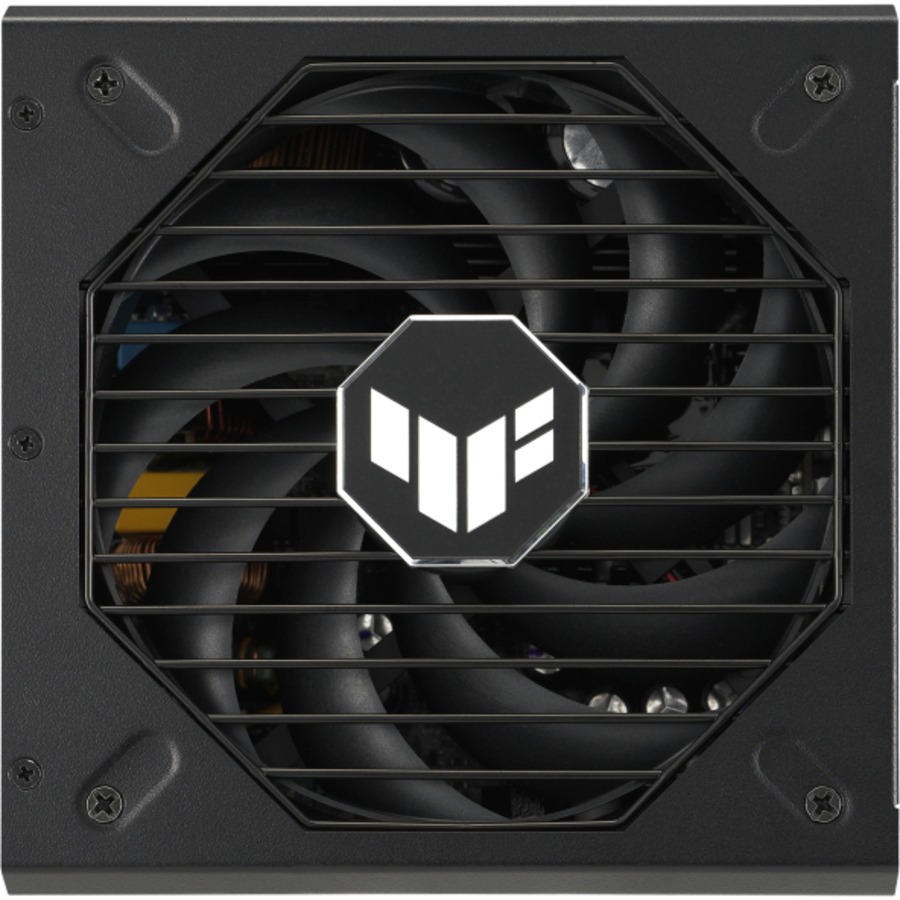

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
EXPERIENCE

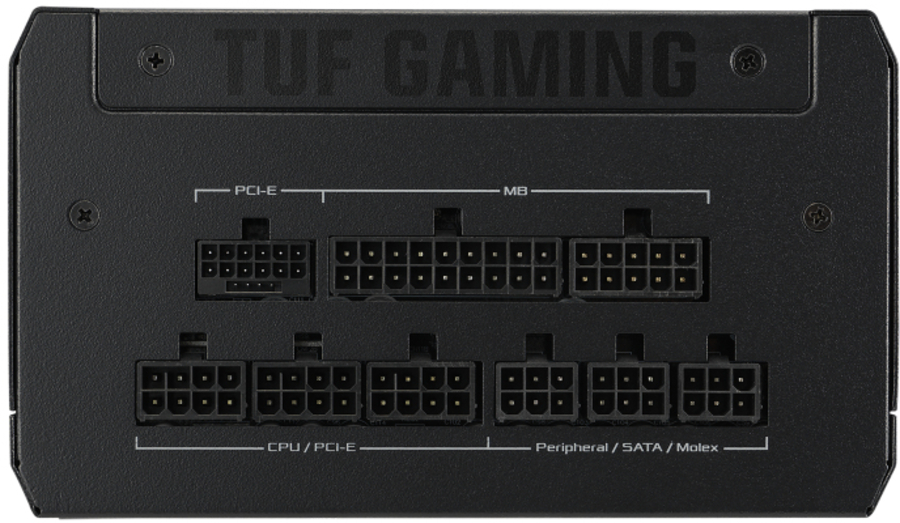

Fully Modular Etched Cables
Supple ply

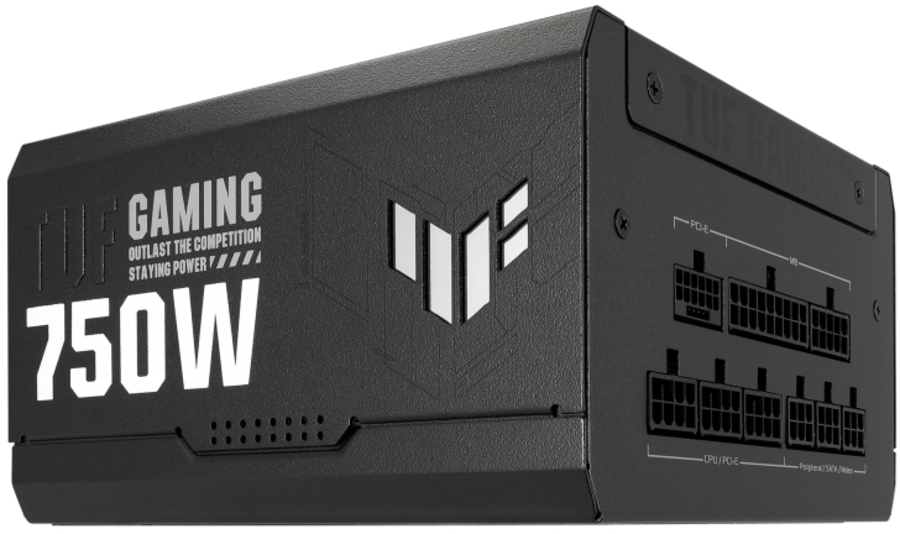

The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces. |
|
Power |
|
Total power |
750 W |
|

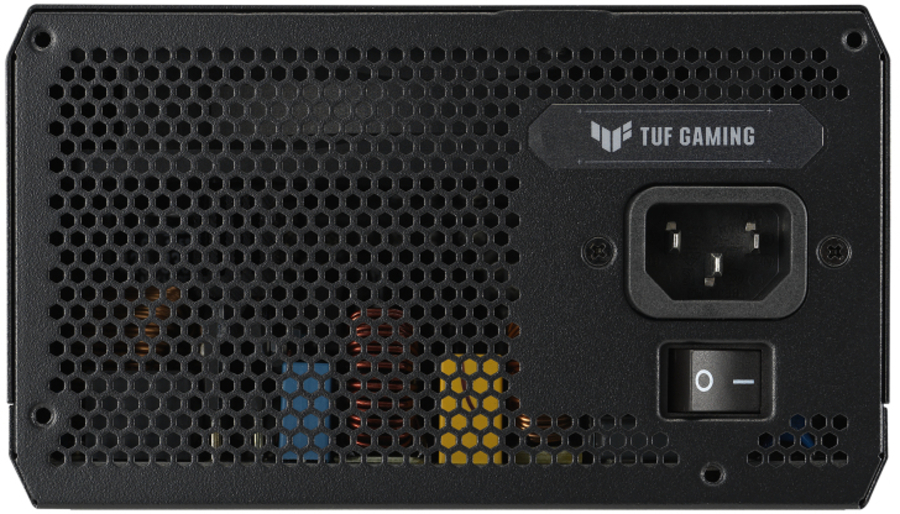

AC input voltage |
100 - 240 V |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
130 W |
|
Combined power (+12V) |
744 W |
|
Combined power (+5V) |
130 W |
|
Combined power (-12V) |
9.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
25 A |
|
Max output current (+12V) |
62 A |
|
Max output current (+5V) |
25 A |
|
Max output current (-12V) |
0.8 A |
|
Max output current (+5Vsb) |
3 A |
|
Efficiency |
92% |
|
Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
|
Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
4 |
|
Motherboard power cable length |
61 cm |
|
Number of SATA power connectors |
5 |
|
SATA power cable length |
120,400 mm |
|
Peripheral (Molex) power cable length |
150,400 mm |
|
PCI Express power connectors (8-pin) |
3 |
|
PCI Express power connectors (16-pin) |
1 |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
65 cm |
|
ATX power connector (20+4 pin) |
Yes |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
ATX version |
3.0 |
|
Bearing technology |
Ball bearing |
|
Mean time between failures (MTBF) |
170000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
13.5 cm |
|
Number of fans |
1 fan(s) |
|
Illumination |
No |
|
On/off switch |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 105 °C |
|
Packaging content |
|
Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
|
Cable tie(s) included |
Yes |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
150 mm |
|
Height |
86 mm |
|
Weight |
2.38 kg |
|
Logistics data |
|
Warranty period |
10 year(s) |
|
Technical details |
|
Sustainability compliance |
Yes |
