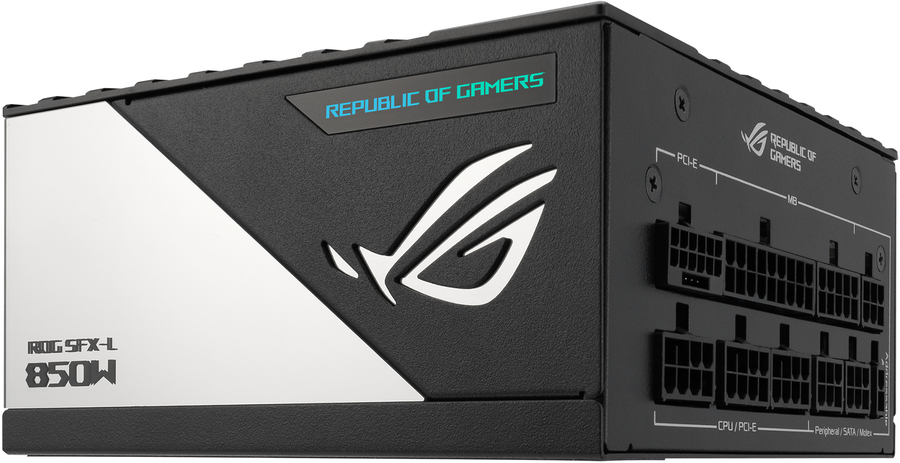

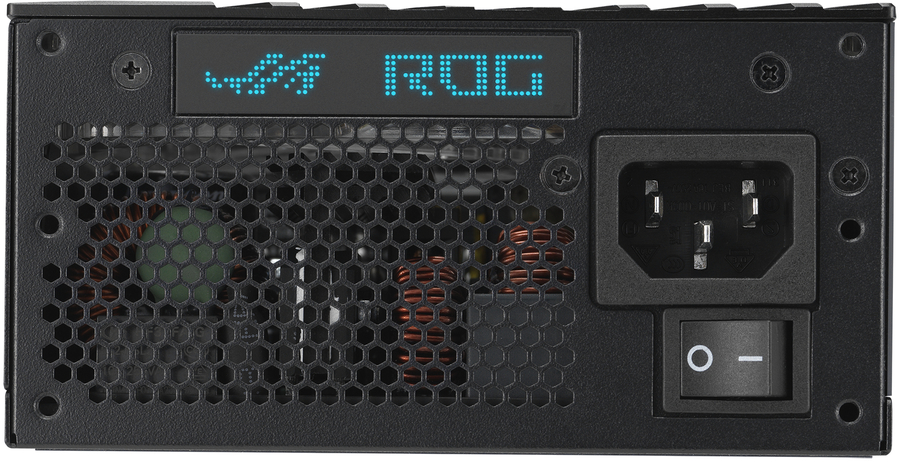

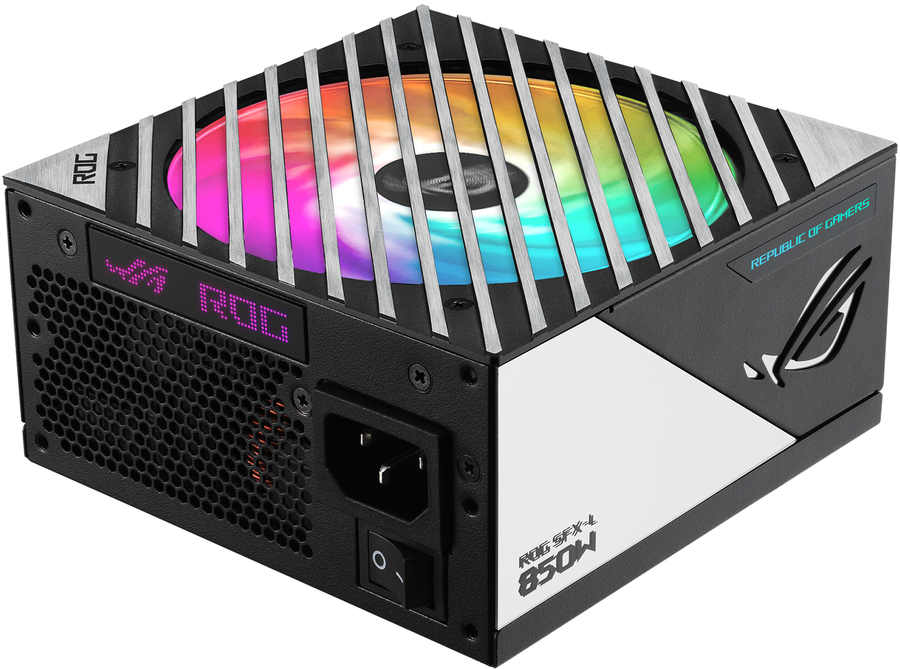

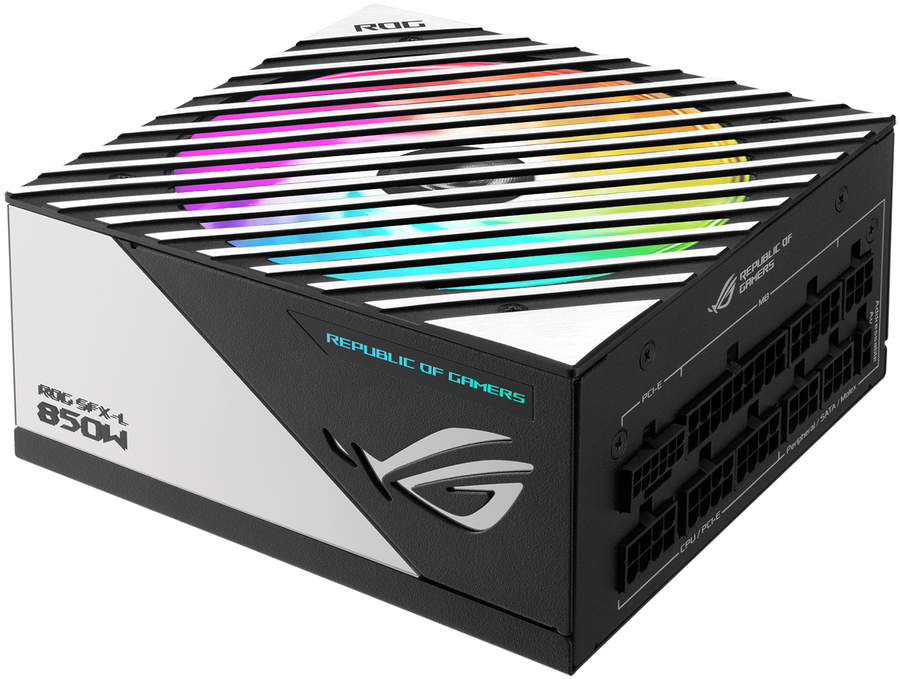

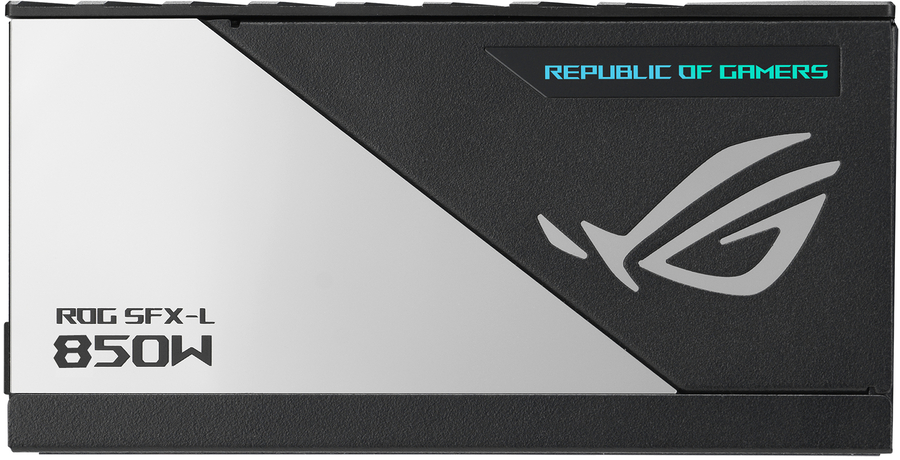

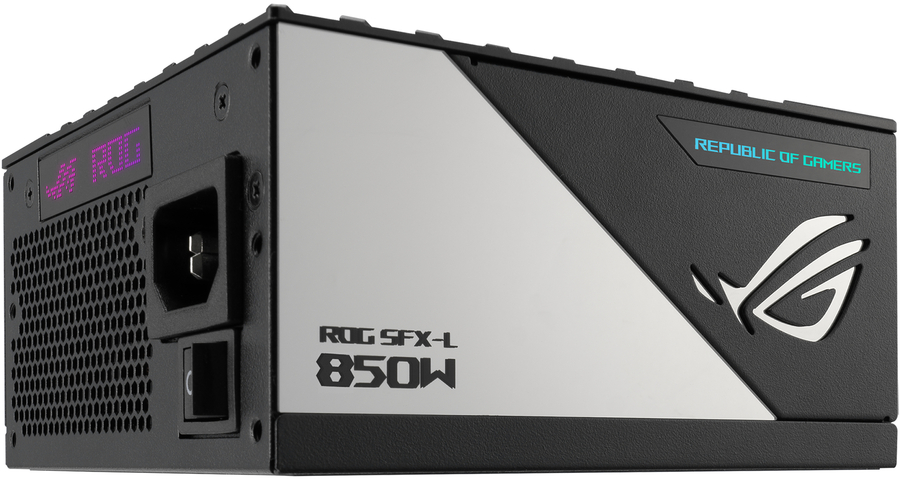

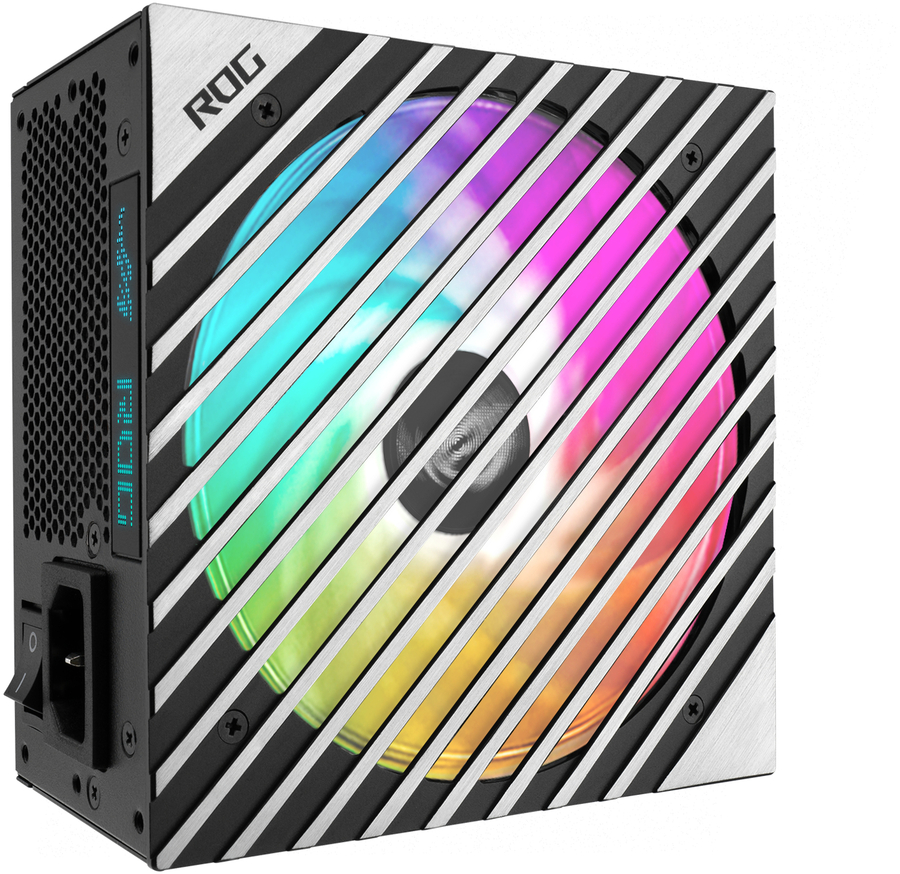

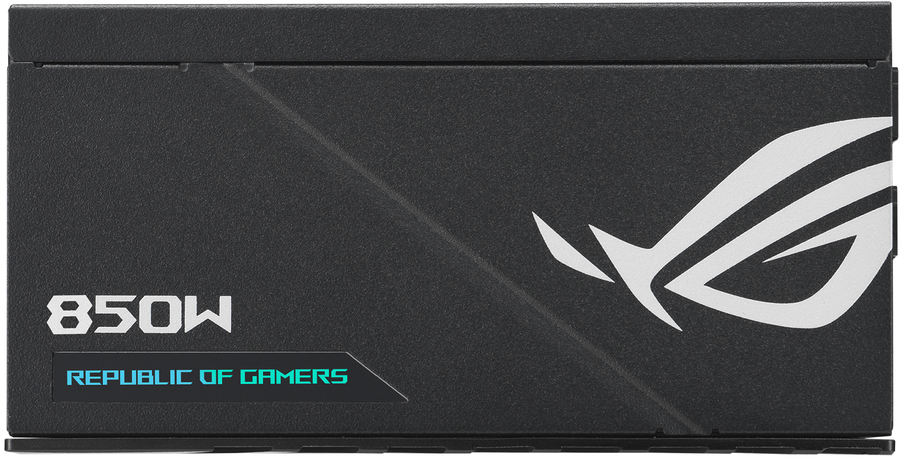

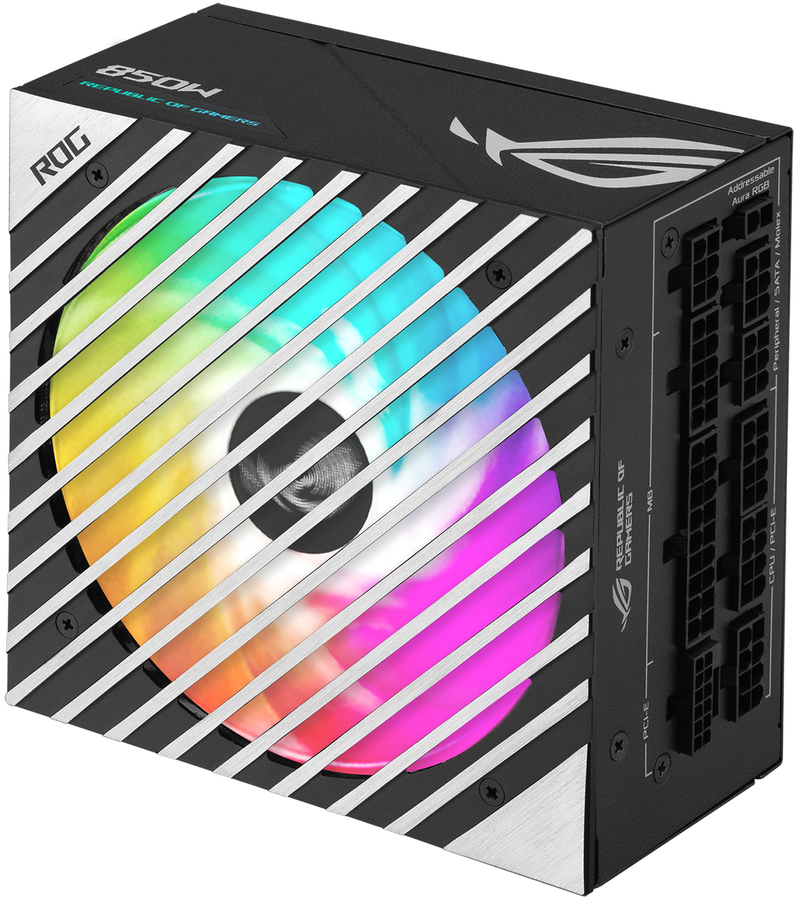

ROG Loki 850W Platinum
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. |
|
Power |
|
Total power |
850 W |
|
AC input voltage |
100 - 240 V |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
110 W |
|
Combined power (+12V) |
850 W |
|
Combined power (+5V) |
110 W |
|
Combined power (-12V) |
9.6 W |
|
Combined power (+5Vsb) |
12.5 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
70.8 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.8 A |
|
Max output current (+5Vsb) |
2.5 A |
|
Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
|
Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
4 |
|
Motherboard power cable length |
45 cm |
|
Number of SATA power connectors |
6 |
|
SATA power cable length |
100,200,300 mm |
|
Peripheral (Molex) power cable length |
100,300 mm |
|
PCI Express power connectors (8-pin) |
3 |
|
PCI Express power connectors (16-pin) |
1 |
|
PCI Express power cable length |
45 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
55 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
SFX-L |
|
80 PLUS certification |
80 PLUS Platinum |
|
ATX version |
3.0 |
|
Silent mode |
Yes |
|
Mean time between failures (MTBF) |
120000 h |
|
Design |
|
Product colour |
Black, Grey |
|
Cooling type |
Semi-passive |
|
Fan diameter |
12 cm |
|
Number of fans |
1 fan(s) |
|

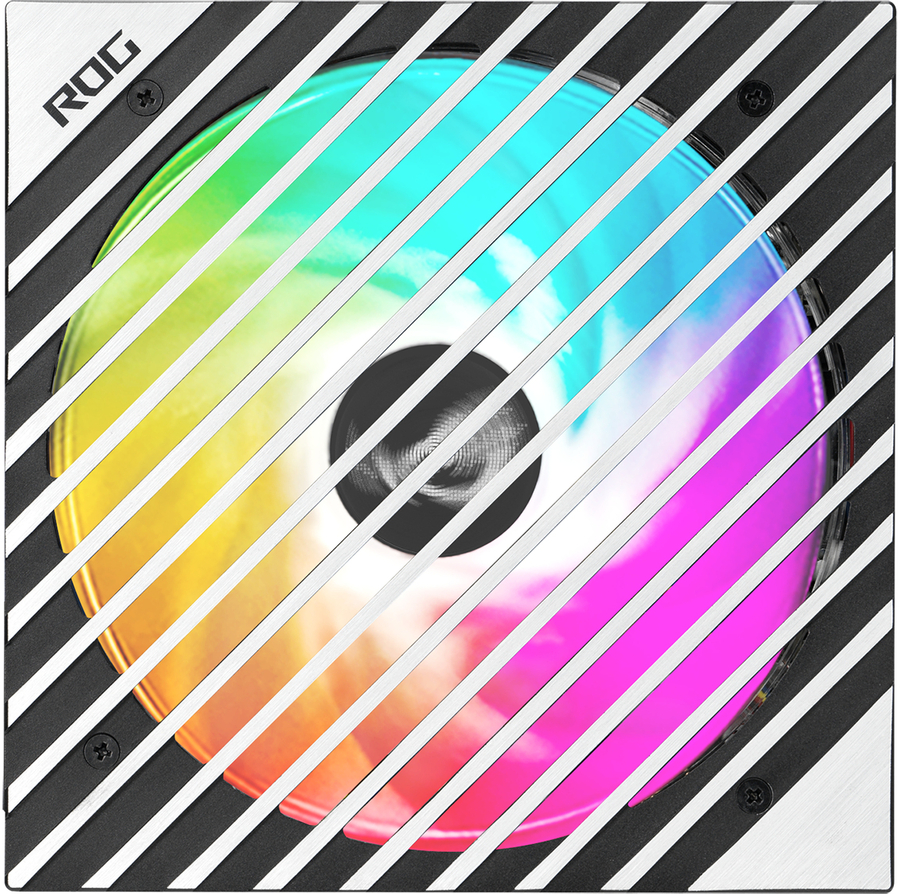

Fan location |
Top |
|
Illumination |
Yes |
|
Packaging content |
|
Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
|
Weight & dimensions |
|
Width |
125 mm |
|
Depth |
125 mm |
|
Height |
63.5 mm |
|
Weight |
1.81 kg |
|
Packaging data |
|

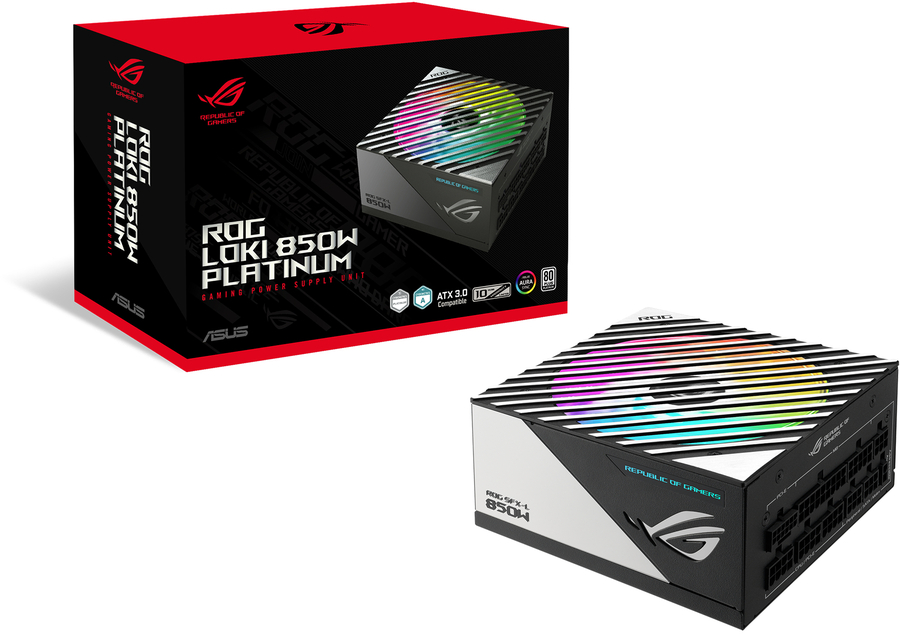

Package type |
Box |
