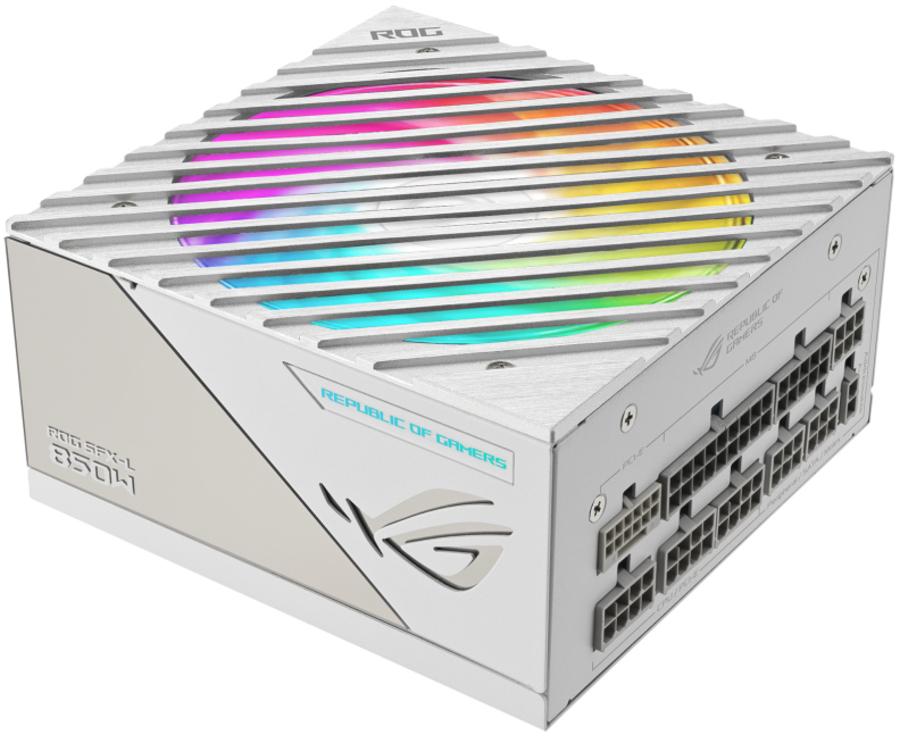

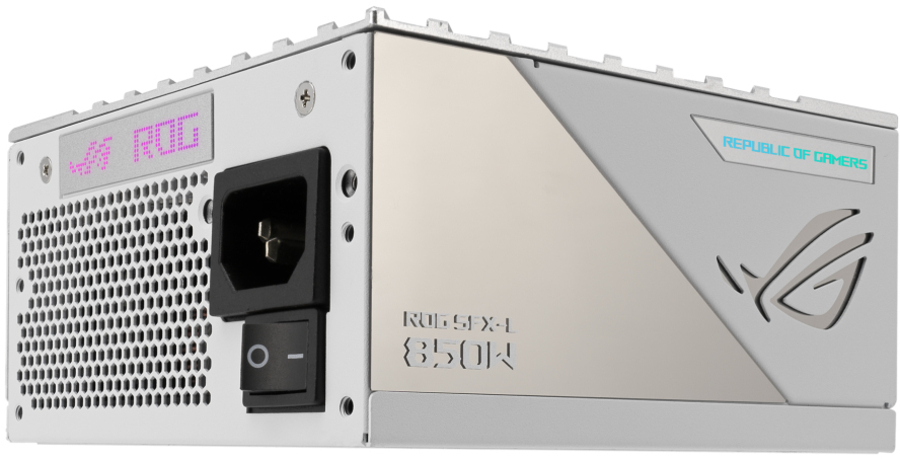

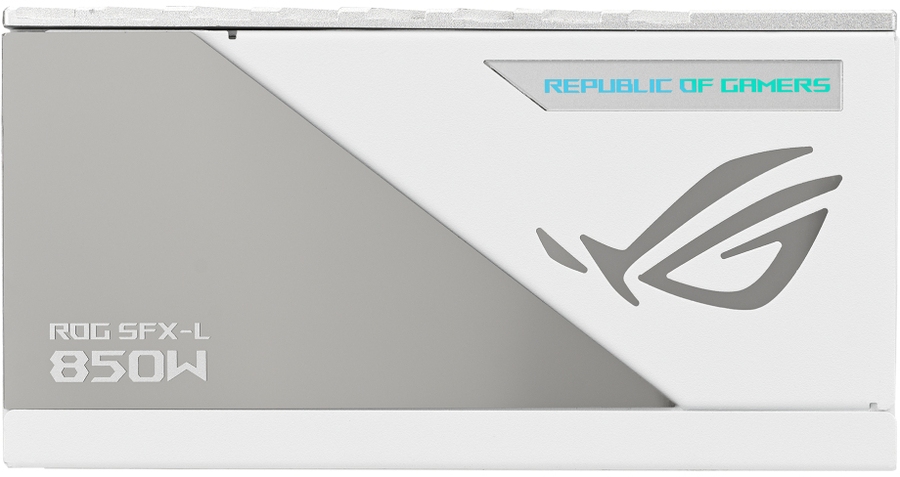

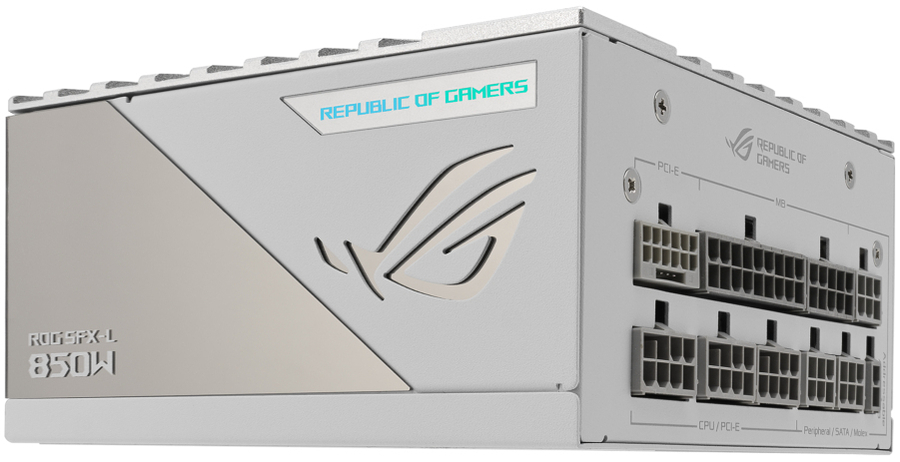

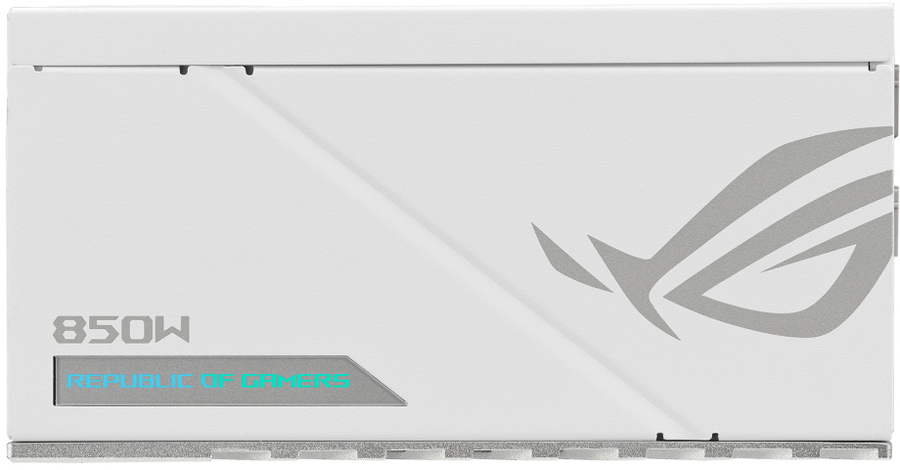

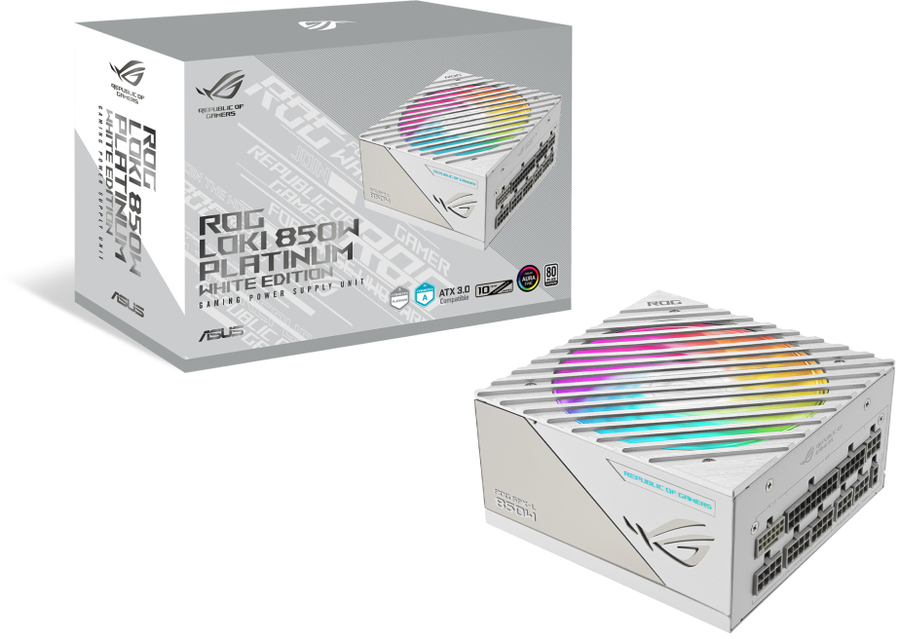

ROG Loki 850W Platinum White Edition
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

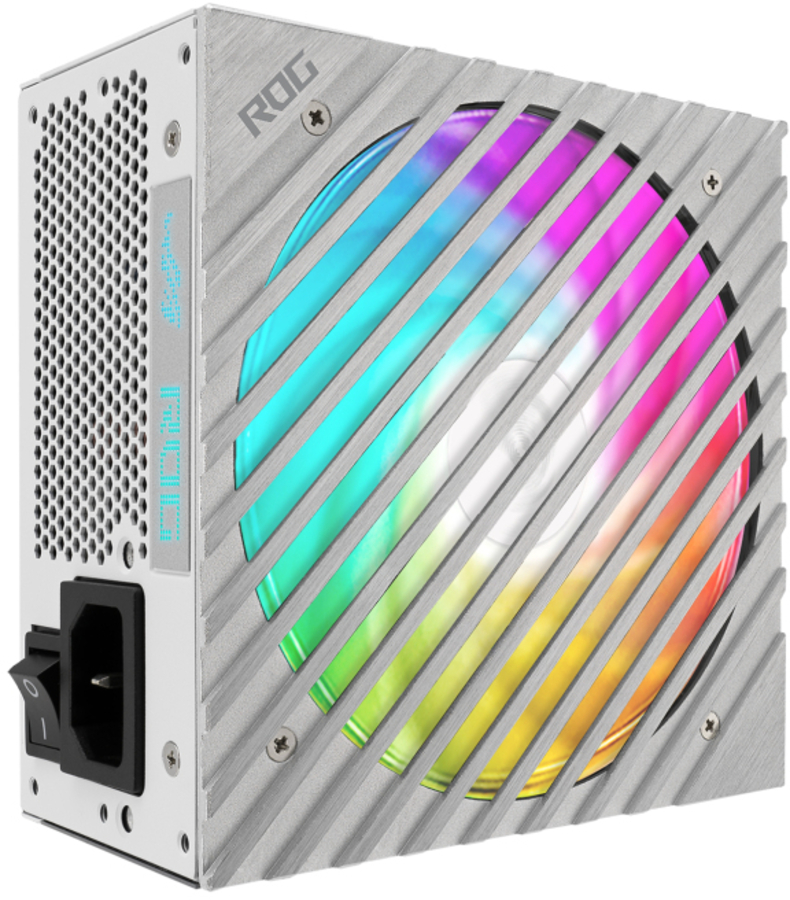

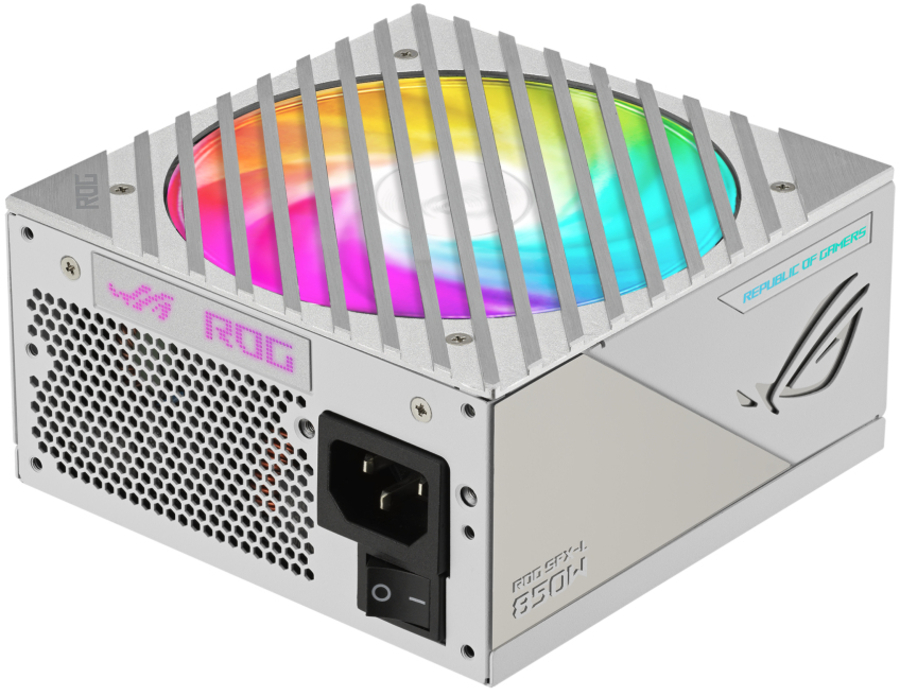

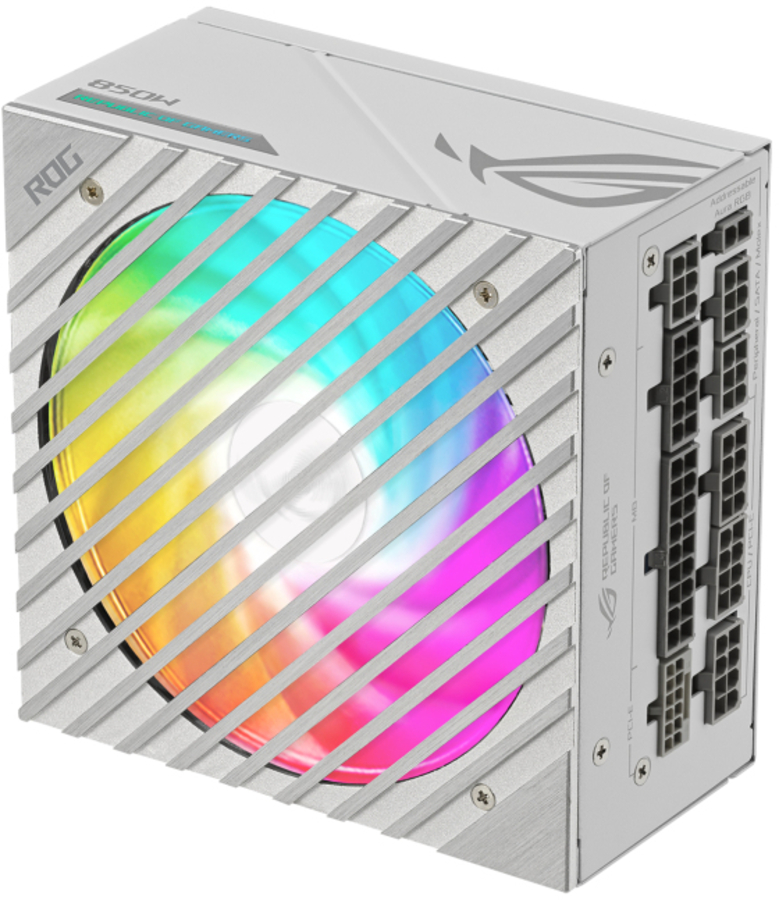

ARGB-illuminated Fan & Aura Sync
Magical glow

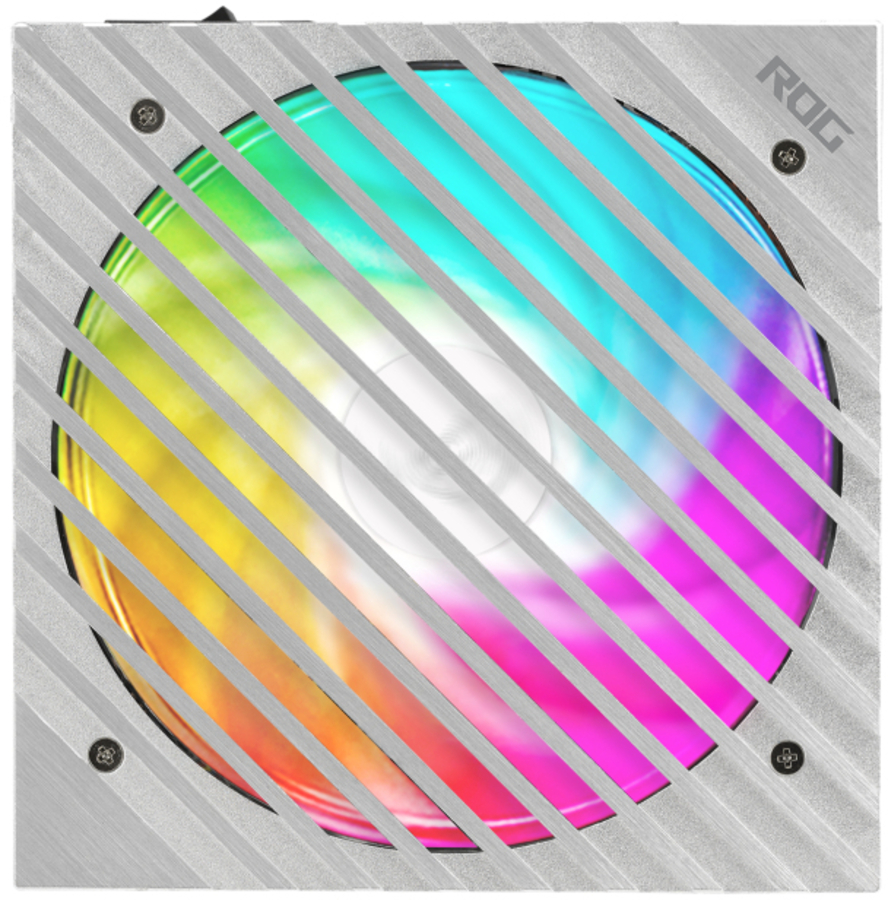

The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card. |
|
Power |
|
Total power |
850 W |
|

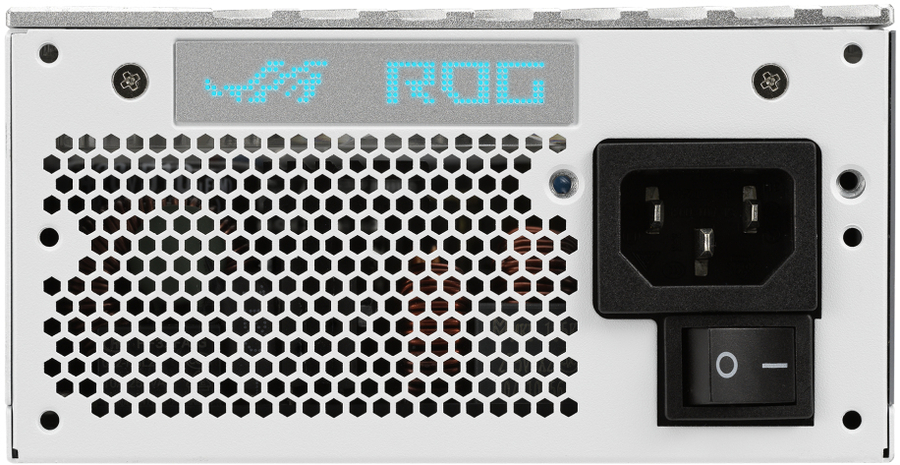

AC input voltage |
100 - 240 V |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
110 W |
|
Combined power (+12V) |
850 W |
|
Combined power (+5V) |
110 W |
|
Combined power (-12V) |
9.6 W |
|
Combined power (+5Vsb) |
12.5 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
70.8 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.8 A |
|
Max output current (+5Vsb) |
2.5 A |
|
Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
|

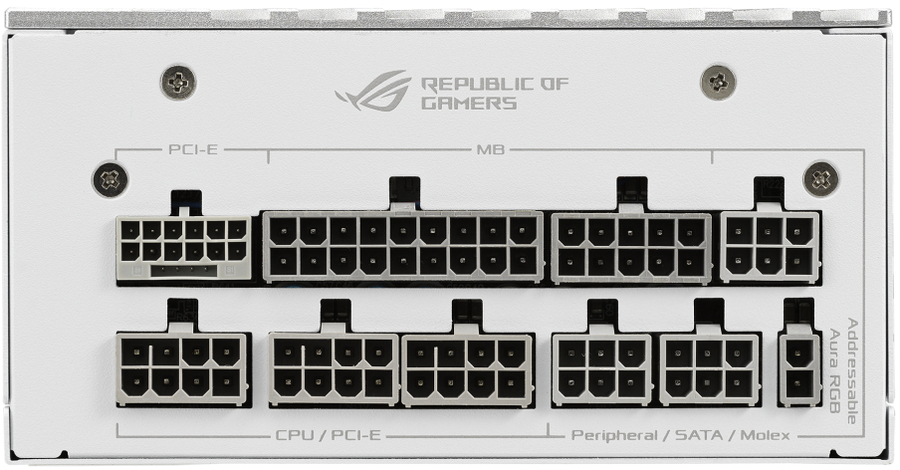

Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
4 |
|
Motherboard power cable length |
45 cm |
|
Number of SATA power connectors |
6 |
|
SATA power cable length |
100,200,300 mm |
|
Peripheral (Molex) power cable length |
100,300 mm |
|
PCI Express power connectors (8-pin) |
3 |
|
PCI Express power cable length |
45 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
55 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
SFX-L |
|
80 PLUS certification |
80 PLUS Platinum |
|
ATX version |
3.0 |
|
Silent mode |
Yes |
|
Design |
|
Product colour |
White |
|
Cooling type |
Active |
|
Fan diameter |
12 cm |
|
Number of fans |
1 fan(s) |
|
Fan location |
Top |
|
Illumination |
Yes |
|
Packaging content |
|
Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
125 mm |
|
Depth |
125 mm |
|
Height |
63.5 mm |
|
Weight |
1.81 kg |
