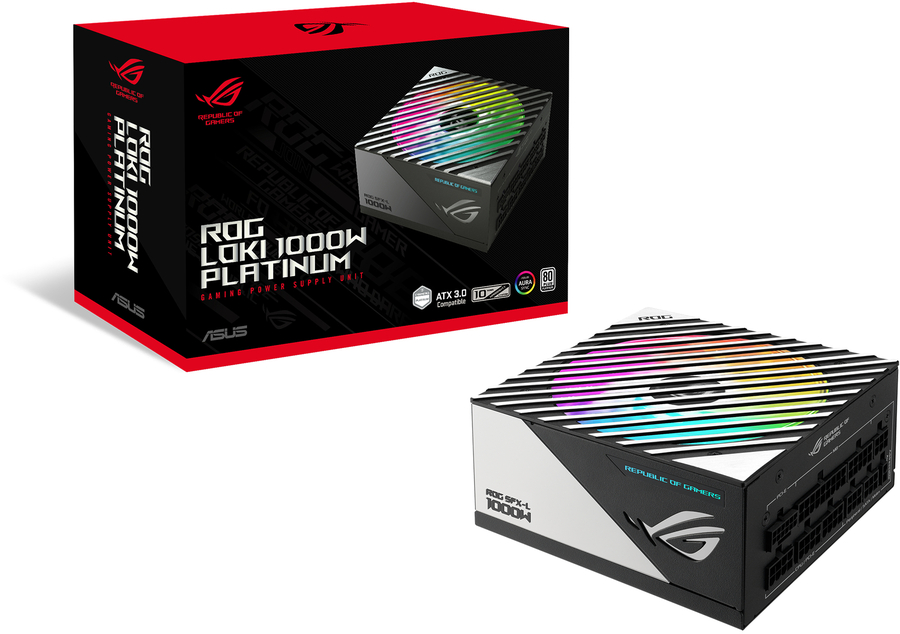

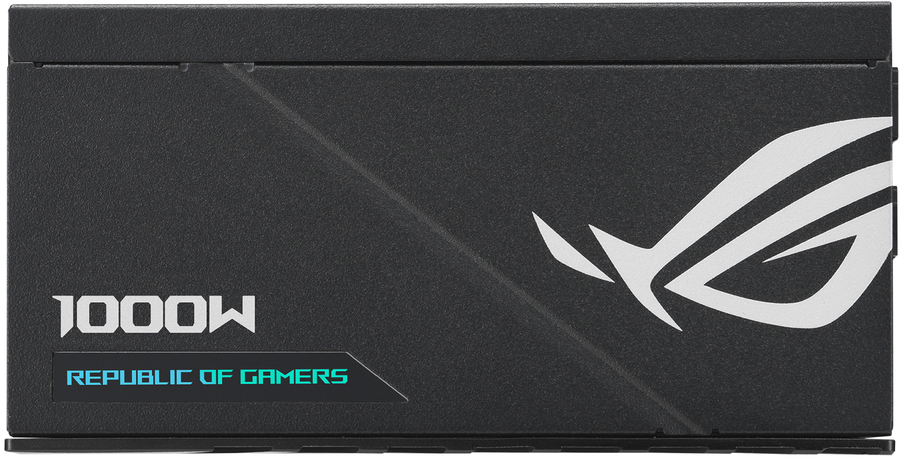

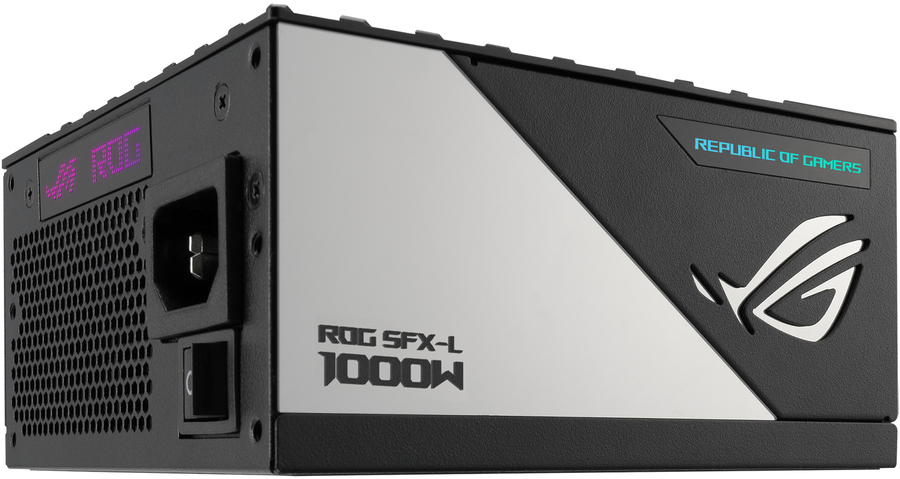

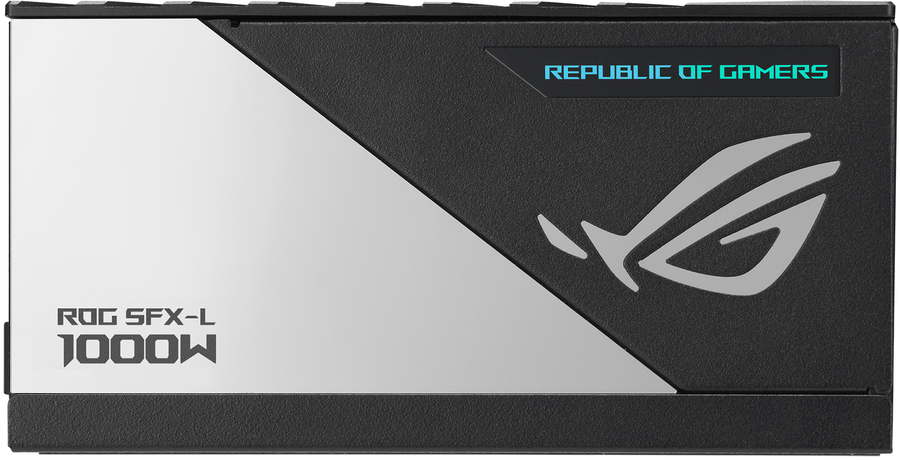

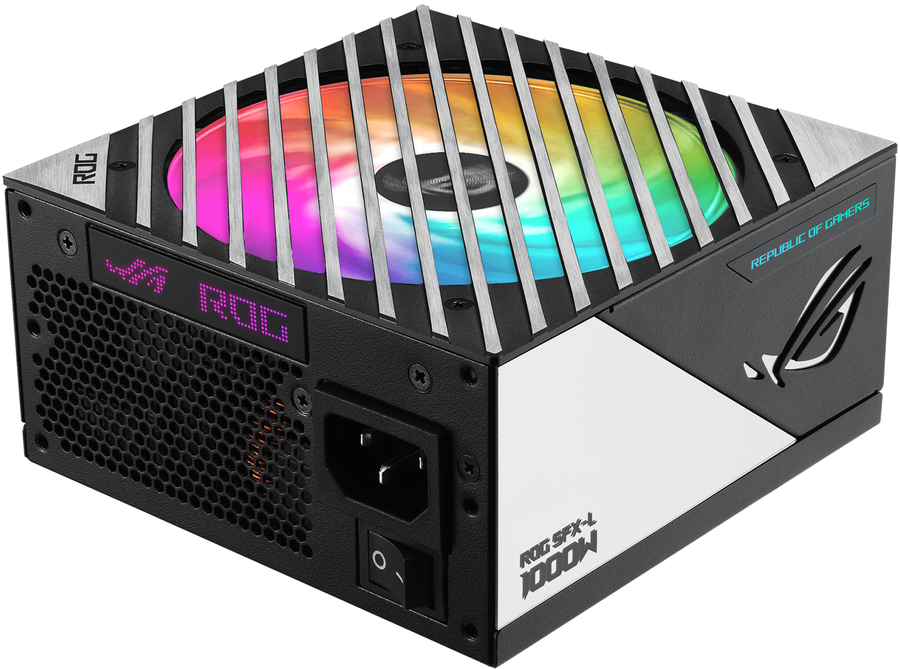

Asus ROG Loki SFX-L Platinum 1000 Watt Power Supply

Home :: Power Equipment ::

Price: $348.00

Manufacturer: Asus

100W, Active PFC, ATX 3.0, 80Plus Platinum, 100-240V, 1.83 kg

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
58955730	ROG-LOKI-1000P-SFX-L-GAMING	4711081722144	Active

Details

General Information
Summary	The Quietest SFX-L PSU Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build. COOLING ROG Heatsinks Cool under pressure ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation. Axial-tech Fan Design Better, faster, stronger Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise. Dual Ball Fan Bearings 2x longer lifespan Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ROG Loki SFX-L series. 0dB Technology Quiet intelligence To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below. ENGINEERING High-performance Copper Pins Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency. This translates to a significant 29% reduction in connector temperatures (up to -12.28°C), promoting optimal performance and stability for even the most demanding graphics cards. 80 PLUS Platinum Certified Effortless output Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come. ATX 3.0 Compatible Step into the future The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs. EXPERIENCE Etched Cables Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety. ARGB-illuminated Fan & Aura Sync Magical glow The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build. 10-Year Warranty A decade of power We're so confident about the reliability of the ROG Loki SFX-L 1000W Platinum that we back it with a 10-year warranty.
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	1000 W
Combined power (+5V)	110 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	83.3 A
Max output current (+5V)	20 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Motherboard power cable length	45 cm
Number of SATA power connectors	6
SATA power cable length	100,200,300 mm
Peripheral (Molex) power cable length	100,300 mm
EPS power connector (8-pin)	Yes
PCI Express power connectors (8-pin)	3
PCI Express power connectors (16-pin)	1
CPU power connector (4+4 pin)	Yes
CPU power cable length	55 cm
ATX power connector (20+4 pin)	Yes

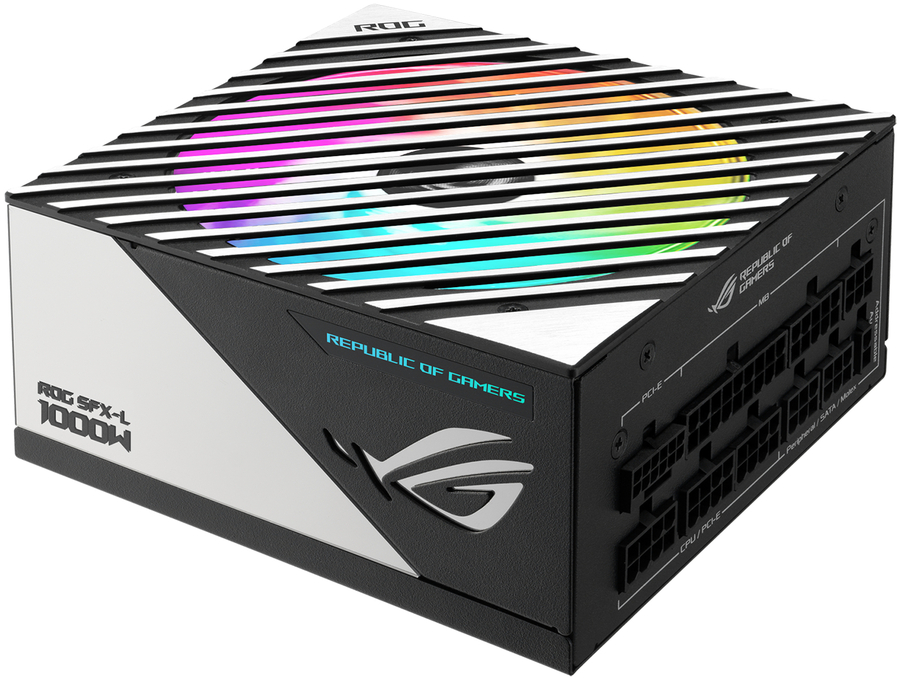

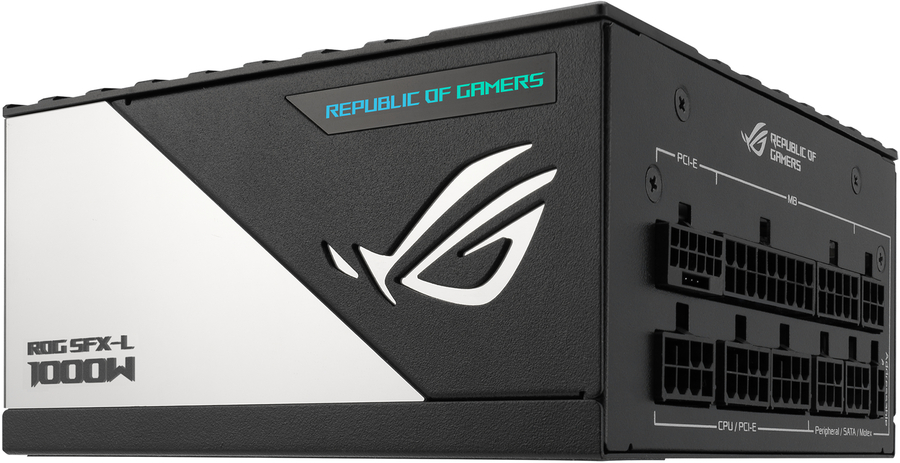

Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.0
Silent mode	Yes
Bearing technology	Ball bearing
Mean time between failures (MTBF)	120000 h
Design
Product colour	Multicolour
Cooling type	Semi-passive

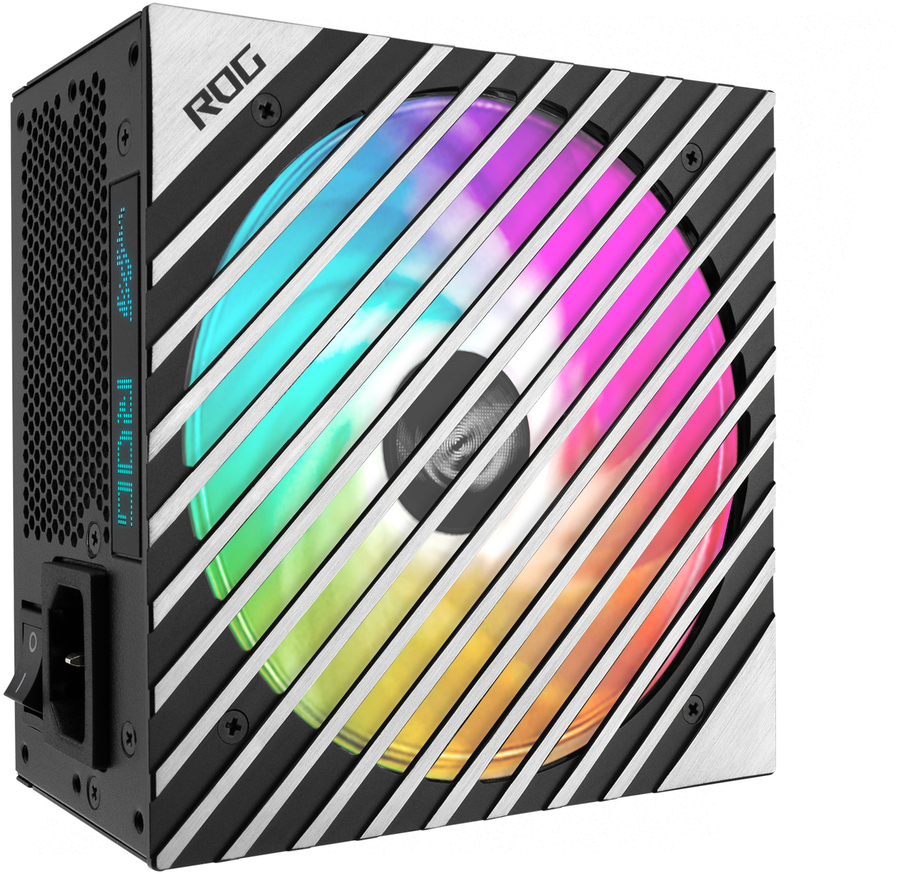

Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Illumination	Yes

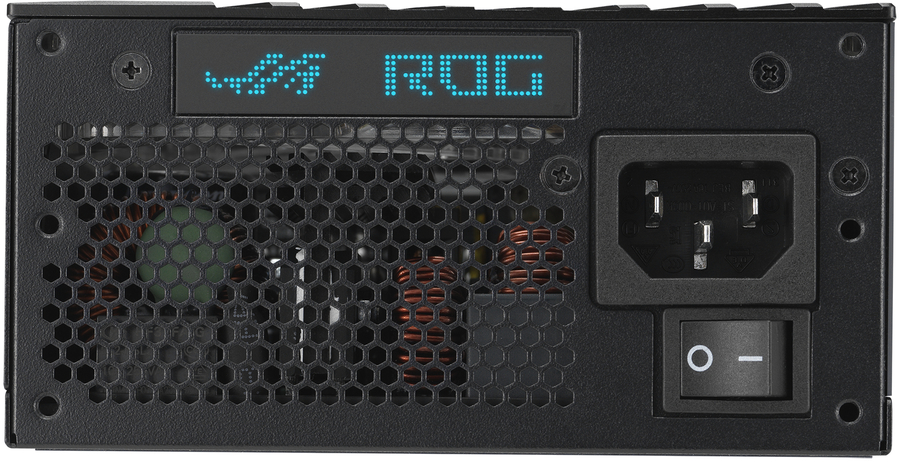

On/off switch	Yes
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	125 mm
Depth	125 mm
Height	63.5 mm
Weight	1.83 kg
Packaging data
Package type	Box
Logistics data
Warranty period	10 year(s)
