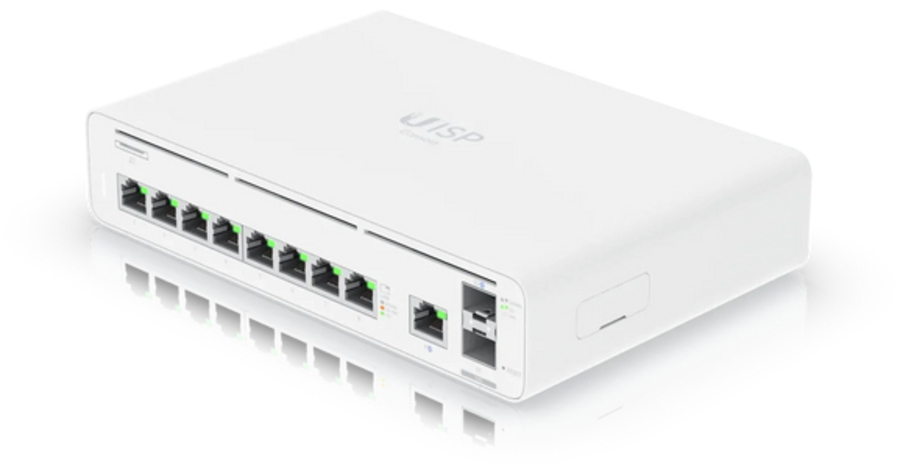

Ubiquiti UISP Console
|
|
Regularly: $429.00
On Sale: $411.84
Sale Ends:
April 26th, 2024
Manufacturer:
Ubiquiti
(2) 10G SFP+ ports, (9) GbE RJ45 ports, 1U, 210.4 x 140.2 x 43.7 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59008843
|
UISP-Console
|
810010077752 |
Active
|
Details
|
General Information |
|
Summary |

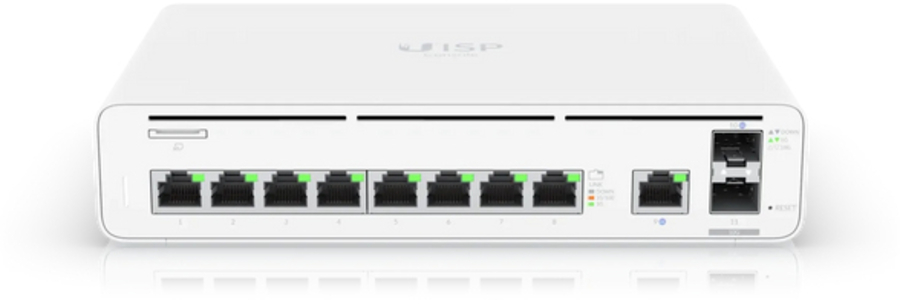

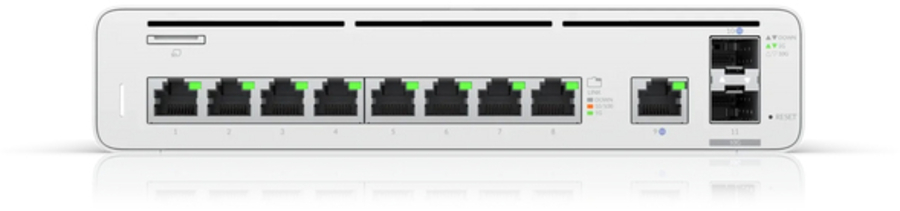

UISP host console with an integrated switch and multi-gigabit Ethernet gateway. The UISP Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments. |
|
Design |
|
Product colour |
White |
|
Rack capacity |
1U |
|
Enclosure material |
Metal |
|
LED indicators |
Yes |
|
Certification |
CE, FCC, IC |
|
Performance |
|
Control display unit |
No |
|
Built-in processor |
Yes |
|
Processor family |
ARM Cortex |
|
Processor model |
Cortex-A57 |
|
Processor frequency |
1700 MHz |
|
Number of processors installed |
1 |
|
Internal memory |
4 MB |
|
Internal memory type |
DDR4 |
|
SSD capacity |
128 GB |
|
Flash memory |
16000 MB |
|
Network |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
8 |
|
WAN connection |
Ethernet (RJ-45) |
|
Power |
|
Power consumption (max) |
30 W |
|
Input voltage |
24 - 28 V |
|
Weight & dimensions |
|
Width |
210.4 mm |
|
Depth |
140.2 mm |
|
Height |
43.7 mm |
|
Weight |
1.45 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 50 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
