General Information |
|
Summary |

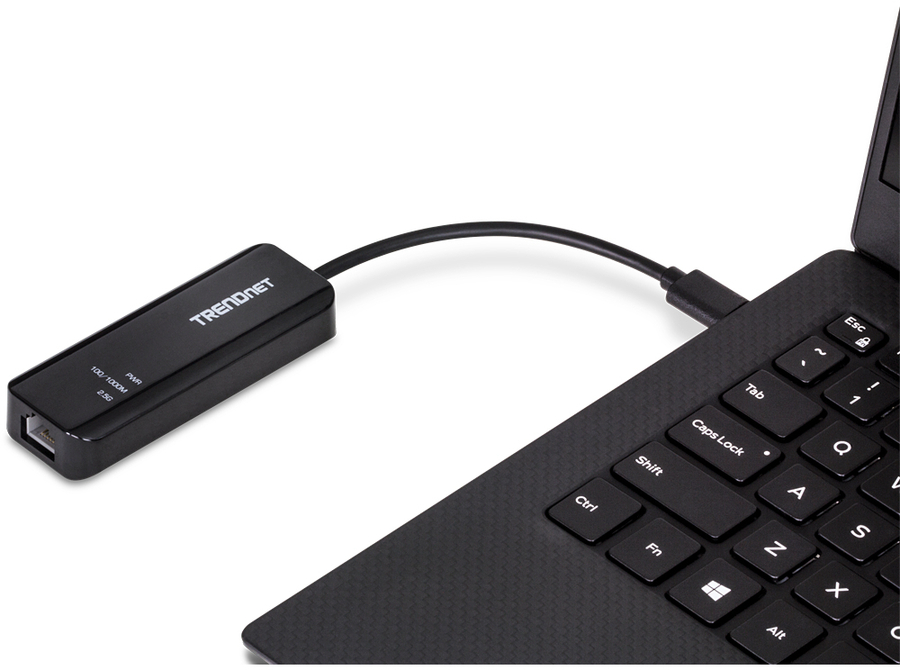

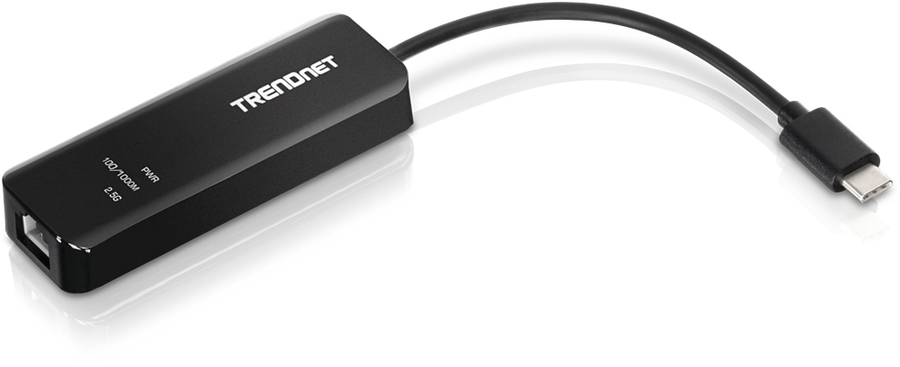

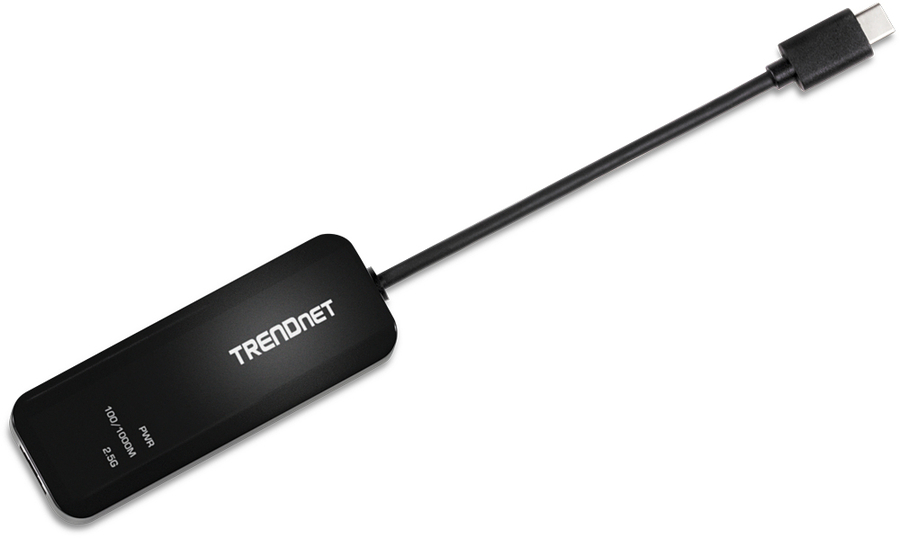

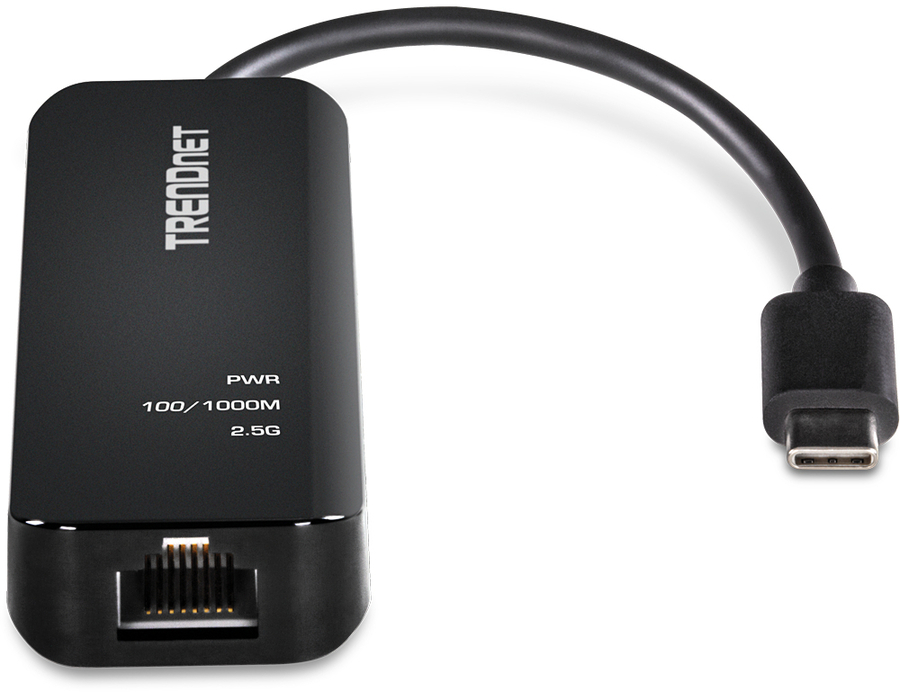

TRENDnet USB-C 3.1 to 2.5GBASE-T Ethernet Adapter, model TUC-ET2G, is equipped with a 2.5GBASE-T RJ-45 port that provides higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. This USB-C 2.5G Ethernet adapter features a USB-C 3.1 interface that easily connects a USB-C enabled notebook to a high-speed 2.5GBASE-T network. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
USB Type-C |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB version |
3.2 Gen 2 (3.1 Gen 2) |
|
Network |
|
Maximum data transfer rate |
2500 Mbit/s |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
100,1000,2500 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Design |
|
Internal |
No |
|
Component for |
Laptop |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Certification |
CE, FCC |
|
Power |
|
USB powered |
Yes |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
|
Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Weight & dimensions |
|
Width |
84 mm |
|
Depth |
32 mm |
|
Height |
13 mm |
|
Weight |
30 g |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Other features |
|
Quick start guide |
Yes |
