TRENDnet 12-Port 10G Layer 2 Managed SFP+ Switch
|
|
Price: $488.00
Manufacturer:
TRENDnet
12-Port 10G Layer 2 Managed SFP+ Switch
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59019641
|
TL2-F7120
|
710931140972 |
Active
|
Details
|
General Information |
|
Summary |
TRENDnet’s 12-Port 10G Layer 2 Managed SFP+ Switch, model TL2-F7120, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches TL2-F7120 by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and
prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network. |
|
Management features |
|
Switch type |
Managed |
|
Configuring Location Settings (CLI) |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports type |
No |
|
SFP+ module slots quantity |
12 |
|
Console port |
RJ-45 |
|
Network |
|
Networking standards |
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3au, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
|
10G support |
Yes |
|
Full duplex |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Tagged VLAN, Voice VLAN |
|
Number of VLANs |
4094 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
240 Gbit/s |
|
Forwarding rate |
178.6 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10000 |
|
Packet buffer memory |
2 MB |
|
Security |
|
DHCP features |
DHCP snooping |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
Management protocols |
SNMP v1, v2c, v3 |
|
Design |
|

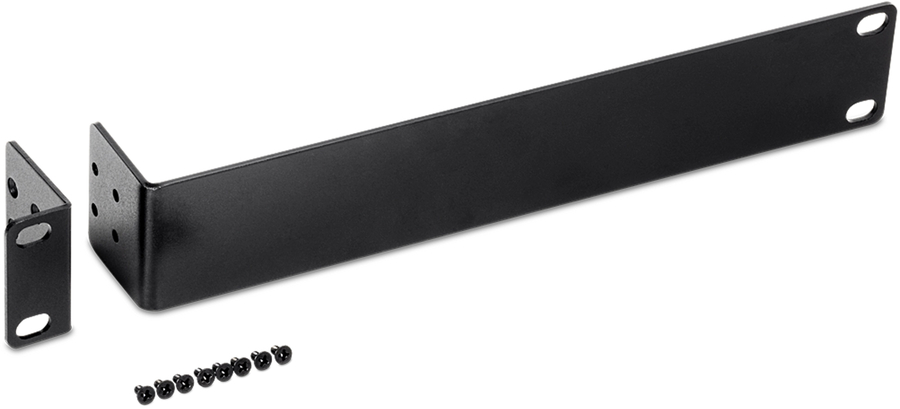

Rack mounting |
Yes |
|
Form factor |
1U |
|
Product colour |
Black |
|
Number of fans |
1 fan(s) |
|
Performance |
|
Noise level |
38.6 dB |
|
Power |
|
Power source |
AC |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
1.5 A |
|
Power consumption (max) |
20 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Weight & dimensions |
|
Width |
210 mm |
|
Depth |
230 mm |
|
Height |
44 mm |
|
Weight |
1.6 kg |
|
Certificates |
|
Certification |
CE
FCC
UL |
|
