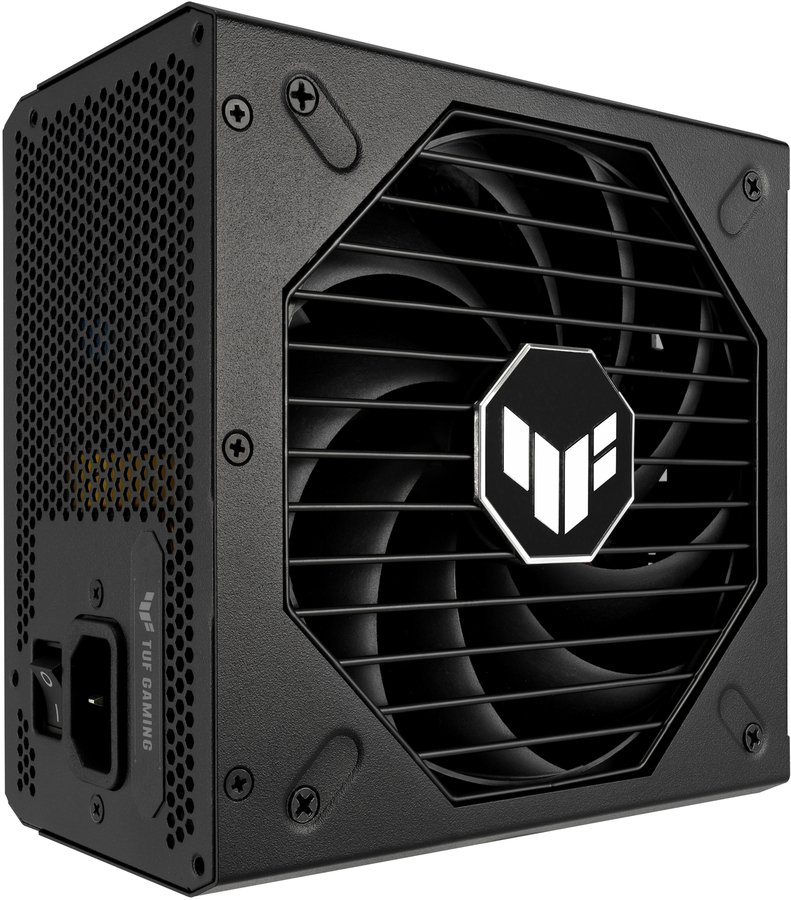

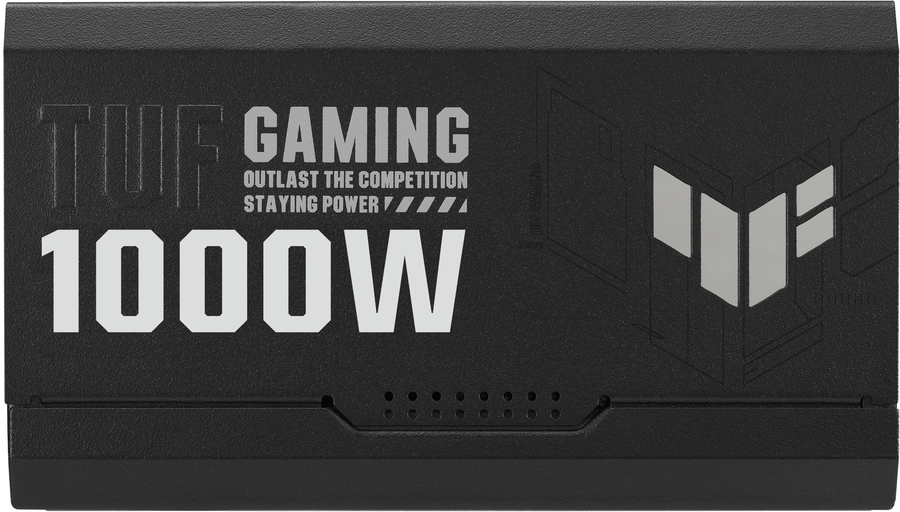

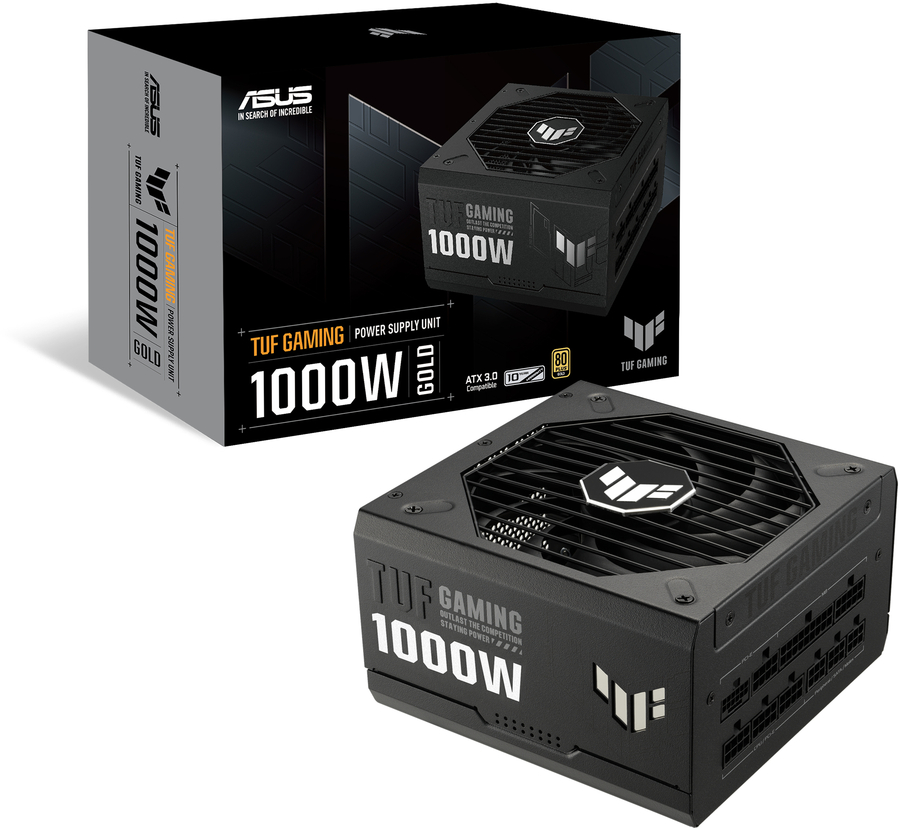

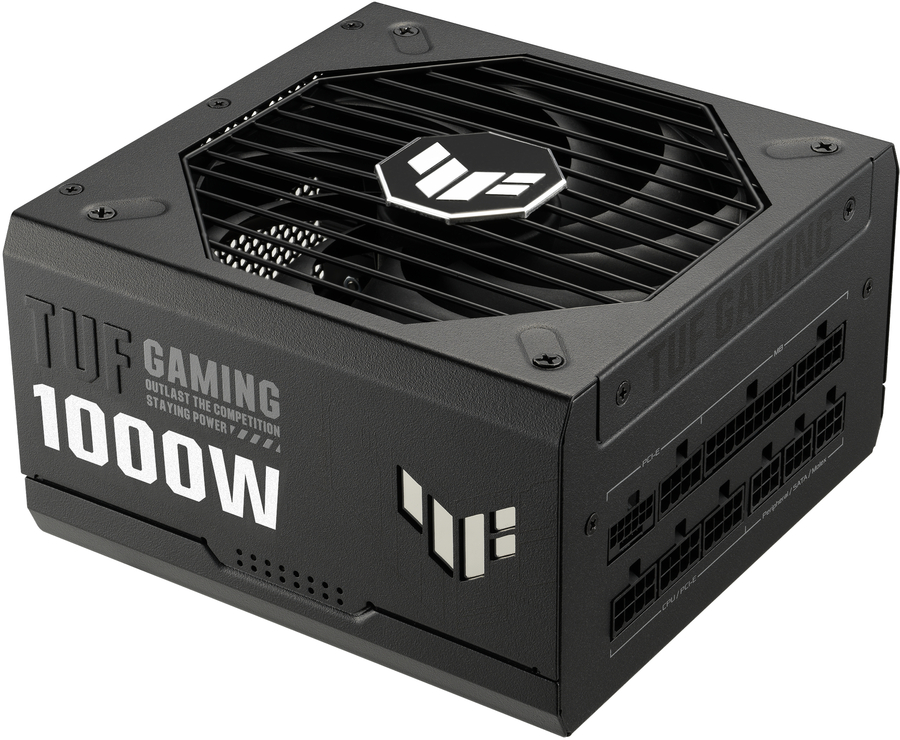

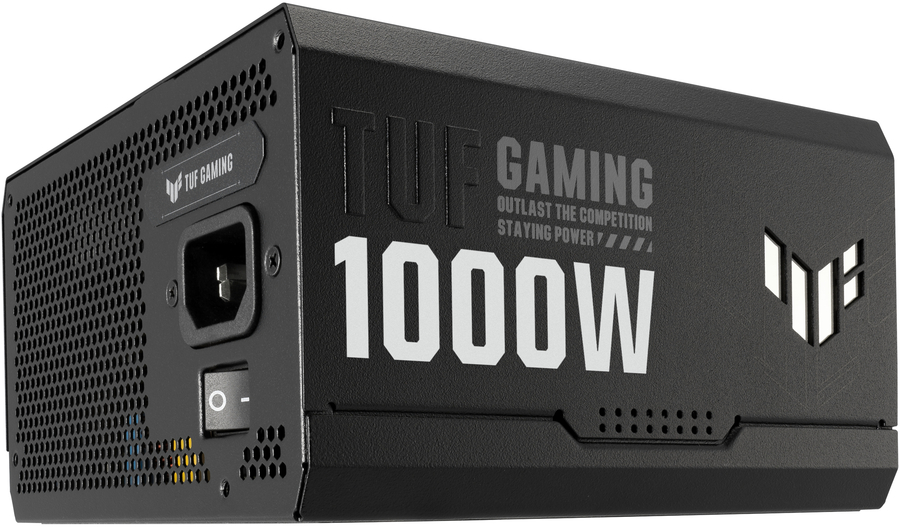

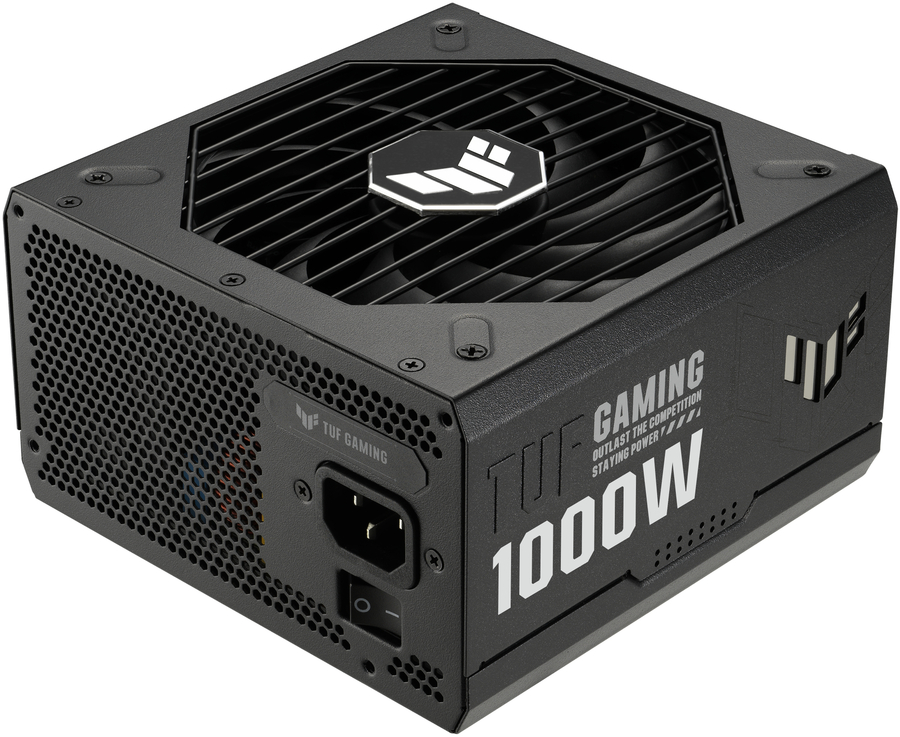

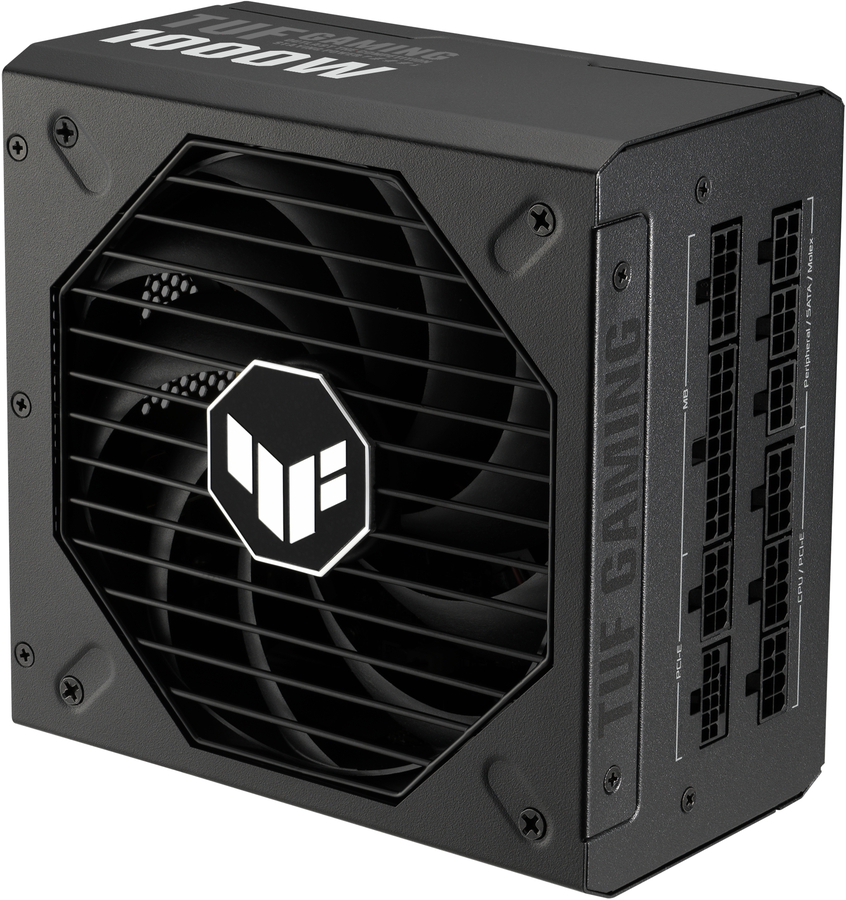

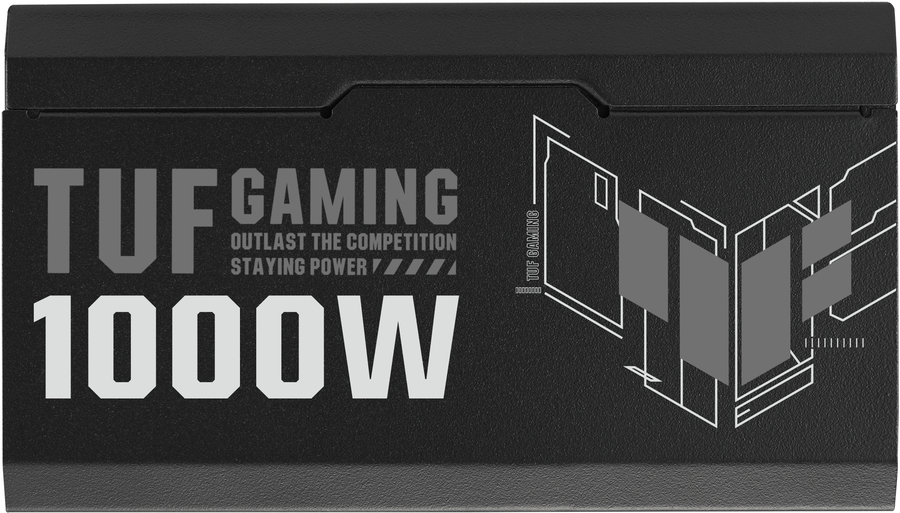

Asus TUF Gaming 1000 Watt Gold Power Supply

Home :: Power Equipment ::

Regularly: ~~$261.00~~
On Sale: $250.56 Sale Ends: April 26th, 2024

Manufacturer: Asus

1000W, ATX12V, 80Plus Gold, 100 - 240V, 2.48kg

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
59022399	TUF-GAMING-1000G	195553786485	Active

Details

General Information
Summary	The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul. Built For The Long Haul The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come. Durability TUF Components Top marks With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence. Dual Ball Fan Bearings 2x longer lifespan Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. Protective PCB Coating All wrapped up A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris. ENGINEERING 80 Plus Gold Certification Heart of gold The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability. ATX 3.0 Compatible Step into the future The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities. Axial-tech Fan Design Better, faster, stronger Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise. EXPERIENCE 10-year Warranty A decade of power We're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty. Fully Modular Etched Cables Supple ply The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
Power
Total power	1000 W
AC input voltage	100 - 240 V
Combined power (+3.3V)	130 W
Combined power (+12V)	1000 W
Combined power (+5V)	130 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Efficiency	92%
Power protection features	Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage

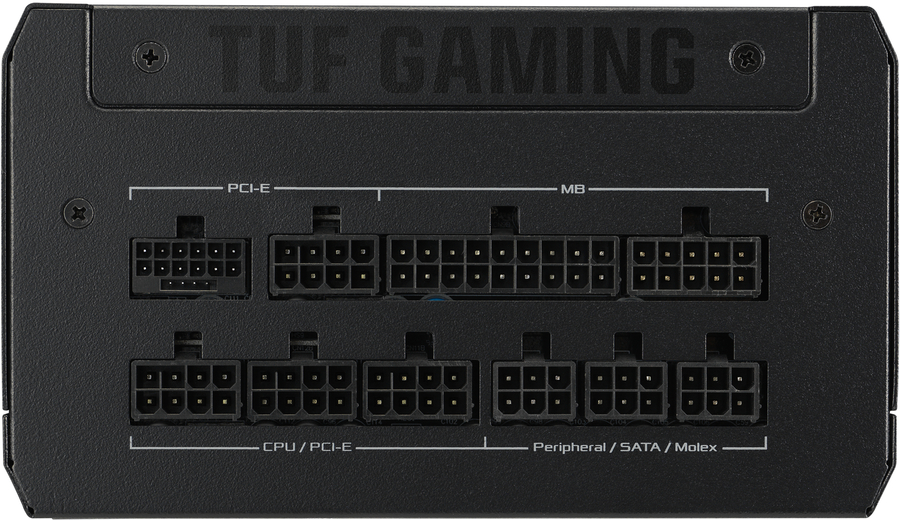

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Motherboard power cable length	61 cm
Number of SATA power connectors	5
SATA power cable length	120,400 mm
Peripheral (Molex) power cable length	150,400 mm
PCI Express power connectors (8-pin)	4
PCI Express power connectors (16-pin)	1
PCI Express power cable length	67.5 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	65 cm
ATX power connector (20+4 pin)	Yes

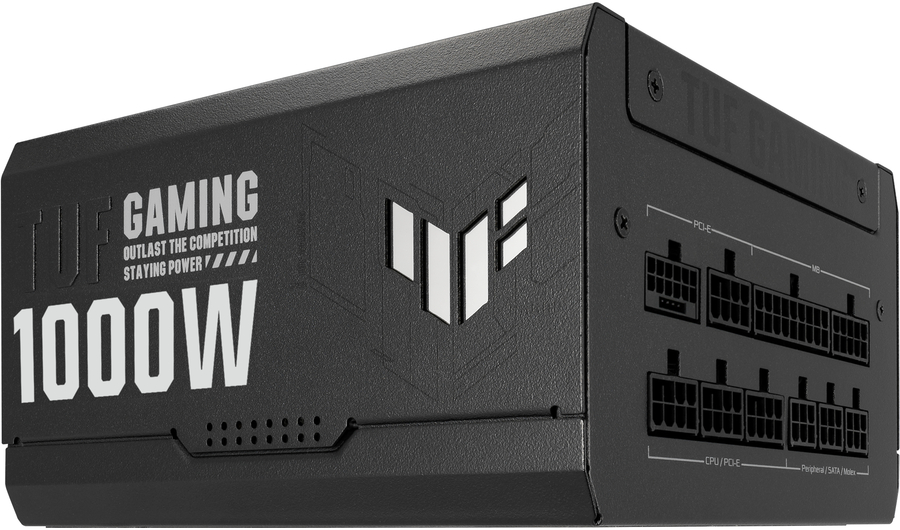

Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Design
Product colour	Black
Cooling type	Active

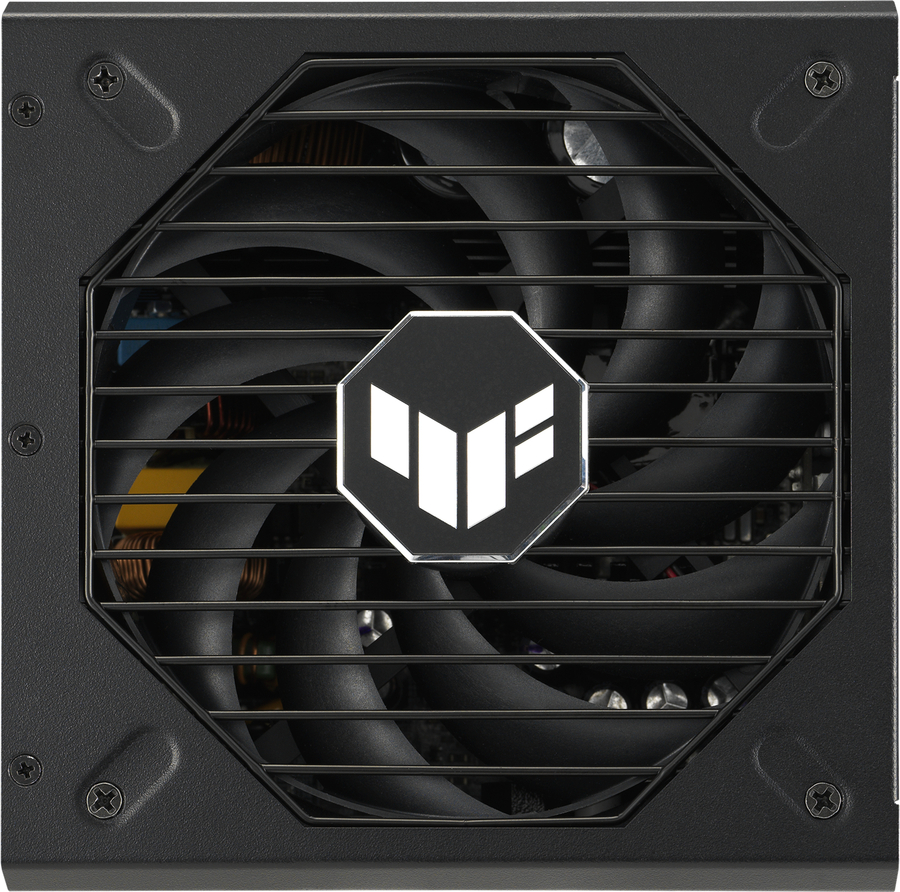

Fan diameter	13.5 cm
Number of fans	1 fan(s)

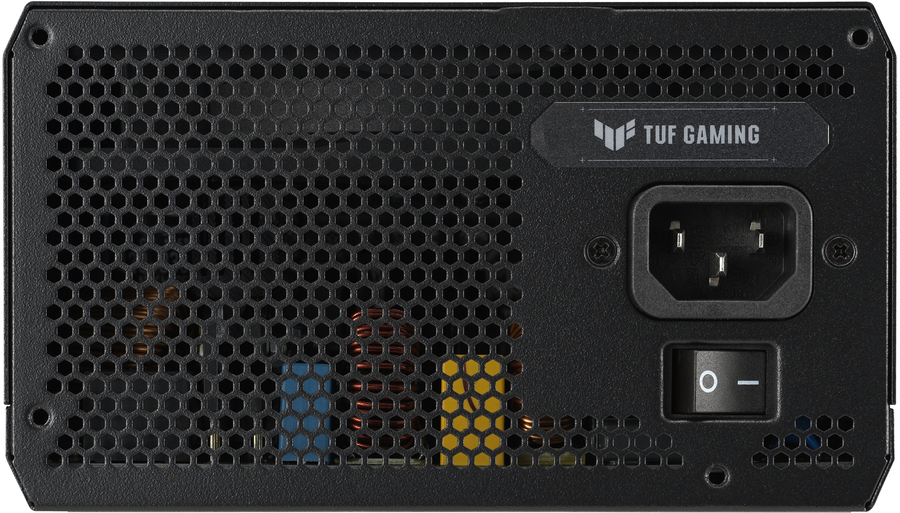

On/off switch	Yes
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.48 kg
