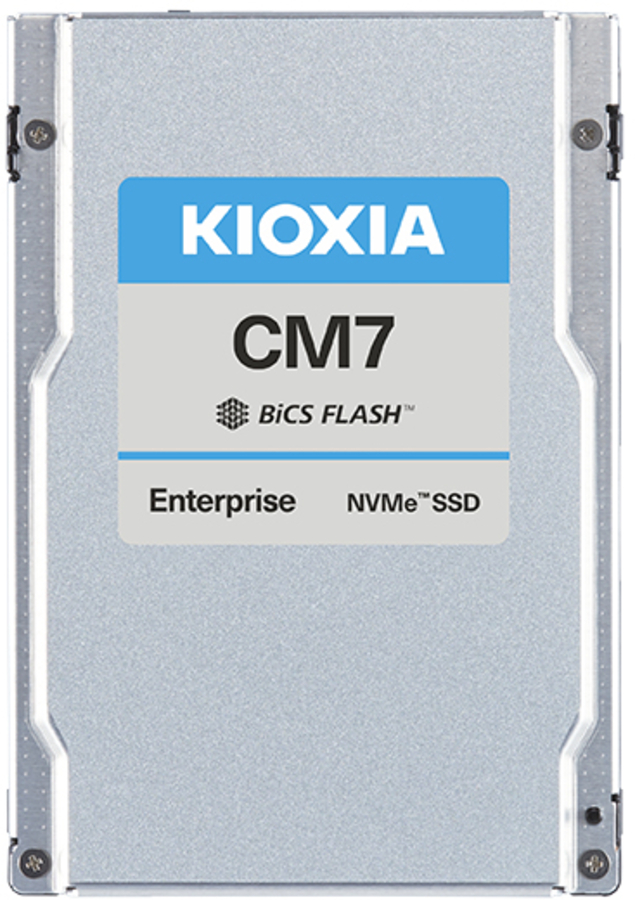

Kioxia CM7-R 30.72TB 2.5" PCIe5 SIE 1 DWPD SSD
|
|
Regularly: $6627.00
On Sale: $6361.92
Sale Ends:
April 26th, 2024
Manufacturer:
Kioxia
30720GB, 2.5", PCIe 5.0, NVMe 2.0, BiCS FLASH TLC, 130 g, SIE
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59022409
|
KCMYXRUG30T7
|
4582563857520 |
Active
|
Details
|
General Information |
|
Summary |
Enterprise NVMe™ Read-intensive SSD
KIOXIA CM7-R Series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 (for U.3 host: PCIe® 4.0) and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs delivers 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read-intensive enterprise applications. |
|
Features |
|
SSD form factor |
2.5" |
|
SSD capacity |
30.7 TB |
|
Interface |
PCI Express 5.0 |
|
Memory type |
BiCS FLASH TLC |
|
NVMe |
Yes |
|
Component for |
Server/workstation |
|
NVMe version |
2.0 |
|
Target workload |
Read Intensive (RI) |
|
Read speed |
10000 MB/s |
|
Write speed |
4900 MB/s |
|
Random read (4KB) |
1600000 IOPS |
|
Random write (4KB) |
150000 IOPS |
|
H/W PLP function |
Yes |
|
End-to-End Data Protection |
Yes |
|
Mean time between failures (MTBF) |
2500000 h |
|
Market segment |
Server |
|
Use conditions |
Server/Enterprise |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (average) |
25 W |
|
Power consumption (standby) |
5.5 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 72 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
2.17 G |
|
Operating shock |
1 G |
|
Weight & dimensions |
|
Width |
69.8 mm |
|
Depth |
15 mm |
|
Height |
100.5 mm |
|
Weight |
130 g |
|
