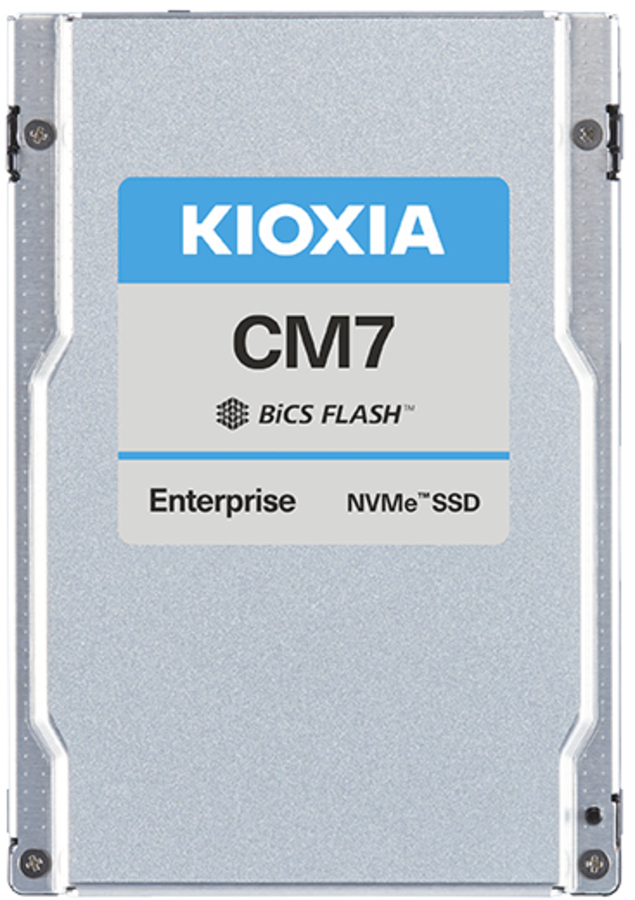

Kioxia CM7-R 15.36TB 2.5" PCIe5 SIE 1 DWPD SSD
|
|
Price: $2593.00
Manufacturer:
Kioxia
15TB, 2.5" SSD, PCIe 5.0, BICS FLASH TLC, 14000-7000MB/s, 2400k-300k IOPS, MTTF 2.5 mil h, 12V, 25W, 69.8x100.4x15mm, 130g
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59022410
|
KCMYXRUG15T3
|
8592978521226 |
Active
|
Details
|
General Information |
|
Summary |
Enterprise NVMe™ Read Intensive SSD
KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.
|
|
Features |
|
SSD capacity |
15.4 TB |
|
SSD form factor |
2.5" |
|
Interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
Memory type |
BiCS FLASH TLC |
|
Component for |
PC/Laptop |
|
Hardware encryption |
Yes |
|
NVMe version |
2.0 |
|
Security algorithms |
FIPS 140-3 |
|
Data transfer rate |
128 Gbit/s |
|
Read speed |
14000 MB/s |
|
Write speed |
7000 MB/s |
|
Random read (4KB) |
2400000 IOPS |
|
Random write (4KB) |
300000 IOPS |
|
Mean time between failures (MTBF) |
2500000 h |
|
Drive writes per day (DWPD) |
1 |
|
Protection features |
Shock resistant, Vibration proof |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (max) |
25 W |
|
Power consumption (standby) |
5.5 W |
|
Weight & dimensions |
|
Width |
69.8 mm |
|
Depth |
100.4 mm |
|
Height |
15 mm |
|
Weight |
130 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 73 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
73 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
2.17 G |
|
Operating shock |
1000 G |
|
