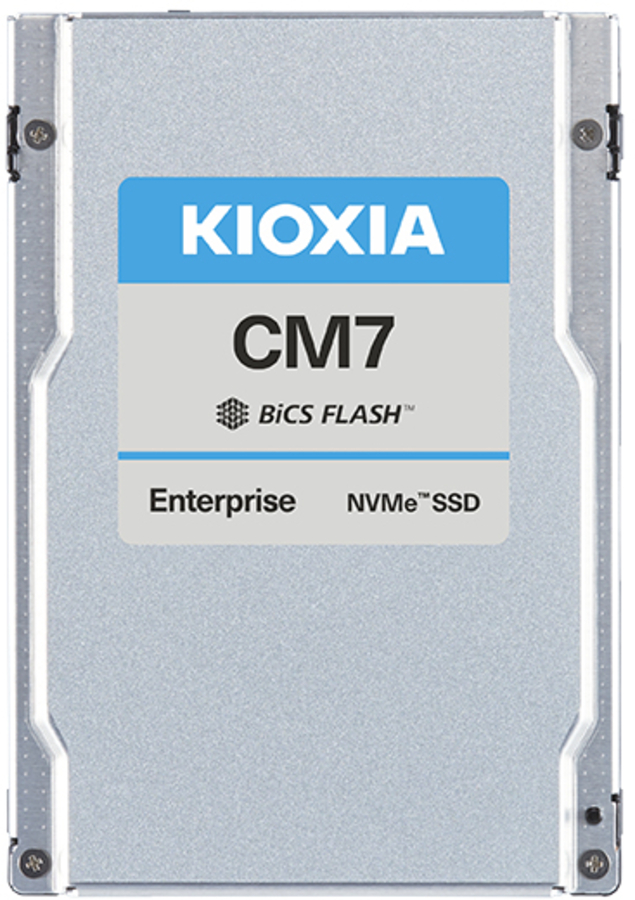

Kioxia CM7-R 7.68TB 2.5" PCIe5 SIE 1 DWPD SSD
|
|
Price: $1396.00
Manufacturer:
Kioxia
2,5", 7680 GB, PCIe 5.0, NVMe 2.0, BiCS FLASH TLC, 14000 MB/s read, 6750 MB/s write
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59022411
|
KCMYXRUG7T68
|
8592978512422 |
Active
|
Details
|
General Information |
|
Summary |
KIOXIA CM7-R Series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 (for U.3 host: PCIe® 4.0) and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs delivers 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read-intensive enterprise applications. |
|
Features |
|
SSD capacity |
7.68 TB |
|
SSD form factor |
2.5" |
|
Interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
Memory type |
BiCS FLASH TLC |
|
Component for |
Server/workstation |
|
NVMe version |
2.0 |
|
Read speed |
14000 MB/s |
|
Write speed |
6750 MB/s |
|
Random read (4KB) |
2450000 IOPS |
|
Random write (4KB) |
300000 IOPS |
|
PCI Express interface data lanes |
x4 |
|
Mean time between failures (MTBF) |
2500000 h |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (max) |
25 W |
|
Weight & dimensions |
|
Width |
69.8 mm |
|
Depth |
100.5 mm |
|
Height |
15 mm |
|
Weight |
130 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 73 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
73 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
2.17 G |
|
Operating shock |
1000 G |
|
Other features |
|
Warranty period |
5 year(s) |
|
