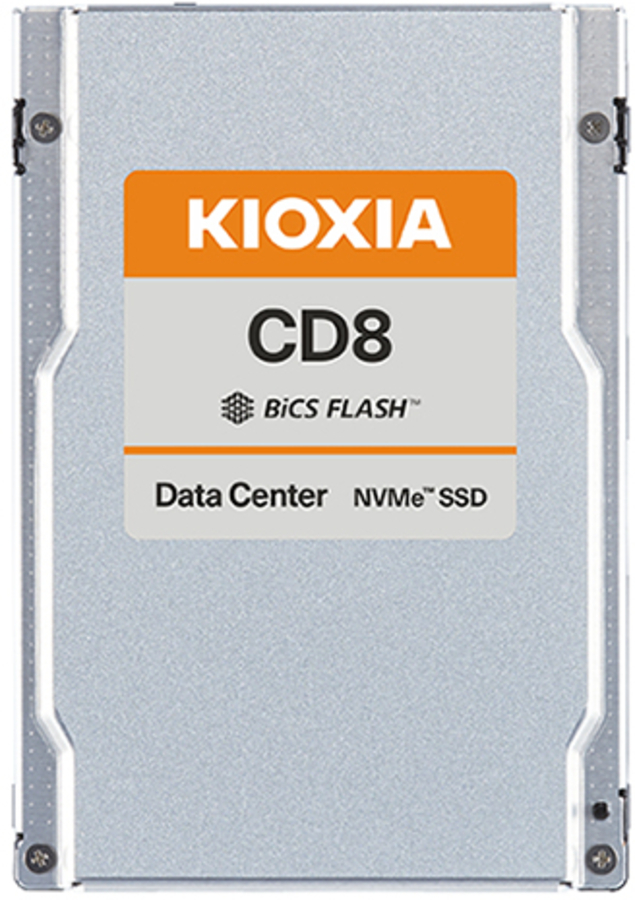

Kioxia CD8-R 7.68TB 2.5" PCIe4 SIE 1 DWPD SSD

Home :: Hard Drives & SSDs :: Solid State Drives ::


Regularly: $924.00
On Sale: $887.04    Sale Ends: April 12th, 2024

Manufacturer: Kioxia

2,5", 7680 GB, PCIe 4.0, NVMe 1.4, BiCS FLASH TLC, 7100 MB/s read, 6000 MB/s write

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
59022414 KCD8XRUG7T68 8592978512439 Active

Details

General Information
Summary Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Features
SSD form factor 2.5"
SSD capacity 7.68 TB
Interface PCI Express 4.0
Memory type BiCS FLASH TLC
NVMe Yes
Component for Server/workstation
NVMe version 1.4
Read speed 7100 MB/s
Write speed 6000 MB/s
Random read (4KB) 1150000 IOPS
Random write (4KB) 200000 IOPS
PCI Express interface data lanes x4
Mean time between failures (MTBF) 2500000 h
Power
Operating voltage 12 V
Power consumption (max) 19 W
Operational conditions
Operating temperature (T-T) 0 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Maximum operating temperature 75 °C
Operating relative humidity (H-H) 5 - 95%
Operating vibration 2.17 G
Operating shock 1000 G
Technical details
Warranty period 5 year(s)
Weight & dimensions
Width 69.8 mm
Depth 100.5 mm
Height 15 mm
Weight 130 g
