Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime. |
|
Features |
|
SSD form factor |
2.5" |
|
SSD capacity |
400 GB |
|
Interface |
PCI Express 4.0 |
|
Memory type |
Intel(R) Optane(TM) Memory Media |
|
NVMe |
Yes |
|
Component for |
Server/workstation |
|
Hardware encryption |
Yes |
|
Security algorithms |
256-bit AES |
|
Random read (100% span) |
1500000 IOPS |
|
Random write (100% span) |
1150000 IOPS |
|
Read latency |
5 µs |
|
Write latency |
5 µs |
|
End-to-End Data Protection |
Yes |
|
Enhanced Power Loss Data Protection technology |
Yes |
|
SSD temperature monitoring |
Yes |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
|
Mean time between failures (MTBF) |
2000000 h |
|
Export Control Classification Number (ECCN) |
5A992C |
|
Commodity Classification Automated Tracking System (CCATS) |
G162706 |
|
Power |
|
Power consumption (idle) |
3.8 W |
|
Brand-specific features |
|
Intel® Optane™ |
Yes |
|
Intel High Endurance Technology (HET) |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Maximum operating temperature |
70 °C |
|
Operating vibration |
2.17 G |
|
Non-operating vibration |
3.13 G |
|
Weight & dimensions |
|
Weight |
140 g |
|
Logistics data |
|
Harmonized System (HS) code |
84717070 |
|
Other features |
|
Internal memory type |
PCIe 4.0 x4, NVMe |
|
Processor family |

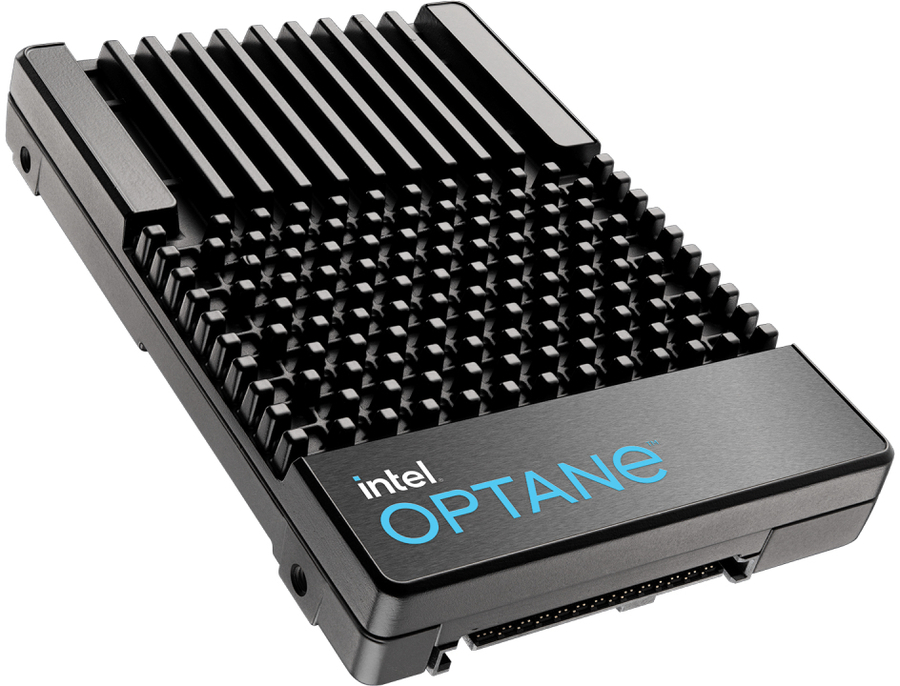

Intel Optane SSD DC P5800X |
|
Target market |
Artificial Intelligence, Cloud Computing, High Performance Computing |
|
Power consumption (active) |
14 W |
|
Launch date |
Q4'20 |
|
SSD endurance rating |
100 DWPD |
|
SSD shock |
1000G,0.5ms |
|
Sequential reading |
7200 MB/s |
|
Sequential writing speed |
4800 MB/s |
|
Status |
Launched |
