Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives supported |
8 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial ATA II, Serial ATA III |
|
Storage drive sizes supported |
2.5,3.5,M.2 |
|
Number of M.2 (M & B) slots |
2 |
|
RAID levels |
0, 1, 5, 6, 10, 50, 60 |
|
Online RAID migration |
Yes |
|
Online RAID expansion |
Yes |
|
RAID rebuild |
Yes |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
FAT32, NTFS, ext3, ext4 |
|
Processor |
|
Processor family |
Intel Atom® |
|
Processor manufacturer |
Intel |
|
Processor model |
C5125 |
|
Processor frequency |
2.8 GHz |
|
Processor cores |
8 |
|
Processor threads |
8 |
|
Processor cache |
9 MB |
|

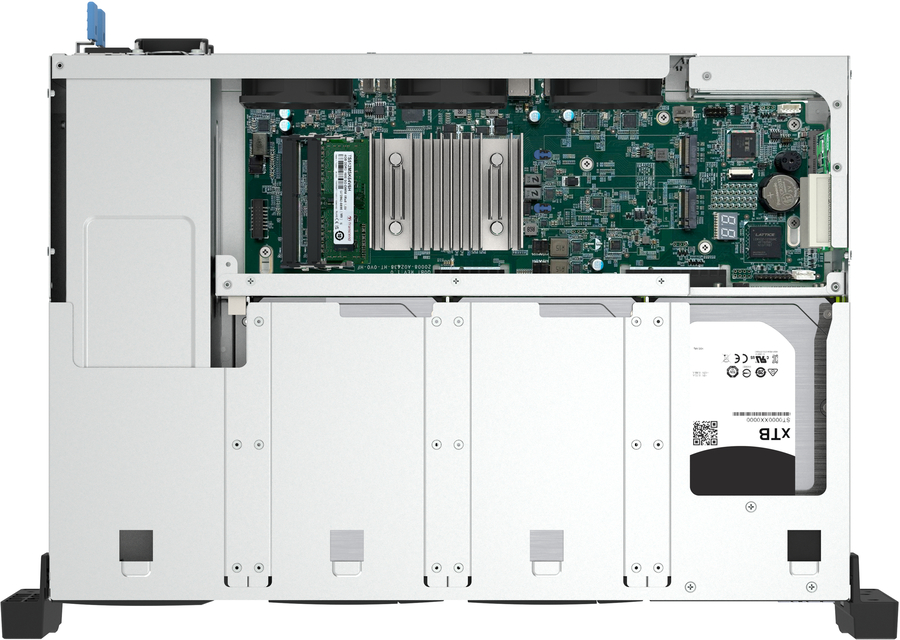

Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
2 |
|
Memory form factor |
SO-DIMM |
|
ECC |
Yes |
|
Flash memory |
5000 MB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
DHCP server |
Yes |
|
Jumbo frames support |
Yes |
|
iSCSI support |
Yes |
|
Wake-on-LAN ready |
Yes |
|

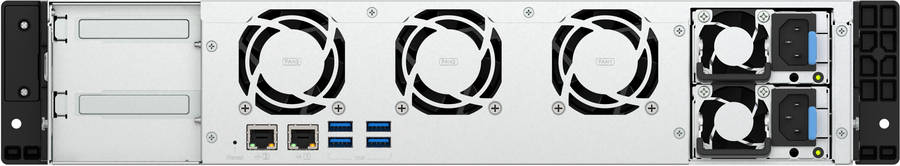

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
Concurrent connections |
2000 |
|
PCI Express x4 (Gen 3.x) slots |
2 |
|

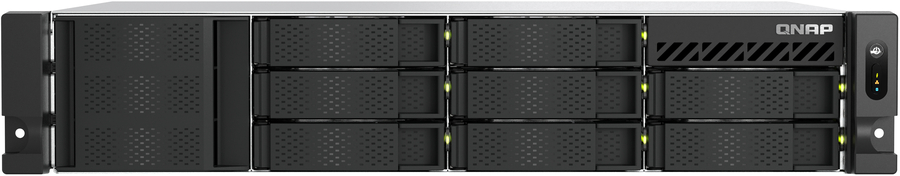

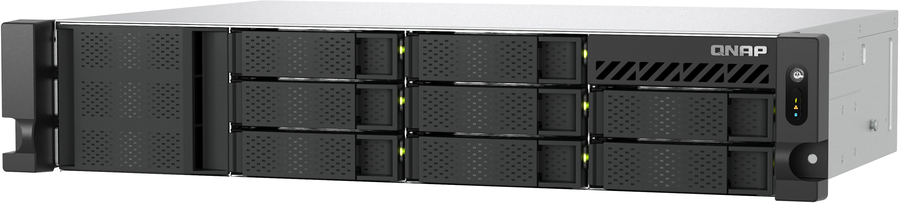

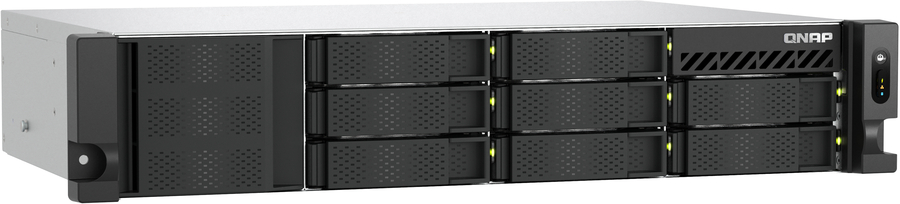

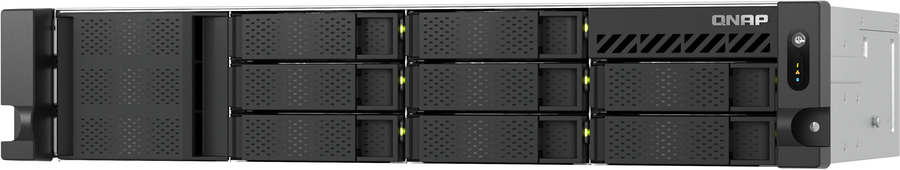

Design |
|
Chassis type |
Rack (2U) |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
3 fan(s) |
|
Fan diameter |
6 cm |
|
LED indicators |
Yes |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Buzzer |
Yes |
|
Multilingual support |
Yes |
|
Number of users |
16000 user(s) |
|
Snapshot |
Yes |
|
Management protocols |
IPv4, IPv6 |
|
Web-based management |
Yes |
|
Share folder access right management |
Yes |
|
Security algorithms |
AES |
|
Access Control List (ACL) |
Yes |
|
Reset button |
Yes |
|
On/off switch |
Yes |
|
Built-in FTP server |
Yes |
|
Software |
|
Operating system installed |
QuTS hero |
|
Operating system version |
h5.0.1 |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
|
Linux operating systems supported |
CentOS 7.0, Ubuntu 14.04, Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Yes |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
300 W |
|
Number of power supply units |
2 |
|
Power consumption (typical) |
78.73 W |
|
Power consumption (sleep) |
54.331 W |
|
Fan voltage |
12 V |
|

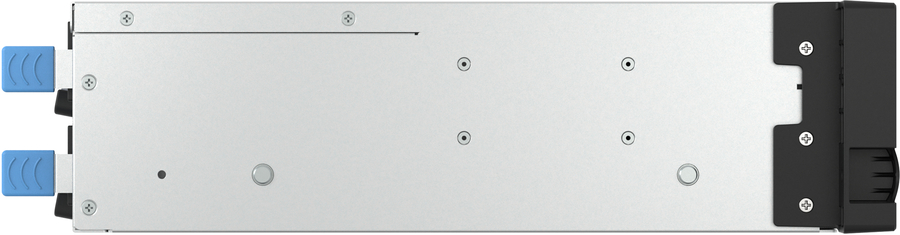

Weight & dimensions |
|
Width |
432 mm |
|
Depth |
297.4 mm |
|
Height |
88.6 mm |
|
Weight |
8.15 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 70 °C |
