Epson® laser displays elevate the viewing experience beyond the limits of flat panels.

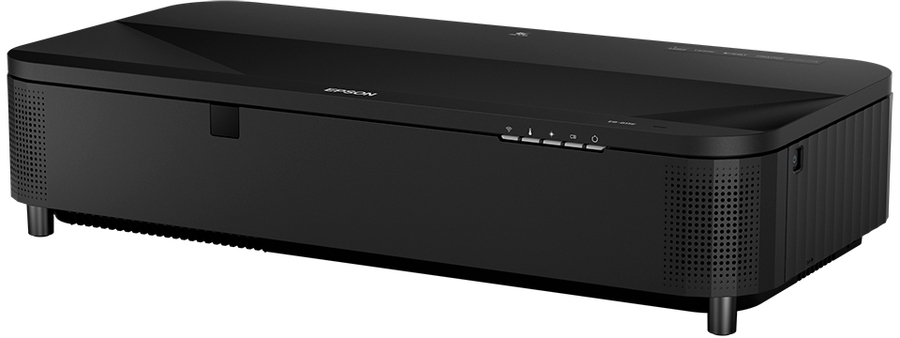

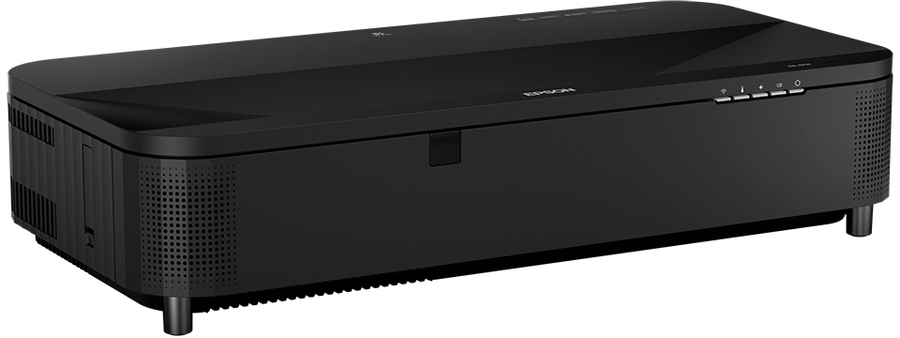

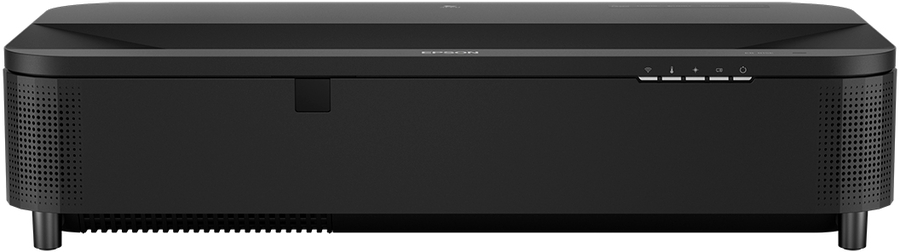

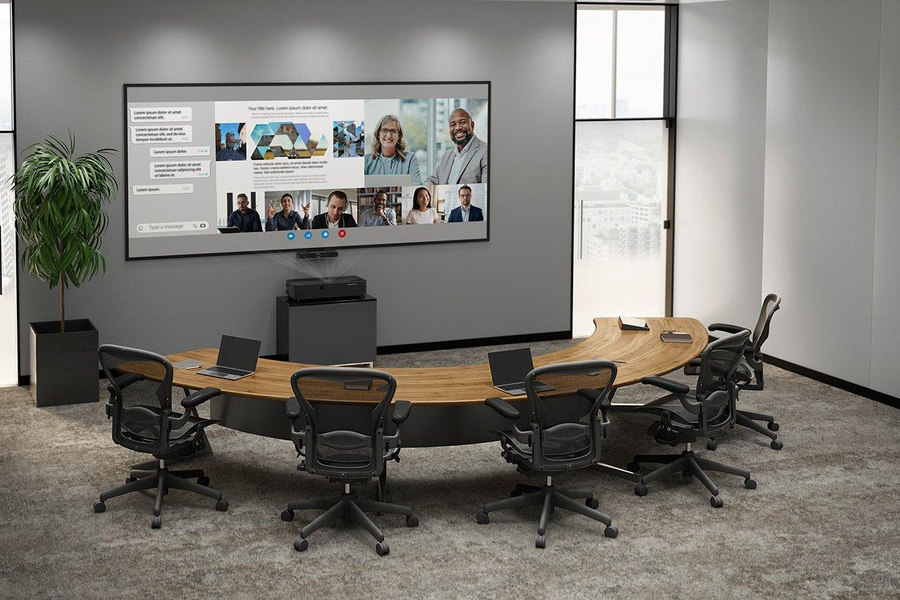

The all-black PowerLite® 815E extreme short throw lamp-free laser projector with innovative 4K Enhancement Technology1 offers a modern, flexible display solution for corporate meeting rooms and collaborative hybrid workspaces, as well as captivating digital signage. With 5,000 lumens of color and white brightness2 and innovative 3-chip 3LCD technology, it provides a sharp, amazingly bright, virtually glare-free display. The projector’s stylish, space-saving design delivers immersive, larger-than-life images up to 160''—4.5 times larger than a 75" flat panel—merely inches away from the wall for bold, bright obstruction-free viewing.
In addition to a standard 16:9 display, the PowerLite 815E goes beyond the limits of ordinary flat panels by supporting an ultra-wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen. Enjoy a newly designed, state-of-the-art cooling system and a laser light source of up to 30,000 hours that’s virtually maintenance-free3, eliminating the need to ever purchase or replace a lamp again!

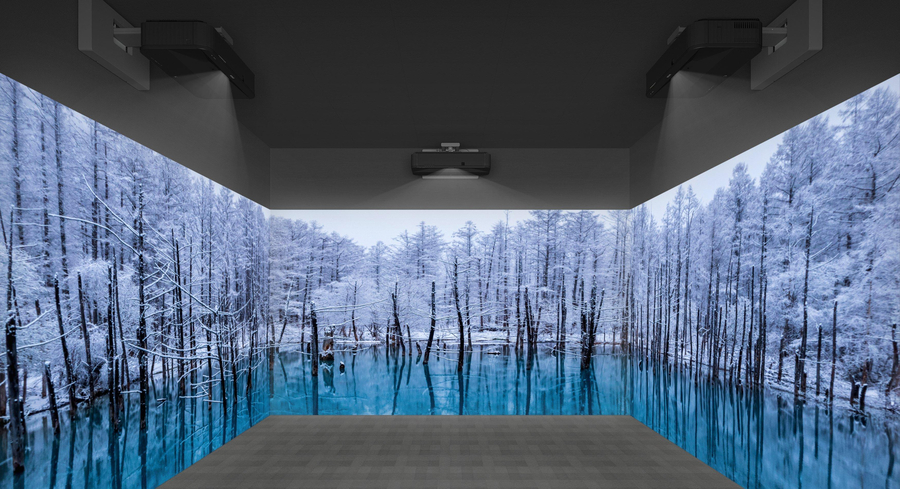

Packed with a wide range of connectivity options—including HDBaseT®, HDMI®, USB, RS-232 and Miracast®, as well as built-in wired/wireless networking—this compact and smartly designed projector is ready to display in minutes from areas such as credenzas and tabletops, delivering exceptionally large images in space-constrained settings. Additionally, you can take advantage of advanced edge-blending functionality and versatile 360-degree placement capabilities and create eye-catching, immersive displays in storefronts, museums or any environment where the 815E’s subtle, black design can seamlessly blend in. Installation is effortless thanks to innovative digital zoom and image shifting features, for easy image alignment, and the Epson Setting Assistant app4 that automatically smoothes edges and corners in seconds from the convenience of a smart device. |
|
Projector |
|
Projector brightness |
5000 ANSI lumens |
|
Projection technology |
3LCD |
|
Projector native resolution |
1080p (1920x1080) |
|
Contrast ratio (typical) |
2500000:1 |
|
Native aspect ratio |
16:9 |
|
Smart projector |
No |
|
Screen size compatibility |
2032 - 4064 mm (80 - 160") |
|
Supported aspect ratios |
4:3, 16:9, 16:10, 21:9, 16:6 |
|
Number of colours |
1.07 billion colours |
|
Keystone correction, horizontal |
-0.9 - 0.9° |
|
Keystone correction, vertical |
-3.6 - 3.6° |
|
Matrix size |
1.57 cm (0.62") |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Service life of light source (economic mode) |
30000 h |
|
Lens system |
|
Focus |
Manual |
|
Fixed focal length |
2.3 mm |
|
F-number (relative aperture) |
1.8 |
|
Zoom ratio |
1.35:1 |
|
Video |
|
Analog signal format system |
Not supported |
|
Full HD |
Yes |
|
3D |
No |
|
Video colour modes |
Blackboard, Cinema, DICOM simulation mode, Dynamic, Natural, Presentation |
|

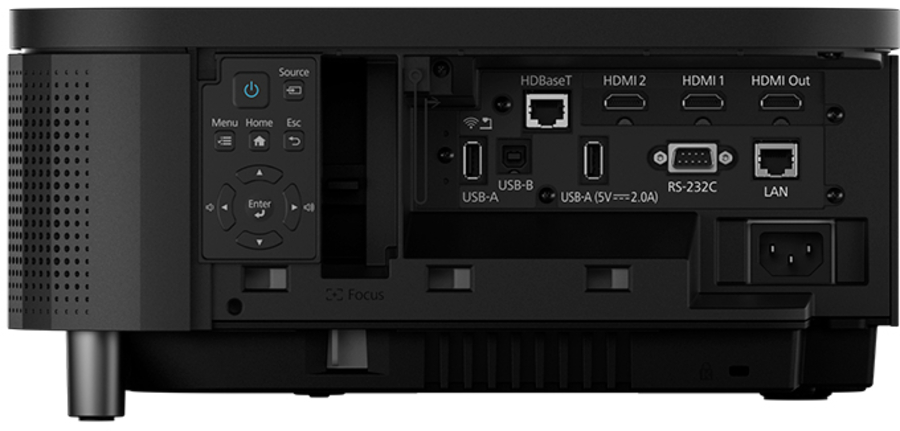

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
3 |
|
Composite video in |
0 |
|
Component video (YPbPr/YCbCr) in |
0 |
|
DVI port |
No |
|
Audio (L/R) in |
0 |
|
Serial interface type |
RS-232C |
|
HDBaseT port |
Yes |
|
Service port type |
USB Type-B |
|
Network |
|
Smart TV |
No |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
Miracast |
Yes |
|
Storage |
|
Card reader integrated |
No |
|
Features |
|
Noise level |
35 dB |
|
Interactive |
No |
|
Noise level (economic mode) |
26 dB |
|
High Dynamic Range (HDR) supported |
Yes |
|
High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
|
Password protection |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
8 W |
|
Number of built-in speakers |
2 |
|
Design |
|
Product type |
Ultra short throw projector |
|
Market positioning |
Business |
|
Product colour |
Black |
|
Placement |
Ceiling, Desktop, Wall |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
398 W |
|
Power consumption (standby) |
2 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 60 °C |
|
Weight & dimensions |
|
Weight |
12.5 kg |
|
Width |
695 mm |
|
Depth |
341 mm |
|
Height |
156 mm |
|
Packaging content |
|
Remote control included |
Yes |
|
Batteries included |
Yes |
