General Information |
|
Summary |

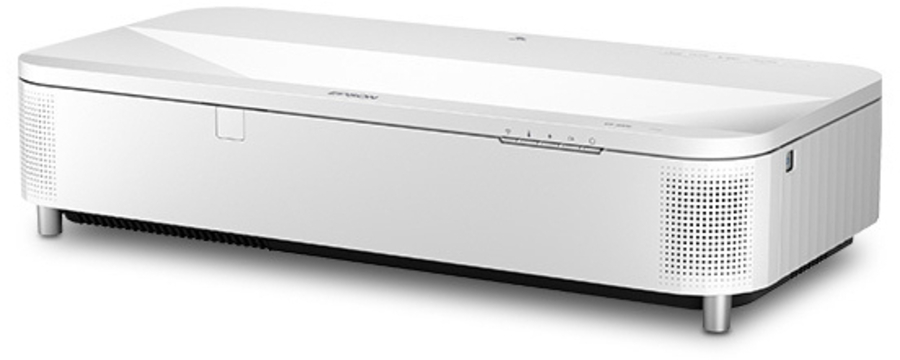

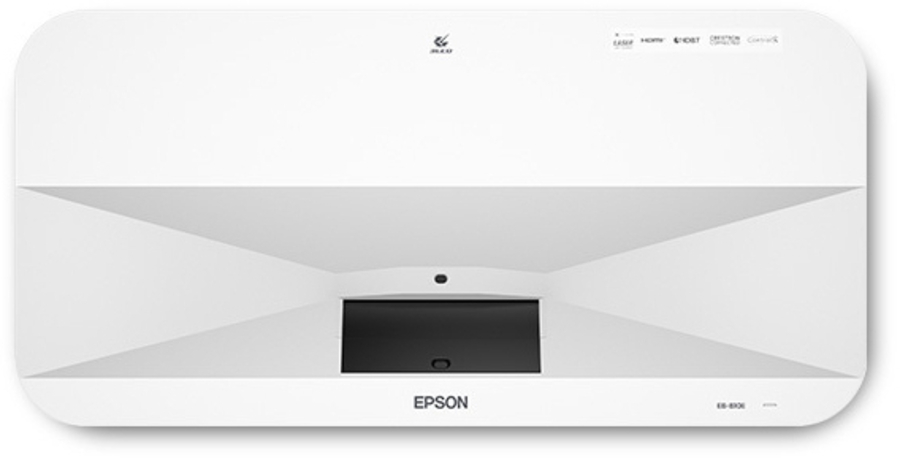

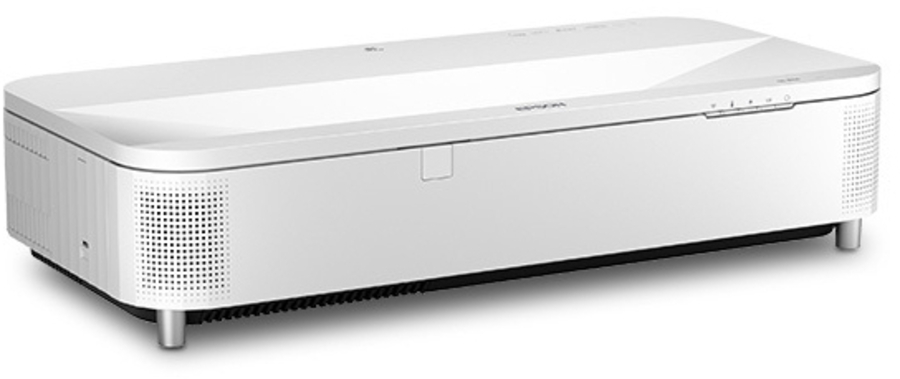

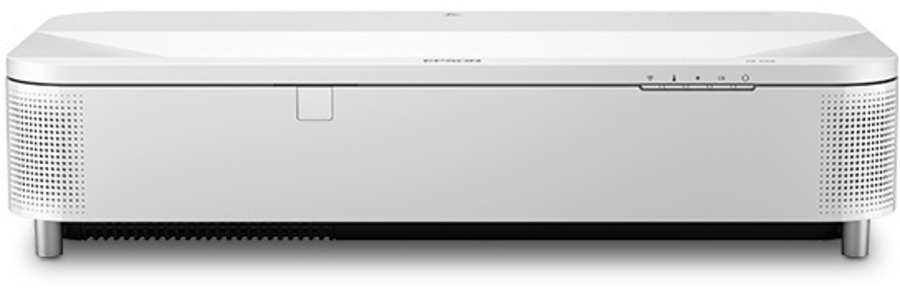

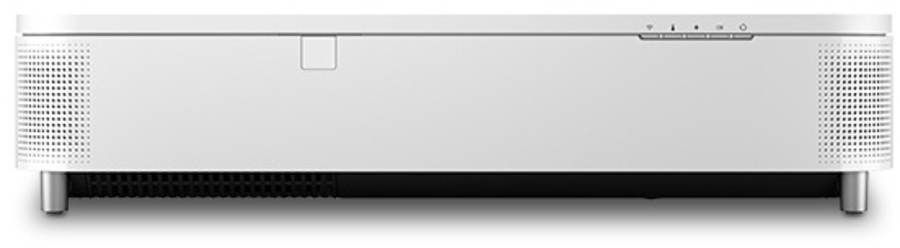

The PowerLite® 810E extreme short throw lamp-free laser display with innovative 4K Enhancement Technology1 offers a modern, flexible solution for today’s rapidly changing world of classrooms and hybrid workspaces. With 5,000 lumens of color and white brightness2 and innovative 3-chip 3LCD technology, it provides a sharp, amazingly bright, virtually glare-free display. Its stylish, space-saving design transforms classrooms while delivering immersive, larger-than-life images up to 160''—4.5 times larger than a 75" flat panel—merely inches away from the wall, for bold, bright obstruction-free viewing. Boost engagement and deliver learning that lasts by taking advantage of the built-in split screen feature and free Epson iProjection™3 app for simultaneous, multi-device casting in 1:1 device environments. In addition to a standard 16:9 display, the PowerLite 810E goes beyond the limits of ordinary flat panels by supporting an ultra wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen. Plus, enjoy a newly designed, state-of-the-art cooling system and a laser light source of up to 30,000 hours that’s virtually maintenance-free4, eliminating the need to ever purchase or replace a lamp again! Offering a wide range of connectivity options including HDBaseT®, HDMI®, USB, RS-232 and Miracast®, as well as built-in wired/wireless networking, the compact and lightweight 810E delivers on the promise of mobility, moving easily from room to room while fitting seamlessly into nearly any workspace.

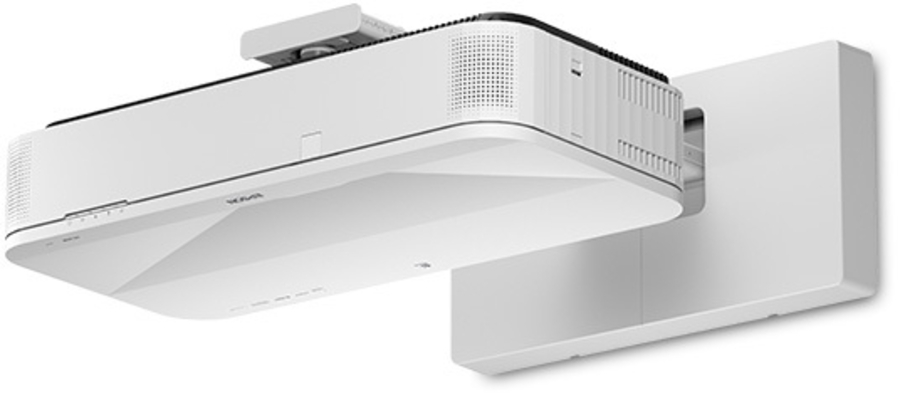

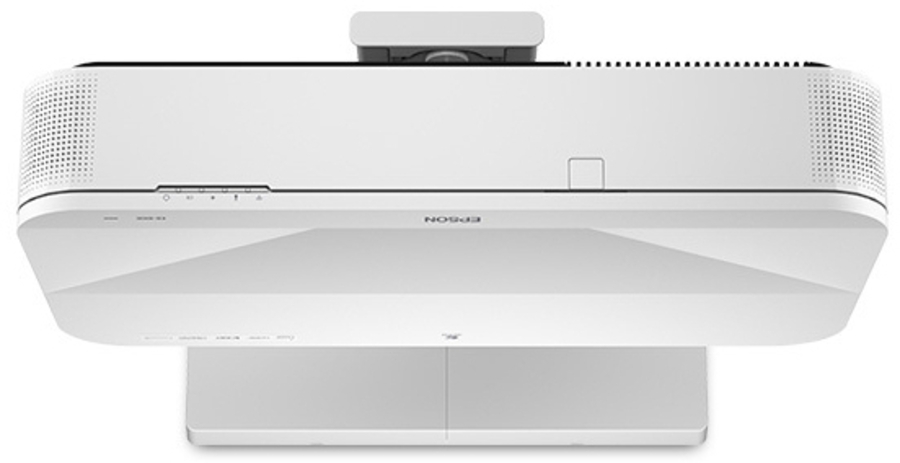

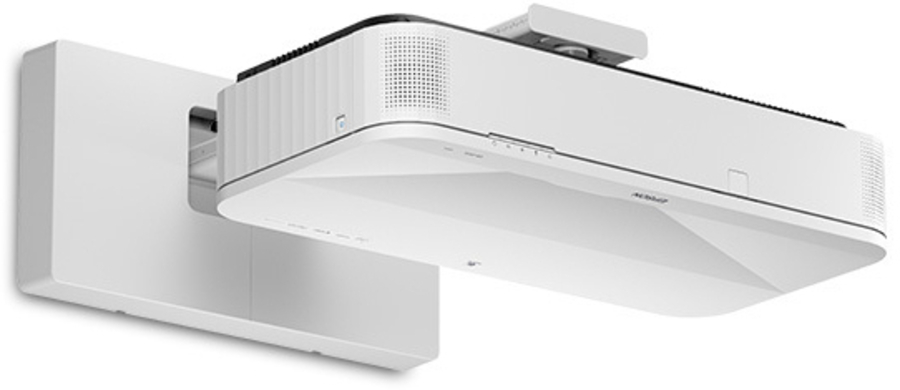

Available with a newly designed, optional extreme short throw wall mount, the projector can be safely and securely placed out of reach for display on traditional whiteboards. Users can fill the board with vibrant, colorful content as needed, while retaining valuable whiteboard space when not in use. And, installation is easy thanks to the Epson Setting Assistant app5 that automatically smooths edges and corners in seconds from a smartphone. Elevate your display beyond the limits of ordinary flat panels with the Epson PowerLite 810E.
- Streamlined setup — digital zoom and image shifting make image alignment easy for desktop or wall mounted display; Epson Setting Assistant app5 ensures easy installation by automatically smoothing edges and corners
- Complex tasks made easy — with timesaving tools such as Wake On signal; multiple EDID settings with digital image correction for ease of installation for nearly any image size/aspect ratio; built-in media player supports Epson® content management software
- Simple fleet management — Epson’s projector management software6 provides an easy way to keep track of the health of your fleet from a central dashboard
- World-class service and support — 3-year limited warranty with next-business-day exchange |
|
Projector |
|
Projector brightness |
5000 ANSI lumens |
|
Projection technology |
3LCD |
|
Projector native resolution |
1080p (1920x1080) |
|
Contrast ratio (typical) |
2500000:1 |
|
Native aspect ratio |
16:9 |
|
Smart projector |
No |
|
Screen size compatibility |
2032 - 4064 mm (80 - 160") |
|
Vertical scan range |
192 - 240 Hz |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Service life of light source (economic mode) |
30000 h |
|
Lens system |
|
Focus |
Manual |
|
Fixed focal length |
2.3 mm |
|
F-number (relative aperture) |
1.8 |
|
Zoom ratio |
1.35:1 |
|
Throw ratio |
0.16 - 0.40:1 |
|
Video |
|
Analog signal format system |
Not supported |
|
Full HD |
Yes |
|
3D |
No |
|
Video colour modes |
Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation |
|

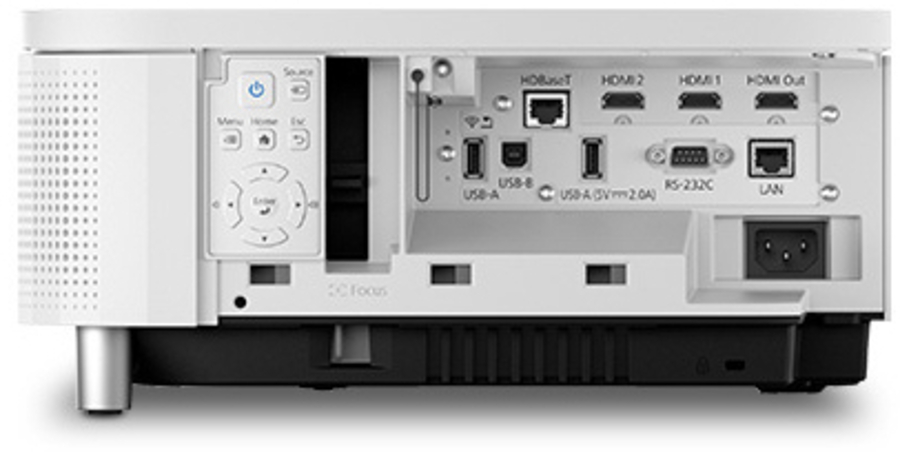

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
3 |
|
Composite video in |
0 |
|
Component video (YPbPr/YCbCr) in |
0 |
|
DVI port |
No |
|
Serial interface type |
RS-232C |
|
HDBaseT port |
Yes |
|
Service port type |
USB Type-B |
|
USB 2.0 ports quantity |
2 |
|
USB 2.0 Type-A ports quantity |
2 |
|
Network |
|
Smart TV |
No |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
Miracast |
Yes |
|
Storage |
|
Card reader integrated |
No |
|
Features |
|
Noise level |
35 dB |
|
Interactive |
No |
|
Noise level (economic mode) |
26 dB |
|
High Dynamic Range (HDR) supported |
Yes |
|
High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
|
Password protection |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
No |
|
Design |
|
Product type |
Ultra short throw projector |
|
Market positioning |
Business |
|
Product colour |
White |
|
Placement |
Ceiling, Desktop, Wall |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
290 W |
|
Power consumption (max) |
380 W |
|
Power consumption (PowerSave) |
0.4 W |
|
Power consumption (economy mode) |
286 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 60 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Weight |
12.5 kg |
|
Width |
695 mm |
|
Depth |
341 mm |
|
Height |
156 mm |
|
Packaging content |
|
Remote control included |
Yes |
|
Batteries included |
Yes |
|
Cables included |
AC |
