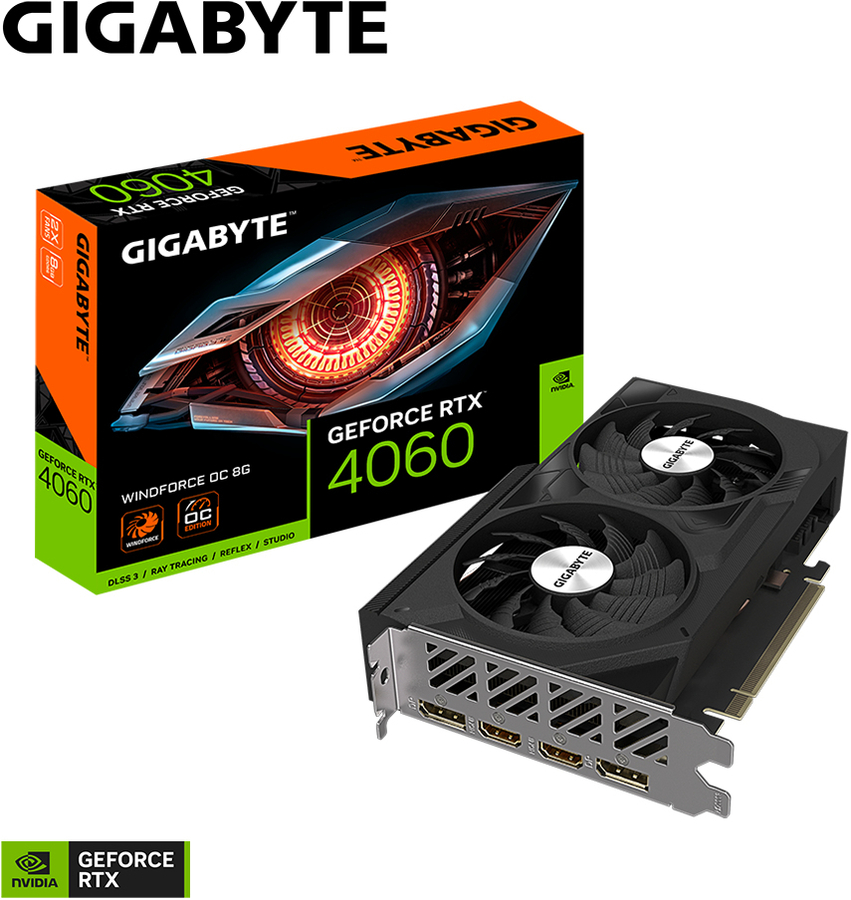

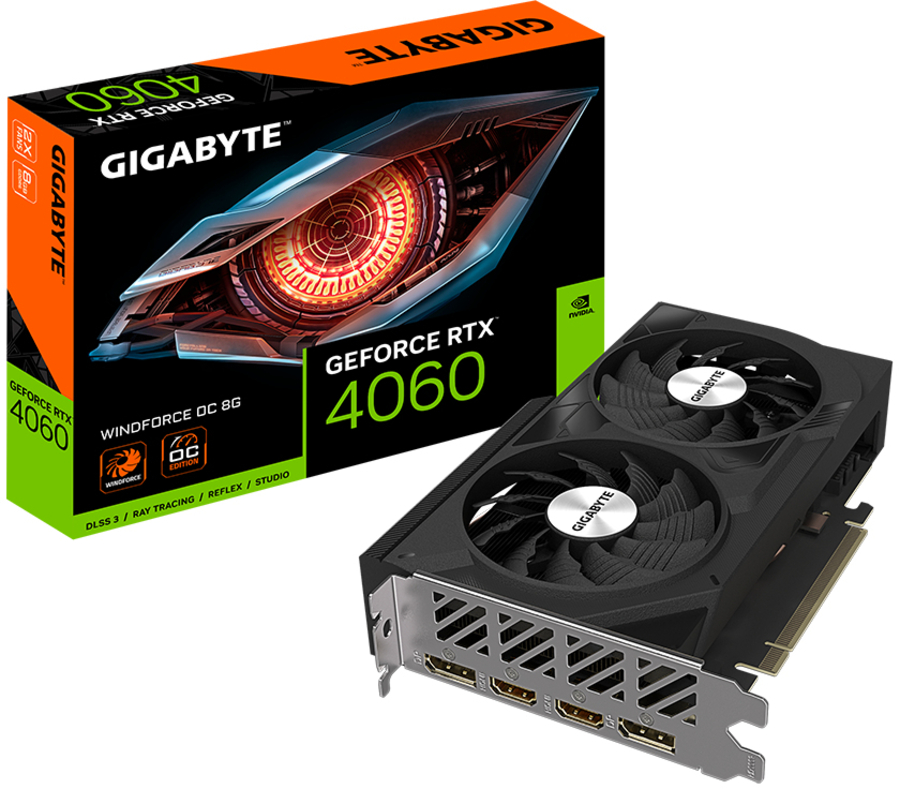

Gigabyte GF RTX 4060 WINDFORCE OC 8GB Video Card
|
|
Regularly: $445.00
On Sale: $399.96
Sale Ends:
December 8th, 2024
Manufacturer:
Gigabyte
NVIDIA GeForce RTX 4060, 2475MHz, 8GB GDDR6, 128 bit, PCI Express 4.0, 2 x HDMI (2.1a), 2 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59204720
|
GV-N4060WF2OC-8GD
|
4719331313685 |
Active
|
Details
|
General Information |
|
Summary |

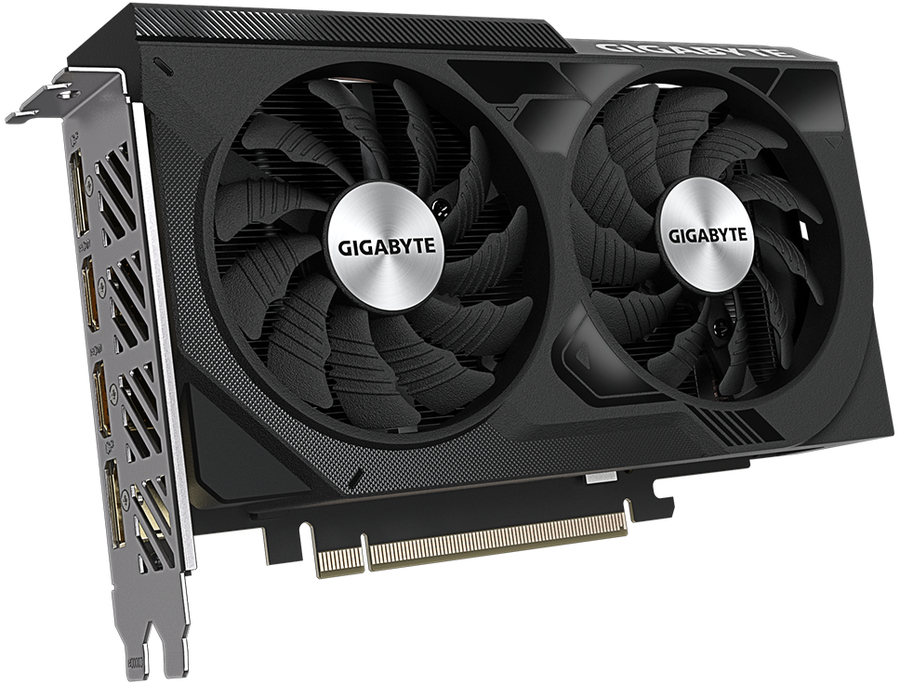

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features two 80mm unique blade fans, alternate spinning, a composite copper heat pipe that directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
OPTIMIZED THERMAL MODULE
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.

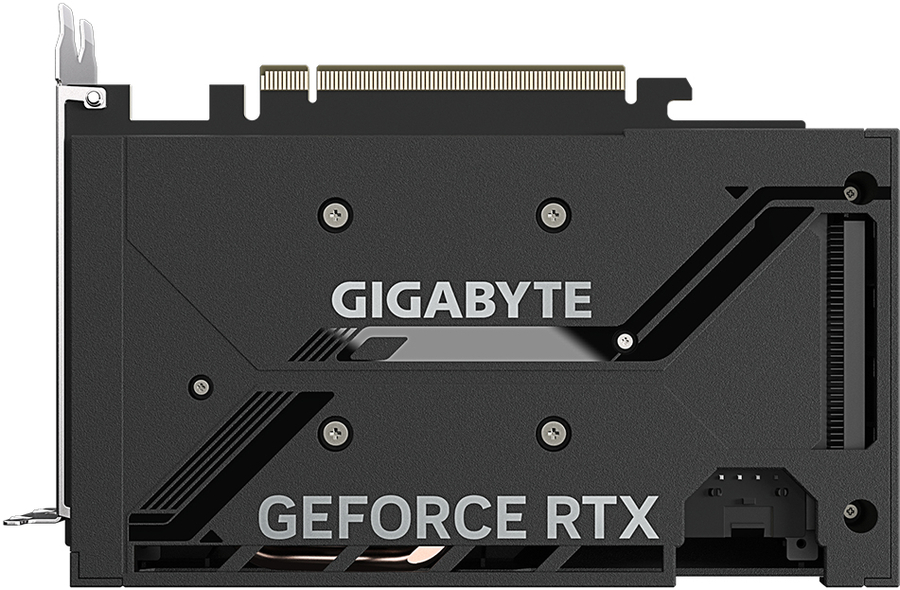

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
|
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 4060 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Processor frequency |
2475 MHz |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
3072 |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
8 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
128 bit |
|
Data transfer rate |
17 Gbit/s |
|
Ports & interfaces |
|
Interface type |
PCI Express 4.0 |
|

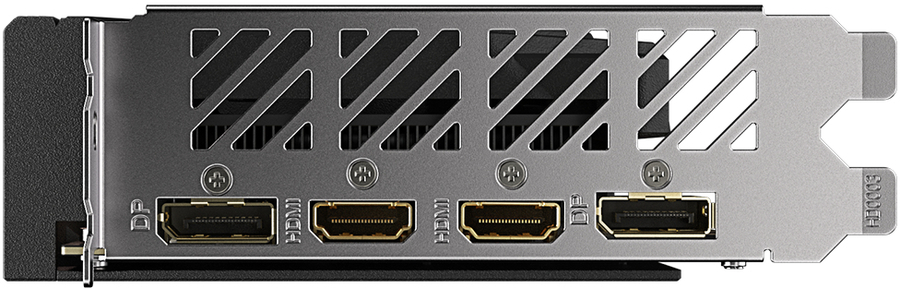

HDMI ports quantity |
2 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
2 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1a |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
1.4a |
|
Performance |
|
TV tuner integrated |
No |
|
DirectX version |
12 Ultimate |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
HDCP |
Yes |
|
NVIDIA G-SYNC |
Yes |
|
AMD FreeSync |
No |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
Gigabyte WATERFORCE |
|
Number of fans |
2 fan(s) |
|
Form factor |
Full-Height/Half-Length (FH/HL) |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
450 W |
|
Supplementary power connectors |
1x 8-pin |
|
Weight & dimensions |
|
Length |
192 mm |
|
Depth |
41 mm |
|
Height |
120 mm |
|
Packaging data |
|
Package type |
Box |
|
Packaging content |
|
Quick installation guide |
Yes |
|
