General Information |
|
Summary |

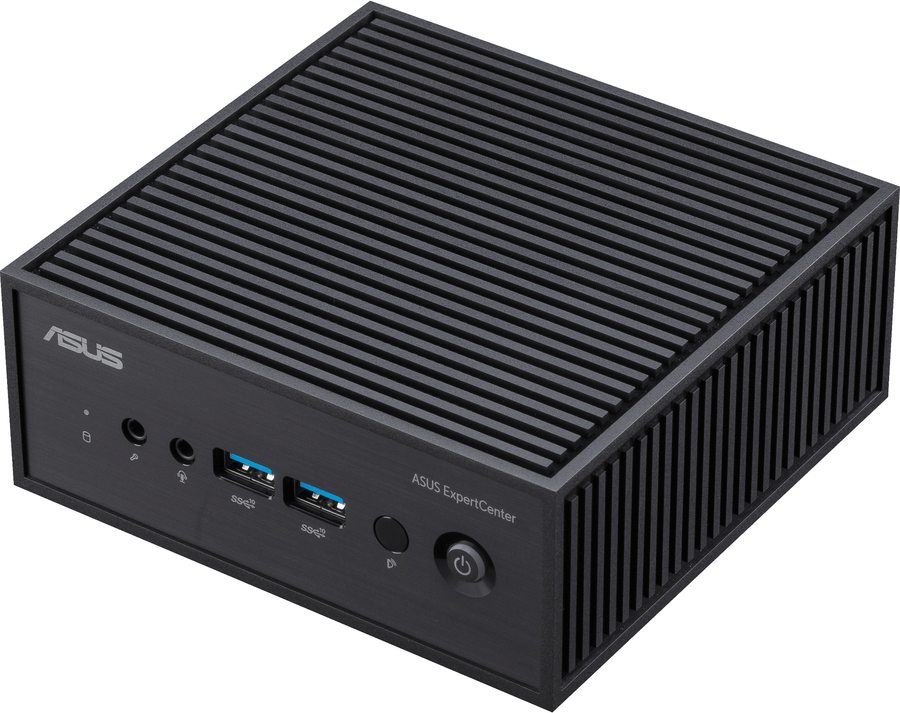

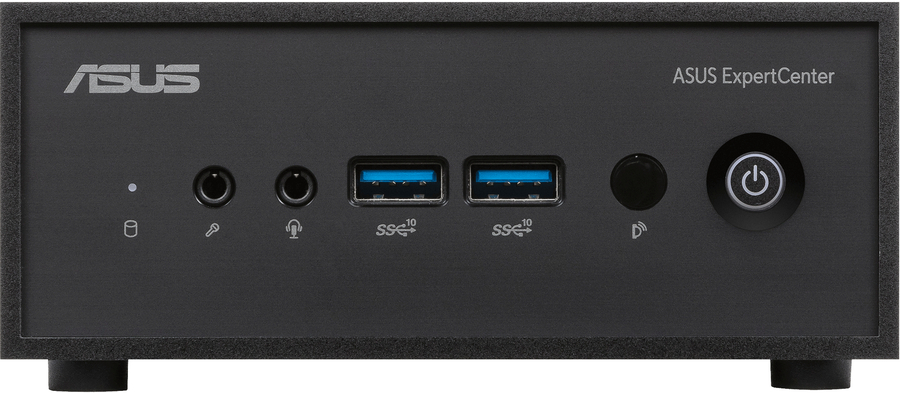

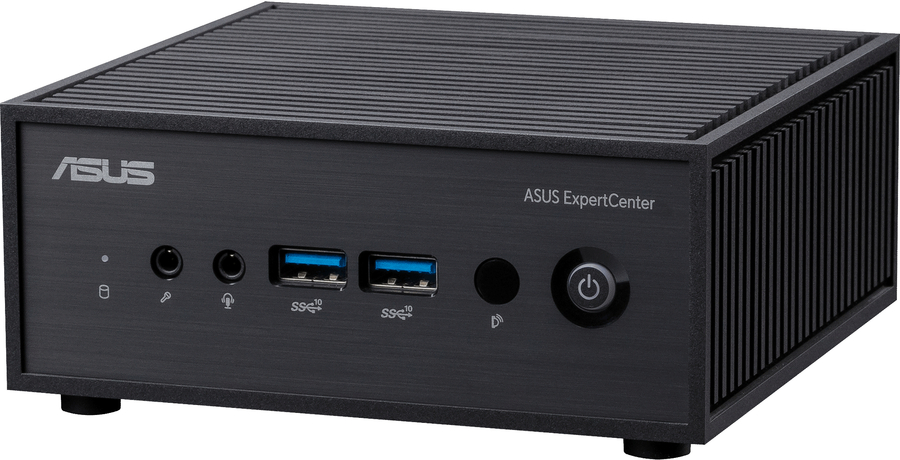

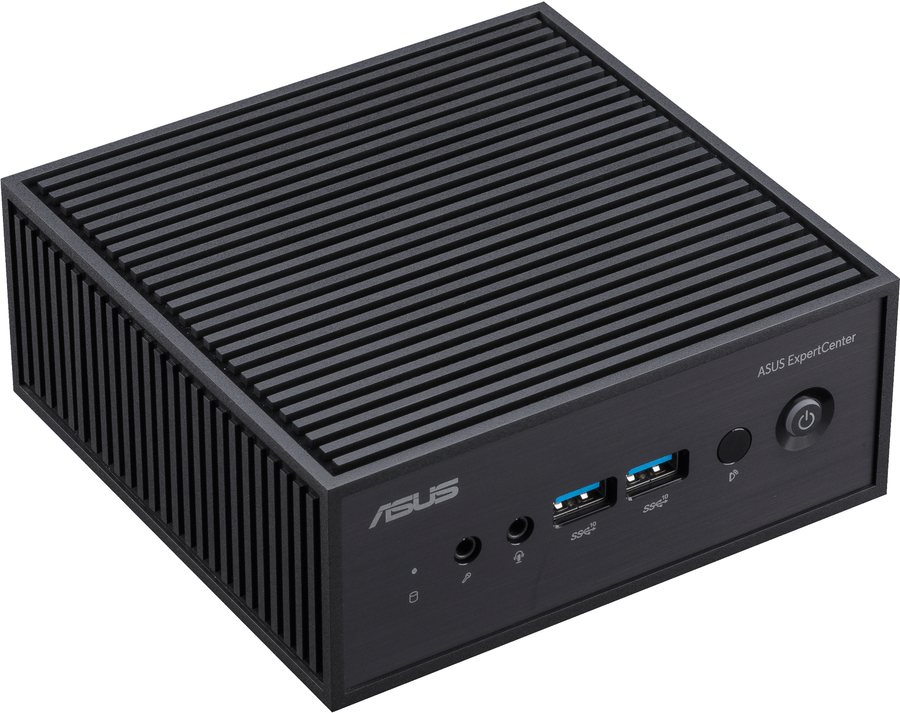

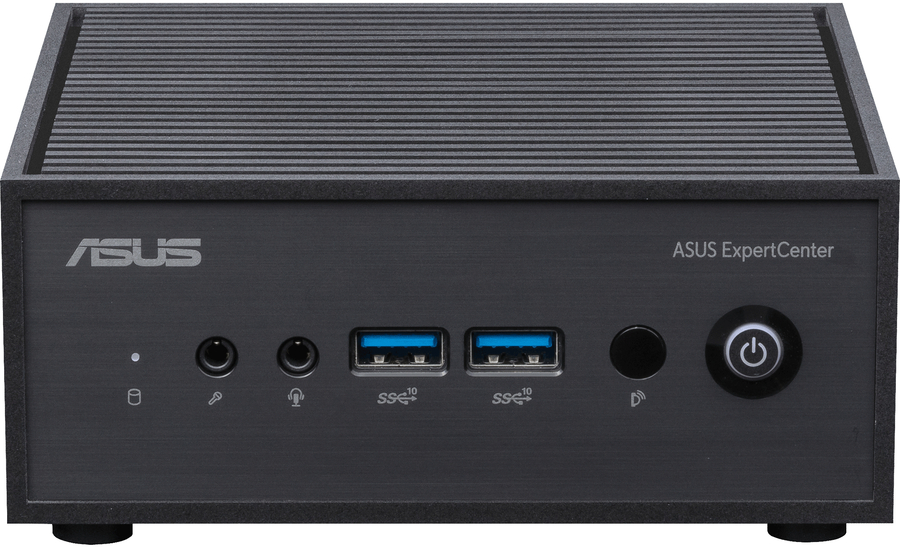

The ultracompact ASUS ExpertCenter PN42 mini PC is powered by an Intel® processor N100 & N200 with Intel UHD Graphics and is designed to easily handle a wide variety of home and business applications. ExpertCenter PN42 can support up to three displays, or two 4K displays, simultaneously for efficient multitasking. Plus, it can be specified with up to two 2.5 Gb Ethernet ports, and offers wide- ranging connectivity with up to seven USB ports plus an additional configurable port for either DisplayPortTM 1.4, VGA, COM, HDMI®, or USB-C® DisplayPort (DP Alt Mode) options. The diminutive size of ExpertCenter PN42 makes it well-suited for spaces where traditional PCs won't fit - from digital signage to small home-office setups.
|
|
Processor |
|
Built-in processor |
Yes |
|
Processor manufacturer |
Intel |
|
Processor model |
N100 |
|
Processor cores |
4 |
|
Processor boost frequency |
3.4 GHz |
|
Processor cache |
6 MB |
|
Memory |
|
Memory slots type |
SO-DIMM |
|
Number of memory slots |
1 |
|
Maximum internal memory |
16 GB |
|
Supported memory types |
DDR4-SDRAM |
|
Storage |
|
Supported storage drive types |
SSD |
|
Storage drive sizes supported |
M.2 |
|
SSD form factor |
M.2 |
|
Number of storage drives supported |
1 |
|
Graphics |
|
On-board graphics card |
Yes |
|
Graphics card family |
Intel |
|
On-board graphics card model |
Intel® UHD Graphics |
|
Audio |
|
Built-in speaker(s) |
No |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
|
Copper ethernet cabling technology |
2500BASE-T |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
HDMI ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Microphone in |
Yes |
|
Combo headphone/mic port |
Yes |
|
DC-in jack |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Product type |
Mini PC |
|
Performance |
|
Audio chip |
Realtek ALC3251-CG |
|
Software |
|
Operating system installed |
No |
|
Power |
|
Power supply type |
External AC adapter |
|
Power supply |
65 W |
|
AC adapter output voltage |
19 V |
|
AC adapter output current |
3.42 A |
|
Weight & dimensions |
|
Width |
127.5 mm |
|
Depth |
132 mm |
|
Height |
57.6 mm |
|
Weight |
1 kg |
