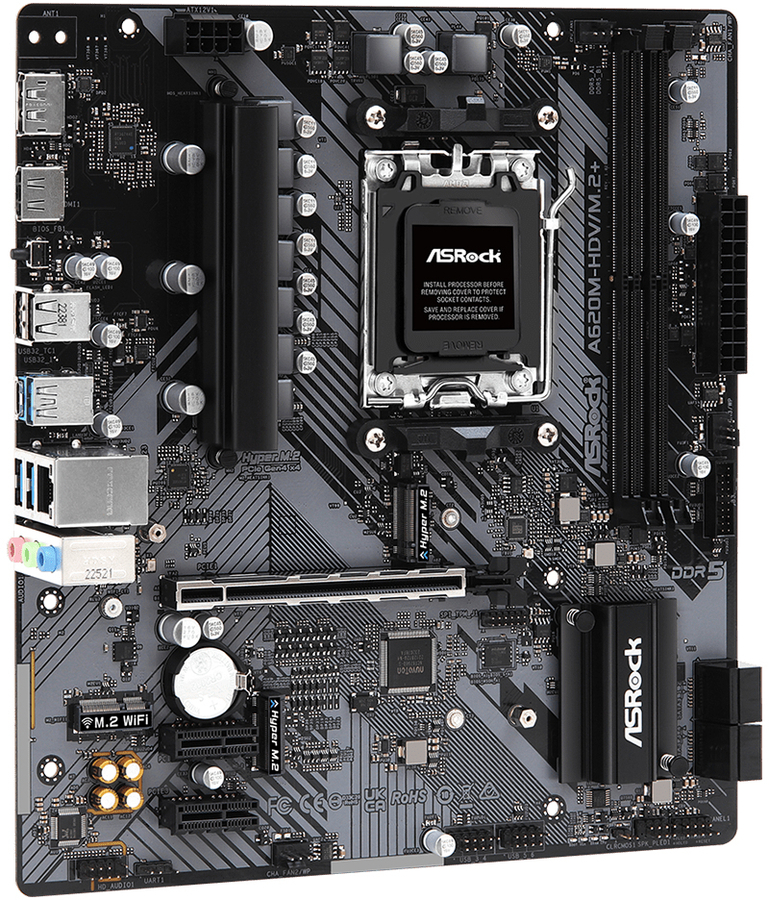

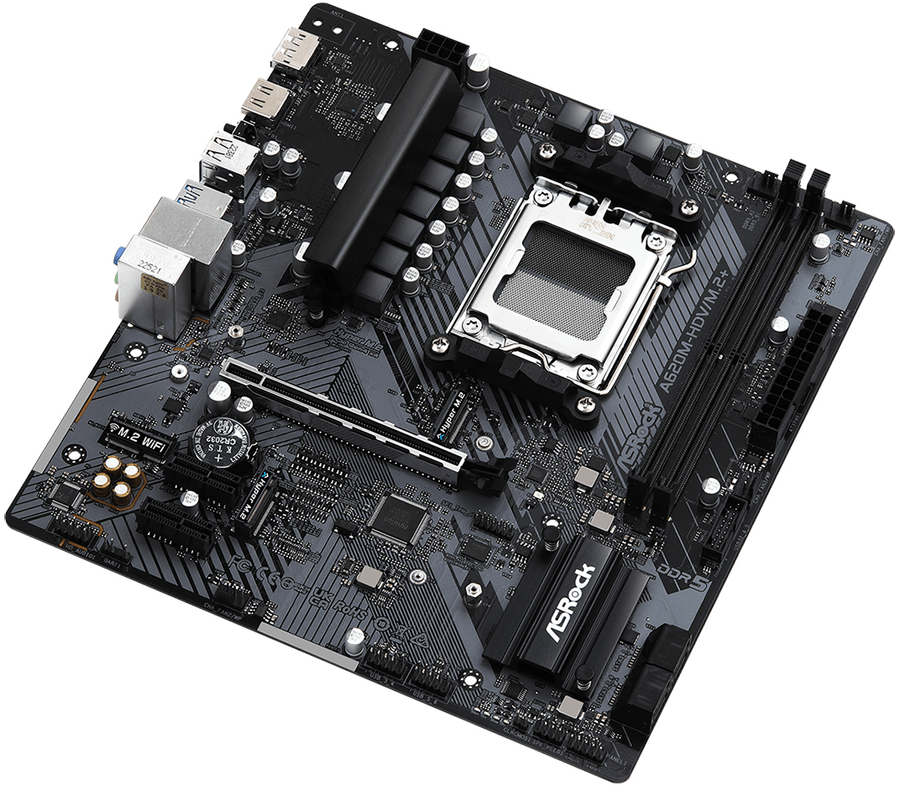

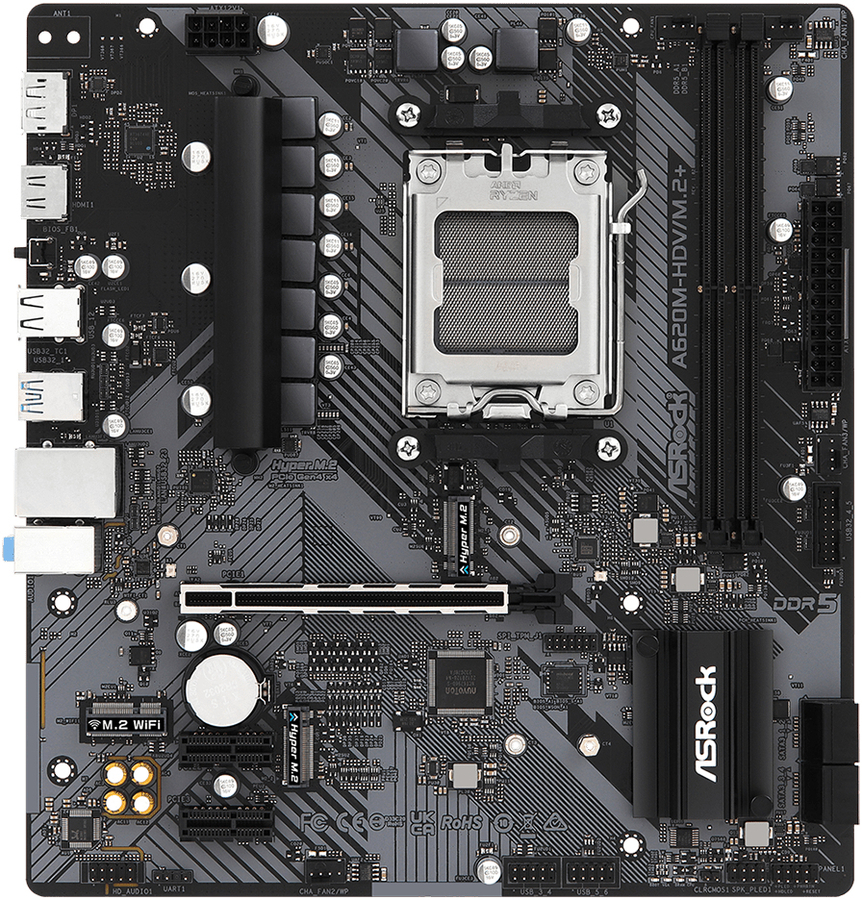

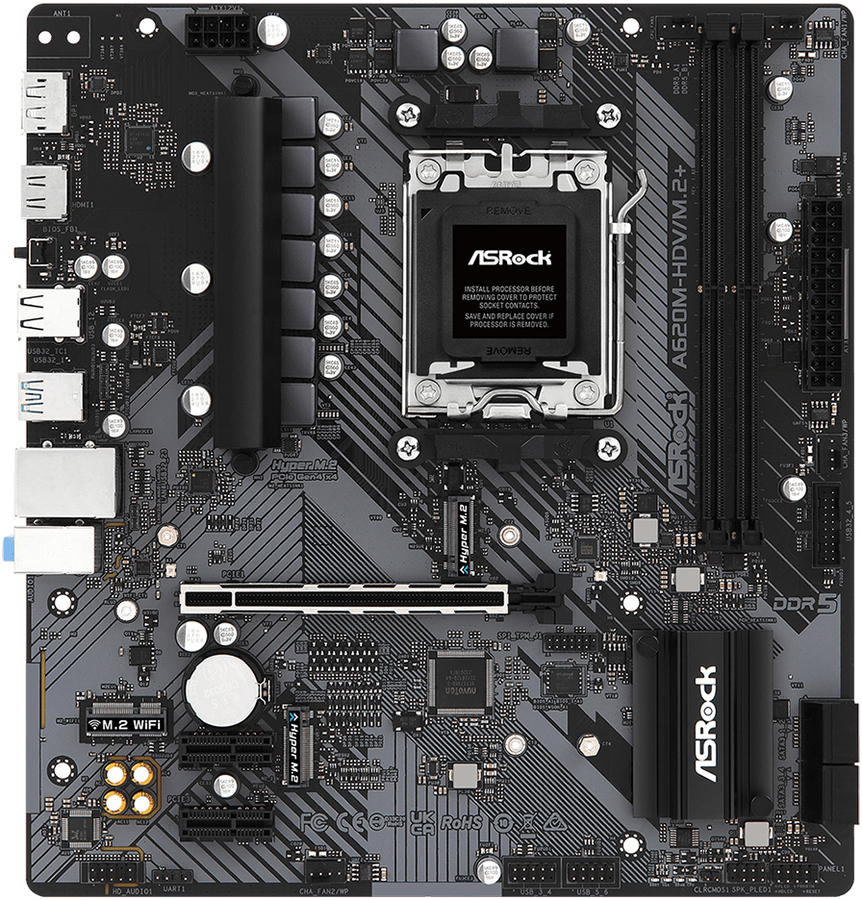

ASRock A620M-HDV/M.2+ AM5 mATX Mainboard

Home :: Mainboards :: AMD Desktop/Workstation MBs ::


Regularly: $145.00
On Sale: $136.30    Sale Ends: April 26th, 2024

Manufacturer: ASRock

Socket AM5, AMD A620, 2 x DDR5 DIMM, 7.1 CH HD, Gigabit LAN, 4 x SATA3 6.0 Gb/s, Micro ATX

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
59265508 A620M-HDV/M.2+ 4710483943034 Active

Details

General Information
Summary Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen™ 5, AMD Ryzen™ 7
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Maximum internal memory 64 GB
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Yes
Supported memory clock speeds 6400 MHz
Unbuffered memory Yes
Storage controllers
Supported storage drive interfaces M.2, SATA III
RAID support Yes
RAID levels 0, 1, 10
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
RGB LED pin header Yes

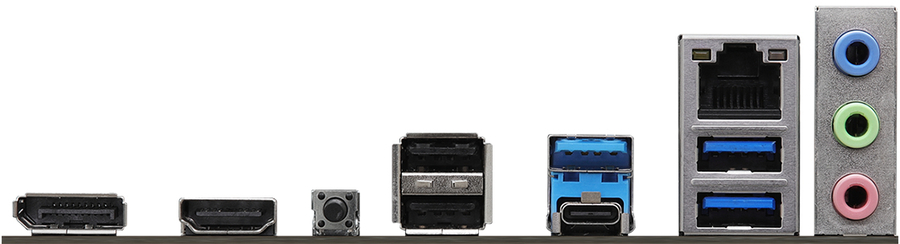

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
Line-in Yes
Microphone in Yes
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD A620
Audio output channels 7.1 channels
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type EFI AMI
Weight & dimensions
Width 244 mm
Depth 226 mm

Multimedia

Multimedia Items
