General Information |
|
Summary |

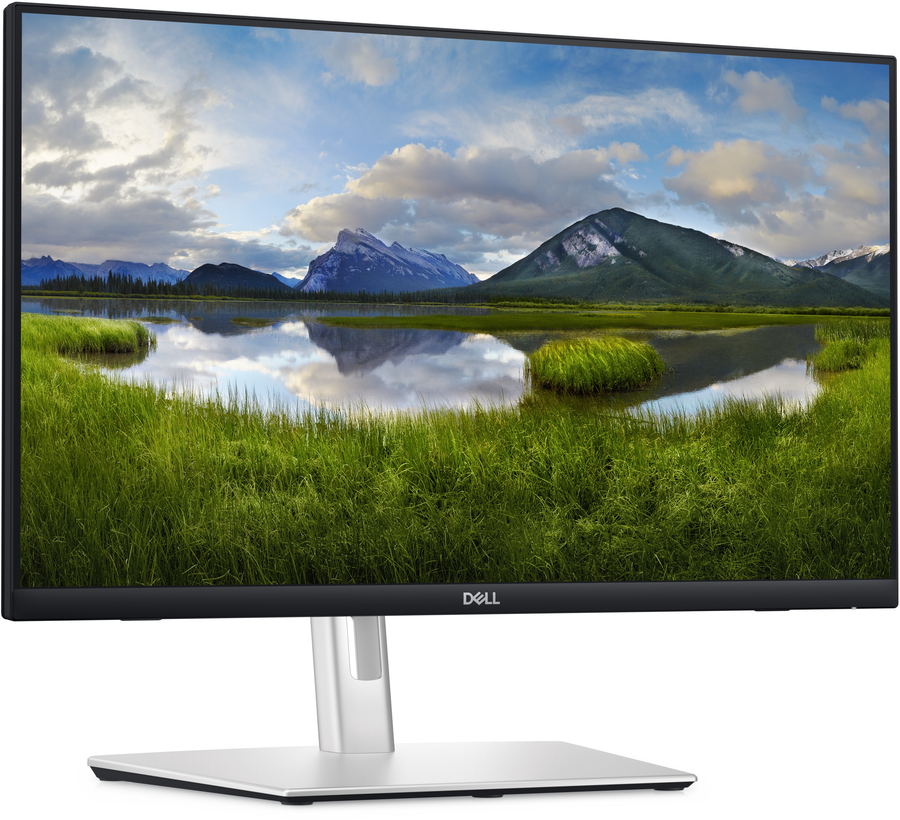

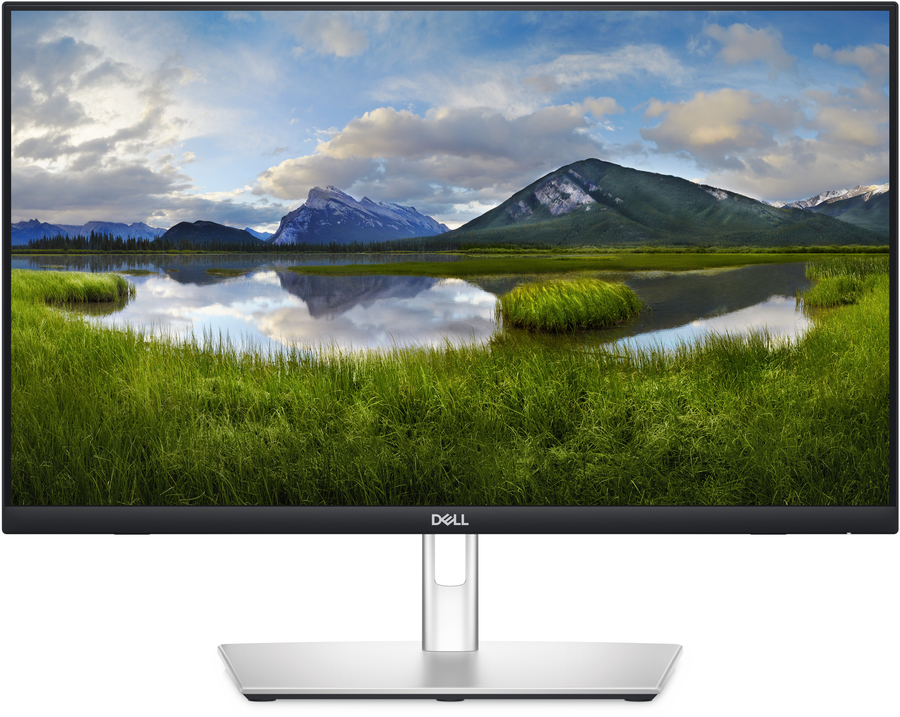

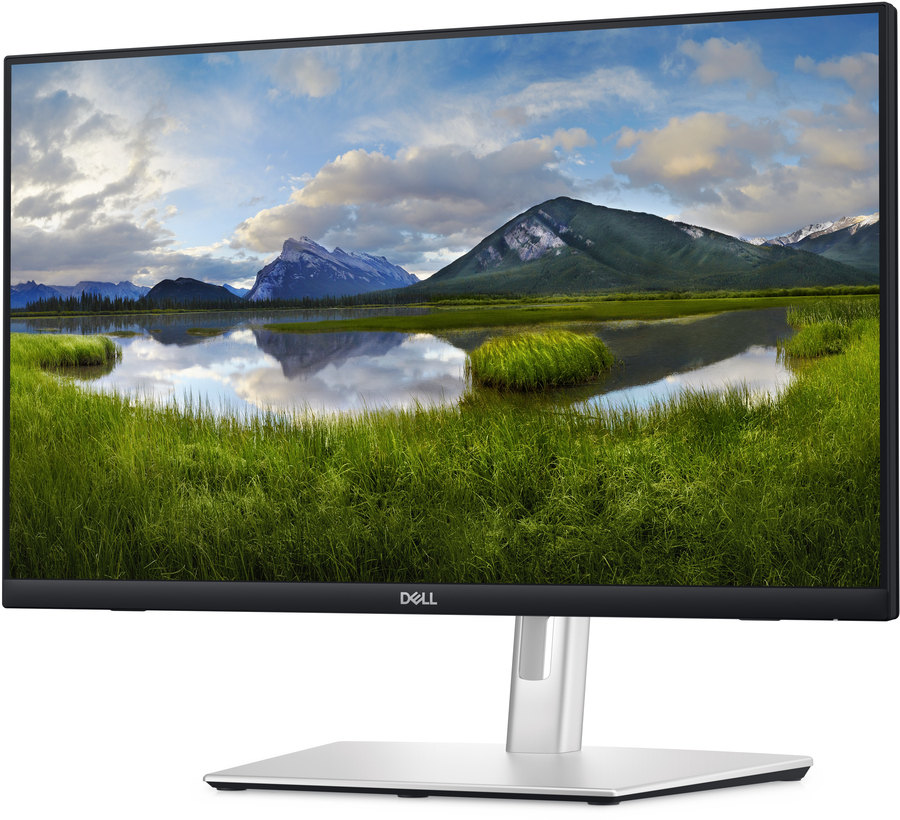

23.8-inch monitor puts productivity in reach with its touch screen, superior connectivity and articulating stand. |
|
Display |
|
Display diagonal |
60.5 cm (23.8") |
|
Display resolution |
1920 x 1080 pixels |
|
Native aspect ratio |
16:9 |
|
Display technology |
LCD |
|
Touchscreen |
Yes |
|
HD type |
Full HD |
|
Panel type |
IPS |
|
Response time |
8 ms |
|
Screen shape |
Flat |
|
Contrast ratio (typical) |
1000:1 |
|
Maximum refresh rate |
60 Hz |
|
Display number of colours |
16.78 million colours |
|
Backlight type |
LED |
|
Display brightness (typical) |
300 cd/m² |
|
Anti-glare screen |
Yes |
|
Supported video modes |
480p, 576p, 720p, 1080i, 1080p |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Response time (fast) |
5 ms |
|
Pixel pitch |
0.2745 x 0.2745 mm |
|
Pixel density |
93 ppi |
|
Horizontal scan range |
30 - 88 kHz |
|
Vertical scan range |
48 - 75 Hz |
|
Viewable size, horizontal |
52.7 cm |
|
Viewable size, vertical |
29.6 cm |
|
Viewable size diagonal |
60.5 cm |
|
Display diagonal (metric) |
60.47 cm |
|
High Dynamic Range (HDR) supported |
No |
|
Surface hardness |
3H |
|
Colour depth |
6 bit |
|
sRGB coverage (typical) |
99% |
|
Performance |
|
Low Blue Light technology |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
Built-in camera |
No |
|
RMS rated power |
3 W |
|
Design |
|
Market positioning |
Business |
|
Product colour |
Black, Silver |
|
Front bezel colour |
Black |
|
Feet colour |
Silver |
|

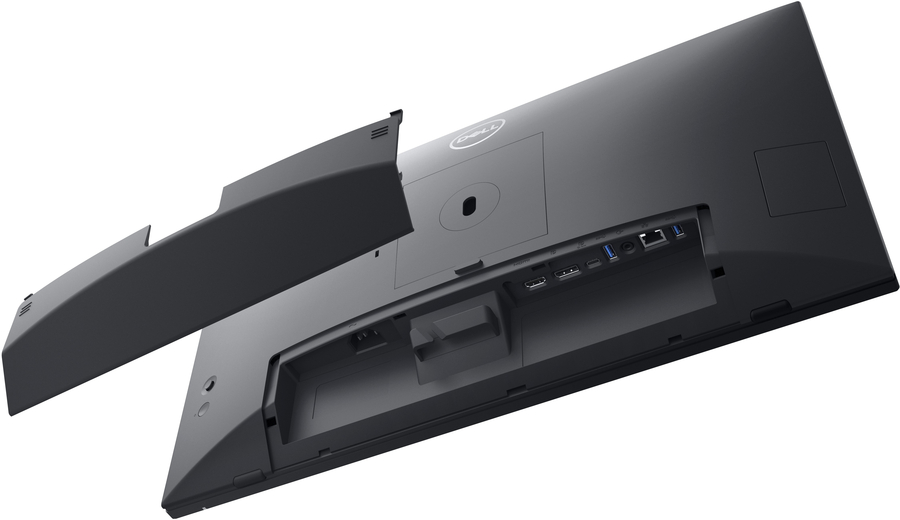

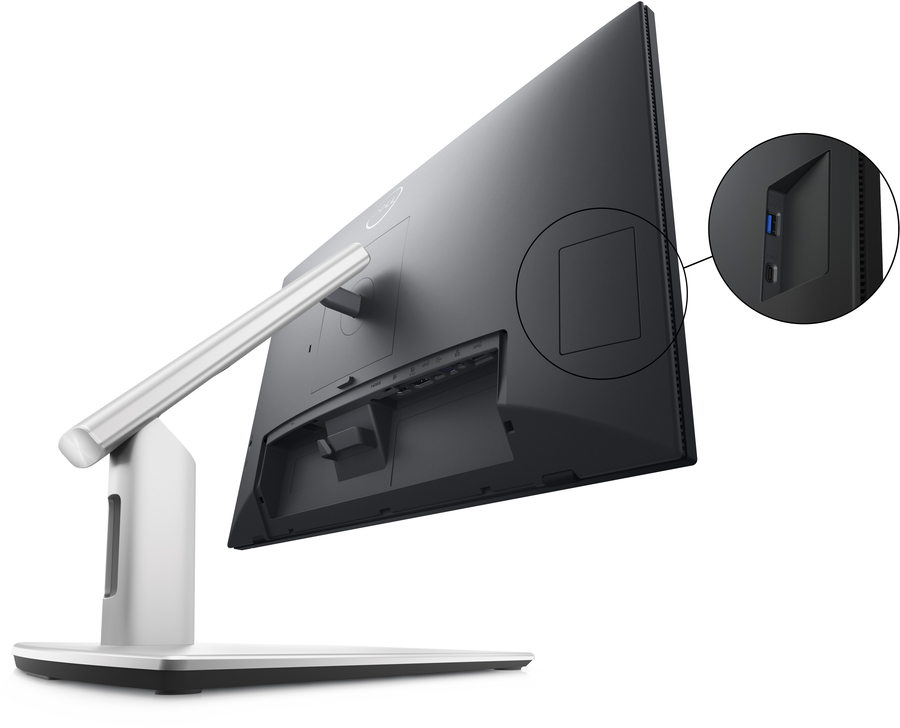

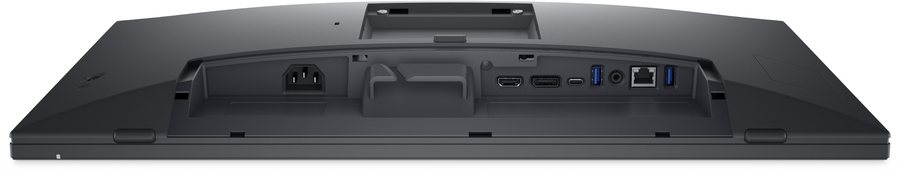

Ports & interfaces |
|
Built-in USB hub |
Yes |
|
HDMI |
Yes |
|
Headphone out |
Yes |
|
USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
|
USB upstream port type |
USB Type-C |
|
Number of USB Type-C upstream ports quantity |
1 |
|
USB Type-A downstream ports quantity |
2 |
|
USB Type-C downstream ports quantity |
1 |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery up to |
90 W |
|
HDMI ports quantity |
1 |
|
HDMI version |
1.4 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.2 |
|
Headphone connectivity |
3.5 mm |
|
Microphone in |
No |
|
PC Audio in |
No |
|
HDCP |
Yes |
|
HDCP version |
1.4 |
|
AC (power) in |
Yes |
|
Network |
|
Wi-Fi |
No |
|

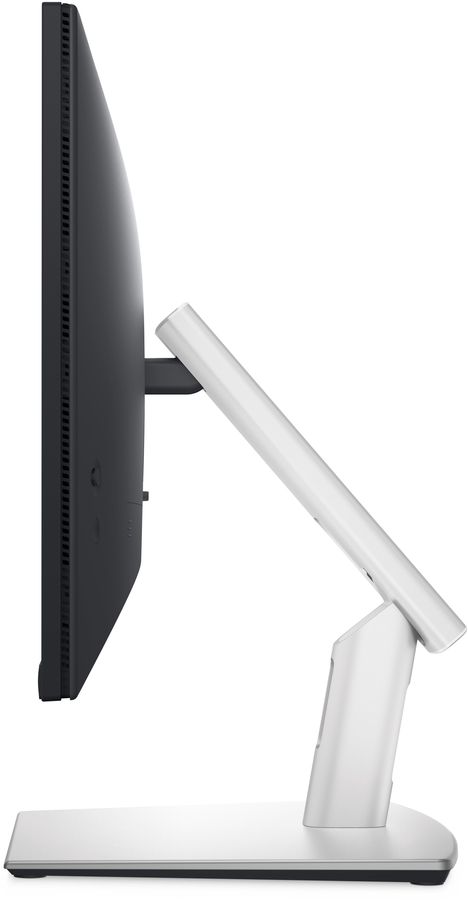

Ergonomics |
|

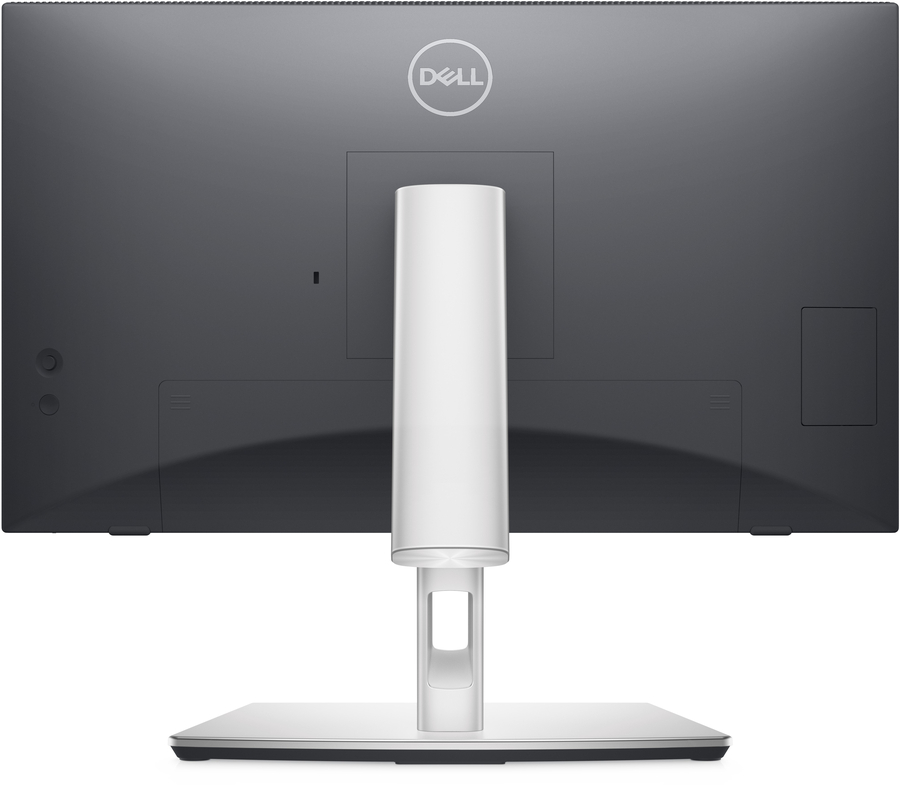

VESA mounting |
Yes |
|
Cable lock slot |
Yes |
|
Height adjustment |
Yes |
|
Panel mounting interface |
100 x 100 mm |
|
Cable management |
Yes |
|
Cable lock slot type |
Kensington |
|
Adjustable height (max) |
11 cm |
|
Pivot |
No |
|

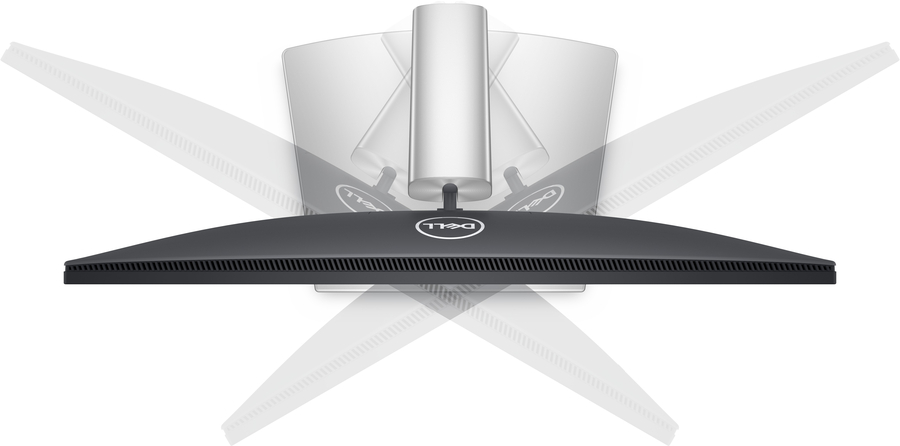

Swivelling |
Yes |
|
Swivel angle range |
-30 - 30° |
|

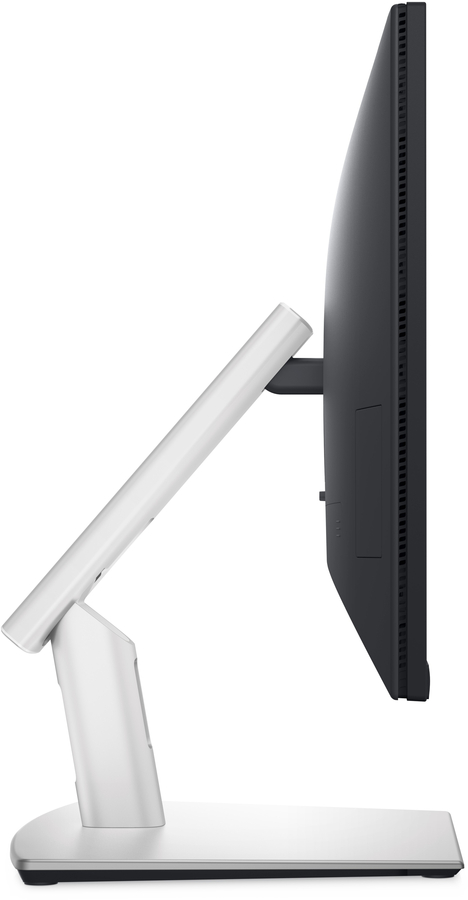

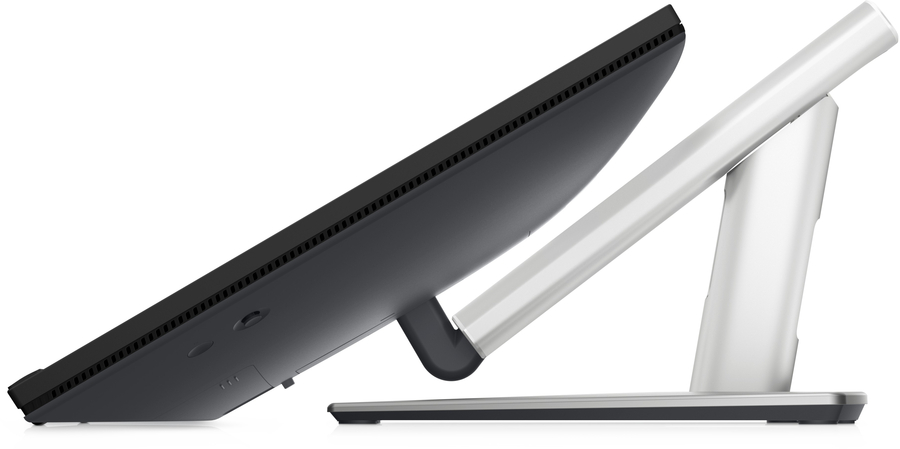

Tilt adjustment |
Yes |
|
Tilt angle range |
-5 - 60° |
|
On Screen Display (OSD) |
Yes |
|
Plug and Play |
Yes |
|
LED indicators |
Yes |
|
Power |
|
Energy efficiency class (SDR) |
E |
|
Energy efficiency class (HDR) |
Not available |
|
Energy consumption (SDR) per 1000 hours |
18 kWh |
|
Power consumption (typical) |
18 W |
|
Power consumption (standby) |
0.5 W |
|
Power consumption (max) |
190 W |
|
Power consumption (off) |
0.3 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power supply type |
Internal |
|
Energy efficiency scale |
A to G |
|
European Product Registry for Energy Labelling (EPREL) code |
1465328 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 5000 m |
|
Non-operating altitude |
5000 - 12192 m |
|
Weight & dimensions |
|
Width (with stand) |
538.8 mm |
|
Depth (with stand) |
248.9 mm |
|
Height (with stand) |
431.5 mm |
|
Weight (with stand) |
7.86 kg |
|
Width (without stand) |
538.8 mm |
|
Depth (without stand) |
54.1 mm |
|
Height (without stand) |
321 mm |
|
Weight (without stand) |
3.86 kg |
|
Bezel width (side) |
5.88 mm |
|
Bezel width (top) |
5.87 mm |
|
Bezel width (bottom) |
1.86 cm |
|
Packaging data |
|
Package weight |
10.8 kg |
|
Packaging content |
|
Stand included |
Yes |
|
Cables included |
AC, DisplayPort, USB Type-A to USB Type-C, USB Type-C to USB Type-C |
|
Power adapter included |
Yes |
|
Remote control included |
No |
|
Stylus included |
No |
|
Quick start guide |
Yes |
|
DisplayPort cable length |
1.8 m |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Doesn't contain |
PVC/BFR |
|
Sustainability compliance |
Yes |
|
Carbon footprint |
|
Total carbon footprint (kg of CO2e) |
633 |
|
Total carbon emissions, standard deviation (kg of CO2e) |
149 |
|
Carbon emissions, manufacturing (kg of CO2e) |
396.877 |
|
Carbon emissions, logistics (kg of CO2e) |
53.237 |
|
Carbon emissions, energy usage (kg of CO2e) |
176.953 |
|
Carbon emissions, end-of-life (kg of CO2e) |
6.314 |
|
PAIA version |
1.3.2, 2022 |
|
Other features |
|
RJ-45 ports quantity |
1 |
|
Heavy metals free |
Hg (mercury) |
|
Compliance certificates |
RoHS |
|
Ethernet LAN (RJ-45) ports |
0 |
