General Information |
|
Summary |

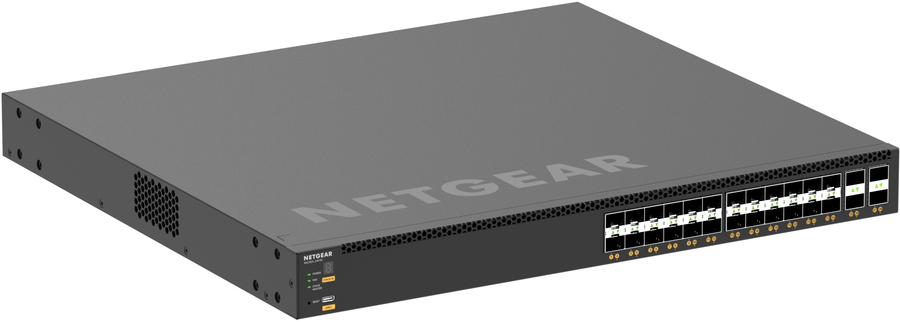

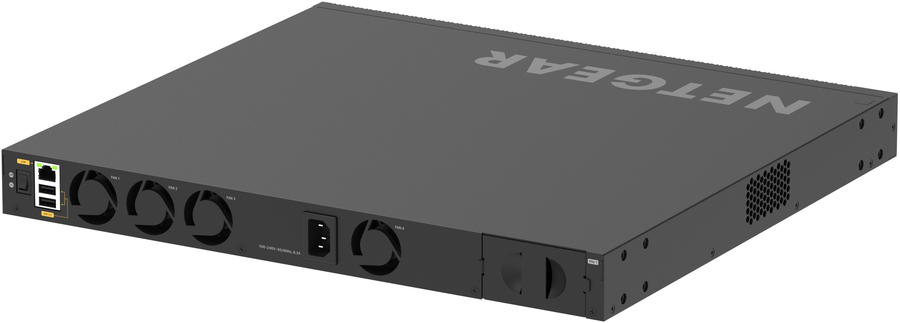

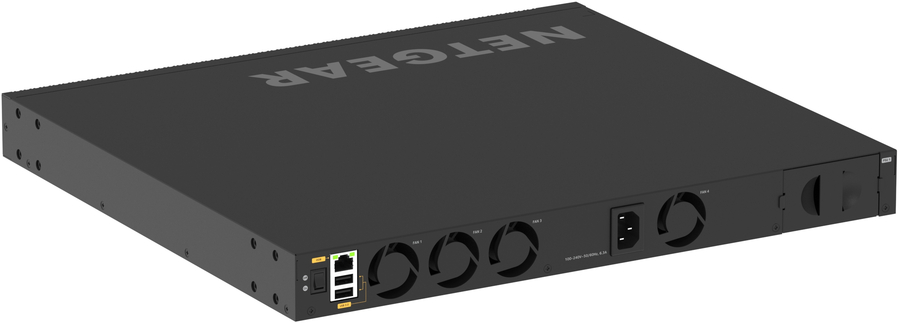

28PT M4350-24F4V MANAGED SWITCH |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
ARP inspection |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
0 |
|
Basic switching RJ-45 Ethernet ports type |
No |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|

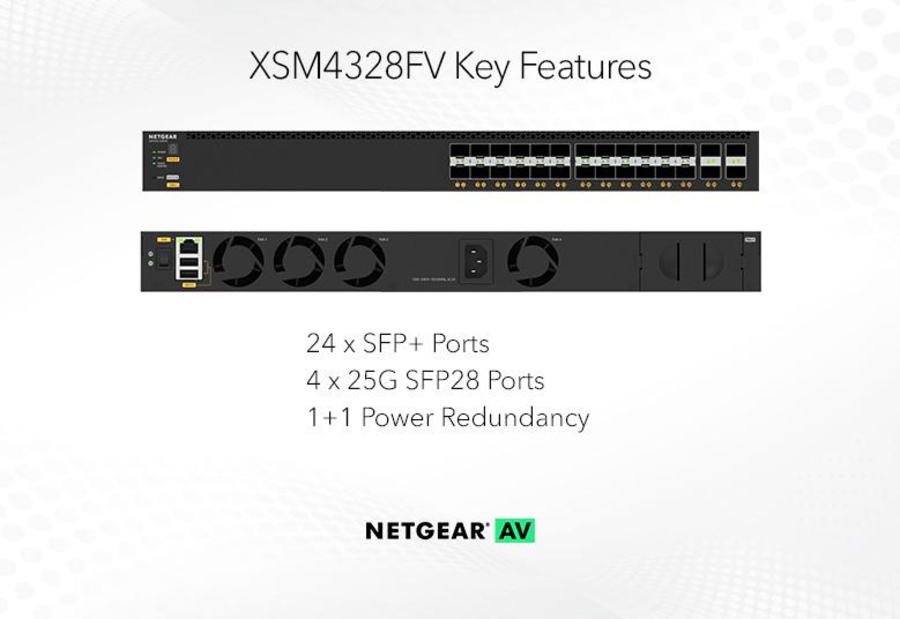

SFP+ module slots quantity |
24 |
|
Console port |
RJ-45 |
|
SFP28 ports quantity |
4 |
|
USB 2.0 ports quantity |
2 |
|

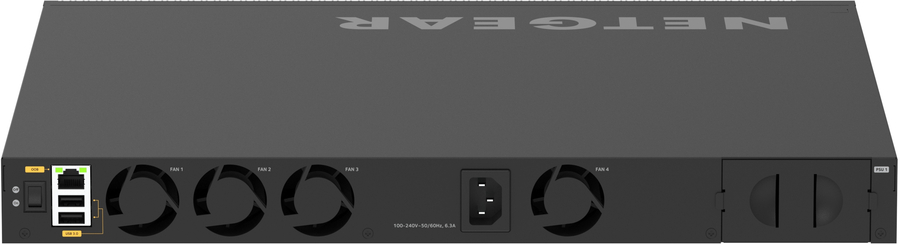

Power connector |
AC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
|
10G support |
Yes |
|
Full duplex |
Yes |
|
Policy-based routing |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Spanning tree protocol |
Yes |
|
6to4 tunnel |
Yes |
|
IPv4 routes |
512 |
|
IPv6 routes |
256 |
|
VLAN support |
Yes |
|
Virtual LAN features |
MAC address-based VLAN, Private VLAN, Voice VLAN |
|
Number of VLANs |
4093 |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
680 Gbit/s |
|
Throughput |
505.92 Mpps |
|
Store-and-forward |
Yes |
|
Latency (1 Gbps) |
1.06 µs |
|
Latency (10 Gbps) |
0.63 µs |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
12000 |
|
Packet buffer memory |
32 MB |
|
Security |
|
DHCP features |
DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) egress |
1023 |
|
Access Control List (ACL) ingress |
511 |
|
IGMP snooping |
Yes |
|
IGMP proxy |
Yes |
|
MAC address filtering |
Yes |
|
Static port security |
Yes |
|
Loop protection |
Yes |
|
BPDU filtering/protection |
Yes |
|
Authentication |
Guest VLAN, MAC-based authentication |
|
Root protection |
Yes |
|
Password protection |
Yes |
|
DoS attack prevention |
Yes |
|
Authentication type |
RADIUS, TACACS+ |
|
Queue scheduling algorithms |
Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
|
Multicast features |
|
Multicast support |
Yes |
|
Multicast Listener Discovery (MLD) snooping |
Y |
|
Protocols |
|
Management protocols |
SNMP V1, V2, V3 |
|
GARP VLAN Registration Protocol (GVRP) |
Yes |
|
Routing protocols |
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
Yes |
|
Form factor |
1U |
|
Product colour |
Black |
|
LED indicators |
Yes |
|

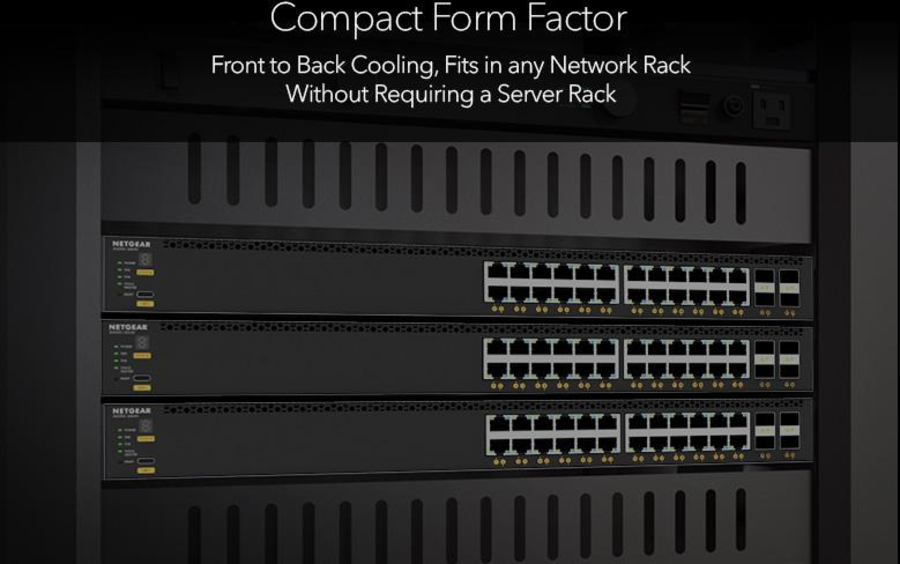

Airflow direction |
Front-to-back airflow |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM Cortex-A57 |
|
Processor frequency |
1800 MHz |
|
Memory type |
DDR4-SDRAM |
|
Internal memory |
2048 MB |
|
Flash memory |
512 MB |
|
Noise level |
61.8 dB |
|
sFlow |
Yes |
|
Mean time between failures (MTBF) |
778741 h |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
6.3 A |
|
Power consumption (typical) |
119.3 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Other features |
|
Power supply |
240 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Heat dissipation |
374.6 BTU/h |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
400 mm |
|
Height |
43.2 mm |
|
Weight |
6.25 kg |
|
Packaging content |
|
Cables included |
AC, USB Type-C |
|
User guide |
Yes |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Included power plug types |
EU, NA, UK |
|
Certificates |
|
Compliance certificates |
BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
|
Sustainability |
|
Sustainability compliance |
Yes |
