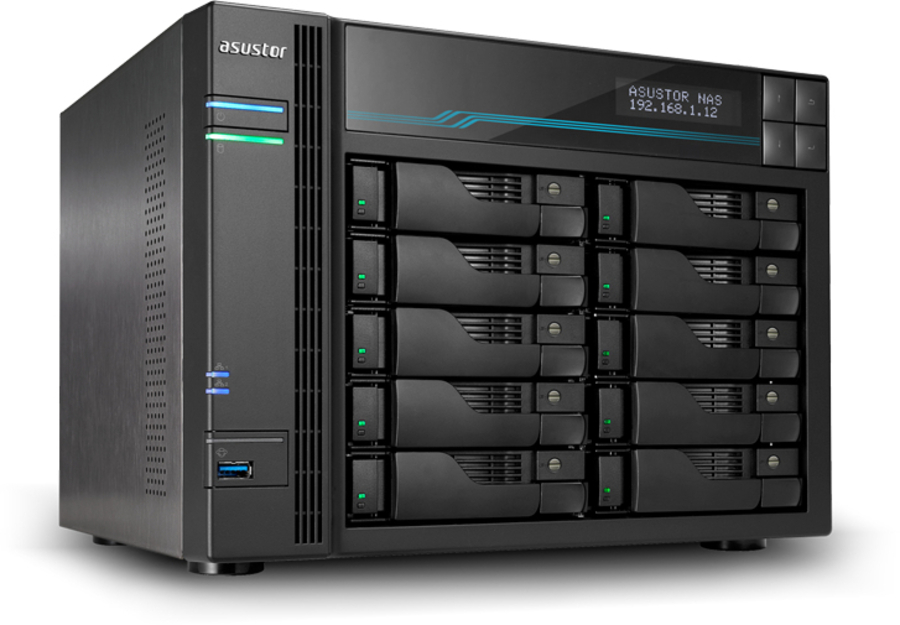

Asustor Lockerstor 10 AS7110T 10-Bay Desktop NAS Enclosure
|
|
Regularly: $3433.00
On Sale: $3295.68
Sale Ends:
May 10th, 2024
Manufacturer:
Asustor
Intel Xeon E-2224, 64-bit, Quad Core 3.4GHz up to 4.6GHz, 8GB DDR4 ECC SO-DIMM, 10 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD, USB 3.2 Gen 2, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59315504
|
AS7110T
|
4710474831234 |
Active
|
Details
|
General Information |
|
Summary |
Intel Xeon Quad-Core CPU
The Lockerstor 10 Pro features a powerful Intel 9th generation Xeon with four cores. Not only is the Xeon extremely fast in both read and write speeds, but also lends incredible performance to virtual machines and Docker apps.
Powerful Hardware and Top flight performance
Intel Xeon 9th generation Quad-Core CPU.
Supports DDR4-2666 ECC RAM.
Dual M.2 NVMe SSD ports for fast caching.
Brings the smoothest work experience with 10-Gigabit Ethernet, triple 2.5-Gigabit ports and USB 3.2 Gen2 ports.
Supports Wake on LAN on 2.5-Gigabit Ethernet ports
10-Gigabit and Triple 2.5-Gigabit ports. Extreme speeds.
The all new Lockerstor 10 Pro NAS features a powerful Aquantia 10-Gigabit Ethernet port as well as triple Aquantia 2.5-Gigabit Ethernet ports. With a managed switch that supports multiple speeds, take advantage of up to 10 Gbps of speed on the 10-Gigabit port or up to 7.5 Gbps on all 2.5-Gigabit ports.
Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the Lockerstor 10 Pro our most stable NAS ever.
Ten Bays with Two M.2 SSD Slots for Flexible Cached Storage
The Lockerstor 10 Pro is a cost-effective high capacity NAS designed for enterprise environments. The Lockerstor 10 Pro is flexible, supporting online capacity expansion and replacement. Online capacity expansion enables you to replace hard drives inside the NAS without downtime. If your budget and/or storage requirements are small, the Lockerstor 10 Pro enables your NAS to grow alongside your needs by first purchasing smaller drives and then add more drives as you need. Additional drives can be purchased as your storage requirements grow and all drives can be fully replaced while continuing to use your NAS. Combining this with ASUSTOR’s MyArchive cold storage technology enables you to store a virtually unlimited amount of information.
SSD Cache
SSD caching on the Lockerstor 10 Pro brings SSD-like speeds to regular hard drives. Turbocharge your NAS by adding one or two SSDs to the M.2 slots inside your Lockerstor 10 Pro. Read and write files at speeds of over 1100 MB/s and watch as even big files are transferred over in seconds.
SSD Cache
24/7 Reliability and Durability
All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
Protected From the Inside and Out
Protect your data from loss, damage and attacks with the Lockerstor 10 Pro. ASUSTOR is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect your data from loss or damage.
Protected From Ransomware
The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. Snapshot Center and Btrfs provide the ability to efficiently create snapshots to protect and easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features blacklists and whitelists, the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.
Comprehensive Backup Solutions
ASUSTOR’s comprehensive backup solution provides more than twelve backup options, including, but not limited to Amazon S3, Dropbox, Google Drive, and Onedrive. ASUSTOR Backup Plan for Windows as well as Time Machine for macOS provide easy backups for desktop and laptops while MyArchive removable hard drives provide long term storage. Btrfs is now supported and with Snapshot Center, can take snapshots of your information in the event of unintentional modification. Restore previous versions easily with Snapshot Center.
Exclusive MyArchive Cold Backup Technology
Unlimited Capacity Expansion
MyArchive cold storage technology turns NAS hard drives into removable storage archive drives. Directly insert a MyArchive hard drive into a free bay inside your NAS to easily access, backup and share terabytes of content.
Virtual Storage
The Lockerstor 10 Pro provides enterprise-class hardware and software and is compatible with VMware, Citrix, Hyper-V virtual storage environments. iSCSI/IP-SAN and NFS support allow it to seamless integrate with existing IT environments, providing an optimal and cost-effective storage solution.
Virtual Applications with Virtualbox
Deploy all kinds of operating systems to your NAS.
ADM 3.5 brings a newer Linux Kernel, providing better system security and stability.
Portainer – Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.
DataSync Center
Datasync Center combines multiple cloud services into a single app. Datasync Center includes, but is not limited to Google Drive, Dropbox and Onedrive and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Cross-Platform Multi-User Access
ASUSTOR NAS devices provide seamless cross-platform and multi-user access, allowing you to easily connect to your NAS from Windows, macOS or almost any device with a web browser no matter if it is a desktop, notebook, tablet or smartphone.
Custom Off-peak hours
Your time is important, so ADM provides a feature to ensure that your NAS performs at top speed when you want it to. Peak times enable your NAS to turn off certain background processes and maintenance at certain times of the day and are customizable while off-peak hours will return background processes to their normal state. Enable off-peak hours when the NAS is not actively being used, for example, when sleeping to ensure an optimal experience.
File Editing and Project Collaboration
NextCloud and OnlyOffice make collaborating on projects easier than ever by creating a cloud office suite for offices to work on documents, spreadsheets, presentations and more.
Enterprise Versatility
ASUSTOR NAS offers rich variety of services for business users. For the price of one NAS you can create a multifunctional server that is worth much more.
Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 100 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.
App Central
Unleash the unlimited potential of an ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or digital home entertainment, App Central has you covered. With over 200 unique apps, App Central provides you with a virtually boundless variety of applications that to satisfy your digital lifestyle needs. Explore the virtually unlimited potential of your ASUSTOR NAS while creating a personalized experience for yourself.
Mobile Apps
ASUSTOR’s exclusive EZ-Connect technology allows you to connect to your NAS from anywhere with your Android or iOS device to securely access, download, upload and share files and information. ASUSTOR mobile apps securely protect your privacy and data by requiring passwords in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security. |
|
Storage |
|
Storage drives installed |
Yes |
|
Total installed storage capacity |
180 TB |
|
Number of storage drives supported |
22 |
|
Installed storage drive type |
HDD |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive capacity |
18 GB |
|
Storage drive interface |
Serial ATA III |
|
RAID support |
No |
|
Supported storage drive interfaces |
Serial ATA III |
|
Storage drive size |
2.5/3.5" |
|
Storage drive sizes supported |
2.5,3.5,M.2 |
|
Maximum supported storage capacity |
396 TB |
|
Number of M.2 (M & B) slots |
2 |
|
Hot-swap drive bays |
Yes |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor frequency |
4.6 GHz |
|
Processor cores |
4 |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
2 |
|
Memory form factor |
SO-DIMM |
|
Flash memory |
8000 MB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
2500,10000 Mbit/s |
|
Ethernet LAN data rate supported (max) |
10000 Mbit/s |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Design |
|
Chassis type |
Desktop |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
2 fan(s) |
|
Fan diameter |
12 cm |
|
Built-in display |
Yes |
|
Display type |
LCD |
|
Performance |
|
Type |
NAS |
|
Device class |
Home & Home Office |
|
Backup function |
Yes |
|
Noise level |
22 dB |
|
On/off switch |
Yes |
|
Software |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
350 W |
|
Number of power supply units |
1 |
|
Power consumption (typical) |
78.7 W |
|
Power consumption (sleep) |
5.8 W |
|
Power consumption (HDD standby) |
40.1 W |
|
AC input voltage |
100 - 240 V |
|
Weight & dimensions |
|
Width |
293 mm |
|
Depth |
230 mm |
|
Height |
215.5 mm |
|
Weight |
7.1 kg |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
