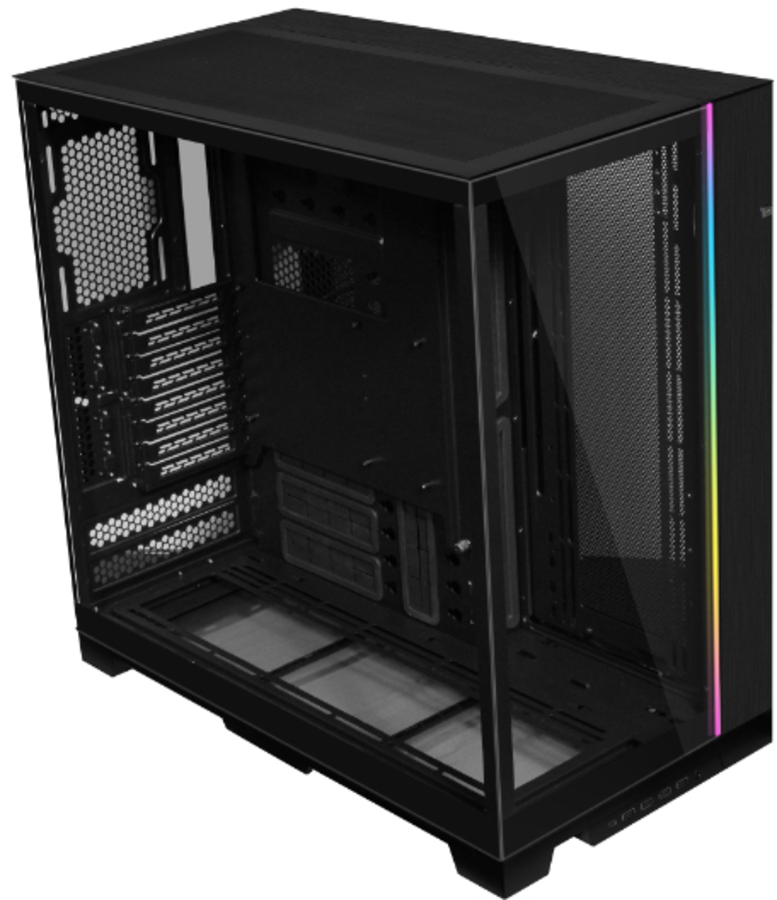

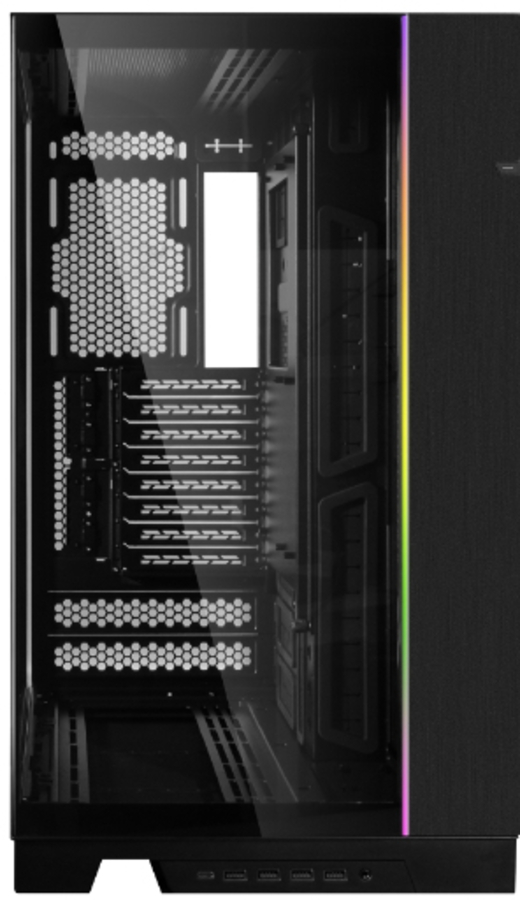

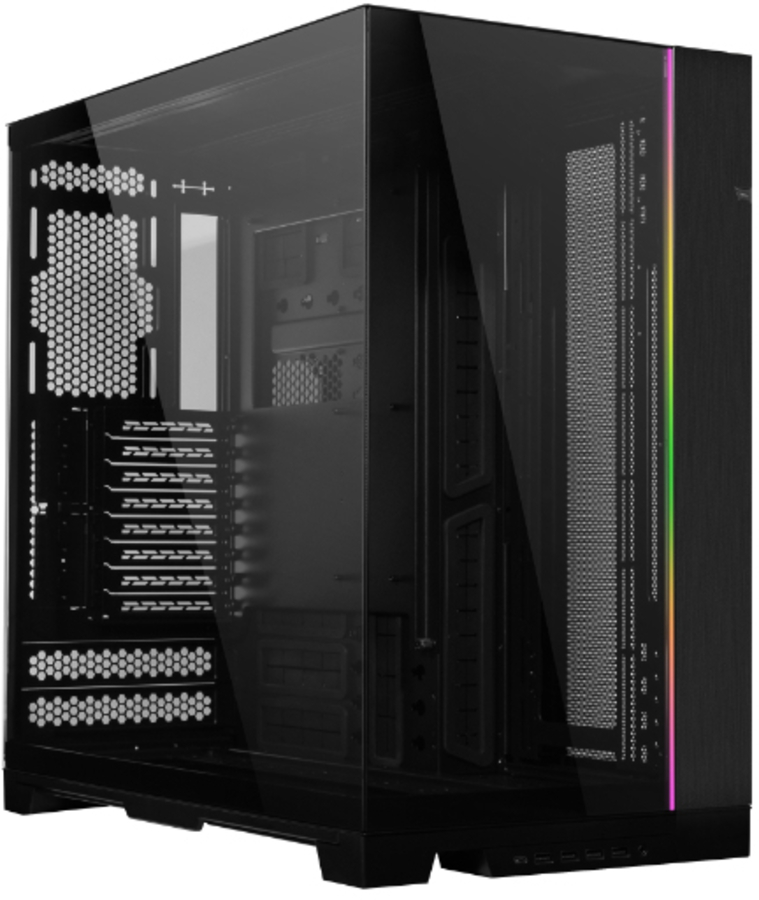

Lian Li O11 Dynamic EVO XL Full-Tower Case Black
|
|
Price: $286.00
Manufacturer:
Lian Li
Tower Chassis, Black, 522mm x 304mm x 531.9mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59367977
|
O11DEXL-X
|
4718466013712 |
Active
|
Details
|
General Information |
|
Summary |
Introducing the all-new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC enthusiasts.
Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes with just a few simple steps, allowing for a left or right view.
The ARGB strip in the front dazzles with built in lighting effects and the ability to sync to motherboard.
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters ensures uncompromised airflow while effectively keeping dust out of the chassis.
- Bottom - Nylon Fine Dust filter Tray
- Top and Side – Magnetic Dust Filter
COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
TOOL-LESS INSTALLATION
Easily secure the graphics card.
Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design, the fan brackets can be easily removed or installed.
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports.
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs.
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.
CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan. |
|
Design |
|
Form factor |
Tower |
|
Type |
PC |
|
Product colour |
Black |
|
Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
|
Number of 3.5" bays |
4 |
|
Number of 5.25" bays |
3 |
|
Material |
Aluminium, Steel, Tempered glass |
|
Number of 2.5" bays |
3 |
|
Number of expansion slots |
8 |
|
Side window |
Yes |
|
Illumination |
Yes |
|
Illumination colour |
Blue, Green, Red |
|
Tempered glass panel(s) |
Yes |
|
Anti-dust filter |
Yes |
|
Reset button |
Yes |
|
On/off button |
Yes |
|
Maximum CPU cooler height |
16.7 cm |
|
Maximum graphics card length |
46 cm |
|
Maximum PSU length |
22 cm |
|
Ports & interfaces |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Combo headphone/mic port |
Yes |
|
Cooling |
|
Number of side fans supported (max) |
3 |
|
Side fans diameters supported |
120,140 mm |
|
Number of rear fans supported (max) |
2 |
|
Rear fans diameters supported |
120 mm |
|
Number of top fans supported (max) |
3 |
|
Top fans diameters supported |
120,140 mm |
|
Number of bottom fans supported (max) |
3 |
|
Bottom fans diameters supported |
120,140 mm |
|
Side radiator sizes supported |
240,280,360,420 mm |
|
Bottom radiator sizes supported |
240,280,360,420 mm |
|
Top radiator sizes supported |
240,280,360,420 mm |
|
Storage |
|
Supported HDD sizes |
2.5,3.5" |
|
HDD/SSD combo cage |
Yes |
|
SSD form factor |
2.5" |
|
Technical details |
|
Warranty period |
1 year(s) |
|
Weight & dimensions |
|
Width |
304 mm |
|
Depth |
522 mm |
|
Height |
531.9 mm |
|
