General Information |
|
Summary |

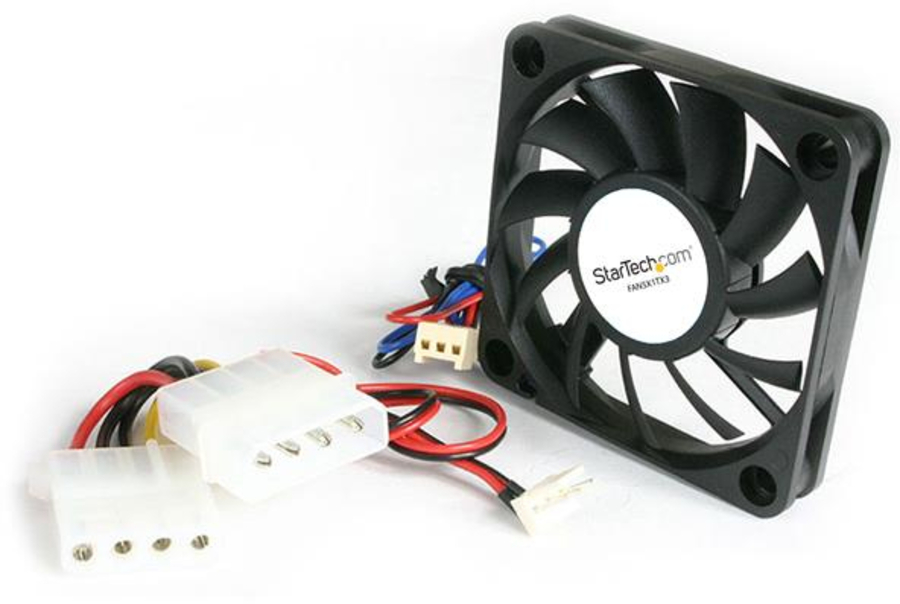

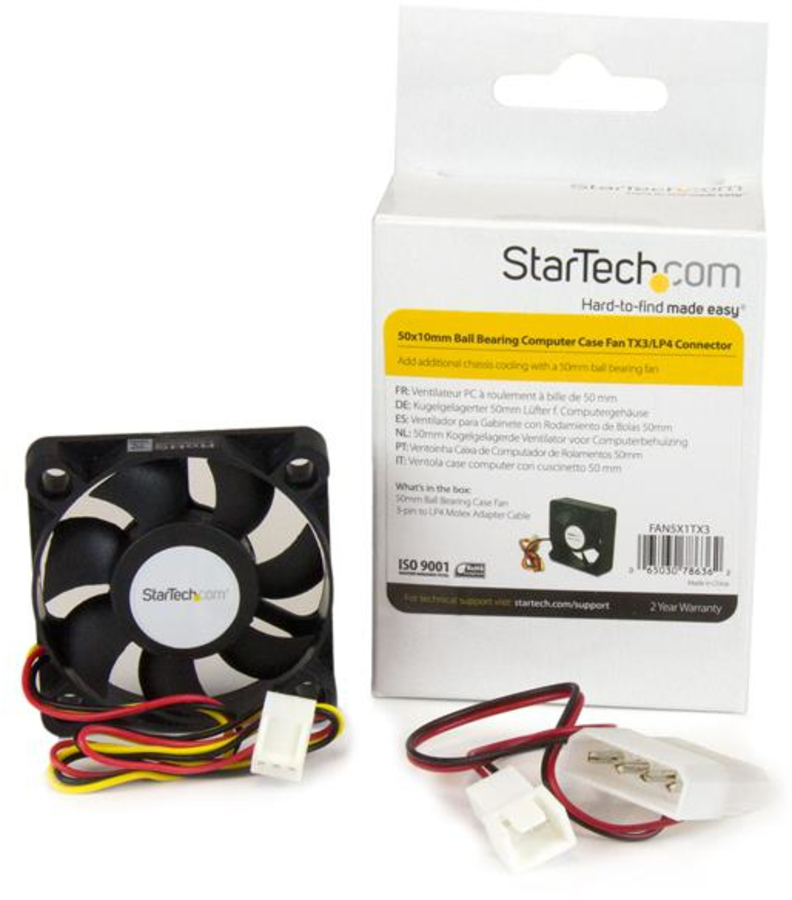

Add additional chassis cooling with a 50mm ball bearing fan
This versatile 5cm x 1cm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
5 cm |
|
Rotational speed (max) |
4500 RPM |
|
Noise level (high speed) |
23 dB |
|
Maximum airflow |
8.63 cfm |
|
Bearing type |
Ball bearing |
|
Mean time between failures (MTBF) |
50000 h |
|
Operating temperature (T-T) |
-10 - 80 °C |
|
Design |
|
Product colour |
Black |
|
Material |
Plastic |
|
Number of fans |
1 fan(s) |
|
Fan connector |
3-pin |
|
Certification |
CE, UR, UL, REACH |
|
Power |
|
Power consumption (typical) |
1.08 W |
|
Voltage |
12 V |
|
Rated current |
0.09 A |
|
Weight & dimensions |
|
Width |
10 mm |
|
Depth |
50 mm |
|
Height |
50 mm |
|
Weight |
19 g |
|
Package width |
65 mm |
|
Package depth |
115 mm |
|
Package height |
34 mm |
|
Package weight |
1 kg |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
356 mm |
|
Master (outer) case length |
452 mm |
|
Master (outer) case height |
294 mm |
|
Products per master (outer) case |
200 pc(s) |
