General Information |
|
Summary |

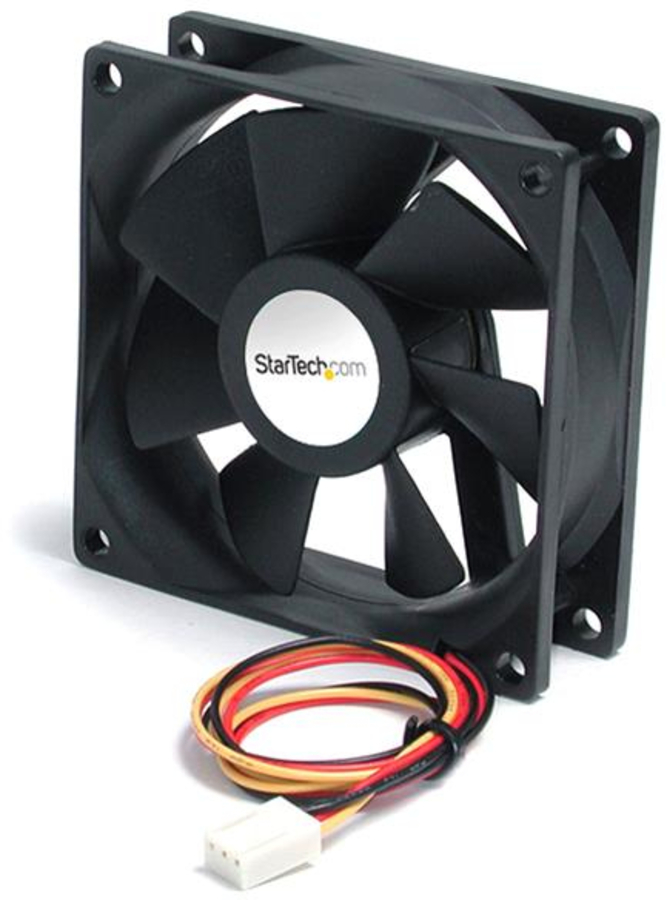

Add additional chassis cooling with a 60mm ball bearing fan
This 6x2cm replacement Fan helps keep your PC cool, in turn increasing dependability and extending component lifespan. The fan features an efficient ball-bearing design that provides durable cooling, and offers a Tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status. Ensuring broad compatibility, the 6x2cm fan includes a TX3 to LP4 adapter that lets you power the fan using an LP4 connection to the PSU as opposed to a motherboard TX3 connection. Designed to provide a reliable PC cooling solution, the replacement fan is backed by StarTech.com's 2-year warranty. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
6 cm |
|
Rotational speed (max) |
4500 RPM |
|
Noise level (high speed) |
28 dB |
|
Maximum airflow |
21.46 cfm |
|
Operating temperature (T-T) |
-10 - 80 °C |
|
Design |
|
Product colour |
Black |
|
Material |
Plastic |
|
Number of fans |
1 fan(s) |
|
Power |
|
Voltage |
12 V |
|
Weight & dimensions |
|
Width |
20 mm |
|
Depth |
60 mm |
|
Height |
60 mm |
|
Weight |
38 g |
|
Package width |
65 mm |
|
Package depth |
115 mm |
|
Package height |
35 mm |
|
Package weight |
67 g |
|
Technical details |
|
Bearing technology |
Ball bearing |
|
Compliance certificates |
RoHS |
|
Other features |
|
Dimensions (WxDxH) |
60 x 60 x 20 mm |
|
Connector(s) |
1 - TX3 Female |
|
Rotational speed |
4500 RPM |
|
Airflow |
22.1 |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
350 mm |
|
Master (outer) case length |
454 mm |
|
Master (outer) case height |
292 mm |
|
Products per master (outer) case |
200 pc(s) |
