General Information |
|
Summary |

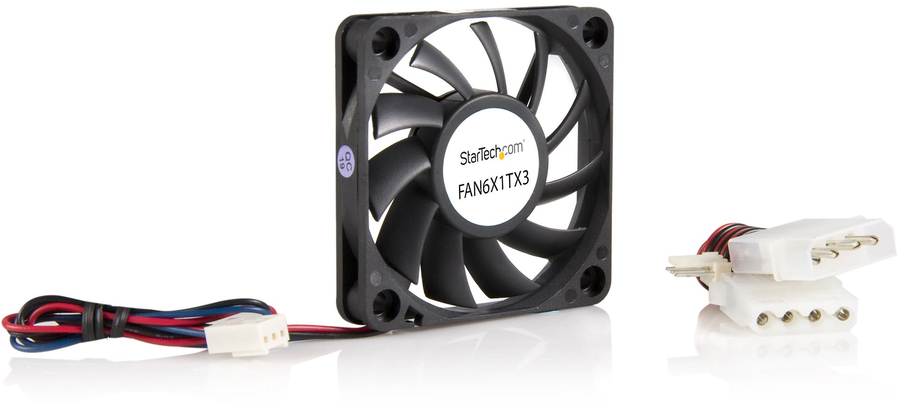

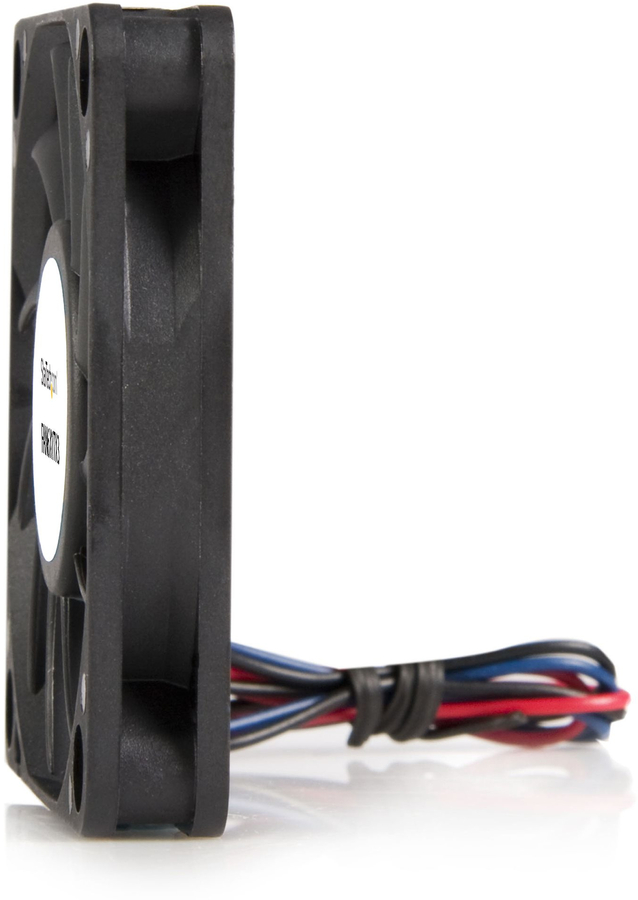

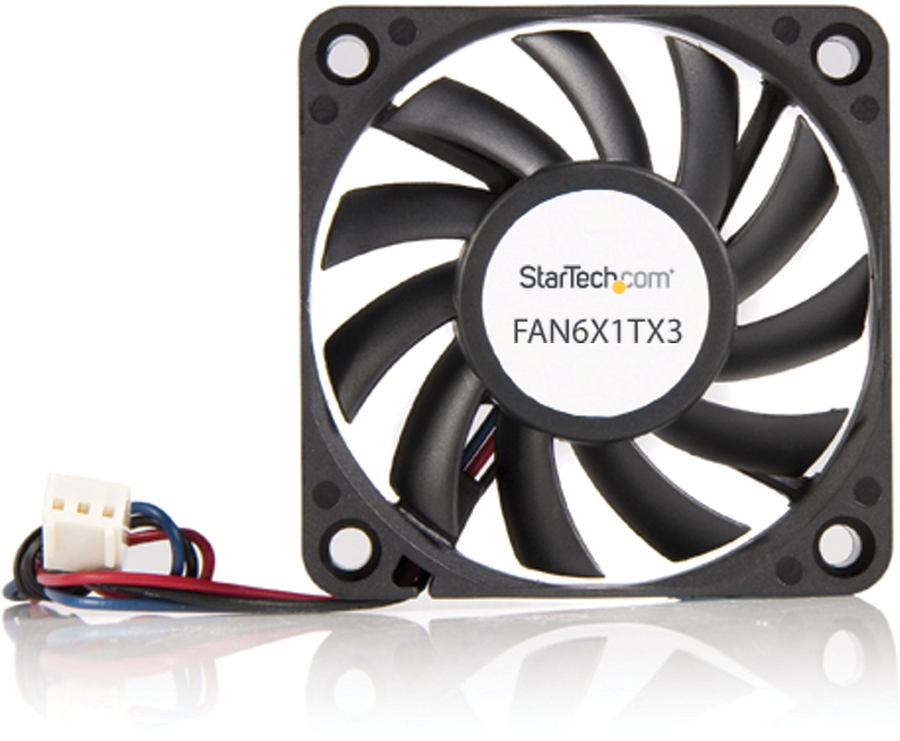

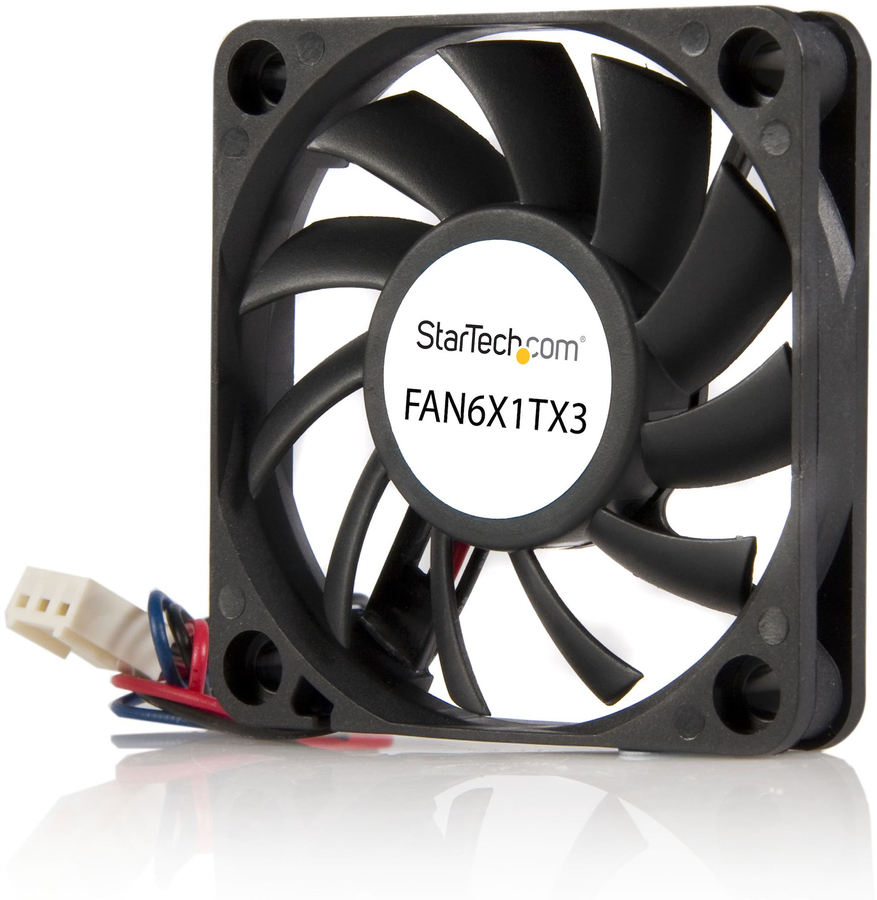

Add additional chassis cooling with a 60mm ball bearing fan
This versatile 60mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
6 cm |
|
Rotational speed (max) |
4000 RPM |
|
Noise level (high speed) |
28 dB |
|
Maximum airflow |
15.49 cfm |
|
Mean time between failures (MTBF) |
56.609 h |
|
Operating temperature (T-T) |
-10 - 80 °C |
|
Design |
|
Product colour |
Black |
|
Power |
|
Power consumption (typical) |
1.92 W |
|
Voltage |
12 V |
|
Weight & dimensions |
|
Width |
10 mm |
|
Depth |
60 mm |
|
Height |
60 mm |
|
Weight |
28 g |
|
Package width |
66 mm |
|
Package depth |
115 mm |
|
Package height |
32 mm |
|
Package weight |
48 g |
|
Technical details |
|
Bearing technology |
Ball bearing |
|
Compliance certificates |
RoHS |
|
Other features |
|
Connector(s) |
1 - TX3 Female |
|
Rotational speed |
4000 RPM |
|
Airflow |
15.9 |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
471 mm |
|
Master (outer) case length |
368 mm |
|
Master (outer) case height |
297 mm |
|
Products per master (outer) case |
200 pc(s) |
