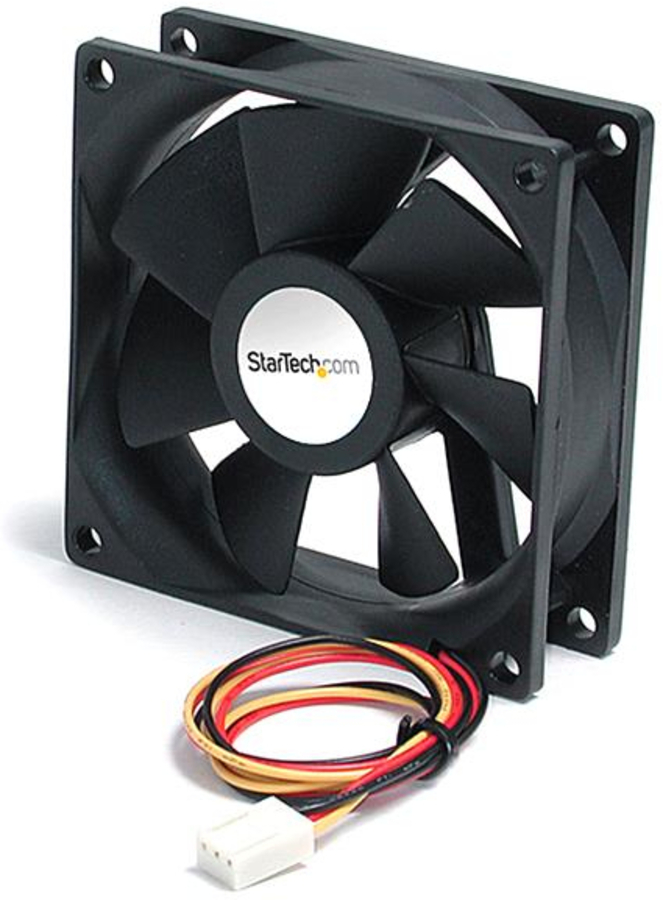

StarTech 92x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector
|
|
Price: $9.00
Manufacturer:
StarTech
StarTech.com 92x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector - 3 pin case Fan - TX3 Fan - 90mm Fan
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59446633
|
FAN9X25TX3L
|
65030788953 |
Active
|
Details
|
General Information |
|
Summary |
Add additional chassis cooling with a 92mm ball bearing fan
This quiet, dual ball-bearing (9.25cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC. Powered through a simple TX3 connection to the host computer power supply, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- A built-in tachometer allows for easy monitoring of the fan performance
- Backed by a StarTech.com 2-year warranty and free lifetime technical support |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
9.2 cm |
|
Rotational speed (max) |
1800 RPM |
|
Noise level (high speed) |
22 dB |
|
Maximum airflow |
31.84 cfm |
|
Mean time between failures (MTBF) |
50000 h |
|
Operating temperature (T-T) |
-10 - 80 °C |
|
Design |
|
Product colour |
Black |
|
Material |
Plastic |
|
Number of fans |
1 fan(s) |
|
Power |
|
Power consumption (typical) |
1.08 W |
|
Voltage |
12 V |
|
Weight & dimensions |
|
Width |
25 mm |
|
Depth |
92 mm |
|
Height |
92 mm |
|
Weight |
108 g |
|
Package width |
98 mm |
|
Package depth |
144 mm |
|
Package height |
34 mm |
|
Package weight |
98 g |
|
Technical details |
|
Bearing technology |
Ball bearing |
|
Compliance certificates |
RoHS |
|
Other features |
|
Dimensions (WxDxH) |
92 x 92 x 25 mm |
|
Connector(s) |
1 - TX3 Female |
|
Rotational speed |
1600 RPM |
|
Airflow |
35.7 |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
