General Information |
|
Summary |

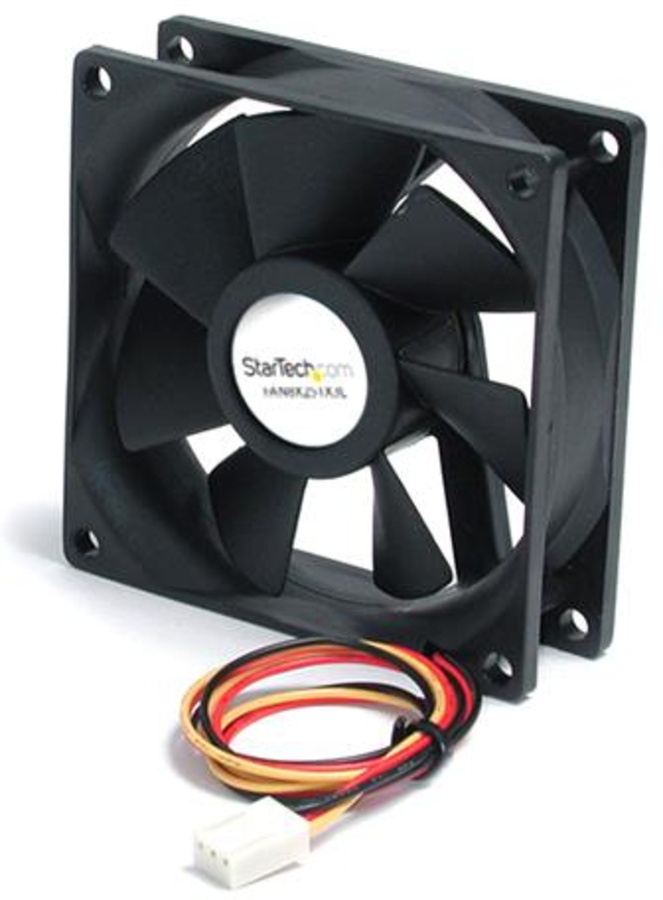

Add additional chassis cooling with a 80mm ball bearing fan
This quiet, dual ball-bearing (8cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC.
Powered through a simple TX3 connection to the host computer’s motherboard, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
8 cm |
|
Rotational speed (max) |
2000 RPM |
|
Noise level (high speed) |
27 dB |
|
Maximum airflow |
26.6 cfm |
|
Operating temperature (T-T) |
-10 - 80 °C |
|
Design |
|
Product colour |
Black |
|
Material |
Plastic |
|
Number of fans |
1 fan(s) |
|
Power |
|
Voltage |
12 V |
|
Weight & dimensions |
|
Width |
25 mm |
|
Depth |
80 mm |
|
Height |
80 mm |
|
Weight |
73 g |
|
Package width |
95 mm |
|
Package depth |
144 mm |
|
Package height |
34 mm |
|
Package weight |
98 g |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Other features |
|
Dimensions (WxDxH) |
80 x 80 x 25 mm |
|
Power requirements |
12 V |
|
Rotational speed |
2000 RPM |
|
Airflow |
26.6 |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
364 mm |
|
Master (outer) case length |
582 mm |
|
Master (outer) case height |
228 mm |
|
Products per master (outer) case |
100 pc(s) |
